6112 Assembled Front Coilovers
Estimated Delivery in 3-4 weeks
6112 Assembled Front Coilovers
Estimated Delivery in 3-4 weeks
Found it cheaper? We'll match it.
| Part Number | Position | Lift Height | Quantity |
|---|---|---|---|
| 47-347472 | Front | 0-3" | 1 |

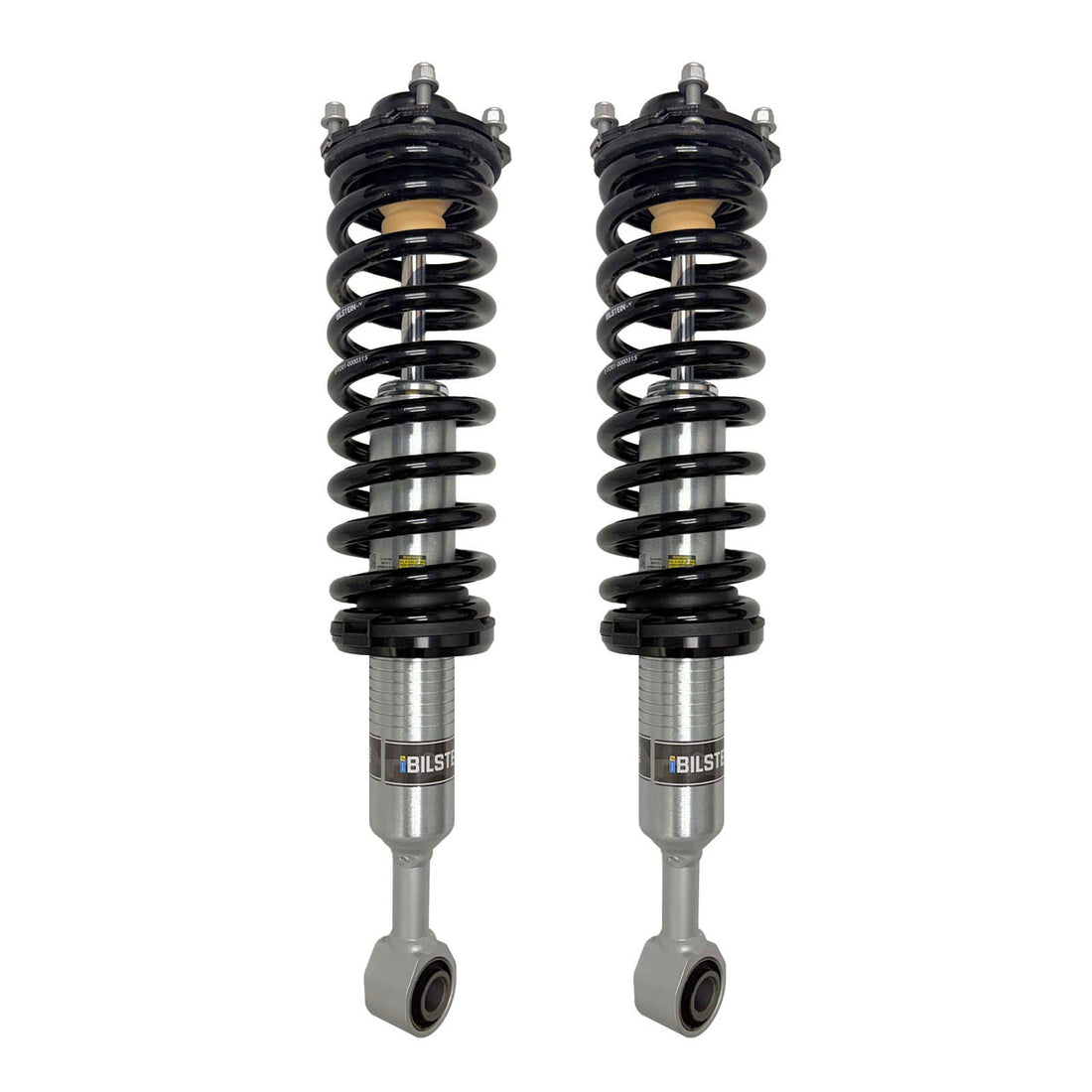

This Shock Surplus assembled Bilstein B8 6112 front pair combines Bilstein's large-body 6112 dampers and matched coil springs into a ready-to-install package. Pre-assembly removes the need to transfer or compress the front springs during installation, making the upgrade more convenient while retaining Bilstein's vehicle-specific damping and spring tuning.
The 60 mm monotube design provides strong body control and consistent performance for daily driving, overlanding, and off-road use. Each selectable configuration is built around the same 6112 platform, allowing customers to choose the vehicle and spring-seat setup that best matches their application.
| Year | Make | Model | Drive | Position | Lift |
| 2026 | Toyota | 4Runner | 4WD | Front | 0-3" |
| 2025 | Toyota | 4Runner | 4WD | Front | 0-3" |
Shock Surplus handles Bilstein's warranty claims; if you encounter a product defect please submit a warranty claim.
View Bilstein Warranty Information
For more information: View the Shock Surplus Warranty Policy.
Shipping Info
Free Shipping on most orders to the lower 48 U.S. states. Truck freight items (over 100 lbs) and custom orders require a separate shipping quote.
- Applies to items like axles, leaf springs, and long-travel kits.
- No international shipping on freight items — only to U.S.-based freight forwarders.
- Worldwide shipping available: Canada, Europe, UAE, Australia, and most of Asia.
Contact us for an international shipping quote.
Returns & Exchanges
30-Day Return Policy — Items must be new, unused, uninstalled, and include all original hardware.
- No restocking fees for exchanges or gift card credit.
- 10% restocking fee on refunds, returns cost us real money, so the 10% helps keep the lights on.
- Installed, damaged, or dirty parts cannot be returned.
- Any returns missing hardware or miscellaneous items, the return will be denied and returned to the buyer at the buyer's expense.
Return Shipping Responsibility
CHECKOUT+ Package and Order Protection plan provides prepaid return labels for any returned packages, this fee varies by product.
- Our mistake (misboxed, wrong item, damaged): We cover the cost of return shipping.
- Buyer mistake (wrong item ordered, fitment error, changed mind): Return shipping is the buyer's responsibility - unless CHECKOUT+ Package Protection has been purchased.
- Under 50 lbs: Discounted carrier rate
- Over 50 lbs: Discounted carrier rate + $25 oversize fee
Refunds
Refunds are issued within 5–7 business days of receiving your return.
- Funds typically post to your account in 1–3 business days depending on your payment method.
- There is a 10% restocking fee on all refunds. We don’t get our original shipping, labor, or transaction fees back — so the 10% restocking fee keeps the lights on.
- You will receive an email once your refund is processed.
International Orders
- All international orders are final sale.
- Returns via freight forwarders only accepted if the product hasn’t left the U.S.
- Import taxes, duties, and other possible import-related fees are the buyer’s responsibility and not included in our shipping charges.
- We are not responsible for goods once exported outside the U.S.
Why Shock Surplus
1,000,000+ Shocks Shipped
The Premier Suspension Specialists
Authorized Dealer
Brand New - Warranty Backed
Free Shipping
Orders Over $175 - Lower 48 States
30-Day Returns
Free Exchange on Qualified Orders
INFORMATION
Your 4Runner is brand new, and Toyota finally gave it a modern chassis. What it didn't give you is a front end built for the trail you bought it for. The factory struts are set up for the commute, the truck sits with a nose-down rake, and the first time you load it for a weekend the front gets soft over whoops and washboard. These Bilstein 6112s fix the stance and the damping in one part: a 2.6-inch monotube body with a 60mm digressive piston that carries far more oil than the strut it replaces. One catch on the 6th gen: Bilstein charts the i-FORCE MAX hybrid and the i-FORCE gas engine separately, and the same groove lifts them differently. Pick your engine first.
We take it one step further. The 6112 normally shows up as a box of loose parts: dampers, springs, spring seats, and circlips, with a note that says "spring compressor required." Bilstein's kit also reuses your factory upper mounts. We build them for you, at the height you choose, with new OE-spec upper mounts, so what shows up at your door is two finished coilovers ready to bolt in to your 4Runner, or save you a couple hours of labor at a shop.
How We Build Them
Every pair is built to order after you pick your engine and lift setting above. Here's what happens on our bench:
- Set the circlips. The 6112 body has a row of numbered grooves, and where the circlip sits decides your ride height. On the 2025+ 4Runner, Bilstein uses the same groove on both sides, but the lift depends on your engine. We set each coilover to the hybrid or non-hybrid column you ordered.
- Seat the billet spring perch. The anodized aluminum spring seat sits on the circlip and carries the spring.
- Compress and install the Bilstein spring. We use a mounted, shop-grade strut compressor. This is the step that makes DIYers nervous, for good reason: a coil spring under load stores a lot of energy.
- Fit a new OE-spec upper mount. Your truck is new, but Bilstein's kit still expects you to unbolt the factory mount and reuse it. We fit a new one instead, so nothing has to come off your factory struts.
- Torque, check, label. The top nut gets torqued to spec, each coilover is checked and marked driver or passenger, and the pair is boxed together.
Why Buy Them Assembled?
- No spring compressor. Rental "clamshell" compressors are the most dangerous tool most people will ever use in a driveway. You skip that part entirely.
- No mismatched sides. A common 6112 mistake is setting the two sides one groove apart by accident, which leaves the truck leaning. Ours are set and checked as a pair.
- New mounts included. The loose Bilstein kit reuses your factory upper mounts. Ours come with new ones.
- Faster install. Assembly is the slowest part of a coilover job. With that done, the job is removing two struts and bolting in two.
Bilstein doesn't approve every groove on every 4Runner, so we only build the settings in the dropdown. The hybrid keeps factory height at the lowest setting and goes up to 3.0". The non-hybrid i-FORCE sits lower from the factory, so the kit lifts it at every setting: 1.3" at the lowest, 3.0" at the top.
How to choose: Start with your engine. The i-FORCE MAX hybrid wears hybrid badging, and the engine is listed on your window sticker; the i-FORCE is the gas engine. Some grades come either way, so don't go by trim alone. Not sure? Send us your VIN. Then measure from the center of each wheel to the fender lip, front and rear. The difference is your rake. To level it on the stock rear springs, pick the setting for your engine closest to that number. Adding rear lift? Add it to the rake. Stuck between two? Call us with your measurements and we'll pick it with you: (213) 433-3616.
Matching the Rear: Bilstein 5100 or 5160?
The 6th-gen 4Runner keeps a coil-sprung solid rear axle, so rear height comes from the coil springs. The shock just has to cover the height you run. Bilstein makes two rears for it: the 5100 and the B8 6100.
The Bilstein 5100 (24-347433) is the default. It's a 46mm digressive monotube with a zinc-plated body, rated for up to 1.75" of rear lift. It's the right call if you're on the stock rear springs or a mild spring lift.
There's no 5160 for the 2025+ 4Runner. The step up is the B8 6100 (24-347440). It's the rear half of Bilstein's 6112 / 6100 system, with a larger body to match the front, covering the same rear height range as the 5100.
Run the 5100 if:
- You're on the stock rear springs, or a mild rear lift
- The truck is a daily driver that sees dirt roads and the occasional trail
- You want Bilstein control front and rear for the least money
Run the B8 6100 if:
- The rear carries real weight: a drawer system, a fridge, recovery gear
- You tow a small camper or trailer
- You want the rear damper body to match the 6112 front
When you need something else: More than 1.75" of rear lift, a TRD Pro or Trailhunter, or a truck with AVS? Call us and we'll size the rear to your setup: (213) 433-3616.
Shop the Bilstein 5100 Rear Pair for the 2025-2026 4Runner
Shop the Bilstein 6100 Rear Pair for the 2025-2026 4Runner
On the Road
Bilstein tunes for control first. Compared to the factory struts, expect a tighter front end: less dive under braking, flatter through corners, and one clean motion over a dip instead of a float and a rebound. Loaded for a trip, the nose holds its height instead of wallowing. If you want the softest possible ride, this isn't it, and we'd rather tell you now than after the install.
Off the Road
The 2.6-inch body holds more oil than the factory strut and sheds heat better, so damping stays consistent on a long washboard road instead of fading halfway to camp. The digressive piston stays firm on small, quick inputs and opens up on bigger hits. Pair the lift with the right tire and the 4Runner gets the clearance it was missing. The rear is a separate job; plan on a matching rear (see above).
The Honest Trade-Offs
- Not for the TRD Pro or Trailhunter. Neither is on Bilstein's fitment for 47-347472. Both come with their own factory off-road shocks.
- Not for Adaptive Variable Suspension. Bilstein lists this kit for trucks without AVS.
- The non-hybrid has no stock-height setting. Every i-FORCE setting lifts the truck, from 1.3" to 3.0".
- Your height is set when we build it. Changing it later means taking the coilover apart with a strut compressor. Measure before you order.
- Firmer than stock. See "On the Road" above.
- Built to order. Every pair is assembled for your truck, so it takes longer to ship than a box pulled off a shelf.
- The top settings change the alignment. Near 3", the factory upper control arms run at steeper angles. If your shop can't bring camber back into spec, aftermarket upper control arms fix it.
- Don't stack a spacer on top. A strut spacer on top of a 6112 pushes the front past what the factory arms and axles are built for.
Install Notes
- Fits 2025-2026 Toyota 4Runner 4WD: SR5, TRD Sport, TRD Sport Premium, TRD Off-Road, TRD Off-Road Premium, Limited and Platinum, with the i-FORCE or the i-FORCE MAX hybrid. Choose your engine above; the height settings are different for each.
- TRD Pro and Trailhunter owners: call us before ordering. Neither is on Bilstein's fitment for this kit.
- Adaptive Variable Suspension (AVS): not compatible. Not sure what your truck has? Send us your VIN.
- 2WD 4Runner: call us. Bilstein charts this kit for 4WD only.
- Bilstein's instructions call for recalibrating adaptive headlights after the install, if your truck has them.
- For a 2010-2024 4Runner, see our 2010-2024 4Runner assembled 6112 listing.
- Removing a strut spacer? Leave it off.
- Get an alignment right after install. Any lift changes camber and toe.
- Recheck the front height after the springs settle in over the first few hundred miles.
- Most people with a floor jack, jack stands, and a basic socket set can swap the pair in an afternoon. The heavy lifting is done.
Who Should Buy These
2025-2026 4Runner owners who want the rake gone, a little more clearance for tires, and a front end that stays composed loaded for a trip, without a spring compressor in the driveway. A strong fit for SR5 and TRD Off-Road builds headed for dirt, and for hybrid owners who want the lift without giving up stock height as an option.
VIDEO GALLERY
CUSTOMER REVIEWS
The Expert's Opinion
"Bilstein shocks aren't always the softest ride out there, but if you want precision handling, confidence at high speeds, and rock-solid stability under load, they're the best in the game.
They're built to perform. At Shock Surplus, we back every Bilstein we sell – because we know they won't let you down"
Questions? We've got answers
Bilstein shocks make your vehicle respond much better than stock shocks. Are they super soft and squishy on the road? No. They give you confidence because your truck or SUV reacts exactly how you expect when you steer or brake. That’s why we say 'Confidence through Control.' If you like having more control and a sportier feel while driving, Bilstein is the right choice. But if you want the same or more comfort than the soft factory shocks, we can recommend other options
Bilstein 5100 shocks can’t be adjusted for stiffness or rebound. But on some trucks and SUVs (like the Tacoma, F-150, or Tundra), they can adjust the front ride height. This lets you reuse your stock coil springs and still lift the front of your vehicle by up to 2.5 inches, depending on the model. Always check the product details for the exact fit on your vehicle
Click the 'Select Your Vehicle' button above the 'Add to Cart' button to make sure the shocks fit your exact vehicle. If needed, the site will send you to the right shocks for your ride. If your vehicle has been lifted, use the dropdown menu to pick the correct lift height. For example, if you have a Rough Country 6-inch lift kit, choose Front 4–6" and Rear 3–4" (the rear is usually smaller than the front). Still not sure? Our sales team is happy to help.
Bilstein shocks are one of the most durable and reliable shocks manufactured here in the USA. German engineering mixed with extreme abuse testing has resulted in a shock absorber that is designed to last 100,000 miles or more. We stand behind every Bilstein shock we sell and offer an expedited warranty process for any issues surrounding your purchase from Shock Surplus.
