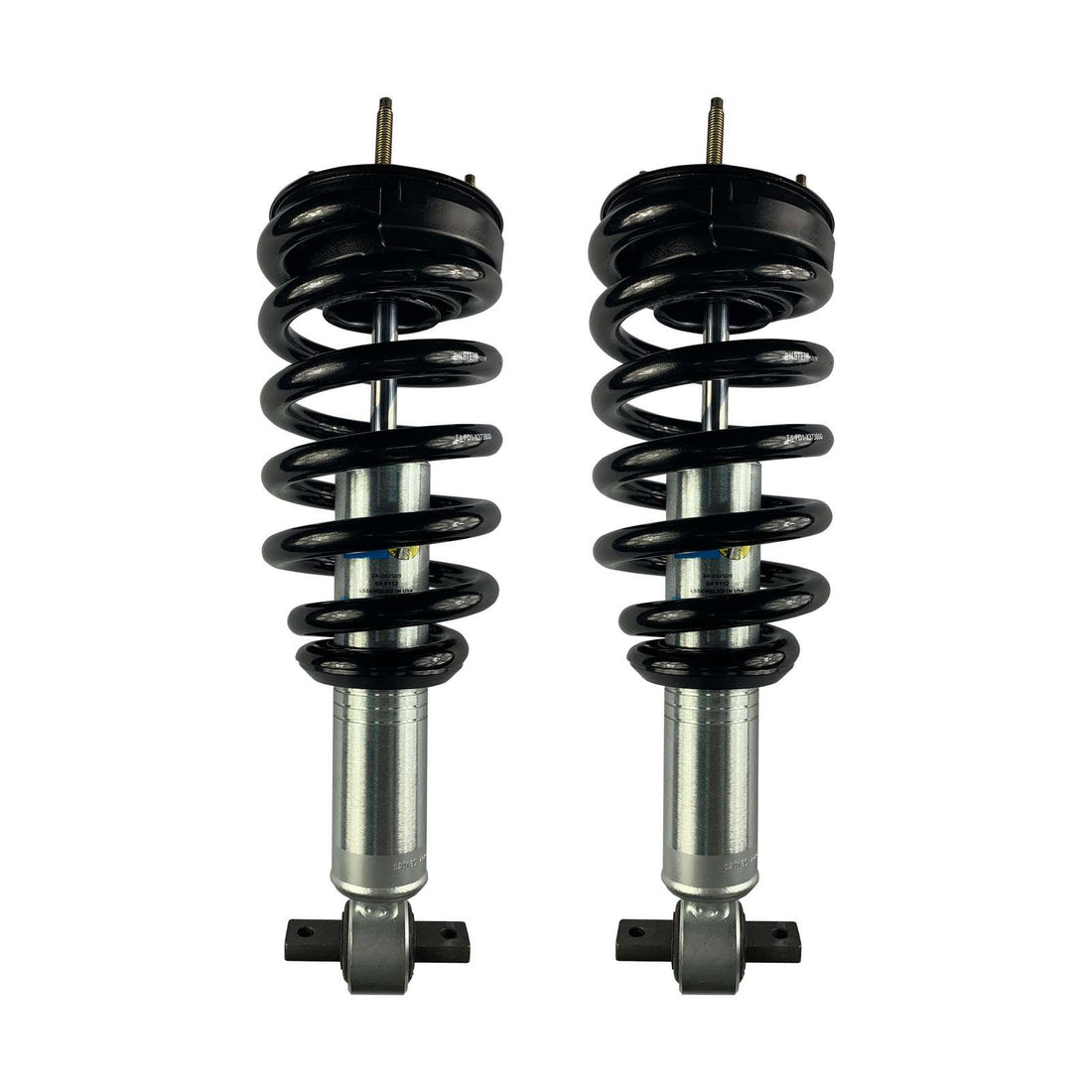

6112 Assembled Front Coilovers
Estimated Delivery in 4-6 weeks
6112 Assembled Front Coilovers
Estimated Delivery in 4-6 weeks
Found it cheaper? We'll match it.
| Part Number Options | Position | Item | Quantity |
|---|---|---|---|
| 47-325753 | Front | Coilover | 1 |
Shock Surplus has made your install easier with this fully assembled 6112 Coil & Spring kit. Bilstein's 6112 shock and spring package is designed for the adventure enthusiast wanting more out of their daily-driver or weekend ride. Extremely capable not only off-road, but also dramatically improves on-road handling characteristics and road feedback. The height adjustment of the 6112 kit allows the drive to remain at factory height, or to level out the front end of the vehicle for larger wheel and tire clearance. This Bilstein kit rivals 2.5" race-series shocks and coilovers from the competition, in an easily accessible performance package that can get you almost anywhere off-road.
| Year | Make | Model | Drive | Position |
| 2018 | GMC | Sierra 1500 | 4WD | Front |
| 2017 | GMC | Sierra 1500 | 4WD | Front |
| 2016 | GMC | Sierra 1500 | 4WD | Front |
| 2015 | GMC | Sierra 1500 | 4WD | Front |
| 2014 | GMC | Sierra 1500 | 4WD | Front |
Shock Surplus handles Bilstein's warranty claims; if you encounter a product defect please submit a warranty claim.
View Bilstein Warranty Information
For more information: View the Shock Surplus Warranty Policy.
Shipping Info
Free Shipping on most orders to the lower 48 U.S. states. Truck freight items (over 100 lbs) and custom orders require a separate shipping quote.
- Applies to items like axles, leaf springs, and long-travel kits.
- No international shipping on freight items — only to U.S.-based freight forwarders.
- Worldwide shipping available: Canada, Europe, UAE, Australia, and most of Asia.
Contact us for an international shipping quote.
Returns & Exchanges
30-Day Return Policy — Items must be new, unused, uninstalled, and include all original hardware.
- No restocking fees for exchanges or gift card credit.
- 10% restocking fee on refunds, returns cost us real money, so the 10% helps keep the lights on.
- Installed, damaged, or dirty parts cannot be returned.
- Any returns missing hardware or miscellaneous items, the return will be denied and returned to the buyer at the buyer's expense.
Return Shipping Responsibility
CHECKOUT+ Package and Order Protection plan provides prepaid return labels for any returned packages, this fee varies by product.
- Our mistake (misboxed, wrong item, damaged): We cover the cost of return shipping.
- Buyer mistake (wrong item ordered, fitment error, changed mind): Return shipping is the buyer's responsibility - unless CHECKOUT+ Package Protection has been purchased.
- Under 50 lbs: Discounted carrier rate
- Over 50 lbs: Discounted carrier rate + $25 oversize fee
Refunds
Refunds are issued within 5–7 business days of receiving your return.
- Funds typically post to your account in 1–3 business days depending on your payment method.
- There is a 10% restocking fee on all refunds. We don’t get our original shipping, labor, or transaction fees back — so the 10% restocking fee keeps the lights on.
- You will receive an email once your refund is processed.
International Orders
- All international orders are final sale.
- Returns via freight forwarders only accepted if the product hasn’t left the U.S.
- Import taxes, duties, and other possible import-related fees are the buyer’s responsibility and not included in our shipping charges.
- We are not responsible for goods once exported outside the U.S.
Why Shock Surplus
1,000,000+ Shocks Shipped
The Premier Suspension Specialists
Authorized Dealer
Brand New - Warranty Backed
Free Shipping
Orders Over $175 - Lower 48 States
30-Day Returns
Free Exchange on Qualified Orders
INFORMATION
A lifted Sierra should still drive like a Sierra. Plenty of lift kits for this truck trade away the quiet, planted feel you paid GMC for in exchange for height. Bilstein's 6112 gets you 1.85" to 2.75" of front lift and keeps the composure: Bilstein springs set the height, and a 2.6-inch monotube body with a 60mm digressive piston controls the added weight of bigger wheels and tires. Bilstein requires its upper control arms with this kit, so the front end is set up for the new height from the start.
We take it further than the box. Bilstein ships the 6112 as loose dampers, springs, spring seats and circlips with a "spring compressor required" note, and it reuses your factory upper mounts. We assemble each pair on our bench at the height you choose, add new OE-spec upper mounts, torque everything to spec and label each side. Your installer receives two finished coilovers and fits them alongside the upper control arms.
How We Build Them
Every pair is built to order after you choose your setting above. On our bench:
- Set the circlips. The 6112 body has a row of numbered grooves, and where the circlip sits decides your ride height. On the Sierra, Bilstein uses the same groove on both sides. We set each coilover to the setting you ordered.
- Seat the billet spring perch. The anodized aluminum spring seat sits on the circlip and carries the spring.

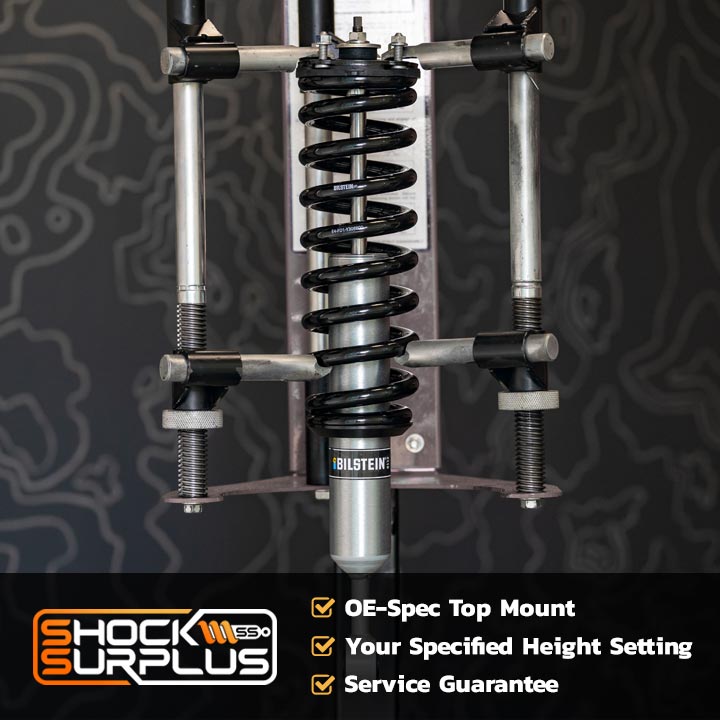

- Compress and install the Bilstein spring. We use a mounted, shop-grade strut compressor. This is the step that makes DIYers nervous, for good reason: a coil spring under load stores a lot of energy.
- Install a new OE-spec upper mount. The rubber in your factory mounts has been soaking up every pothole since the truck left the factory. Reusing tired mounts on fresh coilovers is like putting new tires on bent wheels. New mounts come on every build.
- Torque, check, label. The top nut gets torqued to spec, each coilover is checked and marked driver or passenger, and the pair is boxed together.
Why Buy Them Assembled?
- Less shop time. Your installer fits two finished coilovers and the upper arms. No spring compressor and no setting circlips on your truck.
- Level side to side. Both coilovers are set to the same groove and checked before they're boxed.
- New mounts included. The loose Bilstein kit reuses your factory upper mounts. Ours come with new ones.
- Everything new at once. Dampers, springs, upper mounts and, with Bilstein's arms, new upper ball joints. Nothing worn is left in the front corners to undo the upgrade.
Bilstein approves three settings for this kit on the 2014-2018 Sierra: 1.85", 2.3" and 2.75". We build only those. Bilstein requires its upper control arms at every setting, and this kit isn't listed for trucks with Magnetic Ride Control, which GMC made standard on the Denali from 2015. A 2014 Denali is fine. If you'd rather level the truck than lift it, our factory height to 1.85" Sierra 6112 listing is the one.
How to choose: Decide on the stance first. On the factory rear springs, #1 (1.85") sits closest to level. #2 and #3 lift the nose above the tail unless the rear is raised to match, which your installer can do with an add-a-leaf or blocks. Measure from the center of each wheel to the fender lip, front and rear, add any planned rear lift, and choose the closest setting. Denali owner, or not sure whether your truck has Magnetic Ride? Send us your VIN before you order.
Matching the Rear: Bilstein 5100 or 5160?
Match the rear to the height you choose. If the rear comes up 1-2" so the truck sits level, it needs a longer shock than the one that pairs with our leveling kit. The Sierra rear is a leaf-sprung solid axle; rear height comes from the leaf pack, and the shock only has to cover that height. Bilstein builds both a 5100 and a 5160 for it.
The Bilstein 5100 (24-285896) is the match for a raised rear. Bilstein rates it for 2" of rear lift (26.2" extended, 16.57" compressed, 9.63" of travel), with the same 46mm digressive monotube feel as the front. If the rear stays at factory height, the 0-1" 5100 (33-238319) is the one.
The Bilstein 5160 (25-311297) is for towing. Its remote reservoir carries more oil, so damping stays consistent on a long pull with a boat or travel trailer. It covers factory height up to 2" of rear lift (26.33" extended, 16.12" compressed, 10.21" of travel).
Run the 5100 if:
- The rear is raised up to 2" (24-285896), or stays at factory height (33-238319)
- The truck is mostly highway and town, with a trailer now and then
- You want the same Bilstein feel front and rear
Run the 5160 if:
- You tow a boat or travel trailer regularly
- You carry weight in the bed
- You drive long gravel or washboard roads to the lake or the ranch
When you need something else: More than 2" of rear lift needs a longer shock. Bilstein's 5100 for 4" of rear lift (24-285902) is on our lifted-rear listing; for anything in between, call us and we'll size one: (213) 433-3616.
Shop the Bilstein 5100 Lifted Rear Pair for the 2014-2018 Sierra 1500 (2" and 4")
Shop the Bilstein 5100 Rear Pair for the 2014-2018 Sierra 1500 (factory height to 1")
Shop the Bilstein 5160 Rear Pair for the 2014-2018 Sierra 1500
On the Road
Bilstein tunes for control first, and you feel it most at highway speed. The nose stays level under braking, the truck takes sweepers flatter, and an expansion joint gets one clean movement instead of a float. It is firmer than a new factory strut and gives up a little isolation over sharp edges. What you get back is a lifted truck that still feels tied down, with or without a trailer. If a soft, floating ride matters most, the 6112 isn't the right part, and we'd rather say so now.
Off the Road
Most lifted Sierras see gravel, ranch roads and the trailhead rather than rock trails. The 2.6-inch body earns its keep there: more oil than the factory strut, better heat control on long washboard stretches, and a digressive piston that is firm on small inputs and opens up on bigger hits. The added height buys room for a larger tire. Pair it with a rear shock sized for your rear height (see above).
The Honest Trade-Offs
- Upper control arms are part of the job. Bilstein requires them. Budget for the Bilstein B8 control arm kit and the labor to fit it.
- Not for trucks with Magnetic Ride Control. That includes every 2015-2018 Denali.
- No factory-height setting. The lowest setting is 1.85". For a level stance instead, see our factory height to 1.85" kit.
- Firmer than factory. See "On the Road" above.
- Plan the rear. At 2.3" and 2.75" the nose sits higher than the tail unless the rear is raised to match.
- Your height is set when we build it. Changing it later means taking the coilover apart with a strut compressor. Measure before you order.
- Built to order. Every pair is assembled for your truck, so it takes longer to ship than a box pulled off a shelf.
Install Notes
- Fits 2014-2018 GMC Sierra 1500 4WD with the 5.3L or 6.2L V8, Crew Cab or Double Cab, without Magnetic Ride Control.
- Requires aftermarket upper control arms. Bilstein B8 kit 51-304676 or 51-304669, depending on the factory arms on your truck. We'll confirm which from your VIN or a photo.
- Not for 2015-2018 Denali (Magnetic Ride Control standard), 2WD, the 4.3L V6, or Regular Cab. A 2014 Denali is fine.
- For a 2019 or newer Sierra 1500, you need a different kit: see our 2019-2026 Sierra 1500 assembled 6112 listing, or the AT4 version.
- Having it installed? Quote it as a front strut and upper control arm job: two finished coilovers and two arms, no spring compressor, then an alignment. Experienced home mechanics can do it with a floor jack, jack stands, a socket set and a ball joint separator.
- Get an alignment the same day. The new height and the new arms both change camber and toe.
- Recheck the front height after the springs settle in over the first few hundred miles.
Who Should Buy These
Sierra owners who want real lift and bigger tires without giving up the way the truck drives: composed at speed, steady with a trailer, quiet over broken pavement. Ideal for SLE, SLT and 2014 Denali trucks headed to a shop for the full front end: coilovers, Bilstein arms and an alignment, done once.
