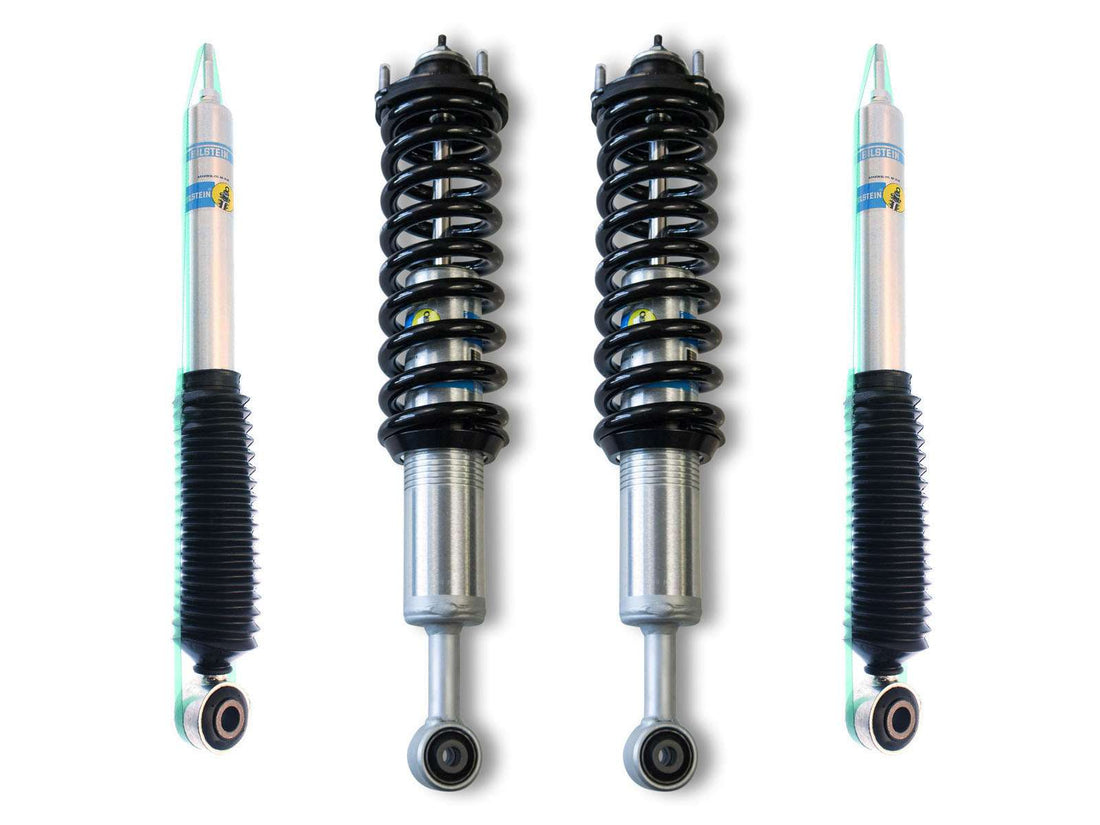

Package Contains 2 Assembled coilovers and 2 Rear Shocks
Front pair of two Coilover assemblies with matched rear pair of two shocks.Bilstein
6112 Assembled Set includes 5100/5160 Shocks
2010-2023 Lexus GX460 AWD
$1,299.00
1
Estimated Delivery in 8-12 weeks
Custom Order
This Lift Kit is built to your personal vehicle specs and will be pieced together for you based on your product choices.
Estimated time to deliver will vary from 8-12 weeks.
Springs and assembly are an additional option and cost.
Any changes to the default selections in the drop down menus will either upgrade your shocks or add additional parts to your build (control arms, springs, etc.). By default, those additional parts and upgrades are not selected. All additional options have their associated change in prices.
Bilstein
6112 Assembled Set includes 5100/5160 Shocks
2010-2023 Lexus GX460 AWD
$1,299.00
1
Estimated Delivery in 8-12 weeks
Got Questions?
Our experts are here to help!
Part Numbers & Details
Bilstein Limited Lifetime Warranty
Manufacturer Warranty protects against defects and premature failure.Choose Your Vehicle Spec & Lift Setting Above

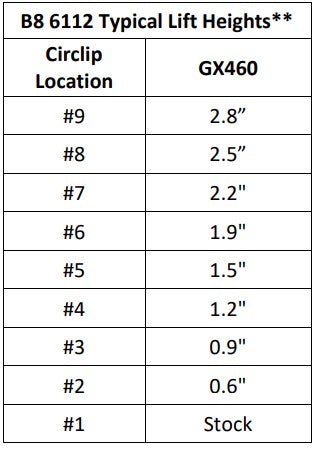

To decide which Circlip location is right for your application, refer to table provided as an image. Make a selection from the drop-down menus above to choose your desired combination.Designed for AWD vehicles
This product only works for AWD vehicles.Install Ready

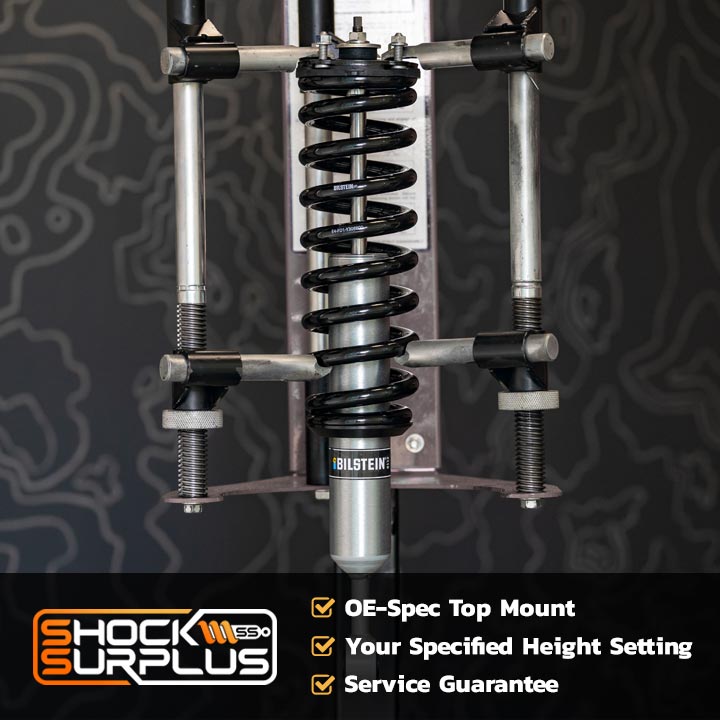

Strut & spring assembled, ready for installation. No Coil Spring Compressor required.Specifications
Choose either the Rear 5100 or Rear 5160 shock option above.
| Part Number | Position | Item | Quantity | Extended Length | Compressed Length | Travel | Top Mount | Bottom Mount | Reservoir | Color | Finish | Boot Included | Internal Design |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47-310025 | Front | 6112 Coilover | 1 | ||||||||||
| 33-313146 | Rear | 5100 Shock Absorber | 2 | 23.5" | 14.91" | 8.59" | STEM | EYELET | No | Silver | Zinc Plated | Black Bellows | Monotube |
| 25-311211 | Rear | 5160 Shock Absorber | 1 | 23.50" | 14.50" | 9.00" | STEM | EYELET | Yes | Silver | Zinc Plated | Black Bellows | Monotube |
| 25-325096 | Rear | 5160 Shock Absorber | 1 | 23.50" | 14.50" | 9.00" | STEM | EYELET | Yes | Silver | Zinc Plated | Black Bellows | Monotube |
Product Details
Shock Surplus has made your install easier with this fully assembled 6112 Coil & Spring kit. Bilstein's 6112 shock and spring package is designed for the adventure enthusiast wanting more out of their daily-driver or weekend ride. Extremely capable not only off-road, but also dramatically improves on-road handling characteristics and road feedback. The height adjustment of the 6112 kit allows the drive to remain at factory height, or to level out the front end of the vehicle for larger wheel and tire clearance. This Bilstein kit rivals 2.5" race-series shocks and coilovers from the competition, in an easily accessible performance package that can get you almost anywhere off-road. The 5100 monotube design and patented digressive valving is uniquely suited to confront these demands. On or off-road, loaded or unloaded, Bilstein shocks instantly react to changing road inputs to maintain a stable, controlled, and comfortable ride. Bilstein's superior monotube high gas pressure design allows the excessive heat from the oil to transfer to the outer surface of the shock body and dissipate more efficiently. The dividing piston also permits the oil to expand as heat builds, preventing aeration (foaming) and viscosity loss. This allows the shock to maintain full damping characteristics as temperatures rise.
Compatibility List
| Year | Make | Model | Drive | Position |
| 2023 | Lexus | GX460 | AWD | Front & Rear |
| 2022 | Lexus | GX460 | AWD | Front & Rear |
| 2021 | Lexus | GX460 | AWD | Front & Rear |
| 2020 | Lexus | GX460 | AWD | Front & Rear |
| 2019 | Lexus | GX460 | AWD | Front & Rear |
| 2018 | Lexus | GX460 | AWD | Front & Rear |
| 2017 | Lexus | GX460 | AWD | Front & Rear |
| 2016 | Lexus | GX460 | AWD | Front & Rear |
| 2015 | Lexus | GX460 | AWD | Front & Rear |
| 2014 | Lexus | GX460 | AWD | Front & Rear |
| 2013 | Lexus | GX460 | AWD | Front & Rear |
| 2012 | Lexus | GX460 | AWD | Front & Rear |
| 2011 | Lexus | GX460 | AWD | Front & Rear |
| 2010 | Lexus | GX460 | AWD | Front & Rear |
Shock Surplus handles Bilstein's warranty claims; if you encounter a product defect please submit a warranty claim.
View Bilstein Warranty Information
For more information: View the Shock Surplus Warranty Policy.
Shipping Info
Free Shipping on most orders to the lower 48 U.S. states. Truck freight items (over 100 lbs) and custom orders require a separate shipping quote.
- Applies to items like axles, leaf springs, and long-travel kits.
- No international shipping on freight items — only to U.S.-based freight forwarders.
- Worldwide shipping available: Canada, Europe, UAE, Australia, and most of Asia.
Contact us for an international shipping quote.
Returns & Exchanges
30-Day Return Policy - Items must be new, unused, uninstalled, and include all original hardware.
- No restocking fees for exchanges or gift card credit.
- 10% restocking fee on refunds, returns cost us real money, so the 10% helps keep the lights on.
- Installed, damaged, or dirty parts cannot be returned.
Return Shipping Responsibility
Shock Surplus Package and Order Protection plan provides prepaid return labels for any returned packages, this fee varies by product.
- Our mistake (misboxed, wrong item, damaged): We cover the cost of return shipping.
- Your mistake (wrong item ordered, fitment error, changed mind): Return shipping is your responsibility.
- Under 50 lbs: Discounted carrier rate (deducted from your refund).
- Over 50 lbs: Discounted carrier rate + $25 oversize fee (deducted).
Refunds
Refunds are issued within 5-7 business days of receiving your return.
- Funds typically post to your account in 1-3 business days depending on your payment method.
- There is a 10% restocking fee on all refunds. We do not get our original shipping, labor, or transaction fees back - so the 10% restocking fee keeps the lights on.
- You will receive an email once your refund is processed.
International Orders
- All international orders are final sale.
- Returns via freight forwarders only accepted if the product has not left the U.S.
- Import taxes and fees are the buyer's responsibility and not included in our shipping charges.
- We are not responsible for goods once exported outside the U.S.
Why Shock Surplus
1,000,000+ Shocks Shipped
The Premier Suspension Specialists
Authorized Dealer
Brand New - Warranty Backed
Free Shipping
Orders Over $250 - Lower 48 States
30-Day Returns
Free Exchange on Qualified Orders
INFORMATION
Shock Surplus has made your install easier with this fully assembled 6112 Coil & Spring kit. Bilstein's 6112 shock and spring package is designed for the adventure enthusiast wanting more out of their daily-driver or weekend ride. Extremely capable not only off-road, but also dramatically improves on-road handling characteristics and road feedback. The height adjustment of the 6112 kit allows the drive to remain at factory height, or to level out the front end of the vehicle for larger wheel and tire clearance. This Bilstein kit rivals 2.5" race-series shocks and coilovers from the competition, in an easily accessible performance package that can get you almost anywhere off-road. The 5100 monotube design and patented digressive valving is uniquely suited to confront these demands. On or off-road, loaded or unloaded, Bilstein shocks instantly react to changing road inputs to maintain a stable, controlled, and comfortable ride. Bilstein's superior monotube high gas pressure design allows the excessive heat from the oil to transfer to the outer surface of the shock body and dissipate more efficiently. The dividing piston also permits the oil to expand as heat builds, preventing aeration (foaming) and viscosity loss. This allows the shock to maintain full damping characteristics as temperatures rise.
VIDEO GALLERY
CUSTOMER REVIEWS
Bilstein Upgrade
The Bilsteins were purchased to replace some worn Rough Country N3s. The installation was straightforward with no difficulties. I also replaced the steering stabilizer with the matching one from Bilstein. The overall ride improvement feels solid. It is firm but smooth.
Verified Buyer
Making the Greatest Truck Even Greater
Put these on my 2014 Tundra. Noticeable difference especially at high speed and washboard gravel. For under $1000, can't go wrong
Verified Buyer
Like a new truck.
I didn’t realize how bad my suspension was till I put the Bilsteins on. Had Ranchos and these are sooo much better. Quick shipping. Decent price. Great product.
Verified Buyer
The Expert's Opinion
"Bilstein shocks aren't always the softest ride out there, but if you want precision handling, confidence at high speeds, and rock-solid stability under load, they're the best in the game.
They're built to perform. At Shock Surplus, we back every Blistein we sell – because we know they won't let you down"
Sean
Shock Surplus Founder
15+ years experience
Custom Build
This Lift Kit is built to your personal vehicle specs and will be pieced together for you based on your product choices.
Estimated time to deliver will vary from 8-12 weeks.
Springs and assembly are an additional option and cost.
Any changes to the default selections in the drop down menus will either upgrade your shocks or add additional parts to your build (control arms, springs, etc.). By default, those additional parts and upgrades are not selected. All additional options have their associated change in prices.
Contact Us
Questions? We've got answers
Bilstein shocks make your vehicle respond much better than stock shocks. Are they super soft and squishy on the road? No. They give you confidence because your truck or SUV reacts exactly how you expect when you steer or brake. That’s why we say 'Confidence through Control.' If you like having more control and a sportier feel while driving, Bilstein is the right choice. But if you want the same or more comfort than the soft factory shocks, we can recommend other options
Bilstein 5100 shocks can’t be adjusted for stiffness or rebound. But on some trucks and SUVs (like the Tacoma, F-150, or Tundra), they can adjust the front ride height. This lets you reuse your stock coil springs and still lift the front of your vehicle by up to 2.5 inches, depending on the model. Always check the product details for the exact fit on your vehicle
Click the 'Select Your Vehicle' button above the 'Add to Cart' button to make sure the shocks fit your exact vehicle. If needed, the site will send you to the right shocks for your ride. If your vehicle has been lifted, use the dropdown menu to pick the correct lift height. For example, if you have a Rough Country 6-inch lift kit, choose Front 4–6" and Rear 3–4" (the rear is usually smaller than the front). Still not sure? Our sales team is happy to help.
Bilstein shocks are one of the most durable and reliable shocks manufactured here in the USA. German engineering mixed with extreme abuse testing has resulted in a shock absorber that is designed to last 100,000 miles or more. We stand behind every Bilstein shock we sell and offer an expedited warranty process for any issues surrounding your purchase from Shock Surplus.
