Bilstein

6112 Front Shock and Spring Kit

2019-2023 Ford Ranger 4WD & 2WD
$923.00 $965.00 2 customer reviews
Sale Price


Estimated Delivery in 8-12 weeks
Bilstein 47-294301 6112 Shock and Spring Kit

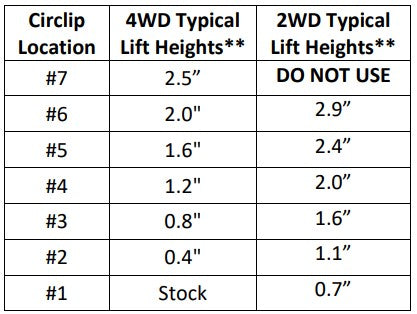

Bilstein 47-294301 Circlip Height Settings 2019-2023 Ranger
Bilstein 6112 Front Shock and Spring Kit 47-294301 for 2019-2023 Ford Ranger 4WD & 2WD
Bilstein 6112 Front Shock and Spring Kit 47-294301 for 2019-2023 Ford Ranger 4WD & 2WD
Custom Order
Current ETA from Bilstein is up to 8-12 weeks, often faster.If your needs are time sensitive, please contact us prior to purchasing to get up-to-date assembly and delivery times.
Bilstein

6112 Front Shock and Spring Kit

2019-2023 Ford Ranger 4WD & 2WD
$923.00 $965.00 2 customer reviews
Sale Price


Estimated Delivery in 8-12 weeks

Found it cheaper? We'll match it.

Price Match Guarantee

We want you to buy from Shock Surplus with confidence. If you find a lower price on the same part number(s) from an authorized dealer, we'll match it.

View our Price Match Policy

Authorized dealer
Free shipping on orders above $250 within the lower 48 United States
Brand new parts with warranty coverage
Free 30-day return and exchange on qualifying orders
Got Questions?
Our experts are here to help!
Part Numbers & Details
Package Contains 2 Front Shocks, 2 Coil Springs, and 2 Coil Spring Seats
Kit includes two front shocks, two coil spring seats, and two coil springs. Coil spring compressor required for installation.
Bilstein Limited Lifetime Warranty
Manufacturer Warranty protects against defects and premature failure.
Front height adjustment from 0.7-2.9"
Front height adjustment from 0.7-2.9" using the included coil spring collar and adjustable circlip.
Designed for RWD vehicles
This product only works for RWD vehicles.
Coil-Spring Compressor Required
Strut & spring not assembled, coil-spring compressor required for installation. Front height adjustment is achieved by multiple coil-spring collar settings, lifting the vehicle up to specified height.
Specifications
Part NumberLift/LoweredPositionItemQuantity
47-2943010.7-2.9" LiftFrontCoilover1
Product Details

Bilstein's 6112 shock and spring package is designed for the adventure enthusiast wanting more out of their daily-driver or weekend ride. Extremely capable not only off-road, but also dramatically improves on-road handling characteristics and road feedback. The height adjustment of the 6112 kit allows the drive to remain at factory height, or to level out the front end of the vehicle for larger wheel and tire clearance. This Bilstein kit rivals 2.5" race-series shocks and coilovers from the competition, in an easily accessible performance package that can get you almost anywhere off-road.

Compatibility List
YearMakeModelDrivePositionLift
2023FordRangerRWDFront0.7-2.9"
2022FordRangerRWDFront0.7-2.9"
2021FordRangerRWDFront0.7-2.9"
2020FordRangerRWDFront0.7-2.9"
2019FordRangerRWDFront0.7-2.9"

Shock Surplus handles Bilstein's warranty claims; if you encounter a product defect please submit a warranty claim.

View Bilstein Warranty Information

For more information: View the Shock Surplus Warranty Policy.

Shipping Info

Free Shipping on most orders to the lower 48 U.S. states. Truck freight items (over 100 lbs) and custom orders require a separate shipping quote.

  • Applies to items like axles, leaf springs, and long-travel kits.
  • No international shipping on freight items — only to U.S.-based freight forwarders.
  • Worldwide shipping available: Canada, Europe, UAE, Australia, and most of Asia.

Contact us for an international shipping quote.

Returns & Exchanges

30-Day Return Policy — Items must be new, unused, uninstalled, and include all original hardware.

  • No restocking fees for exchanges or gift card credit.
  • 10% restocking fee on refunds, returns cost us real money, so the 10% helps keep the lights on.
  • Installed, damaged, or dirty parts cannot be returned.
  • Any returns missing hardware or miscellaneous items, the return will be denied and returned to the buyer at the buyer's expense.

Need help? Use Live Chat or Email Us anytime.

Start a Return or Exchange

Return Shipping Responsibility

CHECKOUT+ Package and Order Protection plan provides prepaid return labels for any returned packages, this fee varies by product.

  • Our mistake (misboxed, wrong item, damaged): We cover the cost of return shipping.
  • Buyer mistake (wrong item ordered, fitment error, changed mind): Return shipping is the buyer's responsibility - unless CHECKOUT+ Package Protection has been purchased.

  • Under 50 lbs: Discounted carrier rate
  • Over 50 lbs: Discounted carrier rate + $25 oversize fee

Refunds

Refunds are issued within 5–7 business days of receiving your return.

  • Funds typically post to your account in 1–3 business days depending on your payment method.
  • There is a 10% restocking fee on all refunds. We don’t get our original shipping, labor, or transaction fees back — so the 10% restocking fee keeps the lights on.
  • You will receive an email once your refund is processed.

International Orders

  • All international orders are final sale.
  • Returns via freight forwarders only accepted if the product hasn’t left the U.S.
  • Import taxes, duties, and other possible import-related fees are the buyer’s responsibility and not included in our shipping charges.
  • We are not responsible for goods once exported outside the U.S.

Why Shock Surplus

1,000,000+ Shocks Shipped

The Premier Suspension Specialists

Authorized Dealer

Brand New - Warranty Backed

Free Shipping

Orders Over $175 - Lower 48 States

30-Day Returns

Free Exchange on Qualified Orders

INFORMATION

The 2019-2023 Ranger is a great mid-size truck with a front end that runs out of answers early. The factory struts are soft, the nose sits low, and once you add a 33" tire or a bumper the front starts diving and wallowing on every dirt road. This kit replaces the struts with Bilstein 6112s: a 2.6-inch monotube with a 60mm digressive piston (far more oil than the factory strut) and a 600 lb/in spring matched to the truck. The circlip grooves set the front from stock height to 2.5" on a 4WD, and from 0.7" to 2.9" on a 2WD.

This is the kit as Bilstein ships it, for the 4WD or 2WD owner who has a shop lined up or the tools to set it up himself. One box fits both; the chart tells you which groove gives what on your truck.

What's in the Box

This is the 6112 the way Bilstein ships it: a box of parts that you, or your shop, put together at the height you choose. Here is what comes in it:

  • 2 Bilstein 6112 dampers. 2.6-inch monotube body, 60mm digressive piston, with a row of numbered circlip grooves on the body.
  • 2 Bilstein coil springs. 600 lb/in, matched to the Ranger, not to the factory strut.
  • 2 billet aluminum spring seats and the circlips. The circlip goes in the groove you pick, and the spring seat sits on it.
  • Mounting hardware. A rod adapter, a new M12 rod locknut, and new lower T-bar bolts with flange locknuts. Your factory top mount and spring isolator go back on, and so does the factory jounce bumper (its dust boot is discarded).

Setting Your Height

Your drivetrain and the circlip groove decide your ride height. Here's the order of work:

  • Find your column. 4WD or 2WD. The 2WD sits lower from the factory, so the same groove lifts it more.
  • Pick your groove. Find your vehicle's column on the height chart and choose a setting. Bilstein uses the same groove on both sides.
  • Seat the circlips. Snap one into that groove on each damper and make sure it is fully seated all the way around. Bilstein warns that a half-seated circlip will damage the shock.
  • Spring seat, then spring. Drop the spring seat onto the circlip, then the Bilstein spring onto the seat.
  • Compress the spring and fit the factory top mount. Respect this step: a coil spring under load stores a lot of energy. Don't rent anything sketchy. A shop with a mounted, shop-grade strut compressor does each side in minutes. Press the factory top mount and isolator together over the stud and torque the new rod locknut to 45 Nm (34 lb-ft), holding the rod with a 7mm wrench. Bilstein says no impact wrench.
  • Check both sides match before they go in the truck. One groove off from side to side and the front sits crooked.
  • Use the new lower T-bar bolts and flange locknuts from the box and torque them to 90 Nm (66 lb-ft). Bilstein says don't reuse the factory locknuts.

Want it assembled? We don't list a built-to-height Ranger pair yet. A suspension shop with a mounted strut compressor can set both sides from the chart while the truck is on the lift. Call us and we'll talk through the setup with you or your shop.

Bilstein doesn't approve every groove on both trucks. 4WD: stock at #1 to 2.5" at #7, all seven grooves. 2WD: 0.7" at #1 to 2.9" at #6; don't use #7. There's no stock setting on the 2WD.

How to choose: Park on flat ground and measure from the center of each wheel to the fender lip, front and rear. Front minus rear is your rake. In your column, pick the groove closest to that number. Adding an add-a-leaf? Add that rear lift first. Steel bumper or winch? Go one groove higher. Stuck between two? Call us with your numbers: (213) 433-3616.

Matching the Rear: Bilstein 5100 or 5160?

The Ranger rear is a solid axle on leaf springs. The leaf pack sets the rear height and the shock only has to cover it. New struts up front and tired shocks out back make the rear the part that bucks. Add a Bilstein rear in the Rear Shock option.

Bilstein 5100 (24-294225): the default. Stock height up to 1" of rear lift. 46mm digressive piston, zinc-plated monotube.

Bilstein 5160 (25-316940): the reservoir version. Stock up to 2" of rear lift. The remote reservoir holds more oil, so it runs cooler with a camper on the hitch or a long washboard road under you.

Run the 5100 if:

  • The rear is on the stock leaf pack, or up to 1" over
  • It's a daily driver that sees dirt roads
  • You want Bilstein at both ends for the least money

Run the 5160 if:

  • You tow a small camper or trailer
  • You run long washboard or desert roads
  • You've added up to 2" of rear lift

When you need something else: More than 2" of rear lift needs a longer shock. Call us and we'll size one to your setup: (213) 433-3616.

Shop the Bilstein 5100 Rear Pair for the 2019-2023 Ranger

Shop the Bilstein 5160 Rear Pair for the 2019-2023 Ranger

On the Road

Less nose dive under braking, less lean on an on-ramp, and a front that settles after a dip in one motion. It's firmer than the factory strut. If you want soft, this isn't it, and we'd rather tell you now.

Off the Road

The 2.6-inch body holds more oil than the factory strut and sheds heat faster, so damping holds on a long washboard road. The digressive piston stays firm on chatter and opens up on bigger hits. It won't turn a Ranger into a Tremor, but it's a big step from stock.

The Honest Trade-Offs

  • You do the spring work. The kit ships as parts. A shop with a mounted compressor does it in minutes.
  • No stock setting on the 2WD. The lowest is 0.7".
  • Changing height means doing it again. Moving the circlip means pulling the coilovers and compressing the springs again.
  • Firmer than stock. See "On the Road" above.
  • Don't stack a spacer on top. A strut spacer on top of a 6112 pushes the front past what the factory arms and axles are built for.
  • Watch the alignment at the top grooves. If your shop can't bring camber back into spec, aftermarket upper control arms fix it.

Install Notes

  • Fits 2019-2023 Ford Ranger XL, XLT and Lariat, 4WD and 2WD.
  • Not for the Tremor Off-Road Package (2021-2023) or the 2024 and newer Ranger and Ranger Raptor.
  • You need a mounted strut compressor or a shop to put the springs on the dampers. Plan on it before the truck comes apart.
  • Your factory upper mounts go back on. Inspect the rubber; if it is cracked or collapsed, replace the mounts while everything is apart.
  • Replace the lower T-bar bolts and locknuts with the new ones in the box.
  • Removing a strut spacer? Leave it off.
  • Get an alignment right after install. Any lift changes camber and toe.
  • Recheck the front height after the springs settle in over the first few hundred miles.

Who Should Buy These

2019-2023 Ranger owners who want the nose level and the front end controlled, on 4WD or 2WD, and who own a mounted compressor or have a shop lined up for the spring step. Daily drivers, weekend trail trucks and small-camper rigs.
