24-100144 x2 47-260337 x1

Bilstein 6112 Struts & Spring + Rear B8 5100 Shocks Set for 2000-2006 Toyota Tundra 4WD

  • Sale
  • Regular price $901.58

FREE Shipping Free Returns in the US Lower 48


Part Number Quantity Item
24-100144 2 Shock Absorber
47-260337 1 Strut & Spring

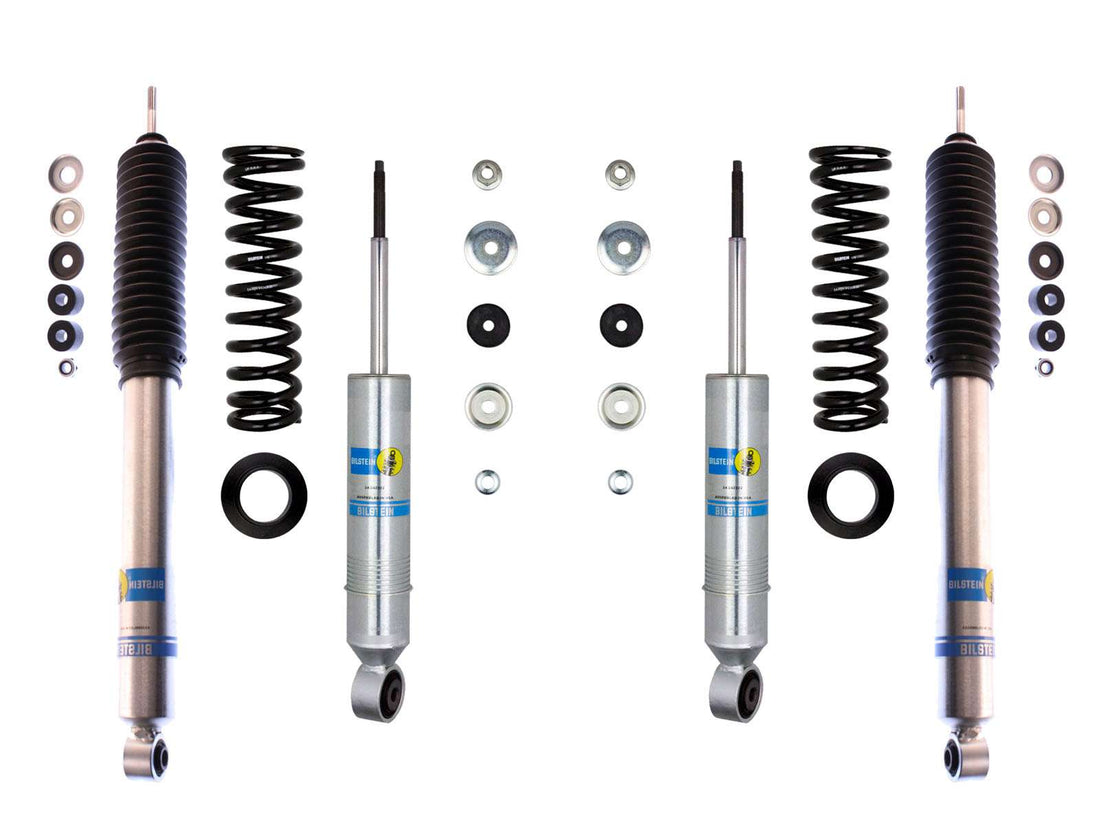

Package Contains 2 Front Shocks, 2 Coil Springs, 2 Coil Spring Seats, and 2 Rear Shocks

Package Contains 2 Front Shocks, 2 Coil Springs, 2 Coil Spring Seats, and 2 Rear Shocks

Kit includes two front shocks, two coil spring seats, two coil springs, two rear shocks. Coil spring compressor required for installation.

Bilstein Limited Lifetime Warranty

Bilstein Limited Lifetime Warranty

Manufacturer Warranty protects against defects and premature failure.

Front height adjustment from 0-2

Front height adjustment from 0-2"

Front height adjustment from 0-2" using the included coil spring collar and adjustable circlip. Accommodates up to 1.5" rear lift systems.

Designed for 4WD vehicles

Designed for 4WD vehicles

This product only works for 4WD vehicles.

Coil-Spring Compressor Required

Coil-Spring Compressor Required

Strut & spring not assembled, coil-spring compressor required for installation. Front height adjustment is achieved by multiple coil-spring collar settings, lifting the vehicle up to specified height.

Product Details

Bilstein's 6112 shock and spring package is designed for the adventure enthusiast wanting more out of their daily-driver or weekend ride. Extremely capable not only off-road, but also dramatically improves on-road handling characteristics and road feedback. The height adjustment of the 6112 kit allows the drive to remain at factory height, or to level out the front end of the vehicle for larger wheel and tire clearance. This Bilstein kit rivals 2.5” race-series shocks and coilovers from the competition, in an easily accessible performance package that can get you almost anywhere off-road. The 5100 monotube design and patented digressive valving is uniquely suited to confront these demands. On or off-road, loaded or unloaded, Bilstein shocks instantly react to changing road inputs to maintain a stable, controlled, and comfortable ride. Bilstein's superior monotube high gas pressure design allows the excessive heat from the oil to transfer to the outer surface of the shock body and dissipate more efficiently. The dividing piston also permits the oil to expand as heat builds, preventing aeration (foaming) and viscosity loss. This allows the shock to maintain full damping characteristics as temperatures rise.

We have the entire line of Bilstein products available, whether you want to upgrade, add a reservoir, or find something more affordable, contact us with any questions! 1-800-641-9161

Year Make Model Drive Position Lift
2006 Toyota Tundra 4WD Front & Rear 0-2" Front / 0-1.5" Rear
2005 Toyota Tundra 4WD Front & Rear 0-2" Front / 0-1.5" Rear
2004 Toyota Tundra 4WD Front & Rear 0-2" Front / 0-1.5" Rear
2003 Toyota Tundra 4WD Front & Rear 0-2" Front / 0-1.5" Rear
2002 Toyota Tundra 4WD Front & Rear 0-2" Front / 0-1.5" Rear
2001 Toyota Tundra 4WD Front & Rear 0-2" Front / 0-1.5" Rear
2000 Toyota Tundra 4WD Front & Rear 0-2" Front / 0-1.5" Rear

We ship internationally, contact us for a shipping quote with your postal code.

Specifications

Part Number 24-100144
Extended Length 22.4"
Compressed Length 13.84"
Travel 8.56"
Top Mount STEM
Bottom Mount EYELET
Reservoir No
Color Silver
Finish Zinc Plated
Boot Included Black Bellows
Gas Charged Yes
Internal Design Monotube
Part Number 47-260337
Reservoir No
Color Silver &
Finish Dampers: Zinc Plated/Springs: Black
Boot Included No
Gas Charged Yes
Internal Design Monotube

Bilstein Warranty

Thyssenkrupp Bilstein of America warrants its gas pressure shock absorbers against defects in workmanship and materials for as long as you, the original purchaser, own your car.

If a shock, strut, or coil-over malfunctions and BILSTEIN determines it to be defective, we will either replace it or repair it, depending on the term of the warranty based on the assembly's model type.

BILSTEIN from the factory (original equipment), warranty claims must be directed to the vehicle manufacturer.


LIMITED LIFETIME WARRANTY

B4 OE Replacement / B6 / B6 Performance / B8 Performance Plus / B12 Series / B14 (PSS) / B16 (PSS9 & PSS10) / B6 4600 / B8 5100 / B8 5100 (Ride Height Adjustable) / B8 5112 / B8 6112

BILSTEIN warrants to the original retail purchaser that, for the life of each gas pressure shock, this product shall be free from defects in material and workmanship. Proof of purchase is required to process warranty. Please return product to the original place of purchase.


LIMITED 2 YEAR WARRANTY

B4 OE Replacement (Air) / Steering Racks
BILSTEIN warrants to the original retail purchaser that, for a period of two (2) years from the date of purchase, the B4 OE Replacement (Air) suspension and Steering Racks shall be free from defects in workmanship and/or material. Proof of purchase is required to process warranty. Please return product to the original place of purchase.


LIMITED 90 DAY WARRANTY


B8 5125 / B8 5150 / B8 5160 / B8 5165 / M 7100 Series / B8 8125 / M 9100 Series / M 9300 Series / BILSTEIN Clubsport® / MOTORSPORTS PRODUCT
BILSTEIN warrants to the original retail purchaser that, for a period of ninety (90) days from the date of purchase, this product shall be free from defects in material and workmanship. Any implied warranty of merchantability, fitness or fitness for particular purpose, except as may be prohibited by applicable law, is likewise limited in duration to ninety (90) days from the date of original retail purchase. Some States do not allow limitations on how long an implied warranty lasts so the above limitation may not apply to you.

This warranty is non-transferable and does not cover normal wear and tear or any other loss, liability or damage resulting from improper alteration, disassembly, handling, installation, service, repair or use of this product. Should this product fail as a result of a defect in materials or workmanship within the warranty period, contact BILSTEIN's Warranty Service Department by telephone at 1(800) 370-9522, or in writing at thyssenkrupp Bilstein of America 14102 Stowe Drive, Poway, California, 92064, for repair or replacement at Manufacturer's option. Do not return this motorsports product to the place of purchase. Proof of purchase is required to process warranty.


WARRANTY RESTRICTIONS

The limited warranties set forth above do not cover normal wear and tear and are non-transferable. The following are warranty exclusions:

Original equipment shock absorbers (vehicle manufacturer warranty) -Improper installation -Racing, driving competition or off-road use -Modified use or other than BILSTEIN recommended vehicles -Commercial vehicles -Bent or broken Rods showing abuse or abnormal wear

Surface finish, boot or mounting hardware such as, but not limited to, rubber bushings, as well as labor charges are not covered by any of the foregoing limited warranties. BILSTEIN's liability for a defective shock absorber is limited to replacement of shock with a new or reconditioned BILSTEIN shock absorber. Repair or replacement as provided by this warranty is customer's sole and exclusive remedy in the event of a product failure. Manufacturer shall not be liable for any incidental, consequential or other damages resulting from the disassembly, handling, installation, service, repair or use of this product. Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

Note: Other exclusions may or may not apply in certain states or rare circumstances.

Warranty Contact Info:

If you have a warranty concern or question, please contact us
