Bilstein

6112 Assembled Front Coilovers

2001-2007 Toyota Sequoia
$1,092.49
Sale Price


Estimated Delivery in 8-12 weeks
Bilstein 47-310049 Assembled Shocks and Springs

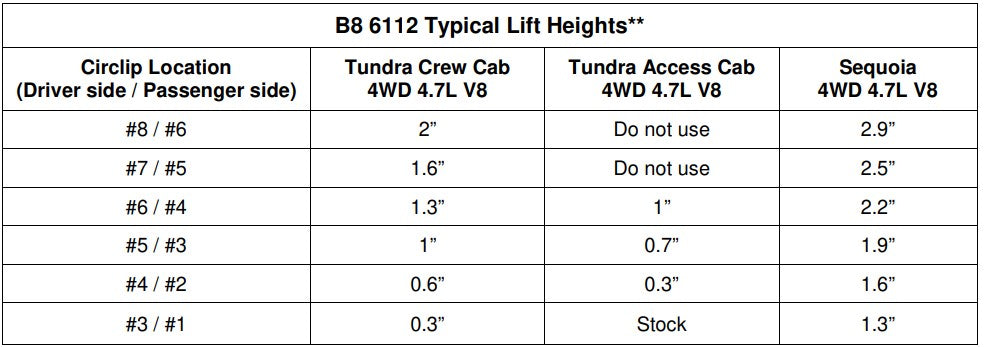

Bilstein 6112 Height Settings 47-310049 for 2001-2007 Toyota Sequoia

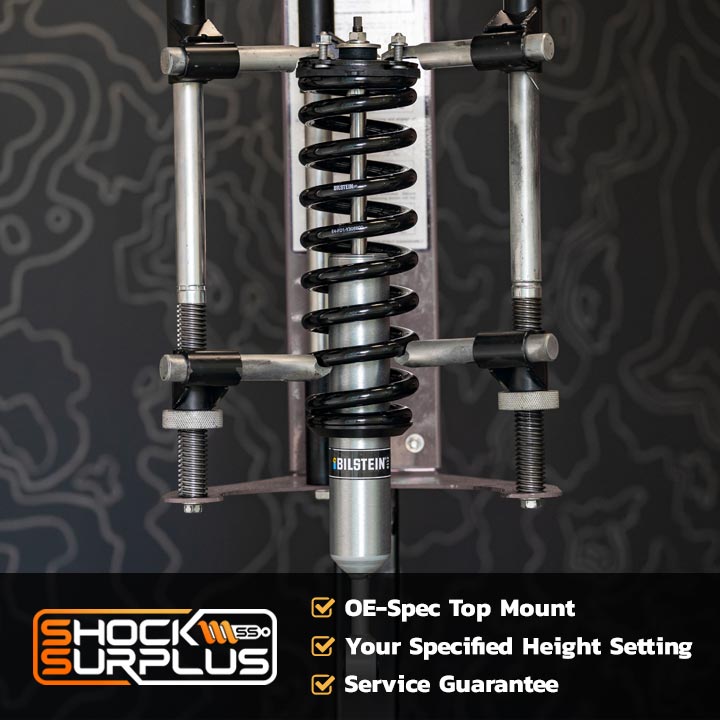

Bilstein 6112 Assembly at Shock Surplus
Bilstein 6112 Leveling on 2001-2007 Toyota Sequoia

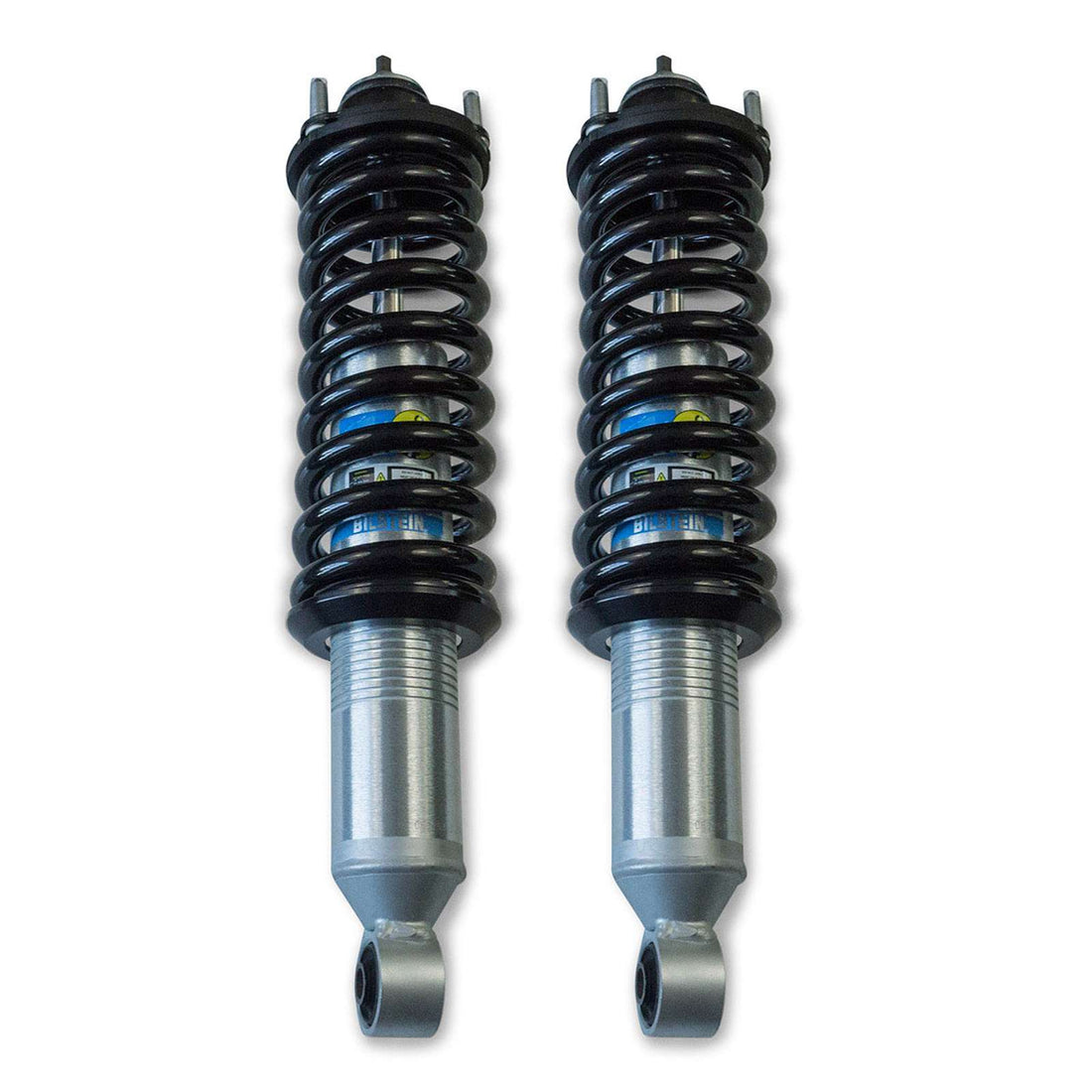

Bilstein 6112 Assembled Front Coilovers for 2001-2007 Toyota Sequoia
Bilstein 6112 Installed with Factory Upper Control Arms
Bilstein 6112 Assembled Front Coilovers for 2001-2007 Toyota Sequoia
Bilstein 6112 Circlip Settings
Bilstein 6112 Assembled Front Coilovers for 2001-2007 Toyota Sequoia
Custom Order
This Lift Kit is built to your personal vehicle specs and will be pieced together for you based on your product choices. Estimated time to deliver will vary from 8-12 weeks.
Bilstein

6112 Assembled Front Coilovers

2001-2007 Toyota Sequoia
$1,092.49
Sale Price


Estimated Delivery in 8-12 weeks

Found it cheaper? We'll match it.

Price Match Guarantee

We want you to buy from Shock Surplus with confidence. If you find a lower price on the same part number(s) from an authorized dealer, we'll match it.

View our Price Match Policy

Authorized dealer
Free shipping on orders above $250 within the lower 48 United States
Brand new parts with warranty coverage
Free 30-day return and exchange on qualifying orders
Got Questions?
Our experts are here to help!
Part Numbers & Details
Package Contains 2 Coilover Assemblies
Front pair of two struts and two springs fully assembled and install-ready.
Bilstein Limited Lifetime Warranty
Manufacturer Warranty protects against defects and premature failure.
Choose Your Vehicle Spec & Lift Setting Above
To decide which Circlip location is right for your application, refer to table provided as an image. Make a selection from the drop-down menus above to choose your desired combination.
Designed for 4WD & RWD vehicles
This product works for 4WD & RWD vehicles.
Install Ready
Strut & spring assembled, ready for installation. No Coil Spring Compressor required.
Specifications
Part Number OptionsPositionItemQuantityReservoirColorFinishBoot IncludedInternal Design
47-310049FrontCoilover1NoSilverDampers: Zinc Plated/Springs: BlackNoMonotube
Product Details

Shock Surplus has made your install easier with this fully assembled 6112 Coil & Spring kit. Bilstein's 6112 shock and spring package is designed for the adventure enthusiast wanting more out of their daily-driver or weekend ride. Extremely capable not only off-road, but also dramatically improves on-road handling characteristics and road feedback. The height adjustment of the 6112 kit allows the drive to remain at factory height, or to level out the front end of the vehicle for larger wheel and tire clearance. This Bilstein kit rivals 2.5" race-series shocks and coilovers from the competition, in an easily accessible performance package that can get you almost anywhere off-road.

Compatibility List
Year Make Model Drive
2007 Toyota Sequoia 4WD RWD
2006 Toyota Sequoia 4WD RWD
2005 Toyota Sequoia 4WD RWD
2004 Toyota Sequoia 4WD RWD
2003 Toyota Sequoia 4WD RWD
2002 Toyota Sequoia 4WD RWD
2001 Toyota Sequoia 4WD RWD

Shock Surplus handles Bilstein's warranty claims; if you encounter a product defect please submit a warranty claim.

View Bilstein Warranty Information

For more information: View the Shock Surplus Warranty Policy.

Shipping Info

Free Shipping on most orders to the lower 48 U.S. states. Truck freight items (over 100 lbs) and custom orders require a separate shipping quote.

  • Applies to items like axles, leaf springs, and long-travel kits.
  • No international shipping on freight items — only to U.S.-based freight forwarders.
  • Worldwide shipping available: Canada, Europe, UAE, Australia, and most of Asia.

Contact us for an international shipping quote.

Returns & Exchanges

30-Day Return Policy — Items must be new, unused, uninstalled, and include all original hardware.

  • No restocking fees for exchanges or gift card credit.
  • 10% restocking fee on refunds, returns cost us real money, so the 10% helps keep the lights on.
  • Installed, damaged, or dirty parts cannot be returned.
  • Any returns missing hardware or miscellaneous items, the return will be denied and returned to the buyer at the buyer's expense.

Need help? Use Live Chat or Email Us anytime.

Start a Return or Exchange

Return Shipping Responsibility

CHECKOUT+ Package and Order Protection plan provides prepaid return labels for any returned packages, this fee varies by product.

  • Our mistake (misboxed, wrong item, damaged): We cover the cost of return shipping.
  • Buyer mistake (wrong item ordered, fitment error, changed mind): Return shipping is the buyer's responsibility - unless CHECKOUT+ Package Protection has been purchased.

  • Under 50 lbs: Discounted carrier rate
  • Over 50 lbs: Discounted carrier rate + $25 oversize fee

Refunds

Refunds are issued within 5–7 business days of receiving your return.

  • Funds typically post to your account in 1–3 business days depending on your payment method.
  • There is a 10% restocking fee on all refunds. We don’t get our original shipping, labor, or transaction fees back — so the 10% restocking fee keeps the lights on.
  • You will receive an email once your refund is processed.

International Orders

  • All international orders are final sale.
  • Returns via freight forwarders only accepted if the product hasn’t left the U.S.
  • Import taxes, duties, and other possible import-related fees are the buyer’s responsibility and not included in our shipping charges.
  • We are not responsible for goods once exported outside the U.S.

Why Shock Surplus

1,000,000+ Shocks Shipped

The Premier Suspension Specialists

Authorized Dealer

Brand New - Warranty Backed

Free Shipping

Orders Over $175 - Lower 48 States

30-Day Returns

Free Exchange on Qualified Orders

INFORMATION

The first-gen Sequoia is one of the best-built SUVs Toyota ever made. The 2UZ V8 will outlive most of us. The front struts, on the other hand, are probably 20 years old, and the truck sits with its nose down like it's embarrassed about it. Bilstein's 6112 is the fix a lot of Sequoia owners land on: a 60mm monotube coilover with Bilstein-matched springs that levels the front, adds real damping control, and still drives like a daily driver.

We take it one step further. The 6112 normally shows up as a box of loose parts: dampers, springs, spring seats, and circlips, with a note that says "spring compressor required." We build them for you, at the height you choose, with new upper mounts, so what shows up at your door is two finished coilovers ready to bolt in.

How We Build Them

Every pair is built to order after you pick your drivetrain and lift setting above. Here's what happens on our bench:

  • Set the circlips. The 6112 body has a row of numbered grooves. Where the circlip goes decides your ride height. Driver and passenger sides use different grooves (like #5 / #3) to take out the driver-side lean most Toyota trucks have. We set each side to the combination you ordered.
  • Seat the billet spring perch. The anodized aluminum spring seat sits on the circlip and carries the spring.
  • Compress and install the Bilstein spring. We use a mounted, shop-grade strut compressor. This is the step that makes DIYers nervous, for good reason: a coil spring under load stores a lot of energy.
  • Install a new OE-spec upper mount. Your factory mounts have two decades of rubber fatigue and rust on them. Reusing them on fresh coilovers is like putting new tires on bent wheels. New mounts come on every build.
  • Torque, check, label. The top nut gets torqued to spec, each coilover is checked and marked driver or passenger, and the pair is boxed together.

Why Buy Them Assembled?

  • No spring compressor. Rental "clamshell" compressors are the most dangerous tool most people will ever use in a driveway. You skip that part entirely.
  • No wrong-side mistakes. A common 6112 mistake is setting both sides to the same groove, or swapping driver and passenger. That leaves the truck leaning. Ours come marked.
  • New mounts included. The loose Bilstein kit does not include upper mounts. You would be reusing your originals or buying them separately.
  • Faster install. Assembly is the slowest part of a coilover job. With that done, the job is removing two struts and bolting in two.

Bilstein does not approve anything above #6 / #5 on the RWD Sequoia, so we don't build it.

How to choose: Measure from the center of each wheel to the fender lip, front and rear. The difference is your rake. If you want the truck level and you're keeping the stock rear springs, pick the setting closest to that difference. If you're adding a rear spacer or taller rear springs, add that number to the rake. Running a heavy steel front bumper or winch? Go one setting higher to make up for the extra weight. Stuck between two? Call us with your measurements and we'll pick it with you: (213) 433-3616.

Matching the Rear: Bilstein 5100 or 5160?

This is the question we get most on this truck, so here's the straight answer.

The Bilstein 5100 (24-276061) is the rear shock to run. It's the rear shock Bilstein makes for the 2001-2007 Sequoia's coil-sprung, multi-link rear axle. It uses a 46mm digressive piston in a zinc-plated monotube body, and it's built for 0-1" of rear lift (23.96" extended, 15.06" compressed, 8.9" of travel). Put it with the 6112 fronts and both ends of the truck are on Bilstein valving, so the front doesn't feel sharp while the back floats around on tired originals.

There is no Bilstein 5160 for the first-gen Sequoia. You'll see a 5160 remote reservoir shock (25-311273) listed for the 2000-2006 Tundra, which shares the Sequoia's front end. That shock is built for the Tundra's leaf-spring rear, with different mounts and lengths. It is not a Sequoia part, so don't let anyone sell it to you as one.

When the 5100 is the right call:

  • Stock rear springs, or a rear spacer or spring set that adds up to 1"
  • Front set anywhere from 1.3" to about 2.2", which covers most leveled daily drivers
  • You want the same Bilstein feel front and rear without spending reservoir money

When you need something else: If you're lifting the rear more than 1" to match the top front settings (#7/#5 or #8/#6), the 5100 will run out of extended length and top out on the drops. That rig needs a longer rear shock matched to the rear lift. Call us and we'll size one to your setup: (213) 433-3616.

Shop the Bilstein 5100 Rear Pair for the 2001-2007 Sequoia

On the Road

Bilstein tunes for control first. Compared to worn factory struts, expect a firmer, tighter front end: less nose dive when you brake, less wallow in sweepers, and the truck doesn't keep bouncing after a dip in the highway. Most owners describe it as "the truck feels younger." If you want a pillowy luxury ride, this isn't it, and we'd rather tell you now than after the install.

Off the Road

The 60mm body holds more oil than the stock strut and sheds heat better, so the damping stays consistent on washboard and long dirt roads instead of fading. The digressive piston stays firm on small, quick inputs and opens up on big hits. For forest roads, beach runs, and overland trips in a heavy full-size SUV, it's a big step up from stock.

The Honest Trade-Offs

  • It will lift the truck. The lowest 4WD setting is 1.3". If you want to stay at factory height, a Bilstein 4600 is the better part.
  • Your height is set when we build it. Changing it later means taking the coilover apart with a strut compressor. Measure before you order.
  • Firmer than stock. See "On the Road" above.
  • Built to order. Every pair is assembled for your truck, so it takes longer to ship than a box pulled off a shelf.
  • The top settings need supporting parts. At #7/#5 and #8/#6, the factory upper control arms and CV axles run at steeper angles. Aftermarket upper control arms help the alignment get back in spec and keep the ball joints happy.

Install Notes

  • Fits 2001-2007 Toyota Sequoia, 4.7L V8, 4WD and RWD. Choose your drivetrain above; the height settings are different.
  • Front suspension is coil on every first-gen Sequoia, including 2005-2007 models with optional rear air suspension. If your truck has rear air, call us before ordering rear shocks
  • Get an alignment right after install. Any lift changes camber and toe.
  • Recheck the front height after the springs settle in over the first few hundred miles.
  • Most people with a floor jack, jack stands, and a basic socket set can swap the pair in an afternoon. The heavy lifting is done.

Who Should Buy These

First-gen Sequoia owners who want the front leveled, a real upgrade over tired stock struts, and no spring compressor anywhere near their garage. It's a great fit for daily drivers that see dirt roads, family haulers that tow, and budget overland builds. If you want zero lift, grab the Bilstein 4600. If you want 3"+ of lift and long-travel performance, look at a full lift kit with control arms.
