Bilstein

8112 CR DSA+ Coilovers & 8100 Bypass Shocks

2003-2009 Toyota 4Runner V6 V8 4WD RWD
$5,478.00


Estimated Delivery in 8-12 weeks
Bilstein

8112 CR DSA+ Coilovers & 8100 Bypass Shocks

2003-2009 Toyota 4Runner V6 V8 4WD RWD
$5,478.00


Estimated Delivery in 8-12 weeks
Authorized dealer
Free shipping on orders above $250 within the lower 48 United States
Brand new parts with warranty coverage
Free 30-day return and exchange on qualifying orders
Got Questions?
Our experts are here to help!
Part Numbers & Details

Package Contents

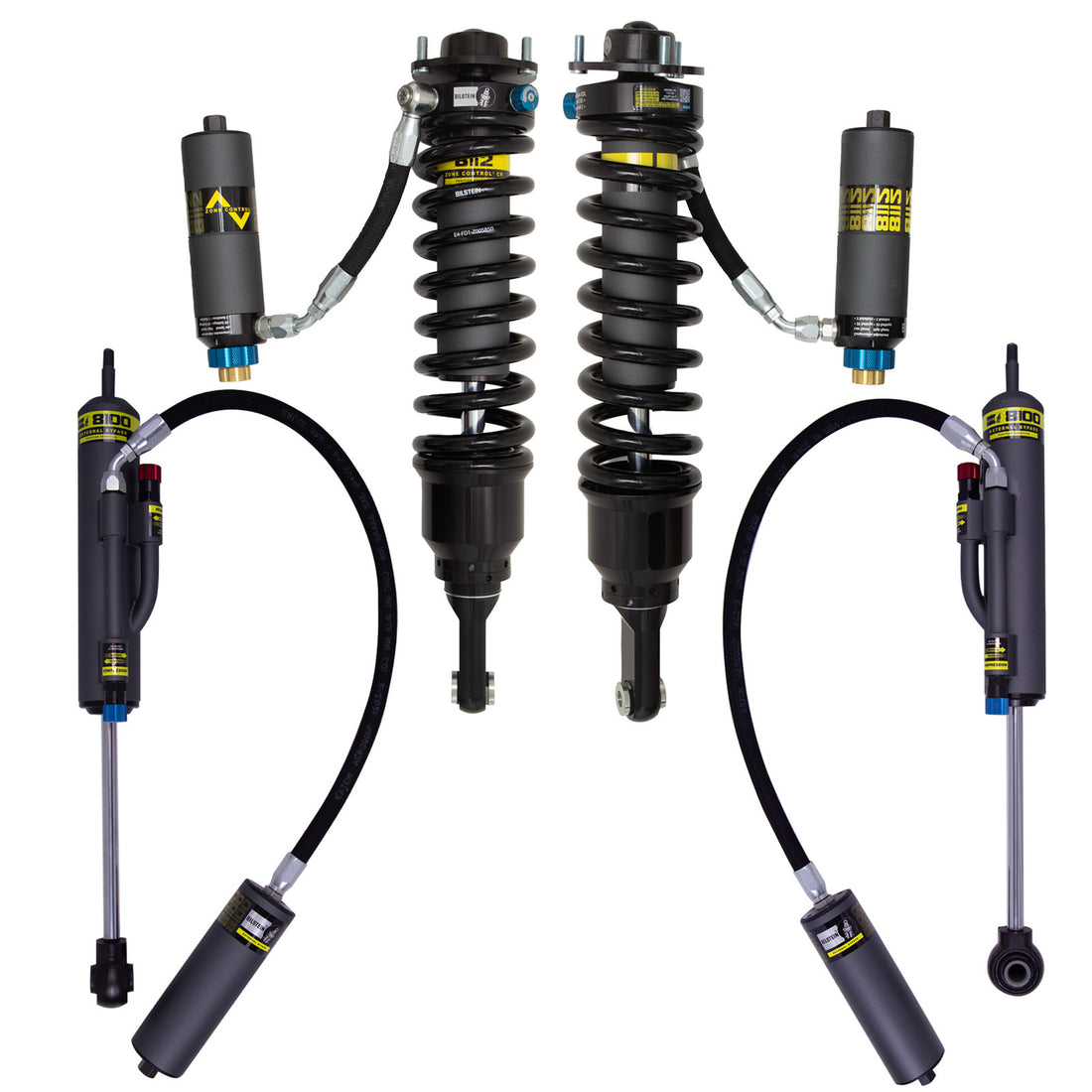

Complete set with two 8112 CR DSA+ front coilovers and left/right Bilstein 8100 bypass shocks.

ZoneControl CR DSA+
Front 8112 coilovers use position-sensitive triple-piston damping with low- and high-speed compression adjustment plus an internal hydraulic bump stop.

8100 Bypass Shocks
Rear 8100 bypass shocks use 60mm remote-reservoir damping; compression and rebound adjustable for the selected rear configuration.

4Runner Fitment
Fits 2003-2009 Toyota 4Runner V6 and V8 applications in 4WD and RWD configurations.

Adjustable Front Ride Height
The 8112 front application is listed for V6 which provides 2.2-3.3" and V8 which provides 1.3-3.4". The final height depends on vehicle setup and load.
Specifications
Part Number Position Lift Height Quantity Extended Measurements Compressed Measurements
41-326343 Front Left

V6: 2.2-3.3"

V8: 1.3-3.4"

1 22.24" 17.43"
41-326350 Front Right

V6: 2.2-3.3"

V8: 1.3-3.4"

1 22.24" 17.43"
25-326369 Rear Left 0-2.5" 1 24.09" 14.72"
25-326376 Rear Right 0-2.5" 1 24.09" 14.72"
Product Details

This Bilstein package pairs 8112 CR DSA+ front coilovers with 8100 bypass shocks to create a large-bore, remote-reservoir suspension system for the 2003-2009 4Runner. The front coilovers add ride-height adjustment and position-sensitive damping, while the rear setup is matched to handle larger impacts and sustained rough-road use with more oil capacity than conventional monotube shocks.

The 8100 bypass shocks configuration adds the most tuning range of these rear options, but also the highest complexity and cost. Final setup should account for lift height, vehicle weight, alignment, and intended terrain.

Compatibility List
YearMakeModelDrivePositionLift
2003-2009Toyota4Runner4WD / RWDFront & Rear1.3-4" Front / 0-2.5" Rear
