Bilstein

8112 CR DSA+ Front Left Coilover

2003-2009 Toyota 4Runner V6 V8 4WD RWD
$1,457.00

In Stock Estimated Delivery in 3-6 Business Days
Bilstein

8112 CR DSA+ Front Left Coilover

2003-2009 Toyota 4Runner V6 V8 4WD RWD
$1,457.00

In Stock Estimated Delivery in 3-6 Business Days
Authorized dealer
Free shipping on orders above $250 within the lower 48 United States
Brand new parts with warranty coverage
Free 30-day return and exchange on qualifying orders
Got Questions?
Our experts are here to help!
Part Numbers & Details

Package Contents

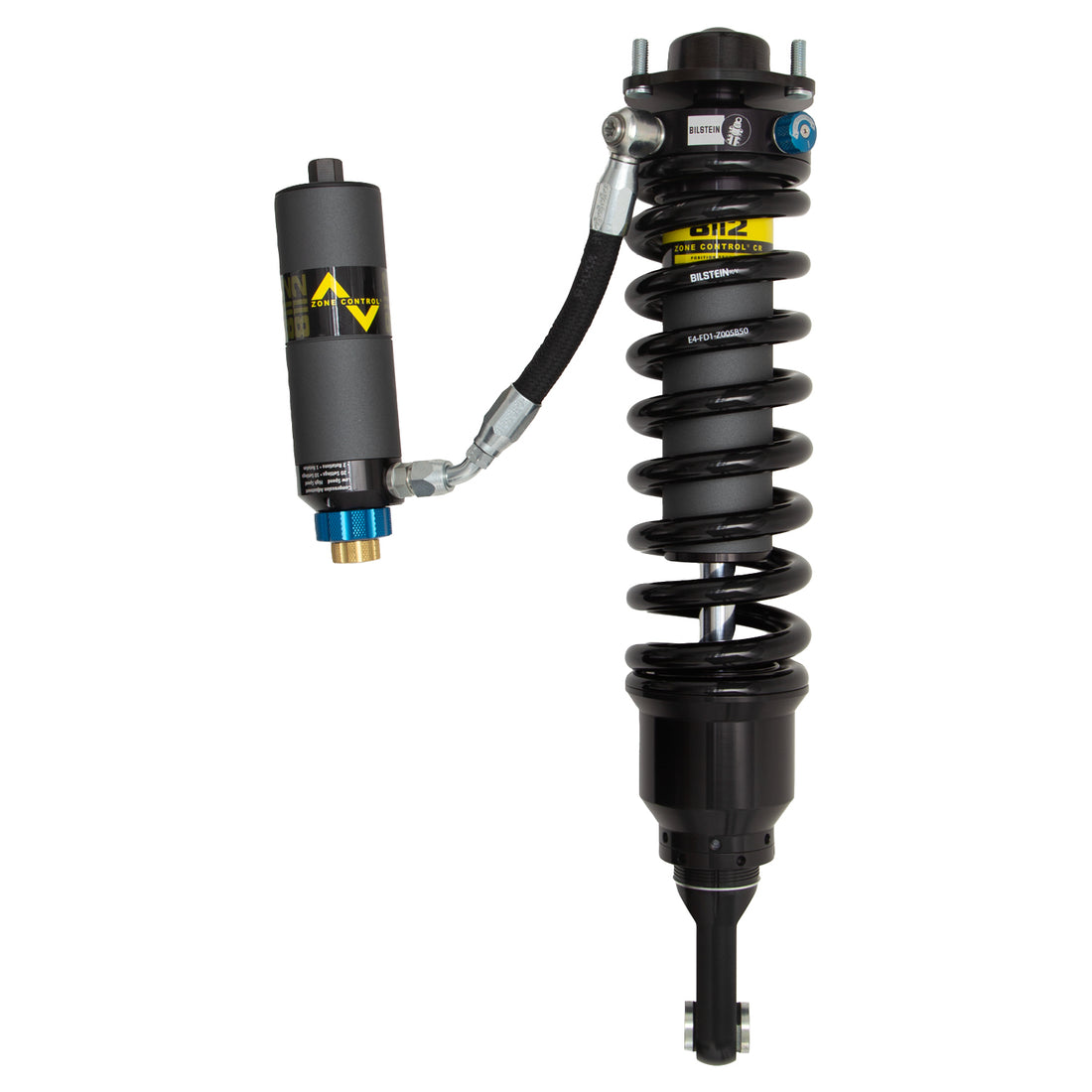

Includes one Bilstein B8 8112 ZoneControl CR DSA+ front left coilover with remote reservoir and application-specific mounting hardware.

ZoneControl CR DSA+
Front 8112 coilovers use position-sensitive triple-piston damping with low- and high-speed compression adjustment plus an internal hydraulic bump stop.

60mm Remote Reservoir Design
Large-bore monotube construction and remote reservoirs increase oil capacity and help control heat during demanding use.

4Runner Fitment
Fits 2003-2009 Toyota 4Runner V6 and V8 applications in 4WD and RWD configurations.

Adjustable Front Ride Height
The 8112 front application is listed for V6 4WD which provides 2.2-3.3", V8 4WD which provides 1.3-3.4", and V6 RWD which provides 2.8-4". The final height depends on vehicle setup and load.
Specifications
Part Number Position Lift Height Quantity Extended Measurements Compressed Measurements
41-326343 Front Left



V6 4WD: 2.2-3.3"

V8 4WD: 1.3-3.4"

V6 RWD: 2.8-4"



1 22.24" 17.43"
Product Details

This front left Bilstein 8112 CR DSA+ coilover is a premium corner-specific upgrade for 2003-2009 4Runner builds that need both ride-height adjustment and tunable damping. Its position-sensitive triple-piston design separates everyday ride control from larger suspension events, while independent low- and high-speed compression adjustment lets experienced owners tailor response for load, terrain, and driving style.

Because this listing covers one side only, the matching opposite-side coilover is required for a complete front axle upgrade. The system is more complex and expensive than a non-adjustable monotube, but it provides substantially more tuning range and bottom-out control for serious trail or overland use.

Compatibility List
YearMakeModelDrivePositionLift
2003-2009Toyota4Runner4WD / RWDFront1.3-4"
