Complete Front & Rear Bilstein Package

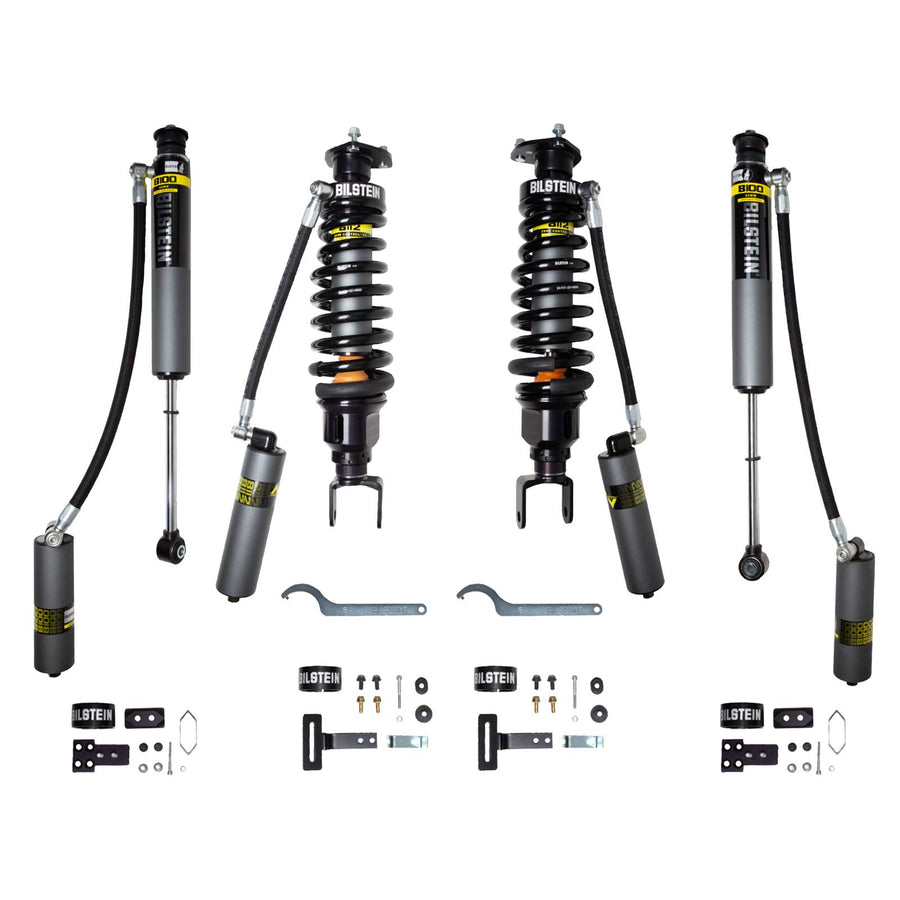

The base package includes two Bilstein front coilovers and two Bilstein rear shocks for a complete four-shock suspension upgrade. Optional upper control arms, rear lift springs, and helper springs can be added through the available drop-down menus and are not included unless selected.Bilstein
8112 Coilovers & 8100 Shocks w/ Reservoirs Set w/ 1-2.6" Lift System
2019-2024 Ram 1500 V8 4WD RWD
$3,844.37
$4,201.20
1
Estimated Delivery in 8-12 weeks
Custom Order
All Bilstein 8112 / 8100 are constantly on order, please double check with our Sales team for availability if your needs are time sensitive. Otherwise wait times can be as long as 8-12 weeks.
Bilstein
8112 Coilovers & 8100 Shocks w/ Reservoirs Set w/ 1-2.6" Lift System
2019-2024 Ram 1500 V8 4WD RWD
$3,844.37
$4,201.20
1
Estimated Delivery in 8-12 weeks
Got Questions?
Our experts are here to help!
Part Numbers & Details
Adjustable Front Lift
Bilstein 8112 front coilovers provide approximately 1.25"-2.5" of front lift on trucks without the factory Off-Road Package. Trucks equipped with the Off-Road Package provide approximately 0.6"-1.9" of front lift because of their taller factory suspension height.Built for 2019-2024 Ram 1500
Designed for compatible 2019-2024 Ram 1500 applications equipped with the 5.7L HEMI V8. The system is not compatible with factory Air Leveling suspension, and 2025+ Inline-6 Ram 1500 models use a different suspension configuration.Custom-Built Suspension Package
Each package is assembled according to your truck's configuration and selected upgrades. Build and delivery may take up to 6 weeks depending on Bilstein product availability, and rear shock selection may vary by bed length because of remote reservoir mounting locations.Specifications
| Part Number | Position | Quantity | Lift Height | Restrictions |
|---|---|---|---|---|
| 41-325247 | Front Left | 1 | Without Off-Road Package: 1.25"-2.5" With Off-Road Package: 0.6"-1.9" |
Not compatible with factory Air Suspension, V6 Engines or 2025+ Inline-6 engine models. |
| 41-325230 | Front Right | 1 | Without Off-Road Package: 1.25"-2.5" With Off-Road Package: 0.6"-1.9" |
Not compatible with factory Air Suspension, V6 Engines or 2025+ Inline-6 engine models. |
| 25-324075 | Rear Left | 1 | Without Off-Road Package: 0"-2" With Off-Road Package: 0"-1" |
Not compatible with factory Air Suspension, V6 Engines or 2025+ Inline-6 engine models. |
| 25-281873 | Rear Right | 1 | Without Off-Road Package: 0"-2" With Off-Road Package: 0"-1" |
Not compatible with factory Air Suspension, V6 Engines or 2025+ Inline-6 engine models. |
Product Details
This Bilstein suspension package combines 8112 front coilovers with matching rear shocks for compatible 2019-2024 Ram 1500 trucks equipped with the 5.7L HEMI V8. The front coilovers provide approximately 1.25"-2.5" of lift on trucks without the factory Off-Road Package and approximately 0.6"-1.9" on Off-Road Package models, while the rear shocks support approximately 0"-2" or 0"-1" of rear lift depending on factory configuration. Bilstein 8112 coilovers include 450 lb/in front coil springs; diesel-equipped trucks require heavier front springs that can be installed before shipment with additional assembly time. The package is not compatible with factory Air Leveling suspension, and 2025+ Ram 1500 Inline-6 models are not included in this application.
Rear shock selection may vary depending on bed length because of remote reservoir mounting requirements. Each suspension package is assembled according to the vehicle configuration and selected components, with estimated build and delivery times of up to 6 weeks depending on Bilstein availability. Optional upper control arms are recommended when approaching approximately 2.5"-3" of front lift to improve suspension articulation and help maintain proper alignment geometry.

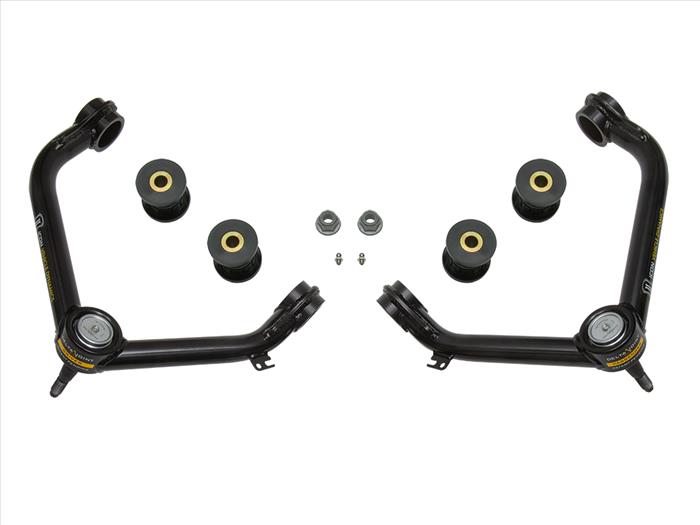

Optional Upper Control Arms
Upper control arms are optional upgrades and are not included in the base suspension package unless selected.
- ICON Vehicle Dynamics Tubular Delta Joint - Black | Part #218550DJ | $879.95
- FOX Billet Upper Control Arms - Black | Part #803-35-016 | $1,599.95
- FOX Billet Upper Control Arms - Orange | Part #803-35-017 | $1,599.95

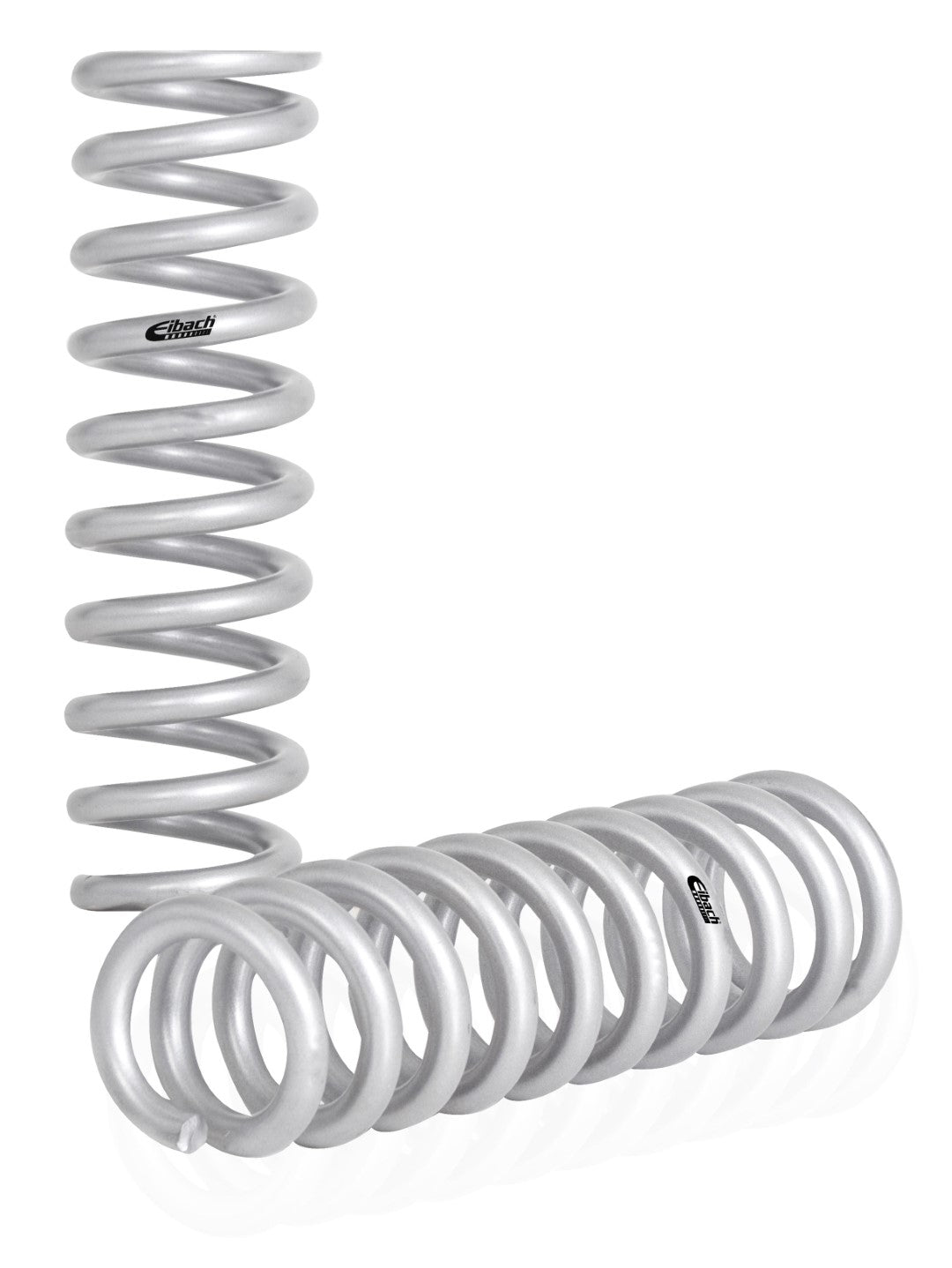

Optional Rear Lift Springs
Rear lift springs can be added to increase rear ride height, complement the front lift, or maintain additional rake depending on the desired suspension setup.
- ICON Vehicle Dynamics Dual Rate Rear Springs | +1.5" | Part #212150 | $289.95
- Eibach Rear Lift Springs | +1.0" | Part #E30-27-011-02-02 | $179.00
- Bilstein Rear Lift Springs | +1.0" | Part #53-297839 | $304.00 | For vehicles without the factory Off-Road Package

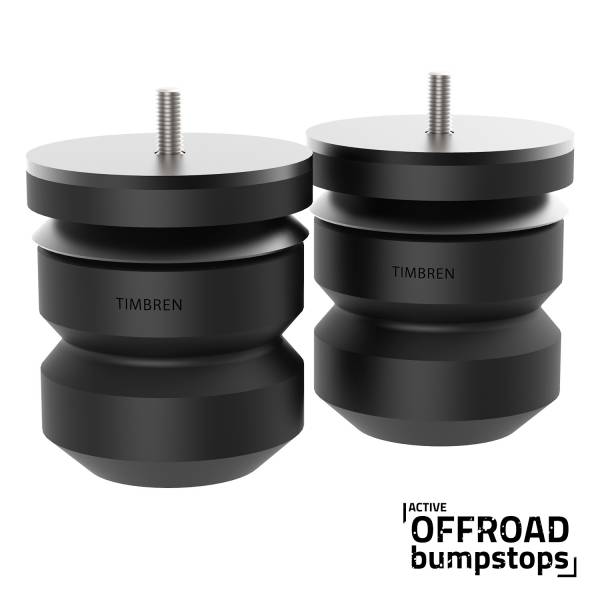

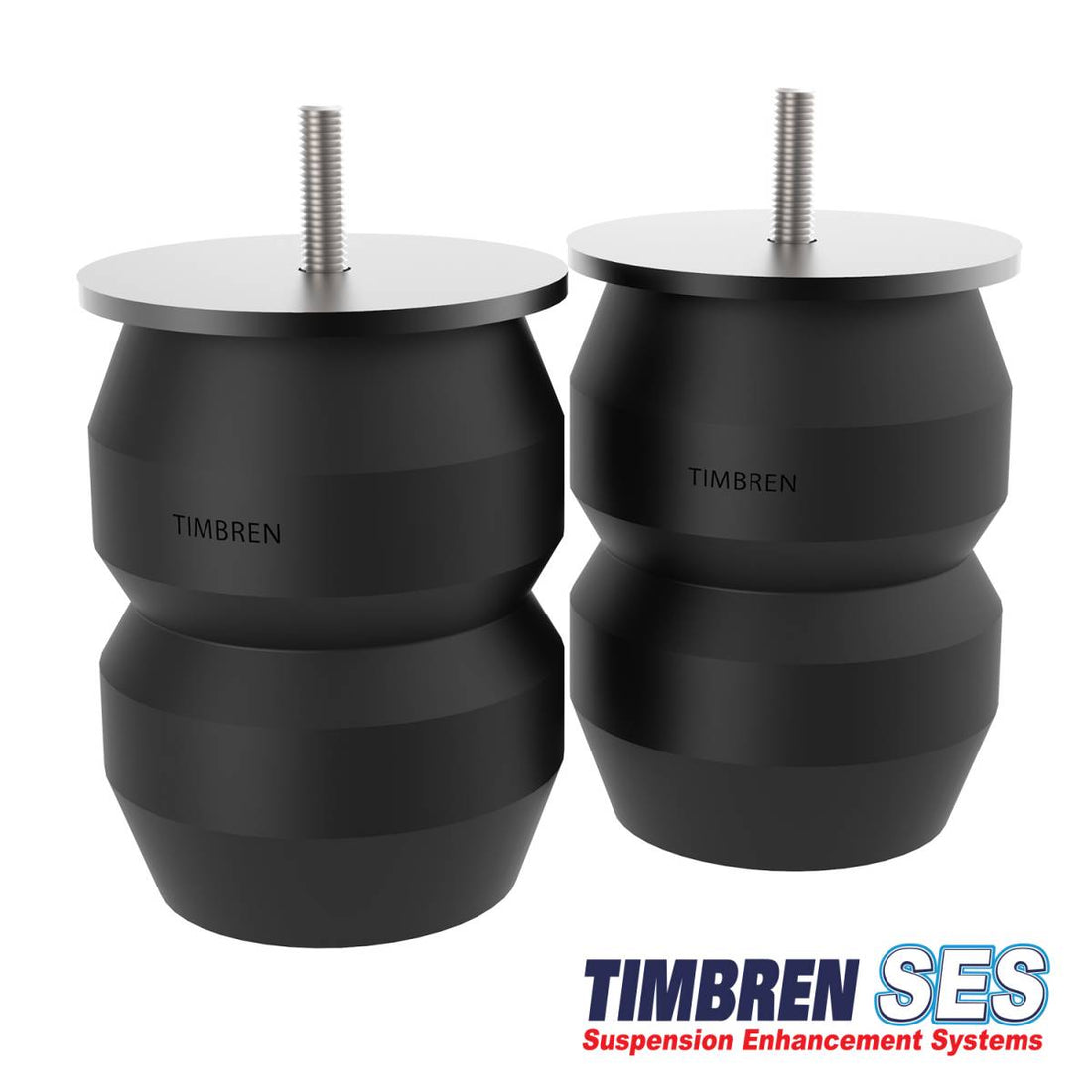

Optional Helper Springs
Timbren Helper Springs replace the factory jounce stops with progressive-rate rubber springs that engage as additional load is applied. They can help reduce rear suspension sag and improve stability while hauling cargo or towing, but they do not increase the vehicle manufacturer's GVWR or payload rating.
Questions & Custom Configurations
For compatibility questions or assistance selecting the correct suspension configuration, contact our sales team at sales@shocksurplus.com.
Compatibility List
| Year | Make | Model | Package | Drive | Position | Lift |
| 2024 | Ram | 1500 V8 | Without Off-Road Package | 4WD / RWD | Front & Rear | 1.25-2.5" Front / 0.5-2" Rear |
| 2024 | Ram | 1500 V8 | With Off-Road Package | 4WD / RWD | Front & Rear | 0.6-1.9" Front / 0-1" Rear |
| 2023 | Ram | 1500 V8 | Without Off-Road Package | 4WD / RWD | Front & Rear | 1.25-2.5" Front / 0.5-2" Rear |
| 2023 | Ram | 1500 V8 | With Off-Road Package | 4WD / RWD | Front & Rear | 0.6-1.9" Front / 0-1" Rear |
| 2022 | Ram | 1500 V8 | Without Off-Road Package | 4WD / RWD | Front & Rear | 1.25-2.5" Front / 0.5-2" Rear |
| 2022 | Ram | 1500 V8 | With Off-Road Package | 4WD / RWD | Front & Rear | 0.6-1.9" Front / 0-1" Rear |
| 2021 | Ram | 1500 V8 | Without Off-Road Package | 4WD / RWD | Front & Rear | 1.25-2.5" Front / 0.5-2" Rear |
| 2021 | Ram | 1500 V8 | With Off-Road Package | 4WD / RWD | Front & Rear | 0.6-1.9" Front / 0-1" Rear |
| 2020 | Ram | 1500 V8 | Without Off-Road Package | 4WD / RWD | Front & Rear | 1.25-2.5" Front / 0.5-2" Rear |
| 2020 | Ram | 1500 V8 | With Off-Road Package | 4WD / RWD | Front & Rear | 0.6-1.9" Front / 0-1" Rear |
| 2019 | Ram | 1500 V8 | Without Off-Road Package | 4WD / RWD | Front & Rear | 1.25-2.5" Front / 0.5-2" Rear |
| 2019 | Ram | 1500 V8 | With Off-Road Package | 4WD / RWD | Front & Rear | 0.6-1.9" Front / 0-1" Rear |
