Uniball Radius Arm Kit
Uniball Radius Arm Kit

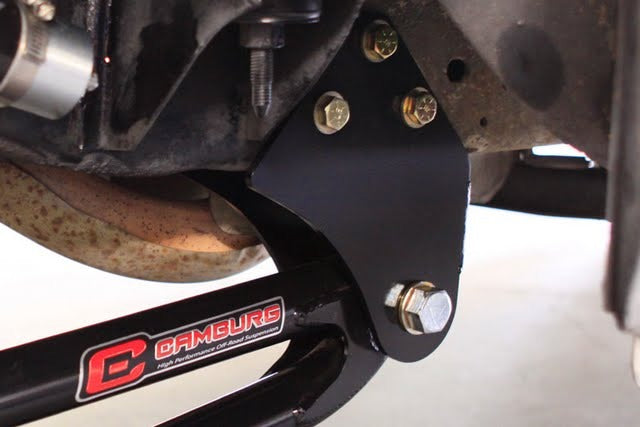

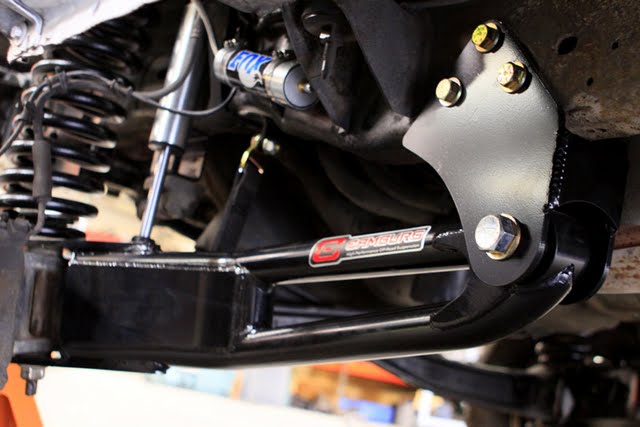

These are the same uniball radius arms we use in our Baja and Trail Series kits for the Ford vans. By using a 1” FK uniball, we’re able to gain wheel travel and eliminate any flex or deflection you would have with a rubber or polyurethane bushing. They also last longer and allow the suspension to cycle smoother and bind-free. We correct the suspension geometry by increasing positive caster for better handling and stability both on and off-road. We designed these to be used with 3–5” of lift from a coil spring or coilover. We engineered these to be much stronger than the thin stock radius arms, with stronger shock mounts that are double-sheared and an additional tab for a limit strap to bolt to. We use thick-walled DOM tubing, laser-cut thick plate work top and bottom where they bolt to the I-beams, along with boxing in the front and uniball areas for even more strength. These are powdercoated semi-gloss black and bolt right up once you remove the stock radius arms and brackets. These are perfect if you’re a DIY’er doing something custom or upgrading your van with an off-brand or pieced-together suspension kit. There are many more components needed when using these, so if you’re looking for something complete, check out our Baja or Trail kits.
CAMBURG WARRANTY
The manufacturer warrants that all CAMBURG ENGINEERING Products are free from defects. Our suspension products are warranted against defects in material and workmanship for as long as the original purchaser owns the vehicle on which it was originally installed. The warranty is void if the products are not installed properly on the vehicle for which it is designed.
This warranty does not apply to any product installed on any commercial vehicle or improperly installed, altered, or subjected to misuse or damage from accidents. Also, cost of labor and any additional parts required to complete installation of a replacement product are not covered by this warranty.
The warranty certificate, along with proof of purchase, MUST be presented to Camburg or the service outlet from which you originally purchased the product, or any participating dealer, when making a claim for replacement. The original product must also be returned and exchanged for a new product of the same part number.
Any non-Camburg manufactured product is subject and limited to that specific manufacturer’s warranty terms and conditions.
No other warranty, expressed or implied (including merchantability), applies to the product, nor is any person or the manufacturer authorized to assume any other warranty. The manufacturer does not assume any responsibility for consequential damages, including, but not limited to, installation and removal of products, towing costs, shipping costs, rental vehicles and inconvenience or interruption in any operation.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Always inspect your suspension after off-roading and at your routine service intervals.
- Non-wearable items produced by Camburg: Limited Lifetime Warranty from date of purchase with original owner during normal use and service.
- Wearable Items: Including, but not limited to bushings, bump stops, rubber or plastic components, bearings, tie rod ends, uniball, heim, and ball joints are warranted for 60 days from date of purchase for manufacturing defects. Normal wear and tear is not covered.
- Coatings and Finish: Covered for 12 months structural corrosion and manufacturing defects. Scratches, fading, surface corrosions and other cosmetic issues are not covered.
- Warranty exclusions:• Parts have been altered in any way• Damage due to incorrect installation, misuse, neglect, improper maintenance, accidents, collisions, etc.• Costs other than the item itself, including but not exclusive to: labor, alignment, shipping, vehicle downtime, inconvenience, other component damage, etc.• Regular wear and tear• Apparel and other merchandise• Any usage during racing or competitive events
All warranty claims are on a case-by-case basis and subject to the discretion of Camburg.
