I-beam Race Spindle & 2.25" Front Hub Upgrade Kit
Estimated Delivery in 3-4 weeks
I-beam Race Spindle & 2.25" Front Hub Upgrade Kit
Estimated Delivery in 3-4 weeks

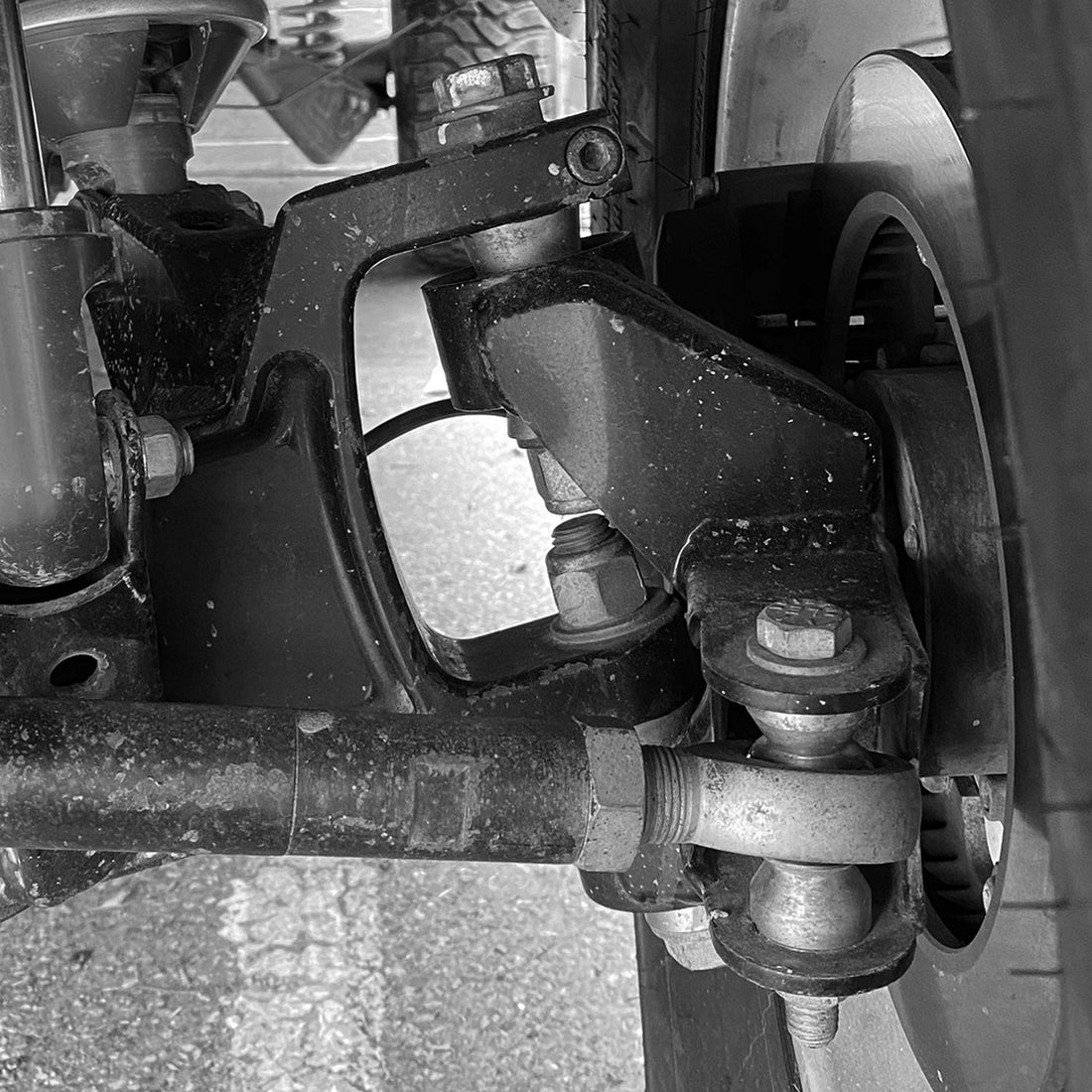

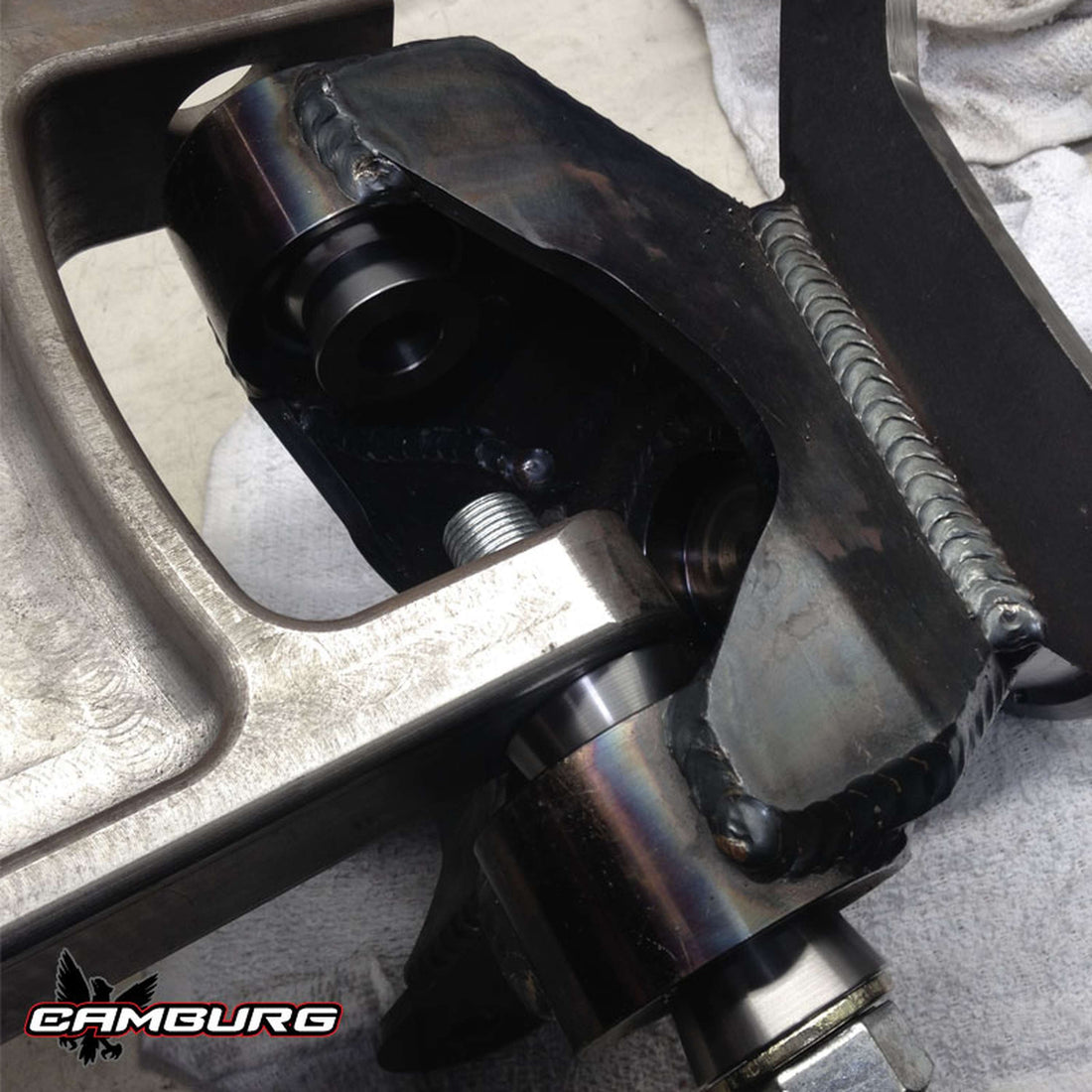

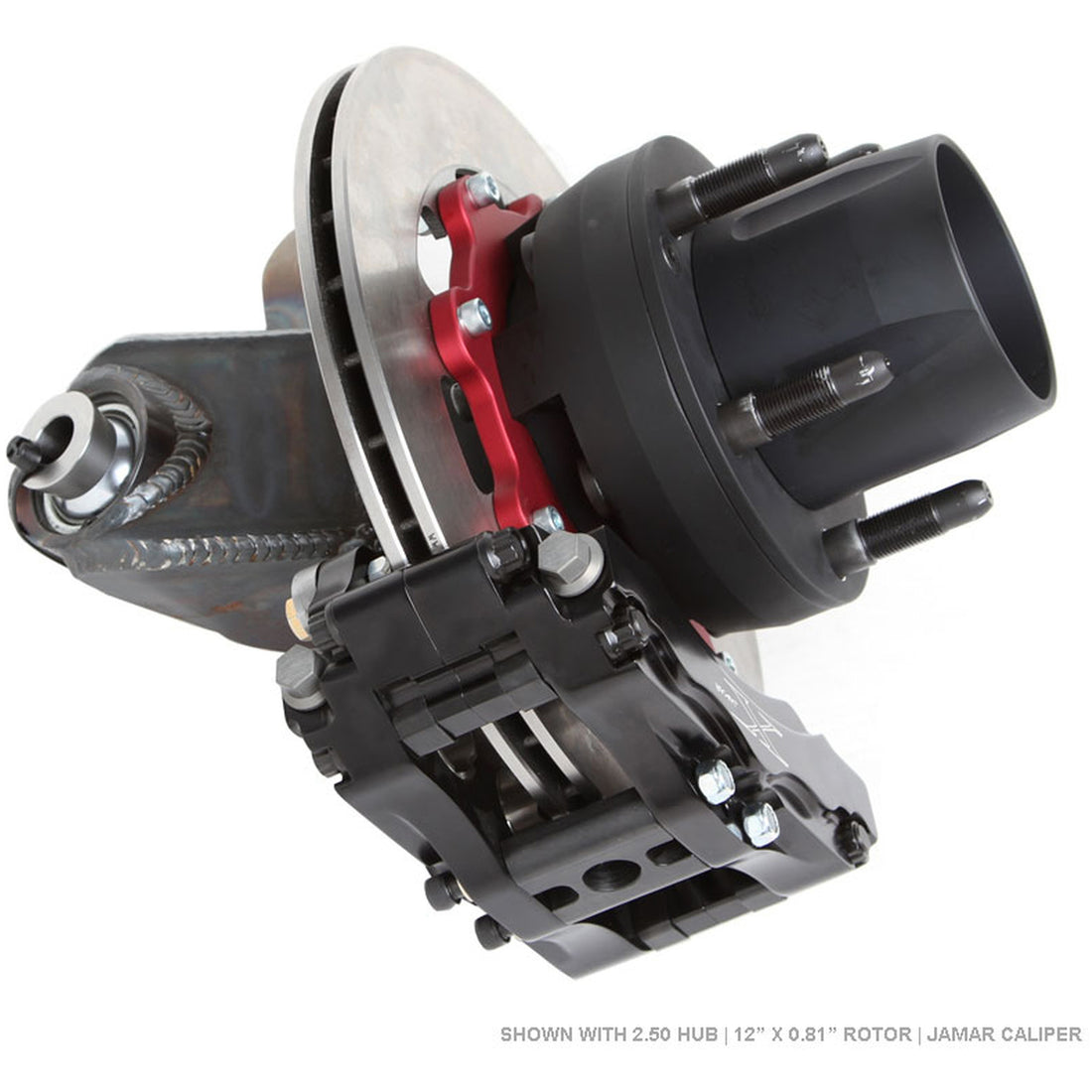

Available for 2wd 1987-1996 F-150’s, these new race spindles replace the weak link in the front suspension — no stock ball joints! We replace the upper and lower ball joints with 1” FK uniballs with heat-treated stainless steel spacers and 3/4” through bolts. Minor fabrication/machining to the I-beam end will be needed, and we recommend double shearing the uniballs. These are designed for the standard 2wd beam end, not a 4wd Dana 44 beam conversion. We also build 1.5” of lift into these for better ground clearance. You will need to convert your steering to use an FK 7/8” JMX heim joint. We can mix and match many different hub and brake combinations with this design to suit your needs and budget. Standard, they come with our 2.25 hubs and 12” Wilwood rotors and Superlite 4-piston calipers. You need wheels that are set up for 5/8” wheel studs and have a 4.25” center bore.
Camburg handles their warranty claims directly; if you encounter a product defect please reach out to Camburg directly.
For more information: View the Shock Surplus Warranty Policy.
