Raptor Conversion Coil Bucket Kit
Raptor Conversion Coil Bucket Kit

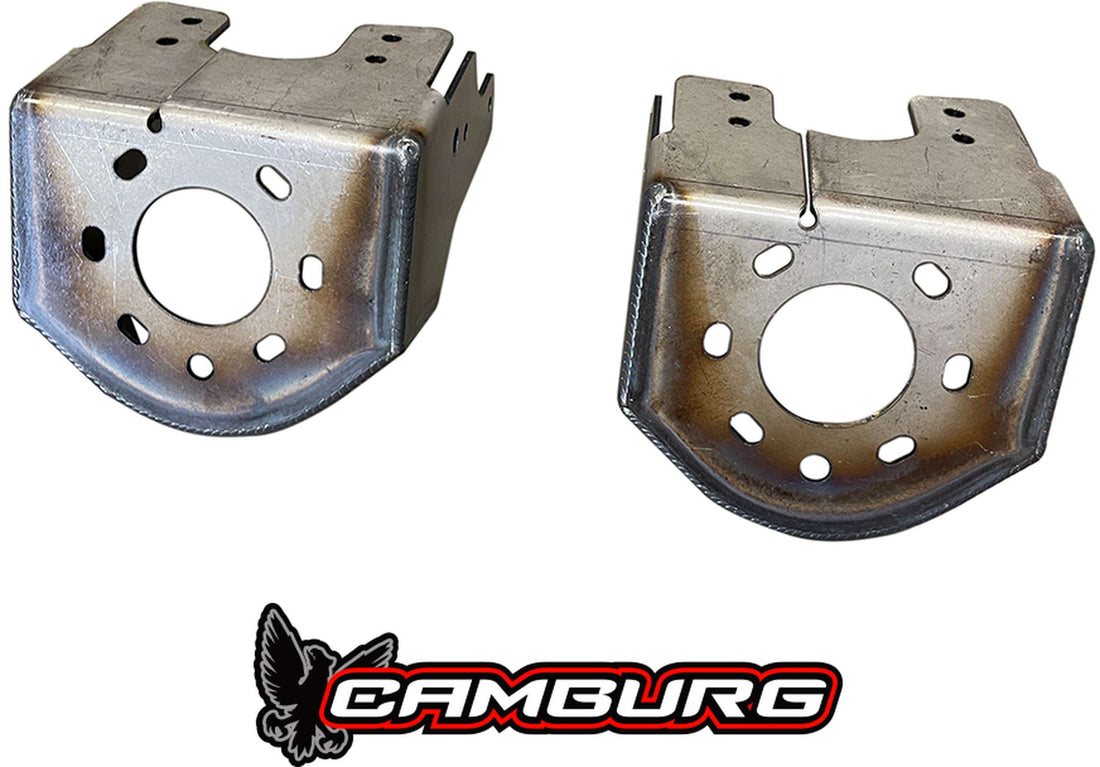

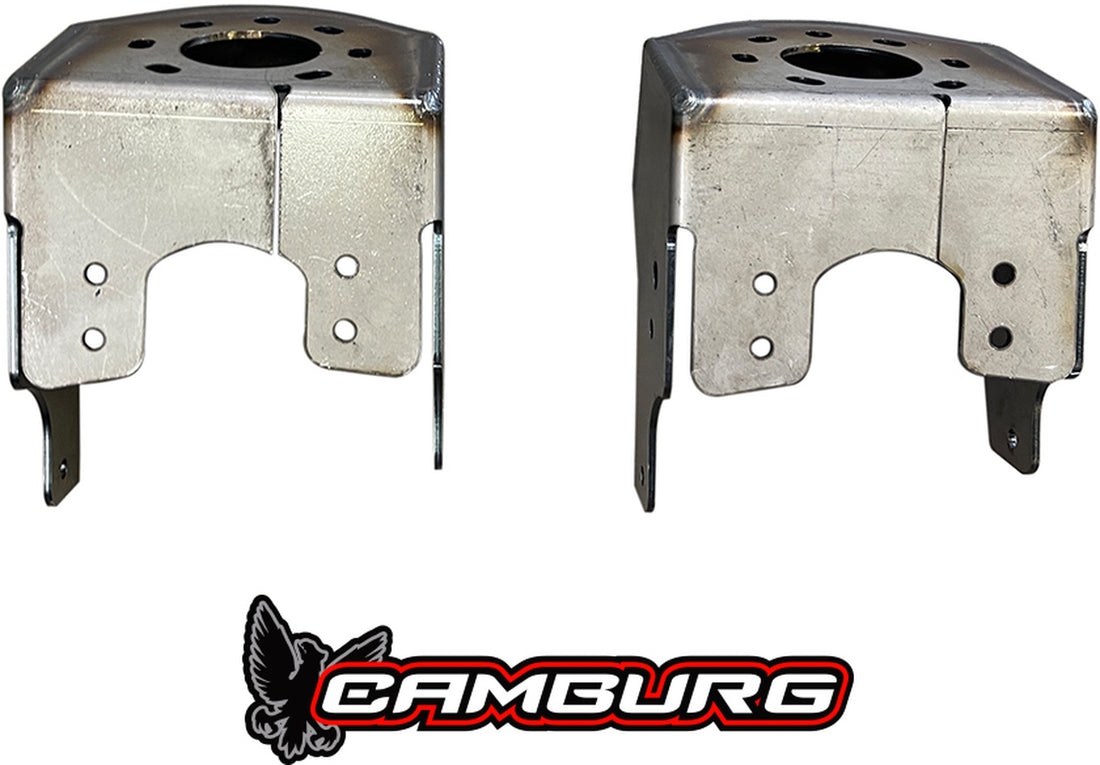

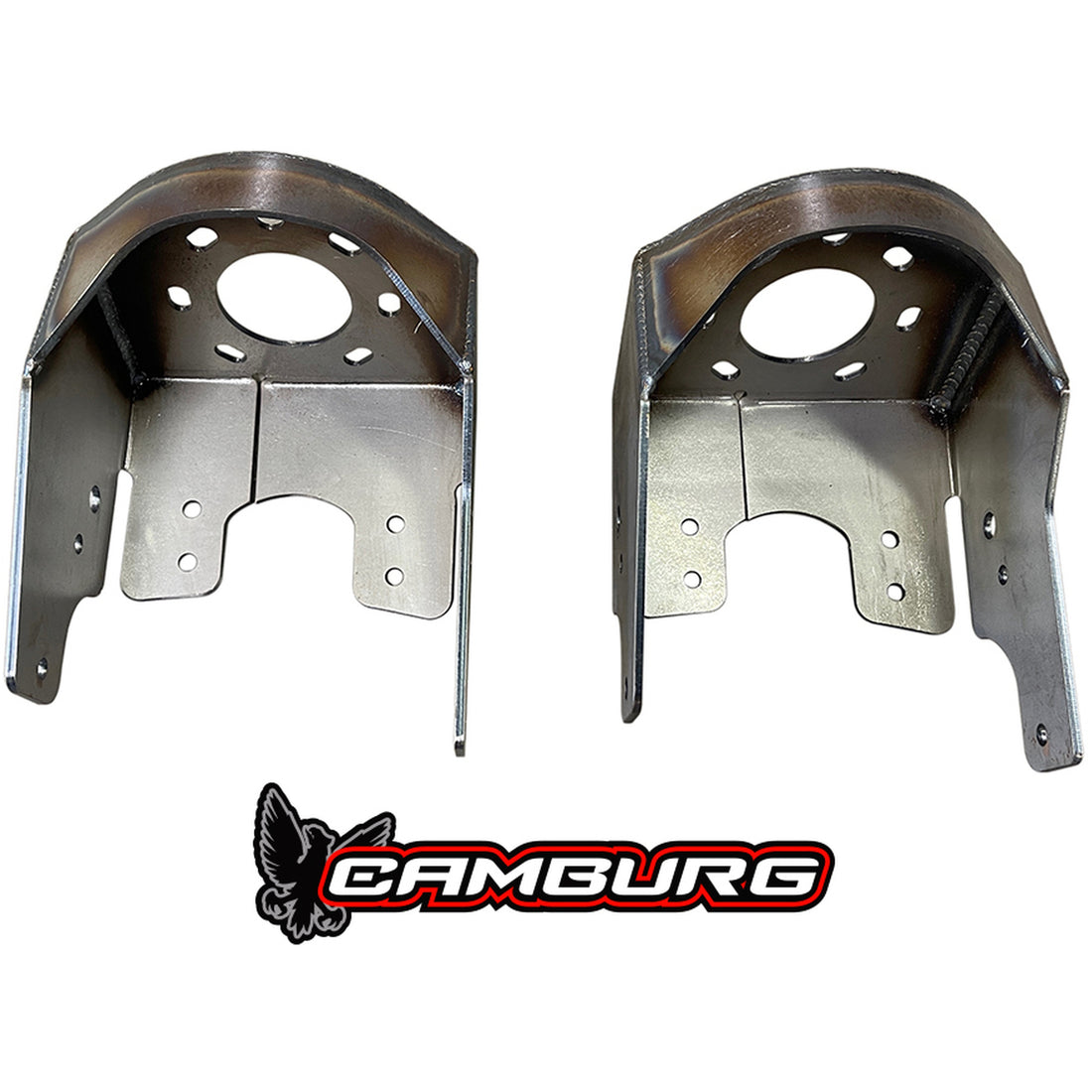

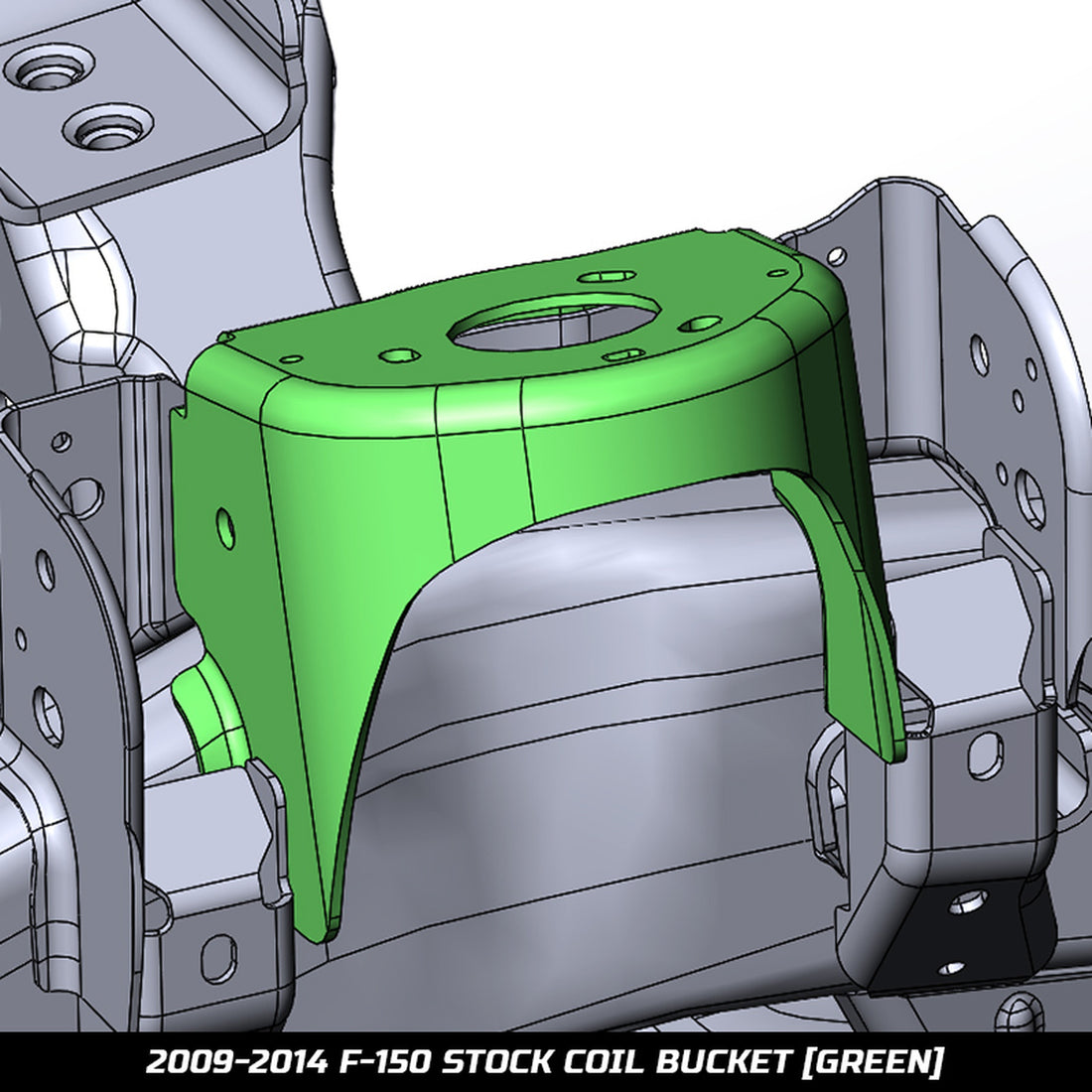

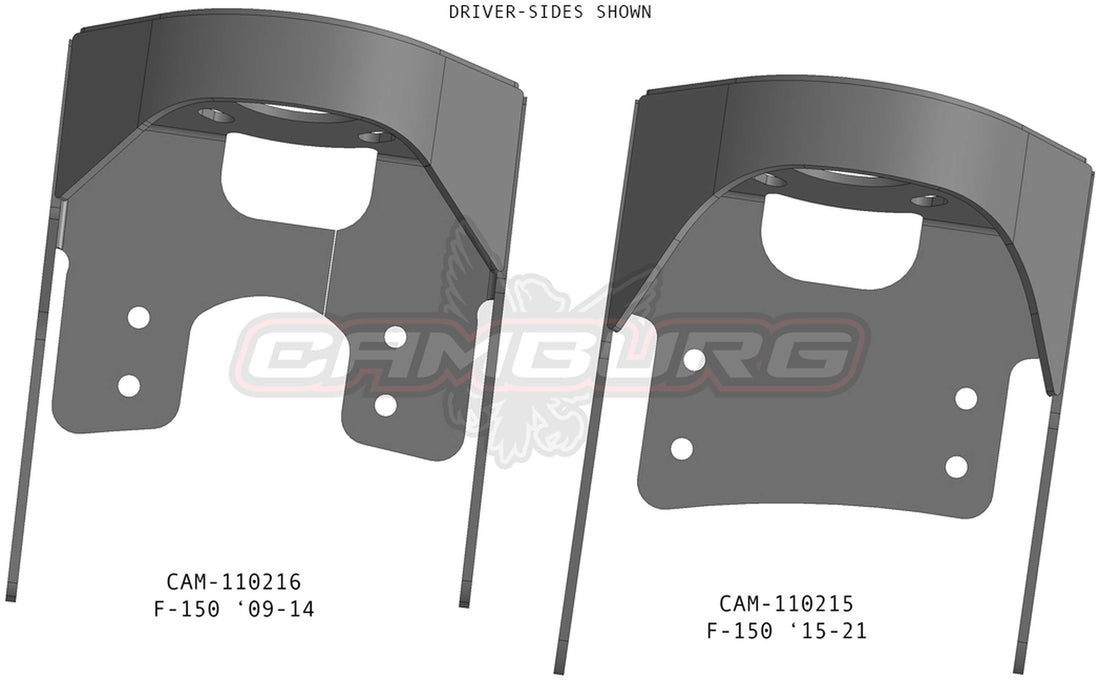

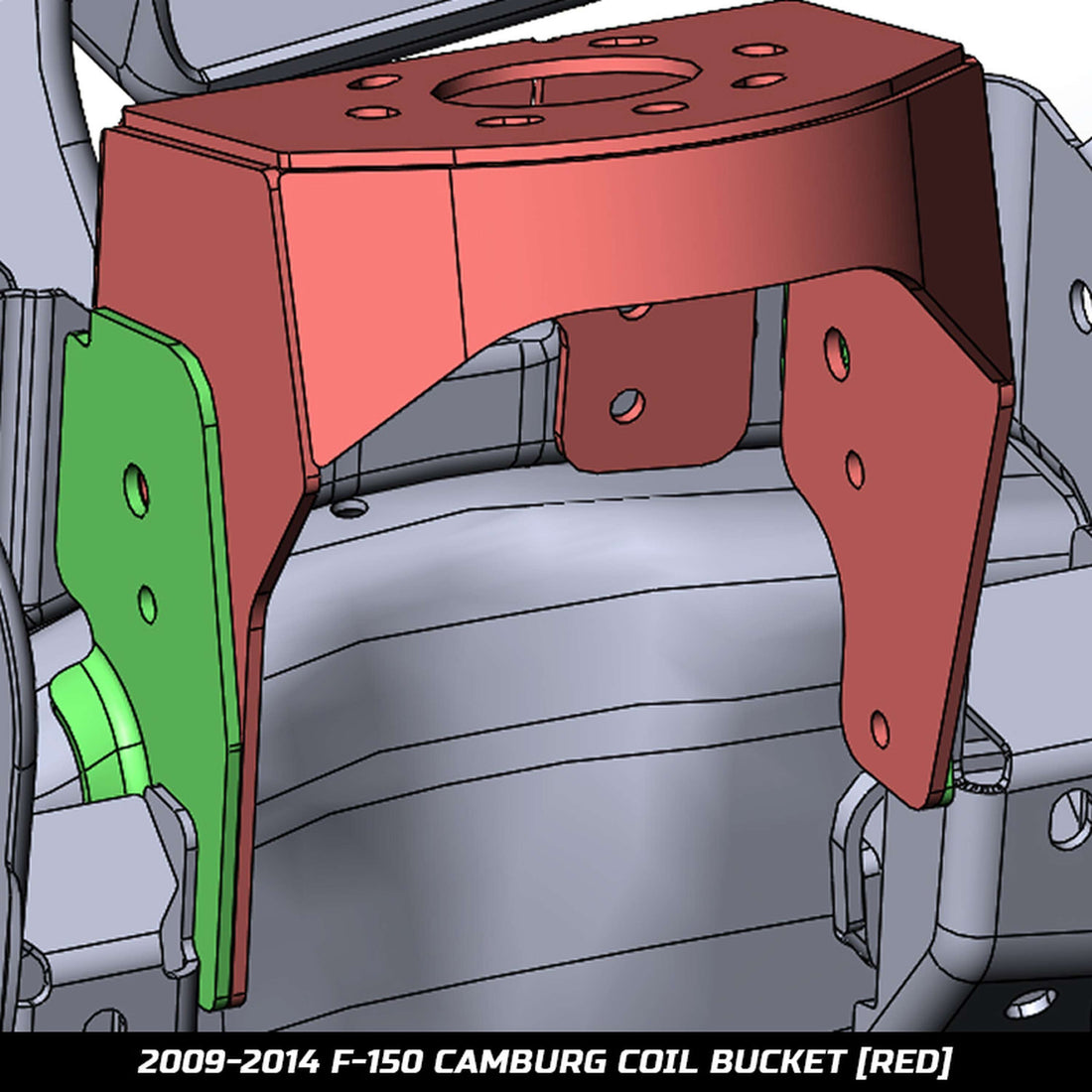

Looking to do a Raptor suspension conversion on your standard F-150? Here’s the first step allowing you to run the bigger diameter, longer length Raptor specific coilovers with our Camburg conversion weld-in coil buckets. This conversion is for the skilled do it yourselfer or a qualified off-road shop to take on since you’ll be cutting, fitting, grinding and welding these onto the factory frame. The Ford frames through the years vary every so slightly so some minor fitting is involved. Their manufacturing tolerances are no where near what we keep. These were designed to be welded in and we do not recommend trying to bolt them in. The holes are for proper placement/fixturing and to allow the upper control arms bolts to tie into further gusseting the frame and making it stronger. When you’re all said and done and you’ve given it a coat of black Steel-It, you would think it was factory. Refer to CAD drawings showing what area of the stock bucket is retained and used as a guide for cutting. Check 3 times, cut once; you can always trim off more if need be. These are designed to be used with Ford Raptor ’17-20 (GEN2) coilovers from FOX, King & Icon or the OEM FOX coilovers. FOX’s ’19-20 Live Valve coilovers will need to have the Live Valve deleted to operate properly. Depending on your suspension parts setup, you may need to install limit straps to not allow the suspension to droop too far and put something into a bind.
CAMBURG WARRANTY
The manufacturer warrants that all CAMBURG ENGINEERING Products are free from defects. Our suspension products are warranted against defects in material and workmanship for as long as the original purchaser owns the vehicle on which it was originally installed. The warranty is void if the products are not installed properly on the vehicle for which it is designed.
This warranty does not apply to any product installed on any commercial vehicle or improperly installed, altered, or subjected to misuse or damage from accidents. Also, cost of labor and any additional parts required to complete installation of a replacement product are not covered by this warranty.
The warranty certificate, along with proof of purchase, MUST be presented to Camburg or the service outlet from which you originally purchased the product, or any participating dealer, when making a claim for replacement. The original product must also be returned and exchanged for a new product of the same part number.
Any non-Camburg manufactured product is subject and limited to that specific manufacturer’s warranty terms and conditions.
No other warranty, expressed or implied (including merchantability), applies to the product, nor is any person or the manufacturer authorized to assume any other warranty. The manufacturer does not assume any responsibility for consequential damages, including, but not limited to, installation and removal of products, towing costs, shipping costs, rental vehicles and inconvenience or interruption in any operation.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Always inspect your suspension after off-roading and at your routine service intervals.
- Non-wearable items produced by Camburg: Limited Lifetime Warranty from date of purchase with original owner during normal use and service.
- Wearable Items: Including, but not limited to bushings, bump stops, rubber or plastic components, bearings, tie rod ends, uniball, heim, and ball joints are warranted for 60 days from date of purchase for manufacturing defects. Normal wear and tear is not covered.
- Coatings and Finish: Covered for 12 months structural corrosion and manufacturing defects. Scratches, fading, surface corrosions and other cosmetic issues are not covered.
- Warranty exclusions:• Parts have been altered in any way• Damage due to incorrect installation, misuse, neglect, improper maintenance, accidents, collisions, etc.• Costs other than the item itself, including but not exclusive to: labor, alignment, shipping, vehicle downtime, inconvenience, other component damage, etc.• Regular wear and tear• Apparel and other merchandise• Any usage during racing or competitive events
All warranty claims are on a case-by-case basis and subject to the discretion of Camburg.
