Deaver

2.5" Lift Springs + U-Bolts + Bushing Kit

1983-2011 Ford Ranger 4WD RWD W/ Rebound Race Springs
$1,543.98

Out of Stock

Estimated Delivery in 3-7 business days

G50 x1 UBK-G50 x1 BKIT-G50 x1
Deaver

2.5" Lift Springs + U-Bolts + Bushing Kit

1983-2011 Ford Ranger 4WD RWD W/ Rebound Race Springs
$1,543.98

Out of Stock

Estimated Delivery in 3-7 business days
Authorized dealer
Free shipping on orders above $250 within the lower 48 United States
Brand new parts with warranty coverage
Free 30-day return and exchange on qualifying orders
Got Questions?
Our experts are here to help!
Chat now Request a call back
Part Numbers & Details
Kit Contents

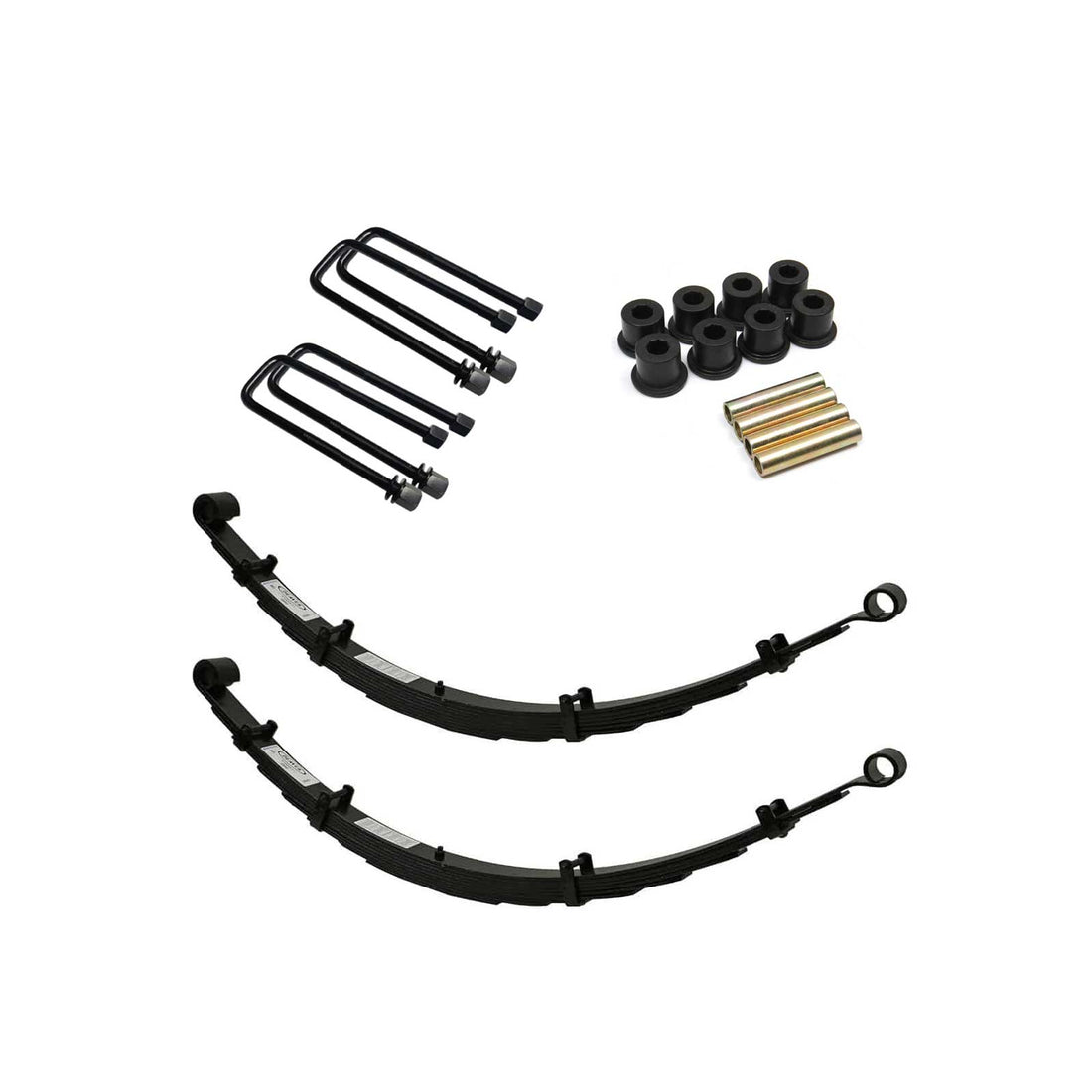

You'll be getting 2 leaf springs, a U-bolt kit, and a bushing kit.
Warranty Information
30 days from installation on material or manufacture defects.
Fits 4WD & RWD vehicles
This product works for 4WD and RWD vehicles.
Feature
Designed for race weight with full bed cage, after-market 32 gal fuel cell and spare tire. Designed to be used with shackle mount inverted from stock position to yield 2 1/2 inch lift. If shackle mount not inverted lift height is 4 inches over stock. 4 wheel drives retain 2 inch block to yield above results.
Leaf Count
10 leaves per leaf spring
Includes Ubolt Kit & Bushing Kit
This kit includes the u-bolts & Urethane Bushing Kit needed for installation.
Specifications
Part NumberItemQuantity
G502.5" Lift Springs1
UBK-G50U-Bolt Kit1
BKIT-G50Urethane Bushing Kit1
Product Details

Deaver Progressive Series springs are high-quality, 8-leaf, 9-leaf, 10-leaf, 11-leaf, and 12-leaf units fabricated with high-grade 5160 “American Made” steel. A higher leaf count spring allows the use of thinner leaf material that yields a more flexible progressive leaf stack, or pyramid, producing a much smoother spring rate curve throughout the complete suspension cycle. Our progressive system spring's even, linear compression rate curve is the primary key to excellent ride quality. Other design features include full military-wrapped spring eyes for superior durability, diamond-cut inner leaf ends minimizing shear points, and anti-friction pads inserted between the leaves for a smoother ride and quiet operation.

Compatibility List
YearMakeModelDrivePositionLift
2011FordRangerRWD, 4WDFactory
2010FordRangerRWD, 4WDFactory
2009FordRangerRWD, 4WDFactory
2008FordRangerRWD, 4WDFactory
2007FordRangerRWD, 4WDFactory
2006FordRangerRWD, 4WDFactory
2005FordRangerRWD, 4WDFactory
2004FordRangerRWD, 4WDFactory
2003FordRangerRWD, 4WDFactory
2002FordRangerRWD, 4WDFactory
2001FordRangerRWD, 4WDFactory
2000FordRangerRWD, 4WDFactory
1999FordRangerRWD, 4WDFactory
1998FordRangerRWD, 4WDFactory
1997FordRangerRWD, 4WDFactory
1996FordRangerRWD, 4WDFactory
1995FordRangerRWD, 4WDFactory
1994FordRangerRWD, 4WDFactory
1993FordRangerRWD, 4WDFactory
1992FordRangerRWD, 4WDFactory
1991FordRangerRWD, 4WDFactory
1990FordRangerRWD, 4WDFactory
1989FordRangerRWD, 4WDFactory
1988FordRangerRWD, 4WDFactory
1987FordRangerRWD, 4WDFactory
1986FordRangerRWD, 4WDFactory
1985FordRangerRWD, 4WDFactory
1984FordRangerRWD, 4WDFactory
1983FordRangerRWD, 4WDFactory

Deaver Manufacturer's Warranty

Deaver provides warranty coverage for 30 days from installation on material or manufacture defects.

Shipping Info

Free Shipping on most orders to the lower 48 U.S. states. Truck freight items (over 100 lbs) and custom orders require a separate shipping quote.

  • Applies to items like axles, leaf springs, and long-travel kits.
  • No international shipping on freight items — only to U.S.-based freight forwarders.
  • Worldwide shipping available: Canada, Europe, UAE, Australia, and most of Asia.

Contact us for an international shipping quote.

Returns & Exchanges

30-Day Return Policy — Items must be new, unused, uninstalled, and include all original hardware.

  • No restocking fees for exchanges or gift card credit.
  • 10% restocking fee on refunds, returns cost us real money, so the 10% helps keep the lights on.
  • Installed, damaged, or dirty parts cannot be returned.
  • Any returns missing hardware or miscellaneous items, the return will be denied and returned to the buyer at the buyer's expense.

Need help? Use Live Chat or Email Us anytime.

Start a Return or Exchange

Return Shipping Responsibility

CHECKOUT+ Package and Order Protection plan provides prepaid return labels for any returned packages, this fee varies by product.

  • Our mistake (misboxed, wrong item, damaged): We cover the cost of return shipping.
  • Buyer mistake (wrong item ordered, fitment error, changed mind): Return shipping is the buyer's responsibility - unless CHECKOUT+ Package Protection has been purchased.

  • Under 50 lbs: Discounted carrier rate
  • Over 50 lbs: Discounted carrier rate + $25 oversize fee

Refunds

Refunds are issued within 5–7 business days of receiving your return.

  • Funds typically post to your account in 1–3 business days depending on your payment method.
  • There is a 10% restocking fee on all refunds. We don’t get our original shipping, labor, or transaction fees back — so the 10% restocking fee keeps the lights on.
  • You will receive an email once your refund is processed.

International Orders

  • All international orders are final sale.
  • Returns via freight forwarders only accepted if the product hasn’t left the U.S.
  • Import taxes, duties, and other possible import-related fees are the buyer’s responsibility and not included in our shipping charges.
  • We are not responsible for goods once exported outside the U.S.
