2" Uniball UCA Lift Kit w/Front Dirt Logic 2.5 Coilovers & Rear 2.25 Shocks w/2" lift
Estimated Delivery in 3-7 business days
2" Uniball UCA Lift Kit w/Front Dirt Logic 2.5 Coilovers & Rear 2.25 Shocks w/2" lift
Estimated Delivery in 3-7 business days

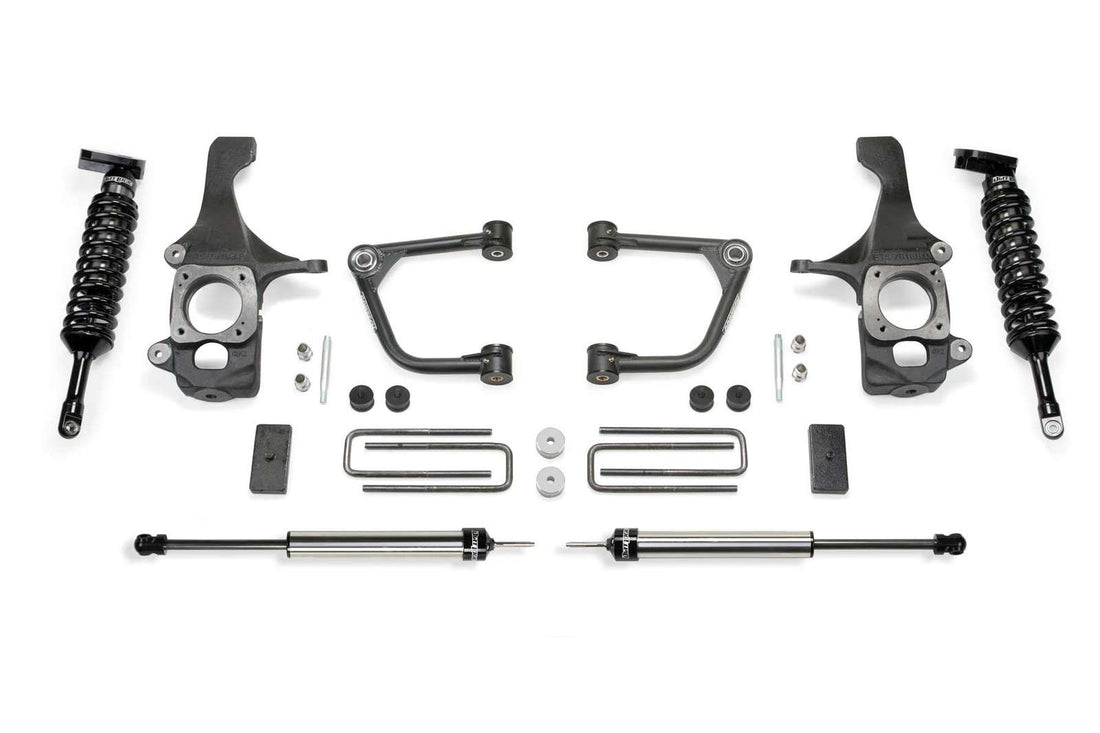

| Part Number | Item | Quantity |
|---|---|---|
| K7075DL | 2" Uniball UCA Lift Kit w/Front Dirt Logic 2.5 Coilovers & Rear 2.25 Shocks | 1 |
Product Description
This Tundra TRD PRO lift kit has been designed specifically for the owner that wants a little more ride height out of their truck for clearance of 35" tires along with improved suspension performance.
Fabtech's Upper Control Arm lift kit provides a 2" increased ride height on TRD PRO models without creating suspension bind at full droop. These vehicles have a factory 2" lift. With the addition of this 2" lift kit the vehicle will sit as high as a standard model with a 4" lift kit and clear a 35" tall tire.
The heart of this quality lift kit is the stainless steel Dirt Logic 2.5 Coilover shocks. They provide lift and offer excellent damping capacity for offroad use and a smooth highway ride. The stainless steel body and NitroSteel® piston rods of the Dirt Logics provide maximum corrosion resistance for durability and longevity.
To maximize the performance of the Dirt Logic shocks Fabtech includes tubular Uniball Upper Control Arms. Built with large 1" Stainless Steel Uniballs they provide maximum strength for hard offroad use.
Working in conjunction with the Fabtech Upper Control Arms there are extended length ductile iron steering knuckles that allow for increased travel without bind and additional caster to handle oversized tires.
The front differential is relocated to keep the CV angles operating freely during the full range of travel. Front bump stops extensions control the compression travel eliminating over cycling of the suspension.
Rear lift comes from 1" blocks and u-bolts. Some owners may opt to not install the rear blocks if they desire to level the stance of the vehicle.
Legendary stainless steel Dirt Logic 2.25 rear shocks are provided for a superior ride quality both on and offroad.
This Tundra TRD PRO lift kit is an excellent choice for owners looking to increase ride height for 35" tall tires while enhancing the suspension performance of the vehicle.
Comes with a free 5 year 60,000 mile Powertrain Warranty.
Part Numbers
| Qty | Part # | Description |
|---|---|---|
| 1 | FTS26070 | Component Box |
| 1 | FTS26052 | Front Dirt Logic 2.5 Resi Coilovers |
| 2 | FTS810982 | Rear Dirt Logic 2.25 Shock |
| Year | Make | Model | Drive | Position | Lift |
| 2021 | Toyota | Tundra | 4WD | 2.0" Front / 2" Rear | |
| 2020 | Toyota | Tundra | 4WD | 2.0" Front / 2" Rear | |
| 2019 | Toyota | Tundra | 4WD | 2.0" Front / 2" Rear | |
| 2018 | Toyota | Tundra | 4WD | 2.0" Front / 2" Rear | |
| 2017 | Toyota | Tundra | 4WD | 2.0" Front / 2" Rear | |
| 2016 | Toyota | Tundra | 4WD | 2.0" Front / 2" Rear | |
| 2015 | Toyota | Tundra | 4WD | 2.0" Front / 2" Rear | |
| 2014 | Toyota | Tundra | 4WD | 2.0" Front / 2" Rear | |
| 2013 | Toyota | Tundra | 4WD | 2.0" Front / 2" Rear | |
| 2012 | Toyota | Tundra | 4WD | 2.0" Front / 2" Rear | |
| 2011 | Toyota | Tundra | 4WD | 2.0" Front / 2" Rear | |
| 2010 | Toyota | Tundra | 4WD | 2.0" Front / 2" Rear | |
| 2009 | Toyota | Tundra | 4WD | 2.0" Front / 2" Rear | |
| 2008 | Toyota | Tundra | 4WD | 2.0" Front / 2" Rear | |
| 2007 | Toyota | Tundra | 4WD | 2.0" Front / 2" Rear |
