3" Ball Joint UCA Lift Kit w/Rear Performance Shocks w/3" lift
3" Ball Joint UCA Lift Kit w/Rear Performance Shocks w/3" lift
| Part Number | Item | Quantity |
|---|---|---|
| K3168 | 3" Ball Joint UCA Lift Kit w/Rear Performance Shocks | 1 |
Product Description
This 3" Ram lift kit has been designed to provide a superior ride quality with clearance to run 35" tires for both on and offroad use. The mild lift height is subtle yet gives the vehicle a commanding stance without over doing it.
Fabtech engineers took considerable time to cycle and test the 3" lift with their heavy duty ball joint upper control arms. There is no bind throughout the suspension travel and steering operation. The steering will go full lock to lock without any loss of the turning radius.
The factory Ram upper control arm is made of plastic with a light duty ball joint. Fabtech's Upper Control Arms are constructed of tubular steel with large robust ball joints that provide strength to the suspension. These Fabtech upper control arms are a substantial upgrade for aggressive offroad use.
Front lift is accomplished with a steel spacer that bolts to the top of factory coilover shock and a small coil spring collar that is placed below the coil spring. The combination of these two spacers provide a full 3" of lift while providing proper suspension travel without bind.
The rear suspension receives a coil spring spacer to lift the vehicle. This helps keep the vehicle's factory stance without effecting the ride quality.
This Ram lift kit includes Fabtech Stealth shocks. They are a sealed monotube shock that has a Nitrocarb piston rod for corrosion resistance and resist rock chipping. They will provide a great highway ride with good offroad damping capacity.
This high quality 3" Ram lift kit is easy to install and will provide years of service while adding strength and reliability to the vehicle.

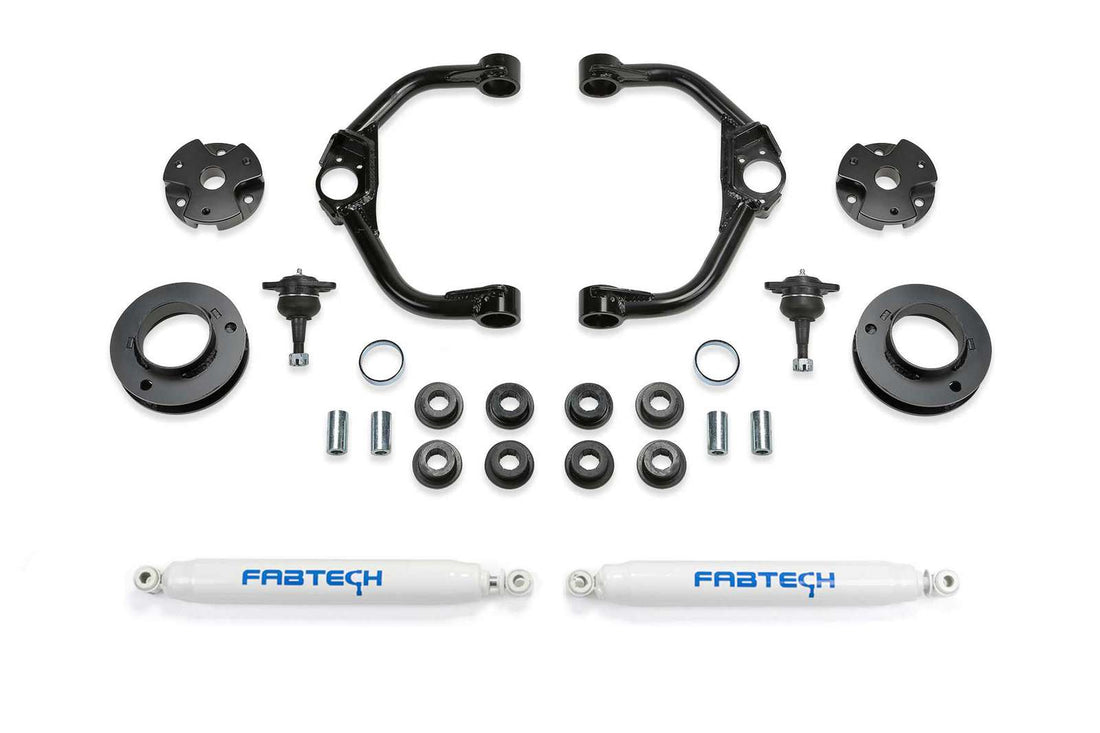

Part Numbers
| Qty | Part # | Description |
|---|---|---|
| 1 | FTS23202 | Ball Joint UCA Component Box |
| 1 | FTS23205 | Shock Spacers |
| 2 | FTS6016 | Rear Stealth Shocks |
| Year | Make | Model | Drive | Position | Lift |
| 2024 | Dodge | Ram 1500 | 4WD | 3.0" | |
| 2023 | Dodge | Ram 1500 | 4WD | 3.0" | |
| 2022 | Dodge | Ram 1500 | 4WD | 3.0" | |
| 2021 | Dodge | Ram 1500 | 4WD | 3.0" | |
| 2020 | Dodge | Ram 1500 | 4WD | 3.0" | |
| 2019 | Dodge | Ram 1500 | 4WD | 3.0" | |
| 2024 | Ram | 1500 | 4WD | 3.0" | |
| 2023 | Ram | 1500 | 4WD | 3.0" | |
| 2022 | Ram | 1500 | 4WD | 3.0" | |
| 2021 | Ram | 1500 | 4WD | 3.0" | |
| 2020 | Ram | 1500 | 4WD | 3.0" | |
| 2019 | Ram | 1500 | 4WD | 3.0" |
FABTECH LIMITED LIFETIME WARRANTY
Fabtech Motorsports provides a Limited Lifetime Warranty to the original retail purchaser who owns the vehicle, on which the product was originally installed, for defects in workmanship and materials.
The Limited Lifetime Warranty excludes the following Fabtech items; bushings, bump stops, ball joints, tie rod ends, limiting straps, cross shafts, heim joints and driveshafts. These parts are subject to wear and are not considered defective when worn. They are warranted for 60 days from the date of purchase for defects in workmanship.
Dirt Logic and Performance Coilover take apart shocks are considered a serviceable shock with a one year warranty on leakage only. Service seal kits are available separately for future maintenance. All other shocks are covered under our Limited Lifetime Warranty.
Fabtech does not warrant any product for finish, alterations, modifications and/or installation contrary to Fabtech’s instructions. Alterations to the finish of the parts including but not limited to painting, powder coating, plating and/or welding will void all warranties. Some finish damage may occur to parts during shipping, which is considered normal and is not covered under warranty.
