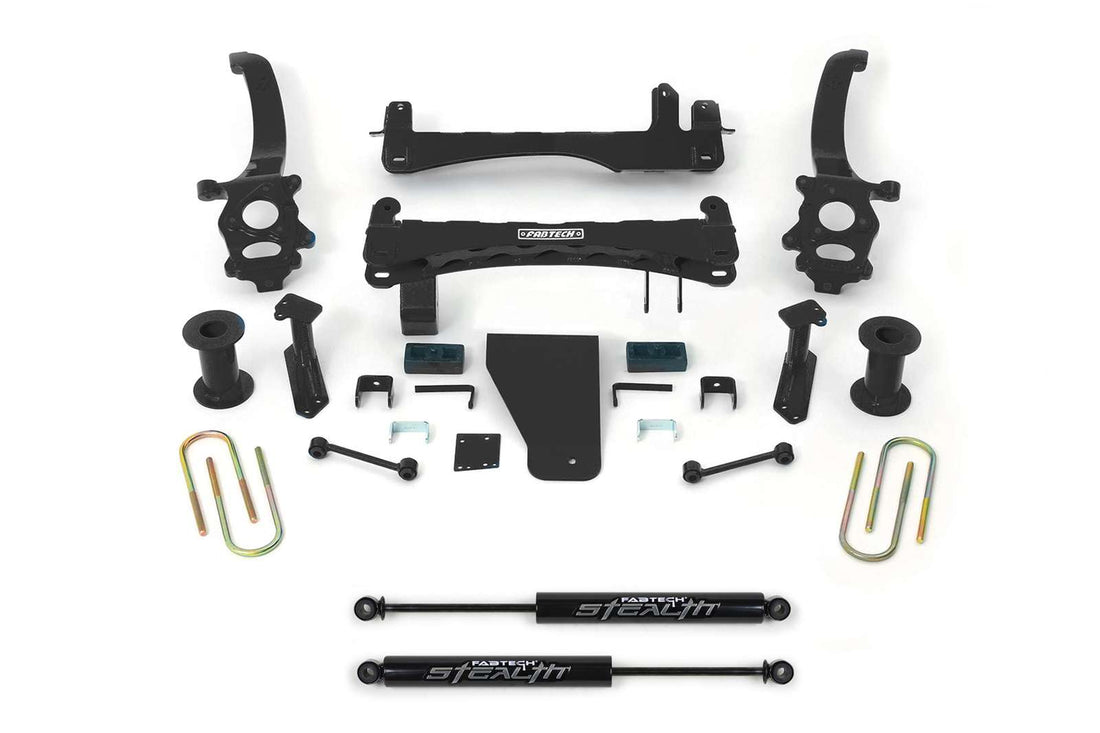

6" Basic System w/Rear Stealth Shocks Kit w/6" lift
6" Basic System w/Rear Stealth Shocks Kit w/6" lift
| Part Number | Item | Quantity |
|---|---|---|
| K6008M | 6" Basic System w/Rear Stealth Shocks | 1 |
Product Description
This Performance system feature Fabtech's proven IFS technology with extended length ductile iron steering knuckles for proper factory electronic stability control functionality. Heavy duty 1/4" thick steel lower control arm crossmembers provide superior ground clearance while the integrated front differential skid plate adds protection to the drivetrain. The rear of the Nissan Titan XD suspension is lifted with 3" blocks and u-bolts.
The front suspension is controlled with Fabtech's legendary stainless steel Dirt Logic 2.5 Coilover shocks for outstanding damping capacity with a superior highway ride. Rear shocks include the Dirt Logic 2.25 non resi.
Features
- Extended Length Ductile Iron Spindles
- 1/4" Thick High Arched Crossmembers
- Dirt Logic 2.5 Coilovers
- Rear Block & U-bolt Kit
CROSSMEMBERS
1/4" thick steel lower control arm crossmembers are arched for maximum ground clearance. Four adjustable alignment cams provide a wide range of adjustment. The fully welded box design of these crossmembers provides additional strength to the front suspension.
STEERING KNUCKLES
Extended length ductile iron steering knuckles retain near stock track width keeping the tires under the fenders. These steering knuckles are designed to work in conjunction with the factory ESC for proper functionality at all speeds.
DIRT LOGIC 2.5 COILOVERS
Built with a 2.5" stainless steel body and 7/8" NitroSteel® piston rod these coilovers provide maximum corrosion resistance and durability for the most aggressive driving conditions. The cold wound coil springs provide proper load carrying capacity with the ability to cycle at full travel. Ride tuned to provide exceptional damping for offroad with a premium highway ride. The pinnacle of all coilover shocks.
SKID PLATE
A heavy duty front differential skid plate is constructed of 1/4" thick steel to protect the diff from offroad obstacles.
DIFFERENTIAL MOUNTS
Integrated differential mounts on the crossmembers properly reposition the front diff for the precise CV and driveshaft angle throughout the entire Nissan XD steering and suspension travel range.
TIE ROD ENDS
Heavy duty tie rod ends replace the factory units and provide additional strength to the steering for use with oversized tires.
FRONT BUMP STOPS
1/4" thick steel bracket construction is built to handle the full compression impact of the Titan.
SWAY BAR BRACKETS & LINKS
The front sway bar is repositioned down with heavy duty brackets for the new ride height. Rear extended length sway bar end links feature urethane bushings for positive on road feel and longevity.
BRAKE LINE BRACKETS
Repositions the factory Nissan Titan brake lines down on the frame for the new travel range without having to open the brake system. Keeps factory fluid system intact.
REAR LIFT BLOCKS
3" cast iron rear lift blocks replace the factory blocks for addition lift without changing the ride quality or load carrying capacity.
REAR U-BOLTS
U-Bolts that retain the entire rear differential to the vehicle. A critical part that demands the best quality for your vehicle.
REAR DIRT LOGIC 2.25 SHOCKS
Constructed of a stainless steel body with NitroSteel® piston rod for maximum corrosion resistance and durability. Superior ride quality both on and offroad. Excellent damping for offroad use.
Part Numbers
| Qty | Part # | Description |
|---|---|---|
| 1 | FTS25018 | Component Box 1 |
| 1 | FTS25015 | Component Box 2 |
| 1 | FTS25023 | Front Dirt Logic 2.5 Coilovers |
| 2 | FTS811322 | Rear Dirt Logic 2.25 Shocks |
| Year | Make | Model | Drive | Position | Lift |
| 2015 | Nissan | Titan | 4WD | 6.0" | |
| 2014 | Nissan | Titan | 4WD | 6.0" | |
| 2013 | Nissan | Titan | 4WD | 6.0" | |
| 2012 | Nissan | Titan | 4WD | 6.0" | |
| 2011 | Nissan | Titan | 4WD | 6.0" | |
| 2010 | Nissan | Titan | 4WD | 6.0" | |
| 2009 | Nissan | Titan | 4WD | 6.0" | |
| 2008 | Nissan | Titan | 4WD | 6.0" | |
| 2007 | Nissan | Titan | 4WD | 6.0" | |
| 2006 | Nissan | Titan | 4WD | 6.0" | |
| 2005 | Nissan | Titan | 4WD | 6.0" | |
| 2004 | Nissan | Titan | 4WD | 6.0" |
