6" Performance System w/Front Dirt Logic 2.5 Coilovers w/Reservoir & Rear 2.25 Shocks Kit w/6" lift
Estimated Delivery in 3-7 business days
6" Performance System w/Front Dirt Logic 2.5 Coilovers w/Reservoir & Rear 2.25 Shocks Kit w/6" lift
Estimated Delivery in 3-7 business days

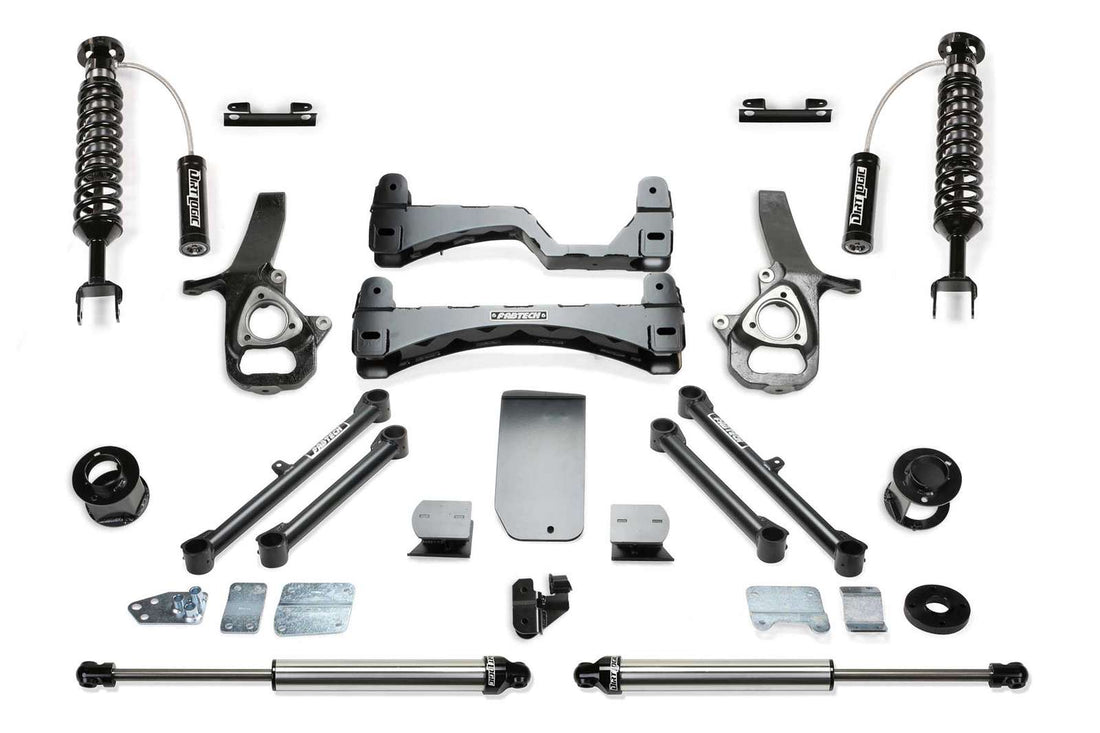

| Part Number | Item | Quantity |
|---|---|---|
| K3088DL | 6" Performance System w/Front Dirt Logic 2.5 Coilovers w/Reservoir & Rear 2.25 Shocks | 1 |
Product Description
This system offers increased ride height utilizing the factory suspension components with heavy duty bracketry. High quality Dirt Logic shocks are included to enhance the damping capacity of the vehicle for offroad use while providing a superior on road ride quality.
The system feature Fabtech's proven IFS technology with extended length ductile iron steering knuckles for proper electronic stability control functionality. Heavy duty 1/4" thick steel lower control arm crossmembers provide superior ground clearance for adventurous offroad trails. Rear lift is accomplished with steel coil spring spacers that utilize the factory coil springs for proper load capacity and a great highway ride.
The Performance lift kit includes Fabtech's legendary stainless steel Dirt Logic 2.5 Coilovers and rear Dirt Logic 2.25 shocks for outstanding damping capacity with a superior highway ride.
CROSSMEMBERS
1/4" thick steel lower control arm crossmembers are arched for maximum ground clearance. Four adjustable alignment cams provide a wide range of adjustment. The fully welded box design of these crossmembers provides additional strength to the front suspension.
STEERING KNUCKLES
Extended length ductile iron steering knuckles retain near stock track width keeping the tires under the fenders. These steering knuckles are designed to work in conjunction with the factory ESC for proper functionality at all speeds.
FRONT DIRT LOGIC 2.5 COILOVERS
Constructed of a stainless steel body and NitroSteel® piston rod these 6" lift Coilovers are the finest quality on the market. Extensive ride work was performed to ensure a superior ride on and offroad. Outstanding damping for offroad.
SWAY BAR BRACKETS
Heavy duty drop brackets retain the factory link ends at the correct angle for a positive road feel without creating binding at full droop.
REAR COIL SPRING SPACERS
Steel rear spring spacers utilize the factory coil springs retaining the stock load carrying capacity and ride comfort.
REAR TRACK BAR BRACKET
The bolt on relocation bracket re-centers the rear axle for the new ride height while retaining the factory roll center of the vehicle.
REAR DIRT LOGIC 2.25 SHOCKS
Constructed of a stainless steel body with NitroSteel® piston rod for maximum corrosion resistance and durability. Superior ride quality both on and offroad. Excellent damping for offroad use.
Part Numberrs
| Qty | Part # | Description |
|---|---|---|
| 1 | FTS23230 | Component Box 1 |
| 1 | FTS23231 | Component Box 2 |
| 1 | FTS23157 | Front Dirt Logic 2.5 Coilovers |
| 2 | FTS811442 | Rear Dirt Logic 2.25 Shocks |
| Year | Make | Model | Drive | Position | Lift |
| 2024 | Dodge | Ram 1500 | 4WD | 6.0" | |
| 2023 | Dodge | Ram 1500 | 4WD | 6.0" | |
| 2022 | Dodge | Ram 1500 | 4WD | 6.0" | |
| 2021 | Dodge | Ram 1500 | 4WD | 6.0" | |
| 2020 | Dodge | Ram 1500 | 4WD | 6.0" | |
| 2019 | Dodge | Ram 1500 | 4WD | 6.0" | |
| 2024 | Ram | 1500 | 4WD | 6.0" | |
| 2023 | Ram | 1500 | 4WD | 6.0" | |
| 2022 | Ram | 1500 | 4WD | 6.0" | |
| 2021 | Ram | 1500 | 4WD | 6.0" | |
| 2020 | Ram | 1500 | 4WD | 6.0" | |
| 2019 | Ram | 1500 | 4WD | 6.0" |
FABTECH LIMITED LIFETIME WARRANTY
Fabtech Motorsports provides a Limited Lifetime Warranty to the original retail purchaser who owns the vehicle, on which the product was originally installed, for defects in workmanship and materials.
The Limited Lifetime Warranty excludes the following Fabtech items; bushings, bump stops, ball joints, tie rod ends, limiting straps, cross shafts, heim joints and driveshafts. These parts are subject to wear and are not considered defective when worn. They are warranted for 60 days from the date of purchase for defects in workmanship.
Dirt Logic and Performance Coilover take apart shocks are considered a serviceable shock with a one year warranty on leakage only. Service seal kits are available separately for future maintenance. All other shocks are covered under our Limited Lifetime Warranty.
Fabtech does not warrant any product for finish, alterations, modifications and/or installation contrary to Fabtech’s instructions. Alterations to the finish of the parts including but not limited to painting, powder coating, plating and/or welding will void all warranties. Some finish damage may occur to parts during shipping, which is considered normal and is not covered under warranty.
