Fox 2.0 Performance Series Coilovers & Reservoir Shocks Set for 2005-2021 Toyota Tacoma 4WD RWD 6 Lug 985-02-002 x2 985-24-117 x2 985-02-002 x2 985-24-118 x2 985-02-002 x2 985-24-116 x2 Fox 2.0 Performance Series Coilovers & Reservoir Shocks Set for 2005-2021 Toyota Tacoma 4WD RWD 6 Lug

Fox 2.0 Performance Series Coilovers & Reservoir Shocks Set for 2005-2021 Toyota Tacoma 4WD RWD 6 Lug

217 reviews
  • Sale
  • $1,659.94
  • Regular price

Part Number Lift/Lowered Position Item Quantity
985-24-116 0-1.5" Lift Rear Shock Absorber 2
985-02-002 0-2" Lift Front Strut & Spring 2
985-24-117 2-3" Lift Rear Shock Absorber 2
985-24-118 3.5-5" Lift Rear Shock Absorber 2
Package Contains 2 Coil-overs 2 Rear Shocks

Package Contains 2 Coil-overs 2 Rear Shocks

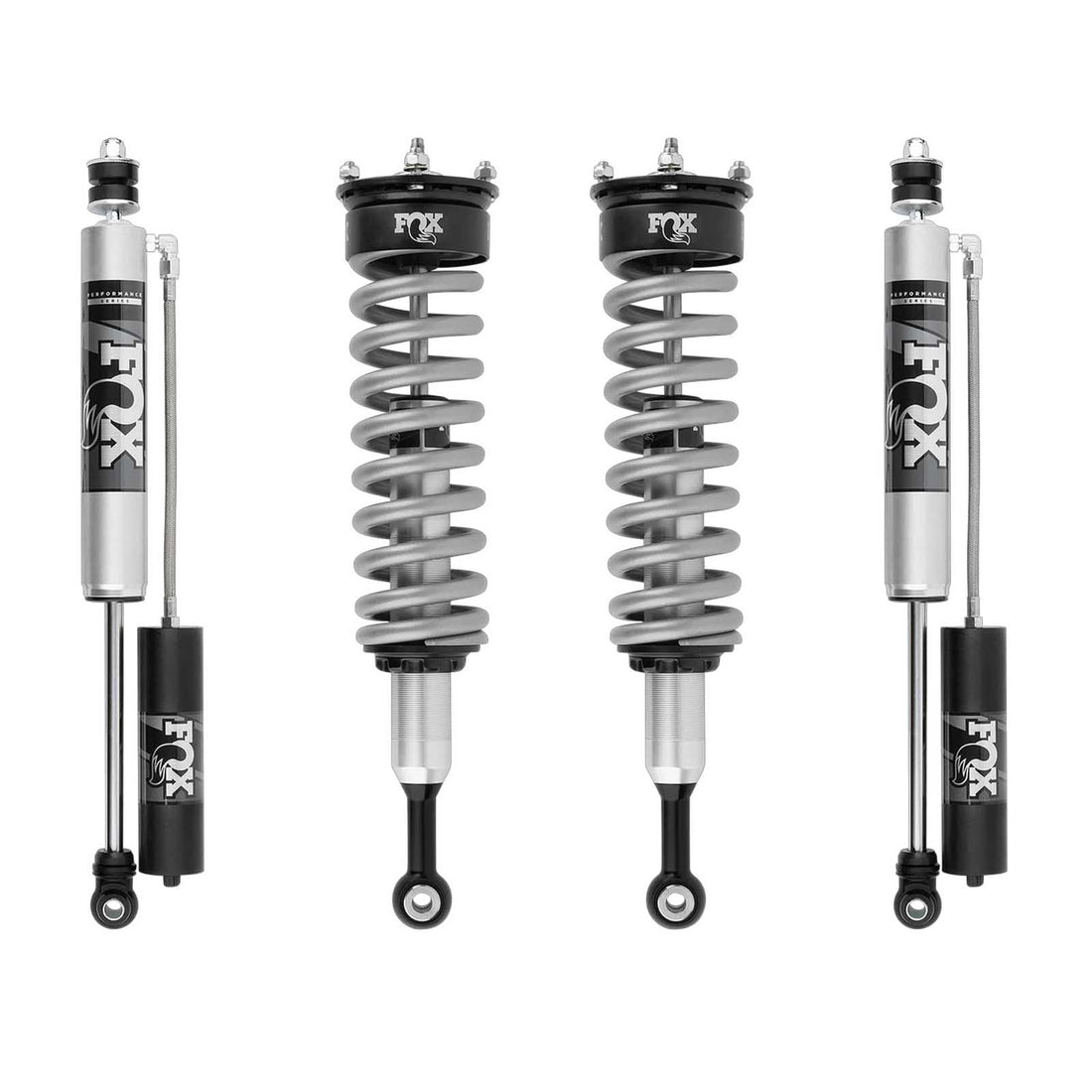

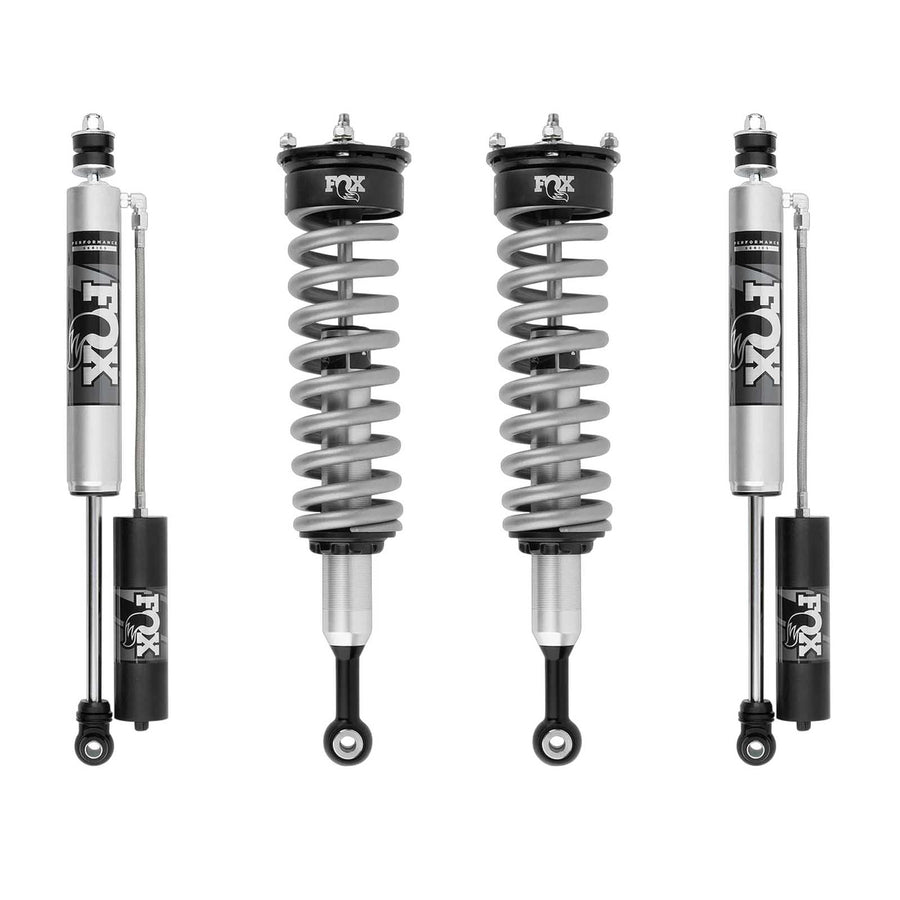

Front pair of Strut & Spring assemblies with two rear shocks.

Fox One Year Warranty

Fox One Year Warranty

Fox's limited one year warranty protects against defects and premature failure.

Adjustable Front lift height of 0-2

Choose Your Desired Lift Height Above

Make a selection from the drop-down menu above to get the correct length strut & spring & shock for your vehicle.

Important Fitment Note

Important Fitment Note

Fits vehicles with 6 lug wheels ONLY.

Fits 4WD & RWD vehicles

Fits 4WD & RWD vehicles

This product works for 4WD and RWD vehicles.

Lifts Front of Vehicle By Up To 2

Lifts Front of Vehicle By Up To 2"

Will lift the front of your vehicle by up to 2", removing the factory rake and providing clearance for larger wheels and tires.

Coilovers come preset at 2

Coilovers come preset at 2" of lift

Coilover lift height is achieved by adjustable preload ring from factory height up to 2" of lift.

Install-Ready

Install-Ready

Ready for install out of the box, no modifications required.

Aluminum Build

Aluminum Build

Aluminum bodied shocks provides optimum heat dissipation.

Durable

Durable

Clear Anodized finish to protect against rust and corrosion, ideal for wet and salty environments.

Product Details

Performance Series Coilover IFP shock is loaded with advanced technology and a long list of features that set it apart. The precision, metal impact extruded aluminum body increases cooling capacity and is rust resistant. The vehicle-specific upper mount includes a composite bushing that isolates noise and vibration. Locking, spring preload rings that allow easy ride height and preload adjustment retain a top quality racing coil, selected to deliver the optimal spring rate. Performance Series Coilover IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear. Applications are available for stock and lifted trucks that re-use the stock shock. Inside is an internal reservoir with Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. The easy-to- install, 2.0 Performance Series Coilover IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions. The aluminum bodied 2.0 Performance Series w/Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock. Its external reservoir allows for increase oil and nitrogen capacity while delivering striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific vavling provides the 2.0 Performance Series w/Reservoir shock a predictable ride quality capable of handling the roughest road conditions.

We have the entire line of Fox products available, whether you want to upgrade, add a reservoir, or find something more affordable, contact us with any questions!

Year Make Model Drive Position
2021 Toyota Tacoma RWD, 4WD Front & Rear 0-2 Front / 0-1.5 Rear
2020 Toyota Tacoma RWD, 4WD Front & Rear 0-2 Front / 0-1.5 Rear
2019 Toyota Tacoma RWD, 4WD Front & Rear 0-2 Front / 0-1.5 Rear
2018 Toyota Tacoma RWD, 4WD Front & Rear 0-2 Front / 0-1.5 Rear
2017 Toyota Tacoma RWD, 4WD Front & Rear 0-2 Front / 0-1.5 Rear
2016 Toyota Tacoma RWD, 4WD Front & Rear 0-2 Front / 0-1.5 Rear
2015 Toyota Tacoma RWD, 4WD Front & Rear 0-2 Front / 0-1.5 Rear
2014 Toyota Tacoma RWD, 4WD Front & Rear 0-2 Front / 0-1.5 Rear
2013 Toyota Tacoma RWD, 4WD Front & Rear 0-2 Front / 0-1.5 Rear
2012 Toyota Tacoma RWD, 4WD Front & Rear 0-2 Front / 0-1.5 Rear
2011 Toyota Tacoma RWD, 4WD Front & Rear 0-2 Front / 0-1.5 Rear
2010 Toyota Tacoma RWD, 4WD Front & Rear 0-2 Front / 0-1.5 Rear
2009 Toyota Tacoma RWD, 4WD Front & Rear 0-2 Front / 0-1.5 Rear
2008 Toyota Tacoma RWD, 4WD Front & Rear 0-2 Front / 0-1.5 Rear
2007 Toyota Tacoma RWD, 4WD Front & Rear 0-2 Front / 0-1.5 Rear
2006 Toyota Tacoma RWD, 4WD Front & Rear 0-2 Front / 0-1.5 Rear
2005 Toyota Tacoma RWD, 4WD Front & Rear 0-2 Front / 0-1.5 Rear

We ship internationally, contact us for a shipping quote with your postal code.

Part Number 985-02-002
Extended Length 22.225"
Compressed Length 17.600"
Travel 4.625"
Top Mount OEM
Bottom Mount EYELET
Reservoir Internal Floating Piston (IFP)
Color Aluminum
Gas Charged Yes
Part Number 985-24-116
Extended Length 22.300"
Compressed Length 13.700"
Travel 8.600"
Top Mount STEM
Bottom Mount EYELET/SLEEVE
Reservoir Remote
Color Aluminum
Gas Charged Yes
Part Number 985-24-117
Extended Length 23.800"
Compressed Length 14.700"
Travel 9.100"
Top Mount STEM
Bottom Mount EYELET
Reservoir Remote
Color Aluminum
Gas Charged Yes
Part Number 985-24-118
Extended Length 24.800"
Compressed Length 15.200"
Travel 9.600"
Top Mount STEM
Bottom Mount EYELET
Reservoir Remote
Color Aluminum
Gas Charged Yes
