983-02-051 x2 985-24-117 x2 Fox 2.0 Performance Series Coilovers & Reservoir Shocks Set for 2010-2021 Toyota 4Runner 4WD RWD

Fox 2.0 Performance Series Coilovers & Reservoir Shocks Set for 2010-2021 Toyota 4Runner 4WD RWD

317 reviews
  • Sale
  • $1,499.80
  • Regular price $1,599.80

Flash Sale - Save 5%
Part Number Lift/Lowered Position Item Quantity
985-24-117 0-1.5" Lift Rear Shock Absorber 2
983-02-051 0-2" Lift Front Strut & Spring 2
Package Contains 2 Coil-overs 2 Rear Shocks

Package Contains 2 Coil-overs 2 Rear Shocks

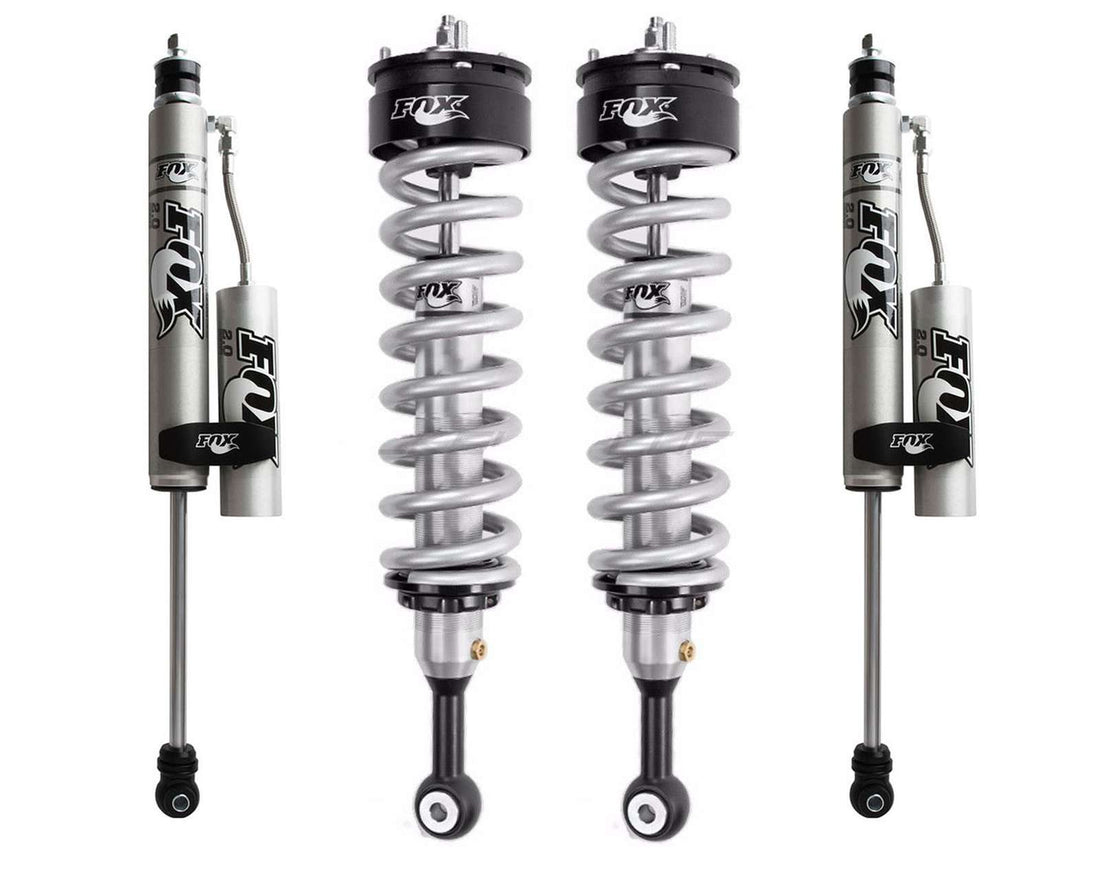

Front pair of Strut & Spring assemblies with two rear shocks.

Fox One Year Warranty

Fox One Year Warranty

Fox's limited one year warranty protects against defects and premature failure.

Adjustable Front lift height of 0-2

Adjustable Front lift height of 0-2"

Adjustable Front lift height of 0-2" over factory height, preset at 2" out of the box ready for installation, no adjustment or modifications required. Accommodates up to 1.5" rear lift systems.

Fits 4WD & RWD vehicles

Fits 4WD & RWD vehicles

This product works for 4WD and RWD vehicles.

Lifts Front of Vehicle By Up To 2

Lifts Front of Vehicle By Up To 2"

Will lift the front of your vehicle by up to 2", removing the factory rake and providing clearance for larger wheels and tires.

Coilovers come preset at 2

Coilovers come preset at 2" of lift

Coilover lift height is achieved by adjustable preload ring from factory height up to 2" of lift.

Install-Ready

Install-Ready

Ready for install out of the box, no modifications required.

Aluminum Build

Aluminum Build

Aluminum bodied shocks provides optimum heat dissipation.

Durable

Durable

Clear Anodized finish to protect against rust and corrosion, ideal for wet and salty environments.

Product Details

Performance Series Coilover IFP shock is loaded with advanced technology and a long list of features that set it apart. The precision, metal impact extruded aluminum body increases cooling capacity and is rust resistant. The vehicle-specific upper mount includes a composite bushing that isolates noise and vibration. Locking, spring preload rings that allow easy ride height and preload adjustment retain a top quality racing coil, selected to deliver the optimal spring rate. Performance Series Coilover IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear. Applications are available for stock and lifted trucks that re-use the stock shock. Inside is an internal reservoir with Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. The easy-to- install, 2.0 Performance Series Coilover IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions. The aluminum bodied 2.0 Performance Series w/Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock. Its external reservoir allows for increase oil and nitrogen capacity while delivering striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific vavling provides the 2.0 Performance Series w/Reservoir shock a predictable ride quality capable of handling the roughest road conditions.

We have the entire line of Fox products available, whether you want to upgrade, add a reservoir, or find something more affordable, contact us with any questions!

Year Make Model Drive Position Lift
2021 Toyota 4Runner RWD, 4WD Front & Rear 0-2" Front / 0-1.5" Rear
2020 Toyota 4Runner RWD, 4WD Front & Rear 0-2" Front / 0-1.5" Rear
2019 Toyota 4Runner RWD, 4WD Front & Rear 0-2" Front / 0-1.5" Rear
2018 Toyota 4Runner RWD, 4WD Front & Rear 0-2" Front / 0-1.5" Rear
2017 Toyota 4Runner RWD, 4WD Front & Rear 0-2" Front / 0-1.5" Rear
2016 Toyota 4Runner RWD, 4WD Front & Rear 0-2" Front / 0-1.5" Rear
2015 Toyota 4Runner RWD, 4WD Front & Rear 0-2" Front / 0-1.5" Rear
2014 Toyota 4Runner RWD, 4WD Front & Rear 0-2" Front / 0-1.5" Rear
2013 Toyota 4Runner RWD, 4WD Front & Rear 0-2" Front / 0-1.5" Rear
2012 Toyota 4Runner RWD, 4WD Front & Rear 0-2" Front / 0-1.5" Rear
2011 Toyota 4Runner RWD, 4WD Front & Rear 0-2" Front / 0-1.5" Rear
2010 Toyota 4Runner RWD, 4WD Front & Rear 0-2" Front / 0-1.5" Rear

We ship internationally, contact us for a shipping quote with your postal code.

Part Number 983-02-051
Extended Length 21.775"
Compressed Length 16.600"
Travel 5.175"
Top Mount OEM
Bottom Mount EYELET
Reservoir Internal Floating Piston (IFP)
Color Aluminum
Gas Charged Yes
Part Number 985-24-117
Extended Length 23.800"
Compressed Length 14.700"
Travel 9.100"
Top Mount STEM
Bottom Mount EYELET
Reservoir Remote
Color Aluminum
Gas Charged Yes
