Complete Front & Rear Shock Package
The base system includes two FOX 2.5 Performance Elite front coilovers and two matching FOX 2.5 Performance Elite rear reservoir shocks.
Fox
2.5 Performance Elite Coilovers & Shocks w/ DSC Reservoir Lift System
2019-2026Ram 1500 V6 V84WD RWD
$4,095.90
$4,834.52
Discount in Cart
In Stock
Estimated Delivery in 3-6 business days
Fox
2.5 Performance Elite Coilovers & Shocks w/ DSC Reservoir Lift System
2019-2026Ram 1500 V6 V84WD RWD
$4,095.90
$4,834.52
Discount in Cart
In Stock
Estimated Delivery in 3-6 business days
Got Questions?
Our experts are here to help!
About This Page

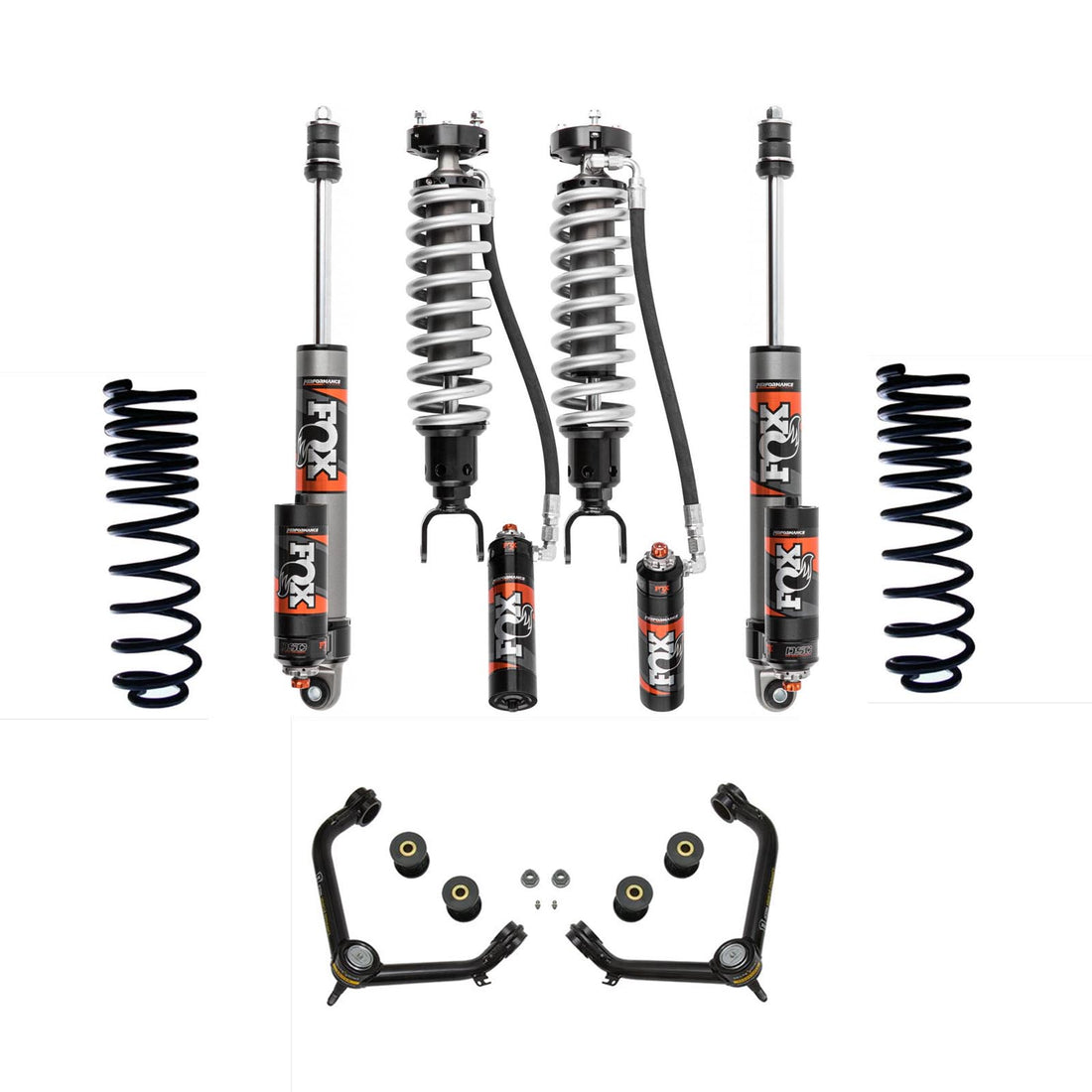

The base kit includes a pair of front FOX 2.5 Performance Elite coilovers and a pair of rear FOX 2.5 Performance Elite shocks. Changes made through the drop-down menus may upgrade the shocks or add components such as springs, upper control arms, rear lift springs, or helper springs. Additional upgrades are not selected by default and may affect the final price.
Air Ride Notice: These components have not been tested on vehicles equipped with factory air suspension. Please consult our staff before purchasing for an air-ride-equipped vehicle.
Custom Build
This lift system is assembled according to your vehicle specifications and selected components. Only the items selected for your system are included; not every component shown in the product images is included.
Estimated delivery time is approximately 6-10 weeks, depending on current inventory and component availability. A shock specialist will contact you after purchase to verify your vehicle and build details.
Part Numbers & Details
Choose Between 0-2" or 2-3" Front Lift
Select the front coilover configuration that matches your desired lift height, vehicle setup, and suspension requirements.
Adjustable DSC Compression Control
External compression adjusters allow the shocks to be tuned for changing terrain, driving conditions, vehicle weight, and accessory loads.
Built for Demanding On-Road & Off-Road Use
Large 2.5" aluminum shock bodies, external reservoirs, increased oil capacity, and race-developed pistons improve heat management and suspension control.
Upper Control Arms Required " Lift
The front coilovers require aftermarket upper control arms for proper alignment and increased suspension articulation. Upper control arms are sold separately.
Fully Rebuildable & Serviceable
FOX Performance Elite shocks can be rebuilt and serviced to maintain performance throughout their usable lifespan.
Specifications
| Part Number | Lift Height | Position | Item | Kit Quantity | Extended Length | Compressed Length | Travel | Top Mount | Bottom Mount | Reservoir |
|---|---|---|---|---|---|---|---|---|---|---|
| 883-06-165 | 0-2" Front Lift | Front | Coilover Strut & Spring Assembly | 2 | 22.32" | 16.83" | 5" | OEM | Clevis | Remote |
| 883-06-166 | 2-3" Front Lift | Front | Coilover Strut & Spring Assembly | 2 | 23.07" | 16.83" | 6" | OEM | Clevis | Remote |
| 883-26-079 | 0-2" Rear Lift | Rear | Shock Absorber | 2 | 25.63" | 16.84" | 9" | Eyelet/Sleeve | Eyelet/Sleeve | Piggyback |
Product Details
FOX Factory Race Series 2.5 Performance Elite coilovers and shocks are designed to improve handling, comfort, and suspension control on pavement and demanding off-road terrain. The oversized aluminum shock bodies dissipate heat efficiently, while the increased oil capacity and FOX race-developed high-flow pistons provide consistent damping during extended use.
The adjustable Dual Speed Compression, or DSC, system allows low-speed and high-speed compression damping to be tuned independently for different terrain, driving styles, vehicle loads, and installed accessories.
Engine & Front Load Considerations
Diesel-equipped Ram 1500 models carry significantly more front-end weight than comparable V8 models. Because FOX developed these coilovers around the 5.7L HEMI using standard 450 lb/in springs, diesel models or trucks carrying additional front-end weight may require higher-rate springs.

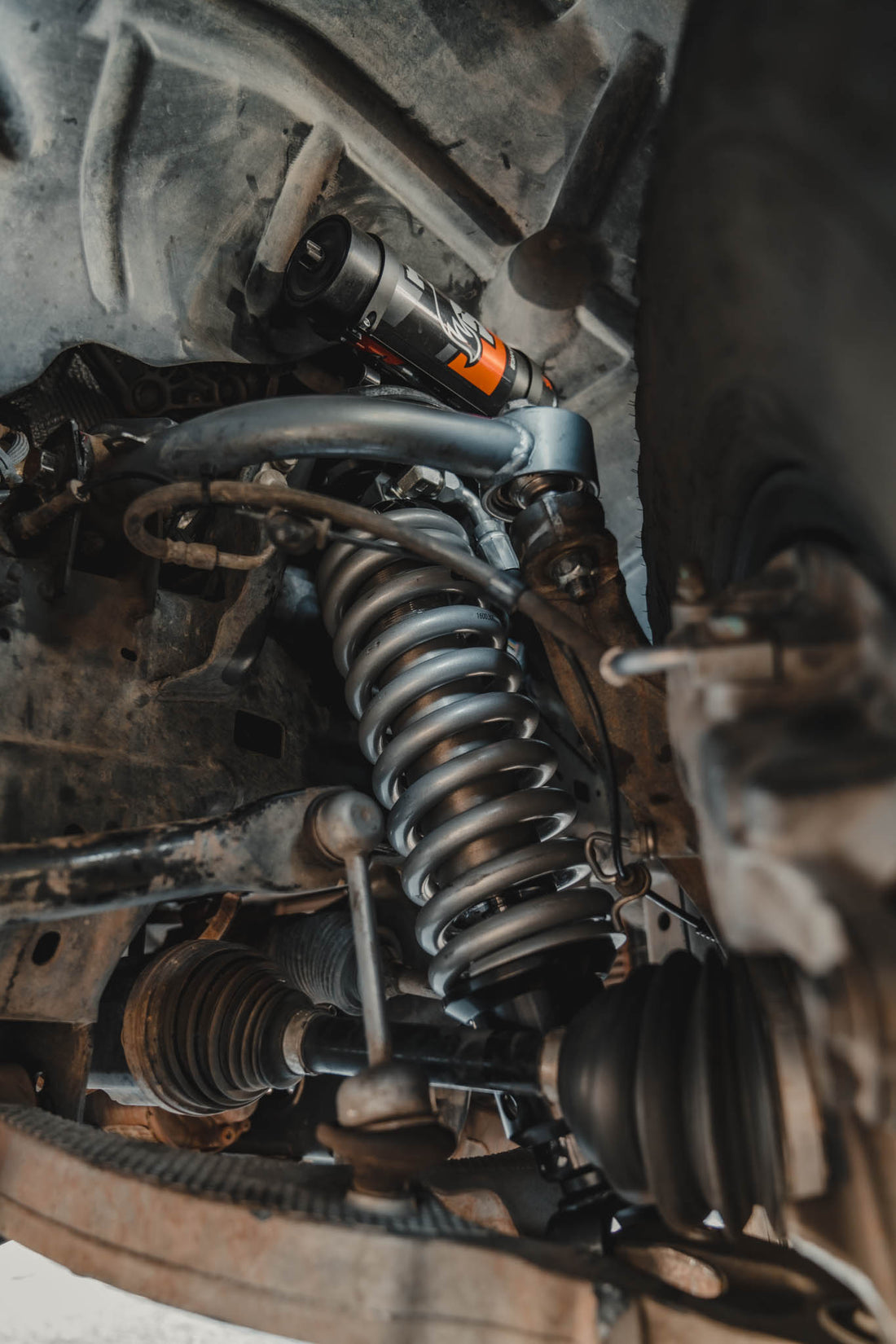

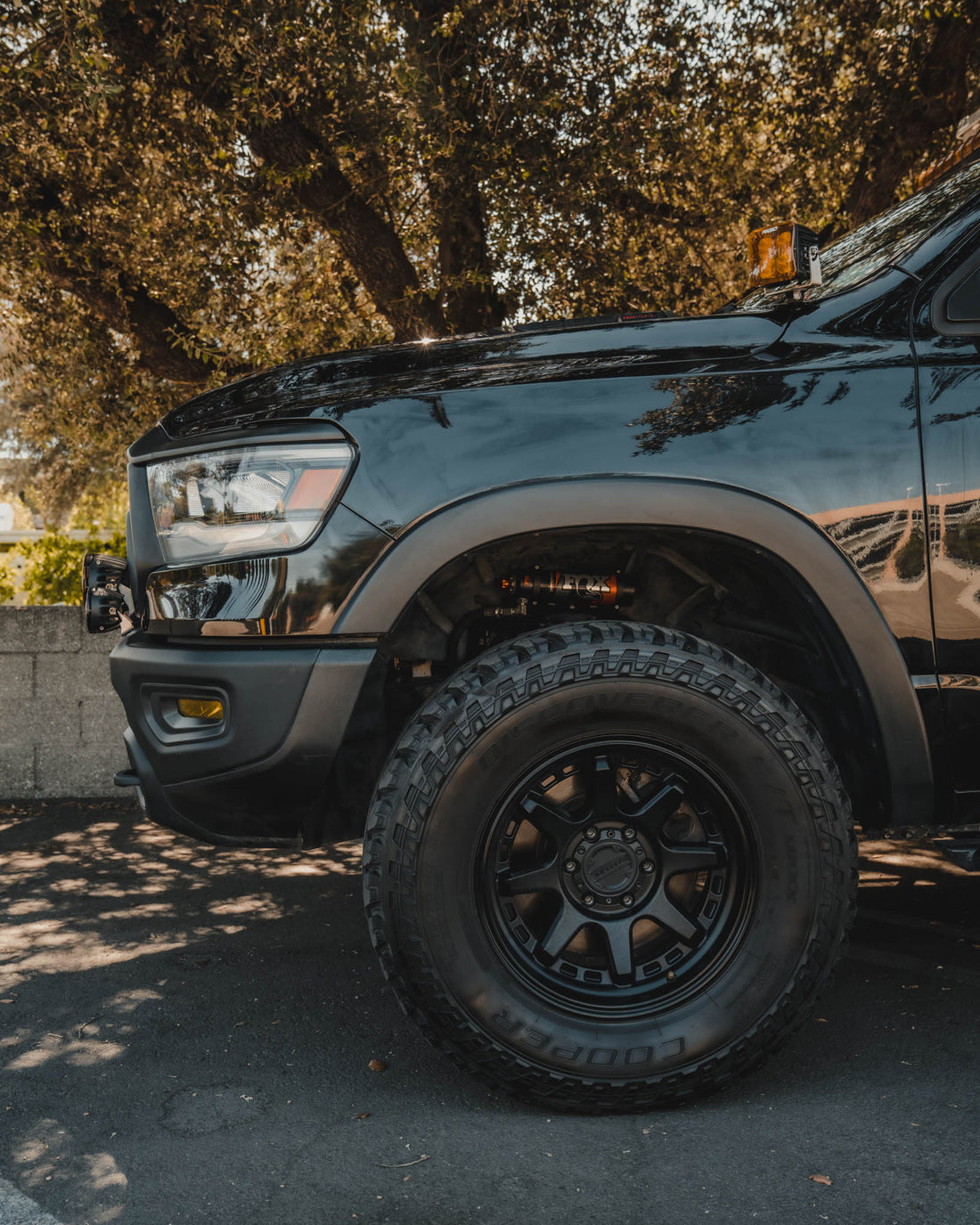

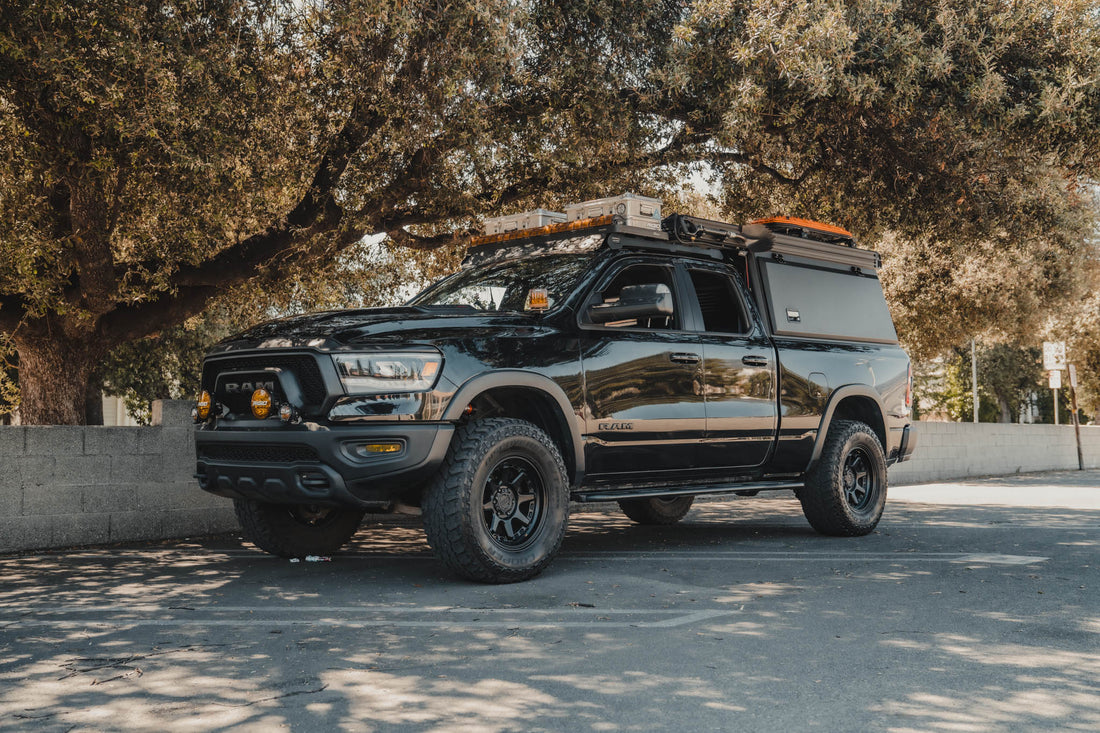

The pictured Ram 1500 4WD diesel used 600 lb/in x 16" Eibach springs and achieved approximately 3" of total front lift with little to no spring preload. This setup was selected with plans for a future front bumper and winch. For diesel trucks without substantial additional front weight, 550 lb/in springs are generally recommended to balance ride quality and lift height.
Front Coilover Options
- 883-06-165: FOX Performance Elite Series 2.5 adjustable reservoir coilovers for approximately 0-2" of front lift. Sold as a pair. Excludes factory air-ride models.
- 883-06-166: FOX Performance Elite Series 2.5 adjustable reservoir coilovers for approximately 2-3" of front lift. Sold as a pair. Excludes factory air-ride models and requires aftermarket upper control arms.
Front Spring Upgrades
FOX coilovers are supplied with 450 lb/in x 16" springs as the standard configuration. Higher-rate Eibach springs are available for diesel engines, added accessories, increased front-end weight, or specific ride-height requirements.
- FOX 450 lb/in x 16" Springs: Standard configuration.
- Eibach 500 lb/in x 16" Springs: Part number 1600.300.0500S.
- Eibach 550 lb/in x 16" Springs: Part number 1600.300.0550S.
-
Eibach 600 lb/in x 16" Springs:
Part number 1600.300.0600S.
- May provide approximately 3" of front lift on Ram Rebel diesel models with little to no preload, depending on vehicle weight and configuration.
- Eibach 650 lb/in x 16" Springs: Part number 1600.300.0650S.
Rear Shock Option

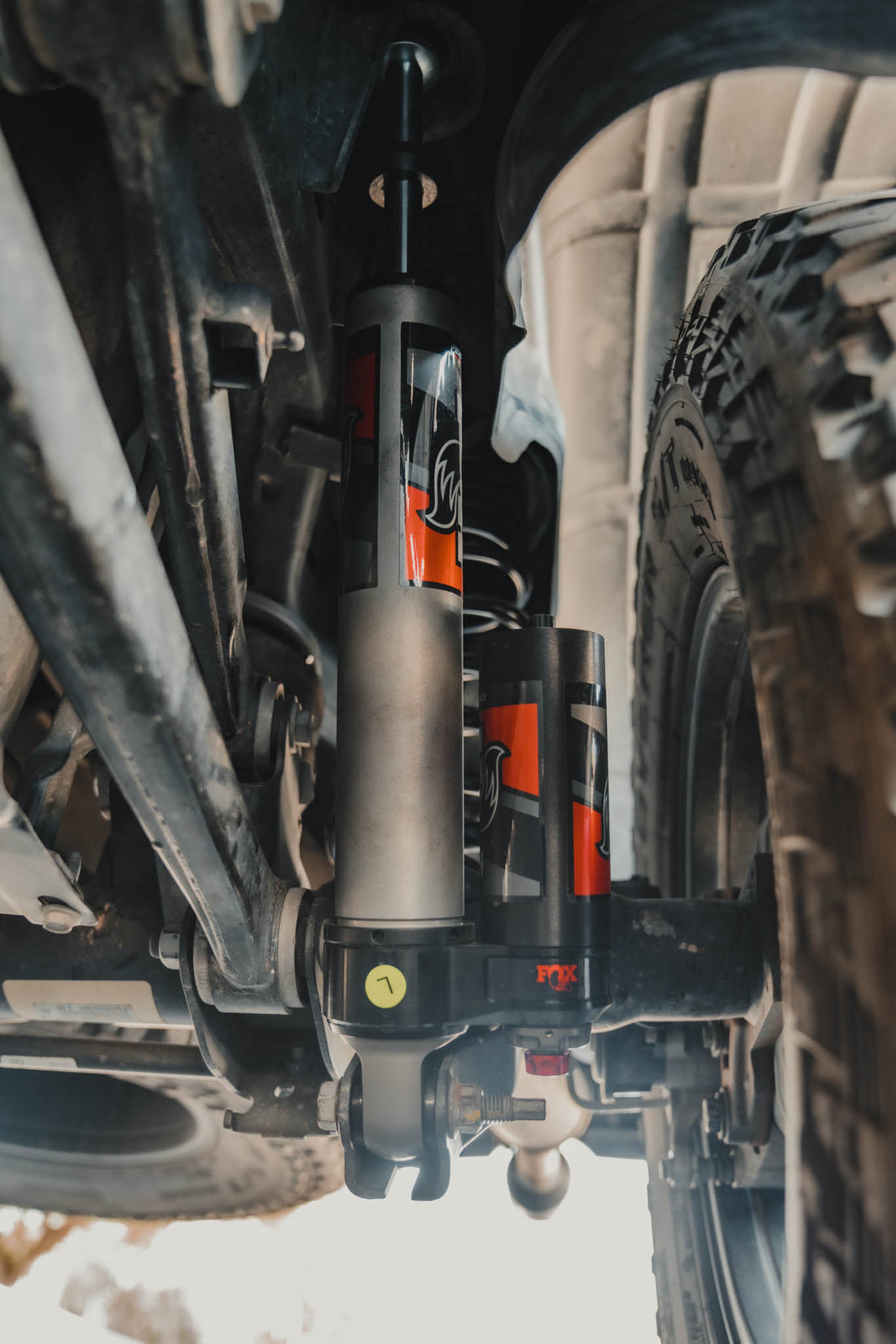

- 883-26-079: FOX Performance Elite Series 2.5 adjustable piggyback reservoir rear shocks for approximately 0-2" of rear lift. Sold as a pair.
Upper Control Arm Options
Aftermarket upper control arms provide increased suspension articulation and help restore proper alignment on lifted vehicles. Upper control arms are required when using the 2-3" lift coilovers and are particularly important for vehicles lifted approximately 3-3.5".

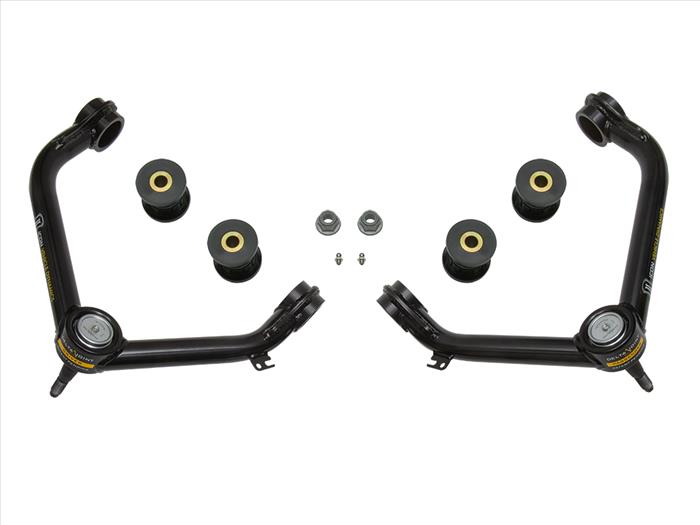

- ICON Vehicle Dynamics Tubular Delta Joint Upper Control Arms: Part number 218550DJ.
- Camburg 1.25 Performance Uniball Upper Control Arms: Part number 810001.
Rear Spring Options
- ICON Vehicle Dynamics Dual-Rate Rear Springs: Approximately 1.5" of rear lift. Part number 212150.

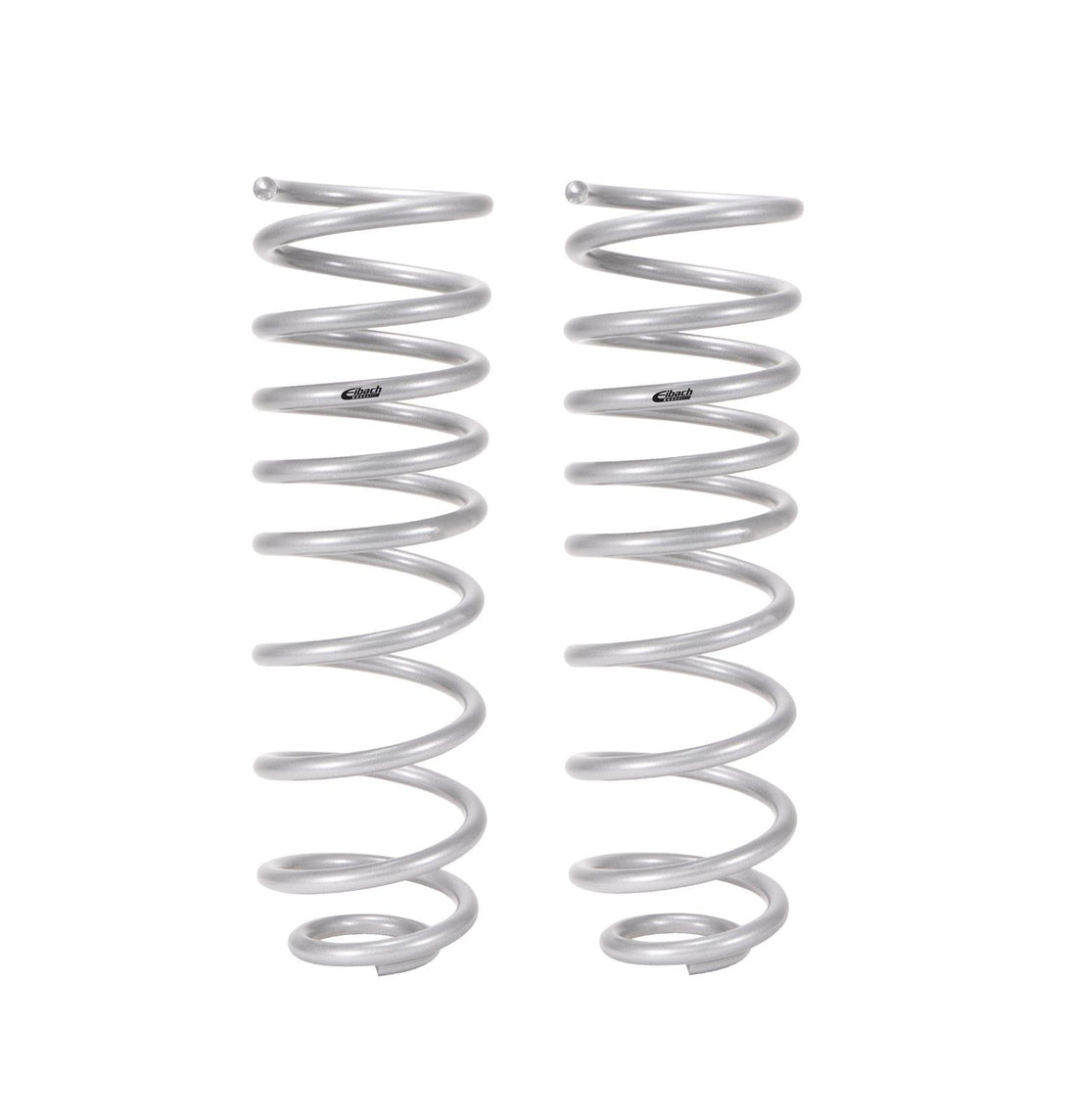

- Eibach Rear Lift Springs: Approximately 1" of rear lift. Part number E30-27-011-02-02.

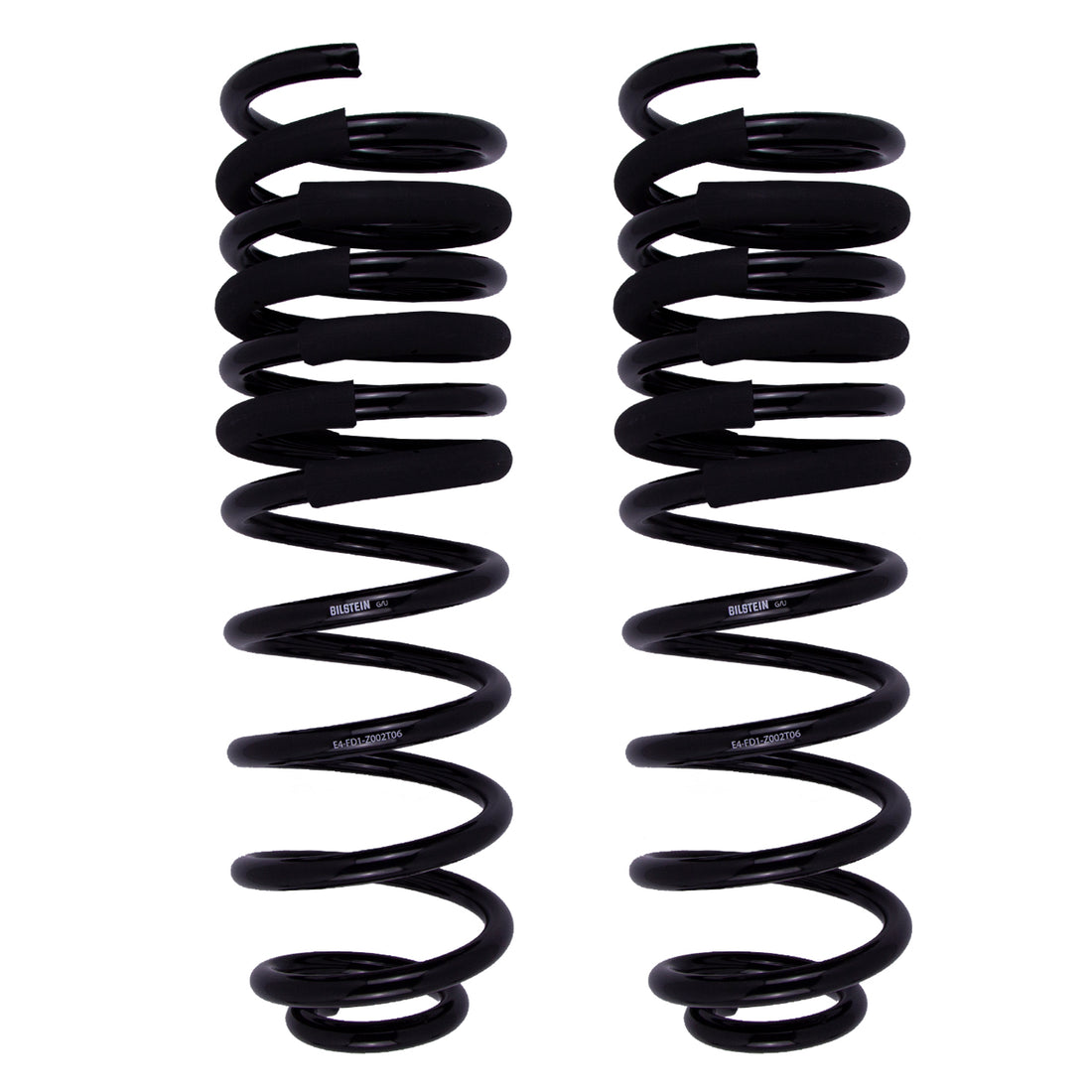

- Bilstein Rear Lift Springs: Approximately 1" of rear lift. Part number 53-297839.
Bump Stop & Helper Spring Options
Timbren helper springs replace the factory frame-mounted jounce stops with progressive-rate rubber springs. They automatically respond to changing load conditions to provide additional support and reduce suspension sag.
Timbren helper springs do not increase the vehicle manufacturer's Gross Vehicle Weight Rating, or GVWR.
Compatibility List
| Year | Make | Model | Drive | Position |
| 2025 | Dodge | Ram 1500 | Front & Rear | 2-3 Front / 0-2 Rear |
| 2024 | Dodge | Ram 1500 | Front & Rear | 2-3 Front / 0-2 Rear |
| 2023 | Dodge | Ram 1500 | Front & Rear | 2-3 Front / 0-2 Rear |
| 2022 | Dodge | Ram 1500 | Front & Rear | 2-3 Front / 0-2 Rear |
| 2021 | Dodge | Ram 1500 | Front & Rear | 2-3 Front / 0-2 Rear |
| 2020 | Dodge | Ram 1500 | Front & Rear | 2-3 Front / 0-2 Rear |
| 2019 | Dodge | Ram 1500 | Front & Rear | 2-3 Front / 0-2 Rear |
| 2025 | Ram | 1500 | Front & Rear | 2-3 Front / 0-2 Rear |
| 2024 | Ram | 1500 | Front & Rear | 2-3 Front / 0-2 Rear |
| 2023 | Ram | 1500 | Front & Rear | 2-3 Front / 0-2 Rear |
| 2022 | Ram | 1500 | Front & Rear | 2-3 Front / 0-2 Rear |
| 2021 | Ram | 1500 | Front & Rear | 2-3 Front / 0-2 Rear |
| 2020 | Ram | 1500 | Front & Rear | 2-3 Front / 0-2 Rear |
| 2019 | Ram | 1500 | Front & Rear | 2-3 Front / 0-2 Rear |
