Icon

0-2.75" Stage 4 Suspension System Kit

2021-2026 Ford F-150 4WD Diesel
$4,109.09
Discount in Cart

In Stock Estimated Delivery in 3-6 Business Days
Icon

0-2.75" Stage 4 Suspension System Kit

2021-2026 Ford F-150 4WD Diesel
$4,109.09
Discount in Cart

In Stock Estimated Delivery in 3-6 Business Days
Authorized dealer
Free shipping on orders above $250 within the lower 48 United States
Brand new parts with warranty coverage
Free 30-day return and exchange on qualifying orders
Got Questions?
Our experts are here to help!
Part Numbers & Details
Kit Contents

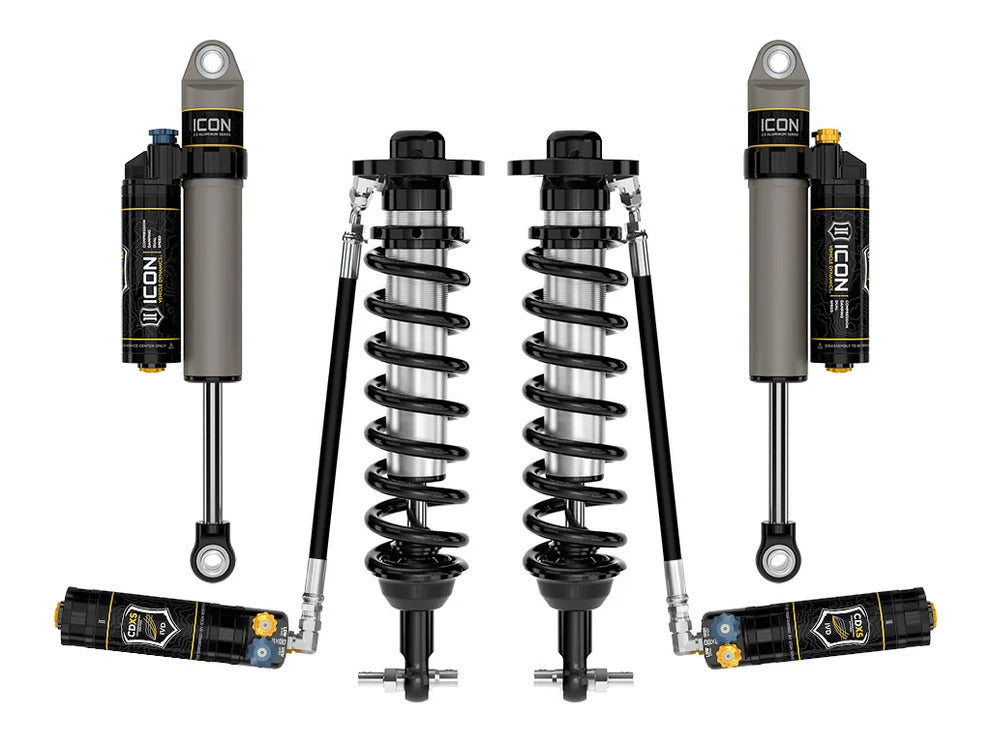

You'll be getting one Stage 4 CDXS Suspension System. That includes a pair of front coilovers and rear shocks.
Multiple Warranties
1 Year Warranty for Shock Absorbers. Limited Lifetime Warranty for Coil Springs.
Important Fitment Note

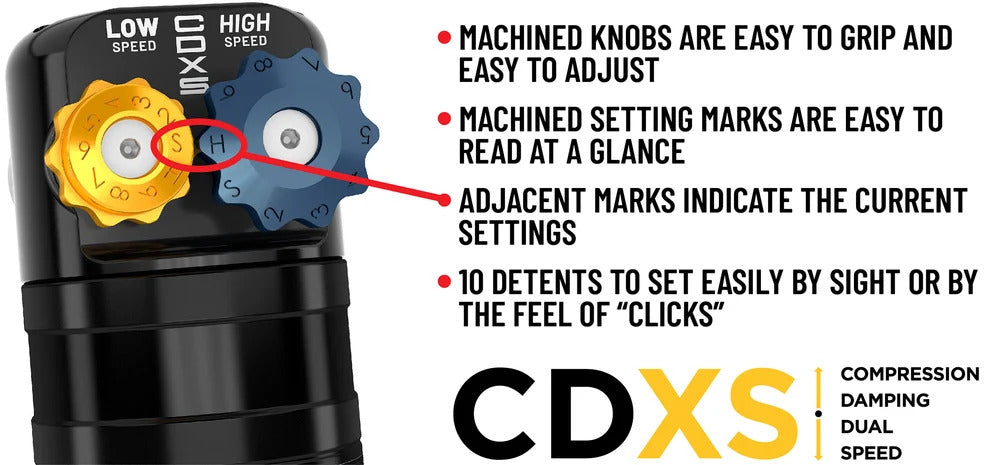

Raises Front 0"-2.75" & accommodates the rear for 0-1". These have CDXS adjustment, which provides low- and high-speed compression tuning.
Designed for 4WD vehicles
This product only works for 4WD vehicles.
Wheel & Tire Fitment Note
Factory wheels and tires are compatible. For aftermarket setups, ICON recommends 17x8.5" (5" backspace, +6mm), 18x9" (5.25" backspace, +6mm), or 20x9" (5.625" backspace, +16mm) wheels with up to 33x11.50" tires; larger tires may require fender trimming or additional modifications.
Important Upper Control Arm Fitment Note
Only compatible with stock or original ICON Delta Joint UCAs. Not compatible with ICON Delta Joint Pro UCAs.
Kit Contents Detailed
91823Xx1 Coilover Kit, 97720XPx1 Shock Absorbers
Tech Note
The coilovers will work with a PowerBoost hybrid engine with a lift range of 0-2.5", while the Power-Stroke Diesel will have a lift range of 0-2.25". They will not work if your vehicle is equipped with the OEM factory-installed electronically controlled suspension. They do not also fit the Tremor, Rapor, or Raptor R sub-models. Your Advanced Driver Assistance System (ADAS) will need to be recalibrated after the Icon kit is installed.
Part NumberItemQuantity
K93114D0-2.75"/0-1" Stage 4 Suspension System1
Product Details

ICON Vehicle Dynamics 2021-2026 Ford F-150 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers' primary focus is on increasing wheel travel and damping capability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 4 system includes vehicle-specific tuned 2.5" coilover shocks featuring CDXS-equipped remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle "feel" through the range of travel. These coilovers are also height-adjustable from 0-2.75" of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Aluminum Series CDXS piggyback reservoir rear shocks use vehicle-specific valving to balance the truck's performance from front to rear. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high-speed and low-speed compression forces. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. The ICON Vehicle Dynamics 2021-2026 F-150 4WD Stage 4 suspension system is an excellent choice for drivers looking to enhance their pickup's capabilities on the road and in the dirt.

Compatibility List
YearMakeModelDrivePositionLift
2026FordF-1504WDFactory
2025FordF-1504WDFactory
2024FordF-1504WDFactory
2023FordF-1504WDFactory
2022FordF-1504WDFactory
2021FordF-1504WDFactory
YearMakeModelDrivePositionLift

Icon Vehicle Dynamics handles their warranty claims directly; if you encounter a product defect please reach out to Icon Vehicle Dynamics directly.
