0-2" Suspension System - Stage 2 Tubular Kit
Estimated Delivery in 3-6 business days
0-2" Suspension System - Stage 2 Tubular Kit
Estimated Delivery in 3-6 business days
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| K40012T | Factory | Front and Rear | 0-2" Suspension System - Stage 2 Tubular | 1 |
Overview

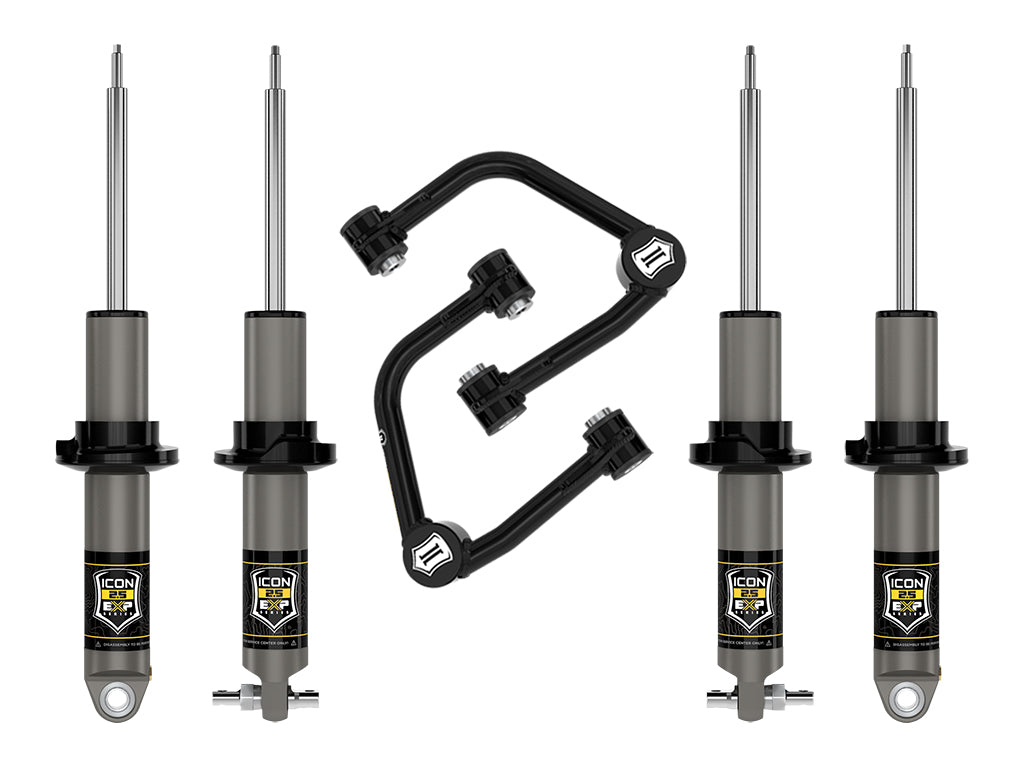

The ICON Vehicle Dynamics Stage 2 Suspension System for the 2021-UP Ford Bronco features front and rear 2.5 EXP Series coilovers to yield increased wheel travel along with superior ride quality and suspension performance both on and off-road. 2.5 EXP Series coilovers combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Bronco’s factory coil spring and other components. EXP coilovers use a series of snap-ring grooves machined into the shock body to provide easily-selectable ride height adjustment from 1.375-3” of front lift and 1.5-2.25" of rear lift over stock on Bronco’s equipped with the OE HOSS 2.0 suspension package.
,EXP Series is based on ICON’s proven 2.5-inch diameter Aluminum Series shock absorber, featuring a one-piece impact-extruded aluminum shock body. Hard anodizing provides a great-looking, consistent finish with superior resistance to abrasion and corrosion. The massive 7/8-inch diameter shaft is induction hardened and chrome plated. EXP shocks use the factory shaft-up orientation, with the shaft ends machined to re-use the Bronco’s OE upper shock and spring mounts.
,EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the Bronco in conjunction with their stock coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.
,To accommodate the increased lift height afforded by the ICON EXP front coilovers, this Stage 2 kit comes with Tubular Upper Control Arms which provide caster correction and feature our patented Delta Joint PRO, which allows for up to 90-degrees freedom of movement.
,HOSS 2.0 is Ford's upgraded suspension system for Broncos of the Base, Big Bend, Outer Banks and Black Diamond trim levels WITH the optional Sasquatch package, and it is also standard on Badlands, Wildtrak, First Edition and Everglades. HOSS 2.0 is most easily identified by the YELLOW shock bodies of the OE shocks.
Features & Benefits
- Vehicle specific design for 2021-UP Ford Bronco with HOSS 2.0 Suspension Package
- Vehicle specific tuned shocks for superior shock damping and vehicle control
- Kit includes full set of (4) 2.5 Aluminum Series EXP Shocks with Internal Reservoirs
- Adjustable ride heights from 0-2” of front lift and 0-1.75" of rear lift over stock with the use of snap rings
- Utilizes factory coils and coil hardware
- Inverted shaft up design featuring 7/8” diameter induction hardened chrome plated shafts
- One-piece impact extruded hard anodized aluminum cylinders offer excellent corrosion resistance and consistent finish
- CNC machined 6061 aluminum components with a black anodized finish
- PTFE lined spherical bearings for extended longevity and minimal deflection
- Tubular UCAs for added strength durability and alignment correction for better drivability
- UCAs feature the patented (U.S. Pat. 10731700) Delta Joint Pro with 90 degrees of total articulation.
- 100% Bolt-on - no cutting or welding necessary for installation
- Fully rebuildable and re-tunable
Tech Notes
- OEM Wheels & Tires Fitment: Yes ,
- Recommended Aftermarket Wheels (Without Sasquatch Package): ICON Alloys | 17x8.5" w/ 5.75” Backspace / 25mm Offset ,
- Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys | 17x8.5" w/ 4.75” Backspace / 0mm Offset ,
- Recommended Aftermarket Tires (Without Sasquatch Package): 35" x 12.50" (Requires high clearance crash bars, ICON part number 42000. 37" tire packagesrequire coilover bump stop spacers along with trimming and modifications) ,
- Recommended Aftermarket Tires (With Sasquatch Package): 35" x 12.50" (37" tire packages require coilover bump stop spacers and may also require fender trimming and modifications) ,
- APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE. ,
- APPLICATION NOTE #66: 2 DOOR MODELS WILL SIT TALLER THAN 4 DOOR MODELS. ,
- APPLICATION NOTE #138: RECOMMEND HIGH CLEARANCE CRASH BARS PART #42000 ON NON-SASQUATCH EQUIPPED VEHICLES WHEN RUNNING 35" TIRES ,
- APPLICATION NOTE #139: WHEN RUNNING 37" TIRES CRASH BAR REMOVAL MAY BE REQUIRED BUT IS NOT RECOMMENDED ,
- APPLICATION NOTE #147: WHEN RUNNING 37" TIRES USE BUMP STOP SPACER KIT PART #611082 IN THE FRONT ,
- TECH NOTE: Only compatible with 2021-UP Ford Broncos equipped with HOSS 2.0 Suspension Package ,
- TECH NOTE: Not compatible with Bronco Raptor
| Year | Make | Model | Drive | Position | Lift |
| 2025 | Ford | Bronco | Factory | ||
| 2024 | Ford | Bronco | Factory | ||
| 2023 | Ford | Bronco | Factory | ||
| 2022 | Ford | Bronco | Factory | ||
| 2021 | Ford | Bronco | Factory |
ICON VEHICLE DYNAMICS LIMITED LIFETIME WARRANTY
If a shock is inspected and it has been determined the shock failed due to neglect, damage caused by improper installation or any other reason besides "normal wear and tear", the owner of said shock is responsible for all service costs. ICON Vehicle Dynamics warrants to the original retail purchaser who owns the vehicle on which the product was originally installed. ICON Vehicle Dynamics does not warrant the product for finish, alterations, modifications and/or installation contrary to ICON Vehicle Dynamics instructions.
ICON Vehicle Dynamics products are not designed, nor are they intended to be installed on vehicles used in race applications, for racing purposes or for similar activities. (A "race" is defined as any contest between two or more vehicles, or a contest of one or more vehicles against the clock, whether or not such contest is for a prize). This warranty does not include coverage for police or taxi vehicles, race vehicles, or vehicles used for government or commercial purposes. Also excluded from this warranty are sales outside of the United States of America and Canada.
ICON Vehicle Dynamics' obligation under this warranty is limited to the repair or replacement, at ICON Vehicle Dynamics' discretion, of the defective product. Any and all costs of removal, installation or re-installation, freight charges and incidental or consequential damages are expressly excluded from this warranty. Items that are subject to wear are not considered defective when worn and are not covered. ICON Vehicle Dynamics components must be installed as a complete kit as shown in our current application guide. Any substitutions or exemptions of required components will immediately void the warranty. This warranty is expressly in lieu of all other warranties expressed or implied. This warranty shall not apply to any product that has been improperly installed, modified or customized subject to accident, negligence, abuse or misuse.
SHOCK ABSORBER WARRANTY
ICON Vehicle Dynamics warrants to the original retail purchaser who owns the vehicle on which the product was originally installed. ICON Vehicle Dynamics does not warrant the product for finish, alterations, modifications and/or installation contrary to ICON Vehicle Dynamics instructions. ICON Vehicle Dynamics products are not designed, nor are they intended to be installed on vehicles used in race applications, for racing purposes or for similar activities. (A "race" is defined as any contest between two or more vehicles, or a contest of one or more vehicles against the clock, whether or not such contest is for a prize).
This warranty does not include coverage for police or taxi vehicles, race vehicles, or vehicles used for government or commercial purposes. Also excluded from this warranty are sales outside of the United States of America and Canada. ICON Vehicle Dynamics' obligation under this warranty is limited to the repair or replacement, at ICON Vehicle Dynamics' discretion, of the defective product. Any and all costs of removal, installation or re-installation, freight charges and incidental or consequential damages are expressly excluded from this warranty. Items that are subject to wear are not considered defective when worn and are not covered.
ICON Vehicle Dynamics components must be installed as a complete kit as shown in our current application guide. Any substitutions or exemptions of required components will immediately void the warranty. This warranty is expressly in lieu of all other warranties expressed or implied. This warranty shall not apply to any product that has been improperly installed, modified or customized subject to accident, negligence, abuse or misuse.
Shipping Info
Free Shipping on most orders to the lower 48 U.S. states. Truck freight items (over 100 lbs) and custom orders require a separate shipping quote.
- Applies to items like axles, leaf springs, and long-travel kits.
- No international shipping on freight items — only to U.S.-based freight forwarders.
- Worldwide shipping available: Canada, Europe, UAE, Australia, and most of Asia.
Contact us for an international shipping quote.
Returns & Exchanges
30-Day Return Policy - Items must be new, unused, uninstalled, and include all original hardware.
- No restocking fees for exchanges or gift card credit.
- 10% restocking fee on refunds, returns cost us real money, so the 10% helps keep the lights on.
- Installed, damaged, or dirty parts cannot be returned.
Return Shipping Responsibility
Shock Surplus Package and Order Protection plan provides prepaid return labels for any returned packages, this fee varies by product.
- Our mistake (misboxed, wrong item, damaged): We cover the cost of return shipping.
- Your mistake (wrong item ordered, fitment error, changed mind): Return shipping is your responsibility.
- Under 50 lbs: Discounted carrier rate (deducted from your refund).
- Over 50 lbs: Discounted carrier rate + $25 oversize fee (deducted).
Refunds
Refunds are issued within 5-7 business days of receiving your return.
- Funds typically post to your account in 1-3 business days depending on your payment method.
- There is a 10% restocking fee on all refunds. We do not get our original shipping, labor, or transaction fees back - so the 10% restocking fee keeps the lights on.
- You will receive an email once your refund is processed.
International Orders
- All international orders are final sale.
- Returns via freight forwarders only accepted if the product has not left the U.S.
- Import taxes and fees are the buyer's responsibility and not included in our shipping charges.
- We are not responsible for goods once exported outside the U.S.
Why Shock Surplus
1,000,000+ Shocks Shipped
The Premier Suspension Specialists
Authorized Dealer
Brand New - Warranty Backed
Free Shipping
Orders Over $250 - Lower 48 States
30-Day Returns
Free Exchange on Qualified Orders
VIDEO GALLERY
CUSTOMER REVIEWS
The Expert's Opinion
"We've been big fans of Icon's total suspension approach since running the CDCV kit on our Tacoma back in 2017. Icon regularly provides the most travel in their shocks and suspension systems when compared to competitors, giving more lift height, or more usable travel."
INFORMATION
Questions? We've got answers
ICON shocks are tuned for performance-first ride quality, which means you can expect a ride that feels firmer and more controlled than stock, especially on the street. They reduce body roll, brake dive, and overall vehicle movement, giving your truck a more planted and responsive feel.
Where ICON really stands out is off-road. These shocks are designed to handle higher speeds and rough terrain, so you’ll notice excellent control over bumps, whoops, and uneven surfaces, with less fade during repeated impacts. Instead of feeling soft or floaty, the suspension stays composed and predictable.
Overall, ICON shocks are a great fit if you want a sportier, more aggressive ride with strong off-road capability. They may feel firmer than some comfort-focused options, but they deliver a high level of control and confidence both on and off the pavement.
Some ICON shocks are adjustable, but it depends on the specific model and series. Many of ICON’s standard shocks come with vehicle-specific valving and no external adjusters, designed to deliver strong performance right out of the box without needing tuning.
However, ICON offers several higher-end options with adjustability. For example, shocks equipped with CDC (Compression Damping Control) valves provide multiple levels of compression adjustment via a knob, allowing you to fine-tune the ride for different terrain or driving styles.
At the top end, ICON also offers advanced systems like CDXS or CDEV, which can provide more precise manual adjustments or even electronic, real-time damping changes based on driving conditions.
In short, not all ICON shocks are adjustable, but many upgraded versions offer a wide range of tuning options—from simple knob adjustments to fully electronic control.
Click the 'Select Your Vehicle' button above the 'Add to Cart' button to make sure the shocks fit your exact vehicle. If needed, the site will send you to the right shocks for your ride. If your vehicle has been lifted, use the dropdown menu to pick the correct lift height. For example, if you have a Rough Country 6-inch lift kit, choose Front 4–6" and Rear 3–4" (the rear is usually smaller than the front). Still not sure? Our sales team is happy to help.
ICON shocks are built as rebuildable, high-performance shocks, so their lifespan is a little different than basic “replace when worn out” shocks. For vehicles that are mostly driven on the street, you can typically expect around 50,000–80,000 miles before a rebuild is recommended to keep them performing at their best.
If your truck sees frequent off-road use, heavy loads, or aggressive driving, service intervals can come sooner—sometimes significantly sooner—since heat, dirt, and repeated impacts accelerate wear.
The key thing to know is that ICON shocks are designed to be serviced, not thrown away. With proper maintenance and periodic rebuilds, they can deliver years of consistent performance and continue working well long after that initial service interval.
