0-3.5" Suspension System - Stage 7 Tubular Kit
Estimated Delivery in 3-7 business days
0-3.5" Suspension System - Stage 7 Tubular Kit
Estimated Delivery in 3-7 business days
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| K53067T | 0-3.5" Lift | Front and Rear | 0-3.5" Suspension System - Stage 7 Tubular | 1 |
Overview
ICON'010-UP Toyota 4Runner/2010-2014 FJ Cruiser Stage 7 suspension system provides the ultimate level of on and off-road performance of the vehicle. This system includes all of the components featured in the Stage 6 setup - ICON tubular Delta Joint upper control arm kit, 2.5 Series Remote Reservoir front and rear shocks, 2" rear coil springs, adjustable rear track bar, and a tubular rear upper and lower link arm kit - but sees the addition of ICON'ompression Damping Control Valve (CDCV) front and rear. The easy-to-adjust CDC Valve allows for end-user compression changes to provide optimal ride quality across all types of terrain and vehicle cargo configurations. The remote reservoir design allows for increased shock oil volume and enhanced cooling so that the rear of the vehicle can work harder for longer durations without noticeable "fade" occurring. The 2.5 Series Remote Reservoir rear shocks also feature ICON'Bump Zone" technology which significantly increases damping ability in the last 2" of compression travel, preventing harsh bottom-out sensation and giving the vehicle a much more controlled ride quality over varying terrain. ICON's Tubular steel lower links are much stronger than the OE units, feature a low maintenance multi-durometer bushing, and can be adjusted for optimum pinion angle. On top of it all, these links have been designed to provide correct roll steer geometry for the best possible handling on and off-road.
This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
Tech Info:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 with 4.75" Backspace / 0mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #35: REMOTE RESERVOIR MOUNTING BRACKETS MAY INTERFERE WITH AFTERMARKET BUMPER MOUNTS / WINDSHIELD WASHER BOTTLES
- APPLICATION NOTE #46: SUSPENSION SYSTEM COMPATIBLE WITH KDSS. FRONT SWAY BAR RELOCATION BRACKETS NOT USED FOR KDSS EQUIPPED VEHICLES. CERTAIN YEARS REQUIRE TRIMMING FOR FRONT RESERVOIR BRACKET FITMENT
- APPLICATION NOTE #47: 700LB/IN EXPEDITION COIL AVAILABLE FOR HEAVIER EQUIPPED VEHICLES
- APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
- APPLICATION NOTE #102: KDSS EQUIPPED REQUIRE REAR TRACK BAR 54200
- Ships in multiple boxes
Features & Benefits
- Increased wheel travel and ride quality over stock
- 2.5 Series remote reservoir rear shocks with 7/8 shafts
- Adjustable rear track bar proper rear axle placement under vehicle
- Bolt-on system means no cutting or welding necessary for install
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- CDC Valve technology allows for quick and easy compression damping adjustment without the need for tools
- Adjustable coilovers provide 0-3.5" of front lift height
- Extended Travel remote reservoir coilovers matched with ICON UCAs provide increased front droop travel
- Tubular upper and lower rear links offer increased strength, improved geometry, and pinion angle adjustment
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8 shaft
- FK Rod End bearings for extended longevity and minimal deflection

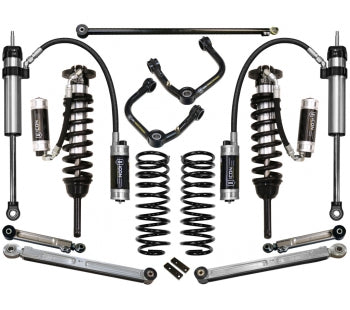

System Components:
- 58451DJ (QTY: 1) | 07-UP FJ/03-UP 4RUNNER TUBULAR UCA DJ KIT
- 52700 (QTY: 1) | 07-UP FJ/03-UP 4RUNNER REAR 2" SPRING KIT
- 58747C (QTY: 1) | 10-UP FJ/4RUNNER EXT TRAVEL 2.5 VS RR CDCV COILOVER KIT
- 57810CP (QTY: 1) | 07-UP FJ/03-UP 4RUNNER 1-3" REAR 2.5 VS RR CDCV PAIR
- 54200 (QTY: 1) | 07-UP FJ/03-UP 4RUNNER REAR ADJ TRACK BAR KIT
- 54100T (QTY: 1) | 07-UP FJ/03-UP 4RNR TUBULAR UPPER TRAILING ARM KIT
- 54000T (QTY: 1) | 07-UP FJ/03-UP 4RNR/08-UP LC 200 TUBULAR LOWER TRAILING ARM KIT
Installation Instructions & Docs
| Year | Make | Model | Drive | Position | Lift |
| 2014 | Toyota | FJ Cruiser | RWD, 4WD | 0-3.5" Front / 2" Rear | |
| 2013 | Toyota | FJ Cruiser | RWD, 4WD | 0-3.5" Front / 2" Rear | |
| 2012 | Toyota | FJ Cruiser | RWD, 4WD | 0-3.5" Front / 2" Rear | |
| 2011 | Toyota | FJ Cruiser | RWD, 4WD | 0-3.5" Front / 2" Rear | |
| 2010 | Toyota | FJ Cruiser | RWD, 4WD | 0-3.5" Front / 2" Rear |
