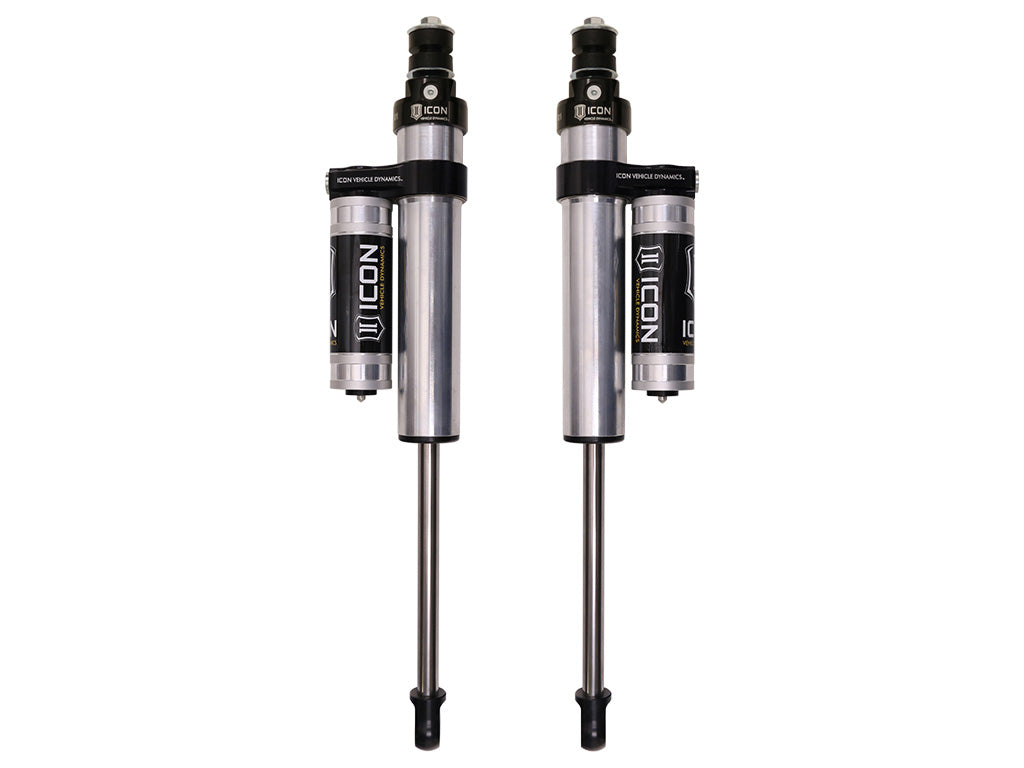

2.5 Piggyback Reservoir Shocks Pair w/6" lift
Estimated Delivery in 3-7 business days
2.5 Piggyback Reservoir Shocks Pair w/6" lift
Estimated Delivery in 3-7 business days
Part Number | Lift/Lowered | Position | Item | Quantity | Extended Length | Compressed Length | Travel |
---|---|---|---|---|---|---|---|
57716P-CB | 6.0" Lift | Rear | Shock Absorber | 1 | 26.18" | 15.85" | 10.33" |
Overview
ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON's Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON's unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) or the Omega Series bypass shocks.
Features & Benefits
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- 6061 aircraft grade aluminum CNC machined components
- ICON's internal 'Bump Zone' increases damping by 20% to provide more control as the shock approaches full compression
- PTFE lined spherical bearings and application specific mounting hardware
- 7/8 diameter induction hardened, chrome plated shock shaft
- All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON's Compression Damping Control Valve (CDCV)
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 100% Revalveable
- Nitrogen charged monotube design with piggyback reservoir
- 100% Rebuildable
Installation Instructions & Docs
Year | Make | Model | Drive | Position | Lift |
2006 | Toyota | Tundra | 6.0" | ||
2005 | Toyota | Tundra | 6.0" | ||
2004 | Toyota | Tundra | 6.0" | ||
2003 | Toyota | Tundra | 6.0" | ||
2002 | Toyota | Tundra | 6.0" | ||
2001 | Toyota | Tundra | 6.0" | ||
2000 | Toyota | Tundra | 6.0" |
ICON VEHICLE DYNAMICS LIMITED LIFETIME WARRANTY
If a shock is inspected and it has been determined the shock failed due to neglect, damage caused by improper installation or any other reason besides "normal wear and tear", the owner of said shock is responsible for all service costs. ICON Vehicle Dynamics warrants to the original retail purchaser who owns the vehicle on which the product was originally installed. ICON Vehicle Dynamics does not warrant the product for finish, alterations, modifications and/or installation contrary to ICON Vehicle Dynamics instructions.
ICON Vehicle Dynamics products are not designed, nor are they intended to be installed on vehicles used in race applications, for racing purposes or for similar activities. (A "race" is defined as any contest between two or more vehicles, or a contest of one or more vehicles against the clock, whether or not such contest is for a prize). This warranty does not include coverage for police or taxi vehicles, race vehicles, or vehicles used for government or commercial purposes. Also excluded from this warranty are sales outside of the United States of America and Canada.
ICON Vehicle Dynamics' obligation under this warranty is limited to the repair or replacement, at ICON Vehicle Dynamics' discretion, of the defective product. Any and all costs of removal, installation or re-installation, freight charges and incidental or consequential damages are expressly excluded from this warranty. Items that are subject to wear are not considered defective when worn and are not covered. ICON Vehicle Dynamics components must be installed as a complete kit as shown in our current application guide. Any substitutions or exemptions of required components will immediately void the warranty. This warranty is expressly in lieu of all other warranties expressed or implied. This warranty shall not apply to any product that has been improperly installed, modified or customized subject to accident, negligence, abuse or misuse.
SHOCK ABSORBER WARRANTY
ICON Vehicle Dynamics warrants to the original retail purchaser who owns the vehicle on which the product was originally installed. ICON Vehicle Dynamics does not warrant the product for finish, alterations, modifications and/or installation contrary to ICON Vehicle Dynamics instructions. ICON Vehicle Dynamics products are not designed, nor are they intended to be installed on vehicles used in race applications, for racing purposes or for similar activities. (A "race" is defined as any contest between two or more vehicles, or a contest of one or more vehicles against the clock, whether or not such contest is for a prize).
This warranty does not include coverage for police or taxi vehicles, race vehicles, or vehicles used for government or commercial purposes. Also excluded from this warranty are sales outside of the United States of America and Canada. ICON Vehicle Dynamics' obligation under this warranty is limited to the repair or replacement, at ICON Vehicle Dynamics' discretion, of the defective product. Any and all costs of removal, installation or re-installation, freight charges and incidental or consequential damages are expressly excluded from this warranty. Items that are subject to wear are not considered defective when worn and are not covered.
ICON Vehicle Dynamics components must be installed as a complete kit as shown in our current application guide. Any substitutions or exemptions of required components will immediately void the warranty. This warranty is expressly in lieu of all other warranties expressed or implied. This warranty shall not apply to any product that has been improperly installed, modified or customized subject to accident, negligence, abuse or misuse.
