2.5 Remote Reservoir Coilovers CDEV Rear Pair
Estimated Delivery in 3-6 business days
2.5 Remote Reservoir Coilovers CDEV Rear Pair
Estimated Delivery in 3-6 business days
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 48710E | Factory | Rear | Coilover | 1 |
Overview

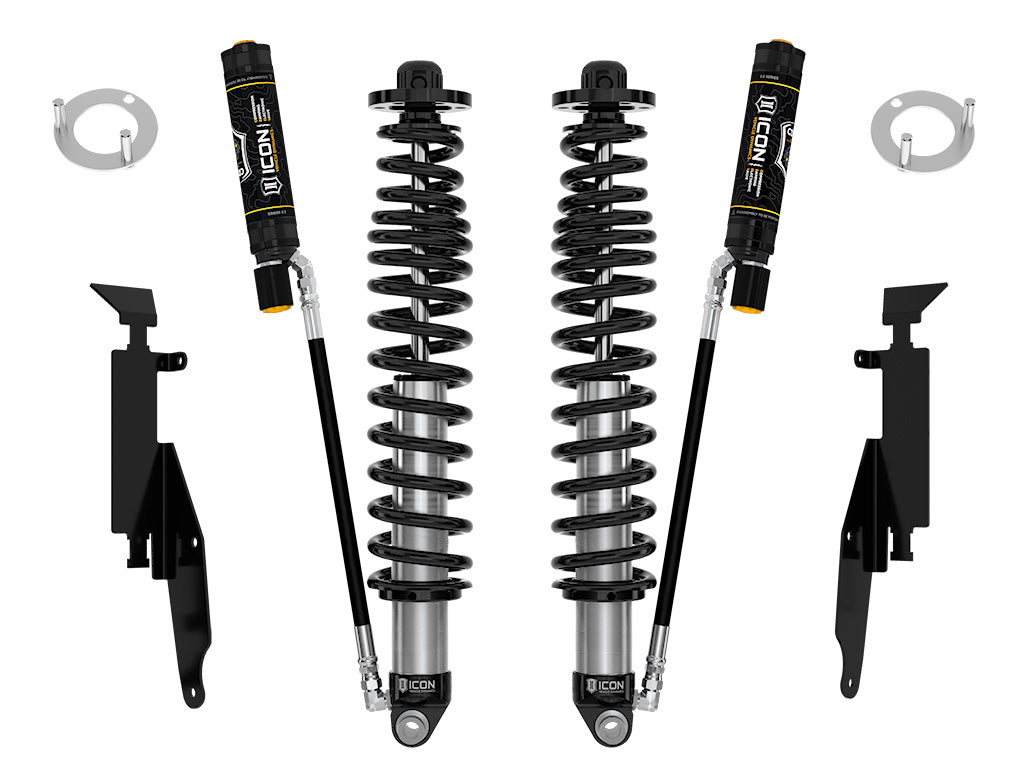

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir rear coilover shocks with CDEV are the ideal upgrade for the rear end of the 2021-UP Ford Bronco. These adjustable coilovers allow up to 2-3” of rear lift height adjustability on 4-door Broncos without the Sasquatch package or 1.25-2.25” of rear lift over stock 4-door Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Electronic Valves (CDEV) are included to allow for lightning fast, precise electronic shock tuning, on-the-fly, at any speed and in any terrain. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the CDEV at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. These rear coilovers feature unique ICON engineered progressive triple rate coil springs, allowing for softer spring rate at ride height that ramps up as the coil compresses for improved bottom out resistance. Their shaft up orientation requires the reservoir hose to be routed along the rear lower links so ICON offers hose bracket options for the OE or ICON tubular links while ICON billet links incorporate this bracketry into their design. ICON 2.5 Series front coilovers with CDEV and matching IIC module are required for installation but vehicle control will be actively balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.
Features & Benefits
- Increased wheel travel (up to 14”) and ride quality over stock
- Vehicle specific tuned for superior shock damping and control
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
- Adjustable up to 2-3" of rear lift height on non-Sasquatch or 1.25-2.25” of rear lift on Sasquatch Broncos
- Unique ICON engineered triple rate coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" diameter shaft
- FK rod end bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
- 100% Bolt-on - no drilling cutting or welding necessary for installation
Tech Notes
- OEM Wheels & Tires Fitment: Yes ,
- Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys | 17x8.5" w/ 4.75" Backspace / 0mm Offset ,
- Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys | 18x9" w/ 5.00" Backspace / 0mm Offset ,
- Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys | 20x9" w/ 5.00" Backspace / 0mm Offset ,
- Recommended Aftermarket Wheels (Without Sasquatch Package): ICON Alloys | 17x8.5" w/ 5.75" Backspace / 25mm Offset ,
- Recommended Aftermarket Tires (With Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers) ,
- Recommended Aftermarket Tires (Without Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers) ,
- APPLICATION NOTE #133: WHEN RUNNING 37" TIRES USE UP TRAVEL LIMITER'S PART #611074 FOR THE REAR ,
- APPLICATION NOTE #136: WHEN RUNNING ICON TUBULAR LOWER LINKS USE PART #611073 ,
- APPLICATION NOTE #137: WHEN RUNNING FACTORY LOWER LINKS USE PART #611072 ,
- TECH NOTE: Also requires installation of part numbers 48700E and 43501 ,
- TECH NOTE: Triple rate rear coils are optimized for improved suspension performance and ride quality for a near-stock weight Bronco. Their softer initial spring rates will net lower than advertised ride heights as weight is added to the rear of the vehicle. Coil spring options for heavier equipped Broncos coming soon! ,
- TECH NOTE: Lift height ranges advertised are for 4-door models. 2-door models will net approximately .5" of additional rear lift over stock. ,
- TECH NOTE: Not compatible with Bronco Raptor
| Year | Make | Model | Drive | Position | Lift |
| 2025 | Ford | Bronco | Rear | Factory | |
| 2024 | Ford | Bronco | Rear | Factory | |
| 2023 | Ford | Bronco | Rear | Factory | |
| 2022 | Ford | Bronco | Rear | Factory | |
| 2021 | Ford | Bronco | Rear | Factory |
ICON VEHICLE DYNAMICS LIMITED LIFETIME WARRANTY
If a shock is inspected and it has been determined the shock failed due to neglect, damage caused by improper installation or any other reason besides "normal wear and tear", the owner of said shock is responsible for all service costs. ICON Vehicle Dynamics warrants to the original retail purchaser who owns the vehicle on which the product was originally installed. ICON Vehicle Dynamics does not warrant the product for finish, alterations, modifications and/or installation contrary to ICON Vehicle Dynamics instructions.
ICON Vehicle Dynamics products are not designed, nor are they intended to be installed on vehicles used in race applications, for racing purposes or for similar activities. (A "race" is defined as any contest between two or more vehicles, or a contest of one or more vehicles against the clock, whether or not such contest is for a prize). This warranty does not include coverage for police or taxi vehicles, race vehicles, or vehicles used for government or commercial purposes. Also excluded from this warranty are sales outside of the United States of America and Canada.
ICON Vehicle Dynamics' obligation under this warranty is limited to the repair or replacement, at ICON Vehicle Dynamics' discretion, of the defective product. Any and all costs of removal, installation or re-installation, freight charges and incidental or consequential damages are expressly excluded from this warranty. Items that are subject to wear are not considered defective when worn and are not covered. ICON Vehicle Dynamics components must be installed as a complete kit as shown in our current application guide. Any substitutions or exemptions of required components will immediately void the warranty. This warranty is expressly in lieu of all other warranties expressed or implied. This warranty shall not apply to any product that has been improperly installed, modified or customized subject to accident, negligence, abuse or misuse.
SHOCK ABSORBER WARRANTY
ICON Vehicle Dynamics warrants to the original retail purchaser who owns the vehicle on which the product was originally installed. ICON Vehicle Dynamics does not warrant the product for finish, alterations, modifications and/or installation contrary to ICON Vehicle Dynamics instructions. ICON Vehicle Dynamics products are not designed, nor are they intended to be installed on vehicles used in race applications, for racing purposes or for similar activities. (A "race" is defined as any contest between two or more vehicles, or a contest of one or more vehicles against the clock, whether or not such contest is for a prize).
This warranty does not include coverage for police or taxi vehicles, race vehicles, or vehicles used for government or commercial purposes. Also excluded from this warranty are sales outside of the United States of America and Canada. ICON Vehicle Dynamics' obligation under this warranty is limited to the repair or replacement, at ICON Vehicle Dynamics' discretion, of the defective product. Any and all costs of removal, installation or re-installation, freight charges and incidental or consequential damages are expressly excluded from this warranty. Items that are subject to wear are not considered defective when worn and are not covered.
ICON Vehicle Dynamics components must be installed as a complete kit as shown in our current application guide. Any substitutions or exemptions of required components will immediately void the warranty. This warranty is expressly in lieu of all other warranties expressed or implied. This warranty shall not apply to any product that has been improperly installed, modified or customized subject to accident, negligence, abuse or misuse.
Shipping Info
Free Shipping on most orders to the lower 48 U.S. states. Truck freight items (over 100 lbs) and custom orders require a separate shipping quote.
- Applies to items like axles, leaf springs, and long-travel kits.
- No international shipping on freight items — only to U.S.-based freight forwarders.
- Worldwide shipping available: Canada, Europe, UAE, Australia, and most of Asia.
Contact us for an international shipping quote.
Returns & Exchanges
30-Day Return Policy - Items must be new, unused, uninstalled, and include all original hardware.
- No restocking fees for exchanges or gift card credit.
- 10% restocking fee on refunds, returns cost us real money, so the 10% helps keep the lights on.
- Installed, damaged, or dirty parts cannot be returned.
Return Shipping Responsibility
Shock Surplus Package and Order Protection plan provides prepaid return labels for any returned packages, this fee varies by product.
- Our mistake (misboxed, wrong item, damaged): We cover the cost of return shipping.
- Your mistake (wrong item ordered, fitment error, changed mind): Return shipping is your responsibility.
- Under 50 lbs: Discounted carrier rate (deducted from your refund).
- Over 50 lbs: Discounted carrier rate + $25 oversize fee (deducted).
Refunds
Refunds are issued within 5-7 business days of receiving your return.
- Funds typically post to your account in 1-3 business days depending on your payment method.
- There is a 10% restocking fee on all refunds. We do not get our original shipping, labor, or transaction fees back - so the 10% restocking fee keeps the lights on.
- You will receive an email once your refund is processed.
International Orders
- All international orders are final sale.
- Returns via freight forwarders only accepted if the product has not left the U.S.
- Import taxes and fees are the buyer's responsibility and not included in our shipping charges.
- We are not responsible for goods once exported outside the U.S.
Why Shock Surplus
1,000,000+ Shocks Shipped
The Premier Suspension Specialists
Authorized Dealer
Brand New - Warranty Backed
Free Shipping
Orders Over $250 - Lower 48 States
30-Day Returns
Free Exchange on Qualified Orders
VIDEO GALLERY
CUSTOMER REVIEWS
The Expert's Opinion
"We've been big fans of Icon's total suspension approach since running the CDCV kit on our Tacoma back in 2017. Icon regularly provides the most travel in their shocks and suspension systems when compared to competitors, giving more lift height, or more usable travel."
INFORMATION
Questions? We've got answers
ICON shocks are tuned for performance-first ride quality, which means you can expect a ride that feels firmer and more controlled than stock, especially on the street. They reduce body roll, brake dive, and overall vehicle movement, giving your truck a more planted and responsive feel.
Where ICON really stands out is off-road. These shocks are designed to handle higher speeds and rough terrain, so you’ll notice excellent control over bumps, whoops, and uneven surfaces, with less fade during repeated impacts. Instead of feeling soft or floaty, the suspension stays composed and predictable.
Overall, ICON shocks are a great fit if you want a sportier, more aggressive ride with strong off-road capability. They may feel firmer than some comfort-focused options, but they deliver a high level of control and confidence both on and off the pavement.
Some ICON shocks are adjustable, but it depends on the specific model and series. Many of ICON’s standard shocks come with vehicle-specific valving and no external adjusters, designed to deliver strong performance right out of the box without needing tuning.
However, ICON offers several higher-end options with adjustability. For example, shocks equipped with CDC (Compression Damping Control) valves provide multiple levels of compression adjustment via a knob, allowing you to fine-tune the ride for different terrain or driving styles.
At the top end, ICON also offers advanced systems like CDXS or CDEV, which can provide more precise manual adjustments or even electronic, real-time damping changes based on driving conditions.
In short, not all ICON shocks are adjustable, but many upgraded versions offer a wide range of tuning options—from simple knob adjustments to fully electronic control.
Click the 'Select Your Vehicle' button above the 'Add to Cart' button to make sure the shocks fit your exact vehicle. If needed, the site will send you to the right shocks for your ride. If your vehicle has been lifted, use the dropdown menu to pick the correct lift height. For example, if you have a Rough Country 6-inch lift kit, choose Front 4–6" and Rear 3–4" (the rear is usually smaller than the front). Still not sure? Our sales team is happy to help.
ICON shocks are built as rebuildable, high-performance shocks, so their lifespan is a little different than basic “replace when worn out” shocks. For vehicles that are mostly driven on the street, you can typically expect around 50,000–80,000 miles before a rebuild is recommended to keep them performing at their best.
If your truck sees frequent off-road use, heavy loads, or aggressive driving, service intervals can come sooner—sometimes significantly sooner—since heat, dirt, and repeated impacts accelerate wear.
The key thing to know is that ICON shocks are designed to be serviced, not thrown away. With proper maintenance and periodic rebuilds, they can deliver years of consistent performance and continue working well long after that initial service interval.
