2.5" Suspension System - Stage 6 Kit
Estimated Delivery in 3-7 business days
2.5" Suspension System - Stage 6 Kit
Estimated Delivery in 3-7 business days
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| K22106 | 2.5" Lift | Front and Rear | 2.5" Suspension System - Stage 6 | 1 |
Overview

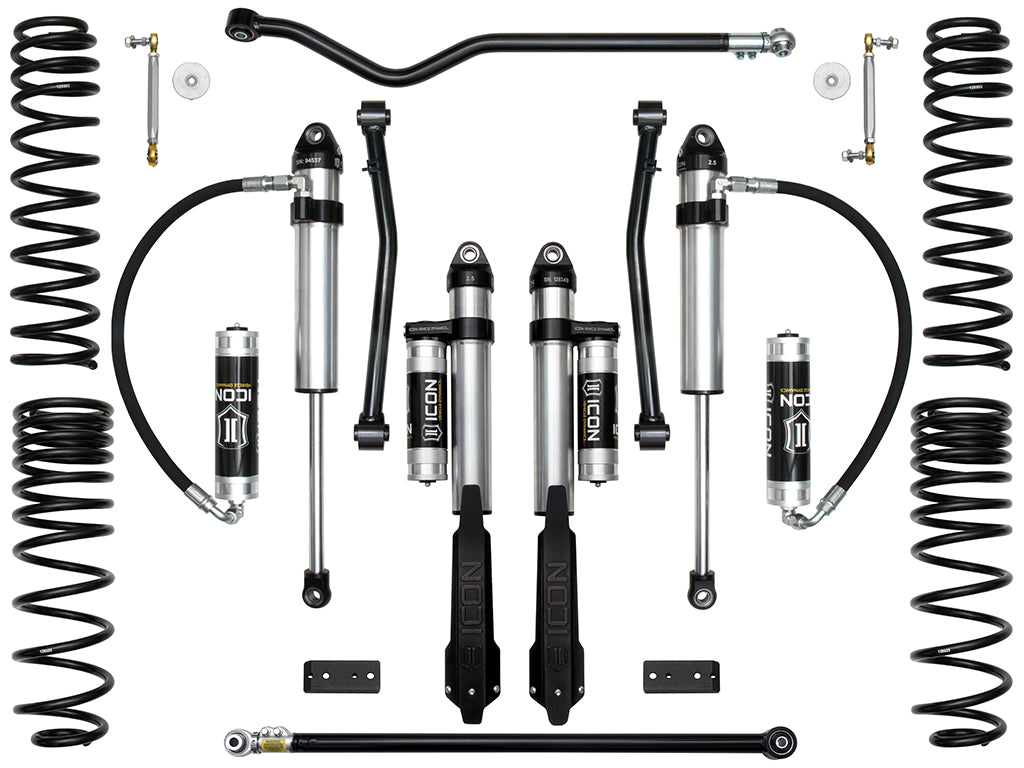

The Stage 6 ICON 2.5" Suspension System for the Jeep Gladiator is the ideal setup for drastically improving off-road performance and overall ride quality for the application that will see occasional heavy off-road use. This complete suspension system features ICON'roven 2.5 Series shocks, 2.5" lift dual-rate front coil springs, a tubular steel fixed front lower link kit, billet front sway bar links, a triple-rate rear coil spring kit, a rear sway bar relocation kit, front and rear adjustable track bars, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35" tire. For those looking to run a 37" tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071).
Tech Info:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys | 17" x 8.5" w/ 4.5" BS / -6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 17" x 8.5" w/ 4.75" BS / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 18" x 9" w/ 4.5" BS / -12mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit PN: 22071)
- APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
- Ships In Multiple Boxes
Features & Benefits
- 2.5" lift height
- Adjustable, billet aluminum front sway bar links
- 100% bolt-on system makes for an easy install
- ICON 1K tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- Fits 35" tires (37" with extended bump stop spacer kit)
- 33% front, 23% rear increase in wheel travel
- Improves on and off-road ride quality over stock
- Front lower links included for caster angle correction and improved front end articulation
- Dual rate front coil springs with lifetime guarantee against sagging/breakage
- Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
- 2.5 Series shocks with vehicle specific valving
- Front and rear track bars ensure proper alignment and improved articulation
System Components:
- 22025 (QTY: 1) | 18-UP JL/20-UP JT 2.5" FRONT DUAL RATE SPRING KIT
- 22062 (QTY: 1) | 20-UP JT REAR SWAY BAR RELOCATION KIT
- 22061 (QTY: 1) | 18-UP JL/20-UP JT FRONT SWAY BAR LINK KIT
- 22066 (QTY: 1) | 20-UP JT 1.5" REAR MULTI RATE SPRING KIT
- 22027 (QTY: 1) | 18-UP JL/20-UP JT FRONT ADJ TRACK BAR KIT
- 22021 (QTY: 1) | 18-UP JL/20-UP JT FRONT FIXED LOWER LINK KIT
- 22068 (QTY: 1) | 20-UP JT REAR ADJ TRACK BAR KIT
- 27821P (QTY: 1) | 20-UP JT/18-UP JL 2.5" FRONT 2.5 VS RR PAIR
- 27727P (QTY: 1) | 20-UP JT 1.5" REAR 2.5 VS PB PAIR
Installation Instructions & Docs
| Year | Make | Model | Drive | Position | Lift |
| 2024 | Jeep | Gladiator | 4WD | 2.5" | |
| 2023 | Jeep | Gladiator | 4WD | 2.5" | |
| 2022 | Jeep | Gladiator | 4WD | 2.5" | |
| 2021 | Jeep | Gladiator | 4WD | 2.5" | |
| 2020 | Jeep | Gladiator | 4WD | 2.5" |
ICON VEHICLE DYNAMICS LIMITED LIFETIME WARRANTY
If a shock is inspected and it has been determined the shock failed due to neglect, damage caused by improper installation or any other reason besides "normal wear and tear", the owner of said shock is responsible for all service costs. ICON Vehicle Dynamics warrants to the original retail purchaser who owns the vehicle on which the product was originally installed. ICON Vehicle Dynamics does not warrant the product for finish, alterations, modifications and/or installation contrary to ICON Vehicle Dynamics instructions.
ICON Vehicle Dynamics products are not designed, nor are they intended to be installed on vehicles used in race applications, for racing purposes or for similar activities. (A "race" is defined as any contest between two or more vehicles, or a contest of one or more vehicles against the clock, whether or not such contest is for a prize). This warranty does not include coverage for police or taxi vehicles, race vehicles, or vehicles used for government or commercial purposes. Also excluded from this warranty are sales outside of the United States of America and Canada.
ICON Vehicle Dynamics' obligation under this warranty is limited to the repair or replacement, at ICON Vehicle Dynamics' discretion, of the defective product. Any and all costs of removal, installation or re-installation, freight charges and incidental or consequential damages are expressly excluded from this warranty. Items that are subject to wear are not considered defective when worn and are not covered. ICON Vehicle Dynamics components must be installed as a complete kit as shown in our current application guide. Any substitutions or exemptions of required components will immediately void the warranty. This warranty is expressly in lieu of all other warranties expressed or implied. This warranty shall not apply to any product that has been improperly installed, modified or customized subject to accident, negligence, abuse or misuse.
SHOCK ABSORBER WARRANTY
ICON Vehicle Dynamics warrants to the original retail purchaser who owns the vehicle on which the product was originally installed. ICON Vehicle Dynamics does not warrant the product for finish, alterations, modifications and/or installation contrary to ICON Vehicle Dynamics instructions. ICON Vehicle Dynamics products are not designed, nor are they intended to be installed on vehicles used in race applications, for racing purposes or for similar activities. (A "race" is defined as any contest between two or more vehicles, or a contest of one or more vehicles against the clock, whether or not such contest is for a prize).
This warranty does not include coverage for police or taxi vehicles, race vehicles, or vehicles used for government or commercial purposes. Also excluded from this warranty are sales outside of the United States of America and Canada. ICON Vehicle Dynamics' obligation under this warranty is limited to the repair or replacement, at ICON Vehicle Dynamics' discretion, of the defective product. Any and all costs of removal, installation or re-installation, freight charges and incidental or consequential damages are expressly excluded from this warranty. Items that are subject to wear are not considered defective when worn and are not covered.
ICON Vehicle Dynamics components must be installed as a complete kit as shown in our current application guide. Any substitutions or exemptions of required components will immediately void the warranty. This warranty is expressly in lieu of all other warranties expressed or implied. This warranty shall not apply to any product that has been improperly installed, modified or customized subject to accident, negligence, abuse or misuse.
