2.5" Suspension System - Stage 8 Kit
Estimated Delivery in 3-7 business days
2.5" Suspension System - Stage 8 Kit
Estimated Delivery in 3-7 business days
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| K22108 | 2.5" Lift | Front and Rear | 2.5" Suspension System - Stage 8 | 1 |
Overview
The Stage 8 ICON 2.5" Suspension System for the Jeep Gladiator is the ultimate setup for drastically improving off-road performance and providing an end-user adjustable ride quality for the application that will see heavy off-road use across a wide variety of vehicle loadouts and terrains. This complete suspension system features ICON'roven 2.5 Series shocks with CDC Valve technology, 2.5" lift dual-rate front coil springs, tubular steel fixed lower and adjustable upper front links, billet front sway bar links, a triple-rate rear coil spring kit, billet aluminum adjustable upper and lower rear links, a billet rear sway bar link kit, front and rear adjustable track bars, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35" tire. For those looking to run a 37" tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071).
Tech Info:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys | 17" x 8.5" w/ 4.5" BS / -6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 17" x 8.5" w/ 4.75" BS / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 18" x 9" w/ 4.5" BS / -12mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit PN: 22071)
- APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
- Ships In Multiple Boxes
Features & Benefits
- 2.5" lift height
- Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression damping changes to suit all types of terrain and vehicle cargo configurations
- Front and rear track bars ensure proper alignment and improved articulation
- Adjustable, billet aluminum front sway bar links
- 100% bolt-on system makes for an easy install
- ICON 1K tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- Fits 35" tires (37" with extended bump stop spacer kit)
- 33% front, 23% rear increase in wheel travel
- Improves on and off-road ride quality over stock
- Front upper and lower links included for caster angle correction and improved front end articulation
- Rear billet upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
- Dual rate front coil springs with lifetime guarantee against sagging/breakage
- Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
- 2.5 Series remote reservoir shocks with vehicle specific valving

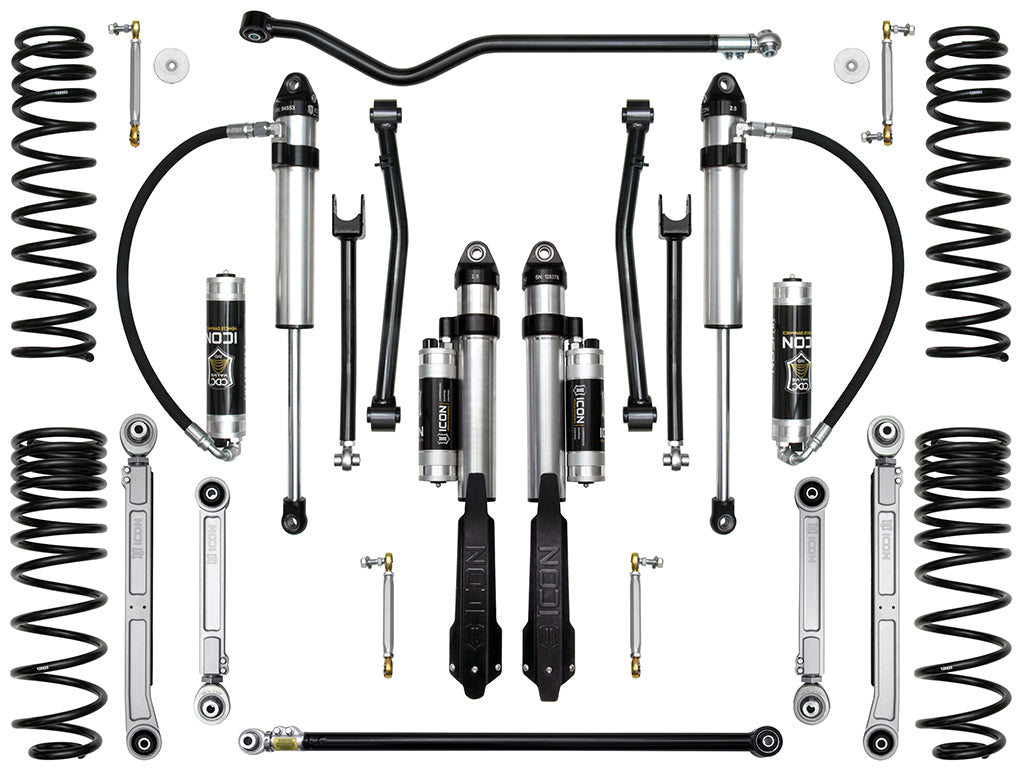

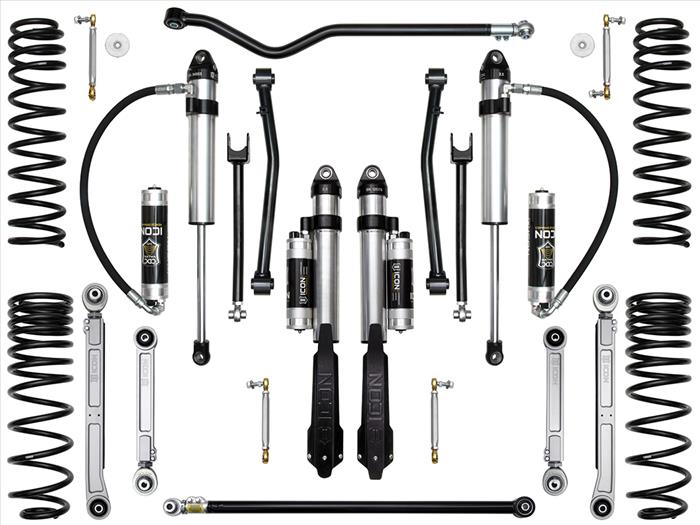

System Components:
- 22025 (QTY: 1) | 18-UP JL/20-UP JT 2.5" FRONT DUAL RATE SPRING KIT
- 22061 (QTY: 1) | 18-UP JL/20-UP JT FRONT SWAY BAR LINK KIT
- 22066 (QTY: 1) | 20-UP JT 1.5" REAR MULTI RATE SPRING KIT
- 22027 (QTY: 1) | 18-UP JL/20-UP JT FRONT ADJ TRACK BAR KIT
- 22021 (QTY: 1) | 18-UP JL/20-UP JT FRONT FIXED LOWER LINK KIT
- 22063 (QTY: 1) | 20-UP JT BILLET REAR ADJUSTABLE LOWER LINK KIT
- 22022 (QTY: 1) | 18-UP JL FRONT ADJ UPPER LINK KIT
- 22068 (QTY: 1) | 20-UP JT REAR ADJ TRACK BAR KIT
- 22064 (QTY: 1) | 20-UP JT BILLET REAR ADJUSTABLE UPPER LINK KIT
- 27821CP (QTY: 1) | 20-UP JT/18-UP JL 2.5" FRONT 2.5 VS RR CDCV PAIR
- 27727CP (QTY: 1) | 20-UP JT 1.5" REAR 2.5 VS PB CDCV PAIR
- 22070 (QTY: 1) | 20-UP JT REAR SWAY BAR LINK KIT
Installation Instructions & Docs
| Year | Make | Model | Drive | Position | Lift |
| 2024 | Jeep | Gladiator | 4WD | 2.5" | |
| 2023 | Jeep | Gladiator | 4WD | 2.5" | |
| 2022 | Jeep | Gladiator | 4WD | 2.5" | |
| 2021 | Jeep | Gladiator | 4WD | 2.5" | |
| 2020 | Jeep | Gladiator | 4WD | 2.5" |
