4.5" Suspension System - Stage 1 Kit

2017-2024 Ford F-350 Super Duty 4WD
$2,840.98 Sale
Low Stock
Icon

4.5" Suspension System - Stage 1 Kit

2017-2024 Ford F-350 Super Duty 4WD
$2,840.98 Sale
Low Stock

Authorized dealer
Free shipping within the lower 48 United States
Brand new parts with warranty coverage
Free 30-day return and exchange on qualifying orders
Got Questions?
Our experts are here to help!

Product Details

Whether you want to upgrade, add a reservoir, or find something more affordable, contact us with any questions!

Part Numbers & Details

View full product specifications

Close specs
Part Numbers & Details
Specifications
Part NumberLift/LoweredPositionItemQuantity
K645214.5" LiftFront and Rear3.5" Suspension System - Stage 11

Overview:

The 2020-UP Ford Super Duty trucks sit at a lower ride height than 2017-2019 models, and although many of the 2017-2019 components will physically fit 2020 models, the resulting ride height is often taller than desired. So, engineers at ICON designed new progressive rate coil springs that achieve the correct advertised lift heights while still retaining the great ride quality, predictability, and performance that our Super Duty systems are known for.

This ICON Vehicle Dynamics 4.5" suspension system is a great way to lift your 4WD 2020-UP Ford F250/350 Super Duty while drastically improving ride quality and performance. This entry level system is perfect for on-road and towing use, as well as mild off-road use like job site duty and washboard gravel roads. ICON's 2.5" Stage 1 System is comprised of dual rate coil springs, radius arm drop brackets, adjustable track bar, 5" block kit, and ICON 2.0 Aluminum Series front and rear shocks. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

Highlights:

  • Fits 2020-UP F250 / F350 4WD applications
  • Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
  • Approximately 50% increased front wheel travel over stock
  • ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
  • Radius arm drop brackets correct geometry and caster for optimal alignment specs
  • ICON shocks feature vehicle specific tune for superior performance and ride quality
  • Shocks are fully rebuildable and revalvable
  • Corrosion resistant anodized shock body with 5/8" shaft (2.0 Aluminum Series shocks)
  • FK Rod End bearings provide extended longevity and minimal deflection
  • Lifetime guarantee against coil spring breakage or sag

Fitment Notes:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5" Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25" Backspace / 6mm Offset
  • Tremor package reduces advertised lift heights by approximately 1.00"
  • Brake line kit (Part # 61110) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
  • Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.25" Backspace / 6mm Offset
  • Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
  • THIS SYSTEM MAY REQUIRE A CARRIER BEARING DROP BRACKET KIT (33700)
  • NOT APPLICABLE ON VEHICLES EQUIPPED WITH A MANUAL TRANSMISSION
  • '- CURRENT SUPERDUTY MODELS WITH GAS ENGINES MAY NEED EXHAUST MODIFIED TO CLEAR FRONT DRIVESHAFT
  • LIFT HEIGHTS BASED ON 4WD CREW CAB DIESEL
  • Ships in multiple boxes

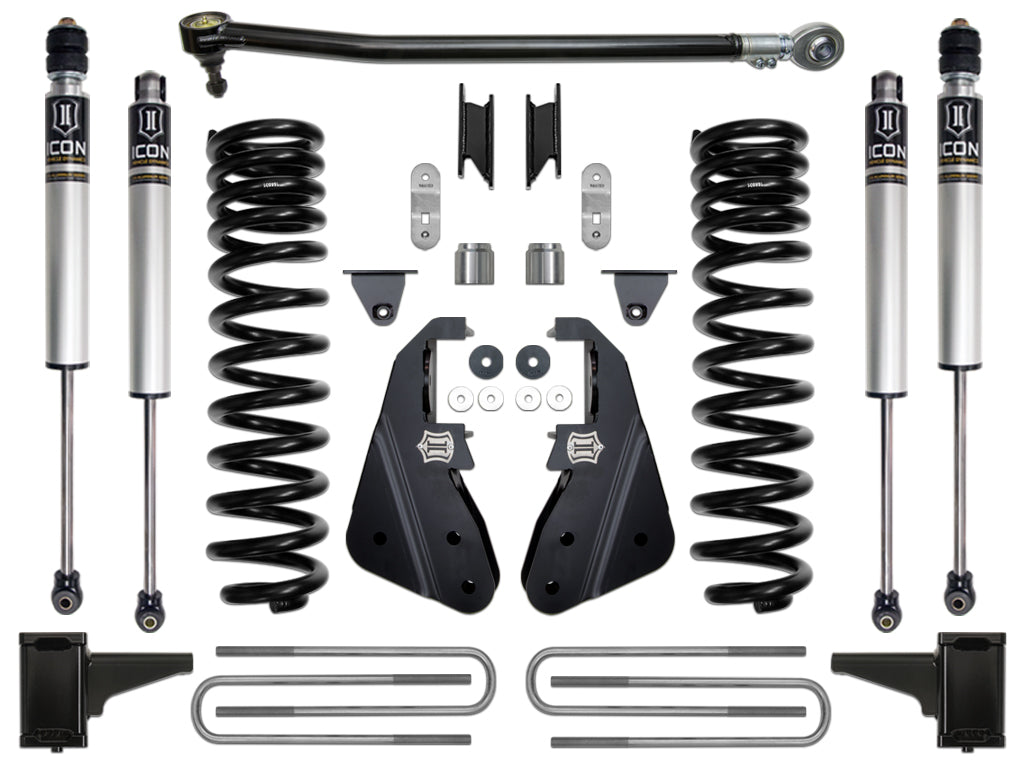

Parts Contained:

  • 64050 (QTY: 1) | 08-UP FSD FRONT 4.5" BOX KIT
  • 64011 (QTY: 1) | 20-UP FSD FRONT 4.5" DUAL RATE COIL KIT
  • 64038 (QTY: 1) | 17-UP FSD ADJ TRACK BAR KIT
  • 64055 (QTY: 1) | 17-UP FSD RADIUS ARM DROP KIT
  • 195275 (QTY: 1) | 99-UP FSD 5" BLOCK KIT
  • 67003 (QTY: 1) | 11-UP FSD REAR 15" U-BOLT KIT
  • 66513 (QTY: 2) | 05-UP FSD 4WD 4.5" FRONT 2.0 VS IR
  • 66516 (QTY: 2) | 17-UP FSD REAR 0-2" 2.0 VS IR
Compatibility List
YearMakeModelDrivePositionLift
2024FordF-350 Super Duty4WD4.5"
2023FordF-350 Super Duty4WD4.5"
2022FordF-350 Super Duty4WD4.5"
2021FordF-350 Super Duty4WD4.5"
2020FordF-350 Super Duty4WD4.5"
2019FordF-350 Super Duty4WD4.5"
2018FordF-350 Super Duty4WD4.5"
2017FordF-350 Super Duty4WD4.5"
