4.5" Suspension System - Stage 4 Kit

2008-2016 Ford F-250 Super Duty 4WD
$6,144.13 Sale
Low Stock
Icon

4.5" Suspension System - Stage 4 Kit

2008-2016 Ford F-250 Super Duty 4WD
$6,144.13 Sale
Low Stock

Authorized dealer
Free shipping within the lower 48 United States
Brand new parts with warranty coverage
Free 30-day return and exchange on qualifying orders
Got Questions?
Our experts are here to help!

Product Details

Whether you want to upgrade, add a reservoir, or find something more affordable, contact us with any questions!

Part Numbers & Details

View full product specifications

Close specs
Part Numbers & Details
Specifications
Part NumberLift/LoweredPositionItemQuantity
K645634.5" LiftFront and Rear4.5" Suspension System - Stage 41

Overview

This 4.5" System for the 2011-2016 Super Duty is one the best riding suspension systems ICON has ever developed. This system has been engineered using the highest quality materials and components. The dual rate front coil springs combined with our ICON 2.5 Aluminum Series CDCV shocks give these trucks the performance they so desperately need. This system comes complete with front coils, shocks, radius arm drop down brackets, rear blocks and U-bolts and our patented adjustable track bar giving the front end of these trucks perfect track alignment. The Stage 4 system also includes shocks that feature the ICON Compression Damping Control Valve (CDCV) and our 4-Link kit for the ultimate in shock technology and suspension technology.

Tech Info:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 with 5" Backspace / 6mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
  • APPLICATION NOTE #31: '08 - CURRENT SUPERDUTY MODELS WITH GAS ENGINES MAY NEED EXHAUST MODIFIED TO CLEAR FRONT DRIVESHAFT
  • APPLICATION NOTE #40: RADIUS ARM / 4-LINK FRAME BRACKETS WILL REQUIRE MINOR DRILLING INTO FRAME TO COMPLETE INSTALL
  • APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
  • Ships in multiple boxes

Features & Benefits

  • 50% increase in wheel travel
  • 100% bolt-on system - no cutting or welding necessary for install
  • Less body-roll than stock truck
  • 4.5" more travel from ride height to front bump stops
  • Dual rate coil spring
  • Lifetime guarantee that coil springs won't sag
  • Clears 35" tall tires & 37" tall tires w/ minor trimming
  • No change in towing capacity
  • No drive shaft modifications needed
  • Corrosion resistant anodized aluminum shock bodies with 7/8 shafts (2.5 Aluminum Series shocks)

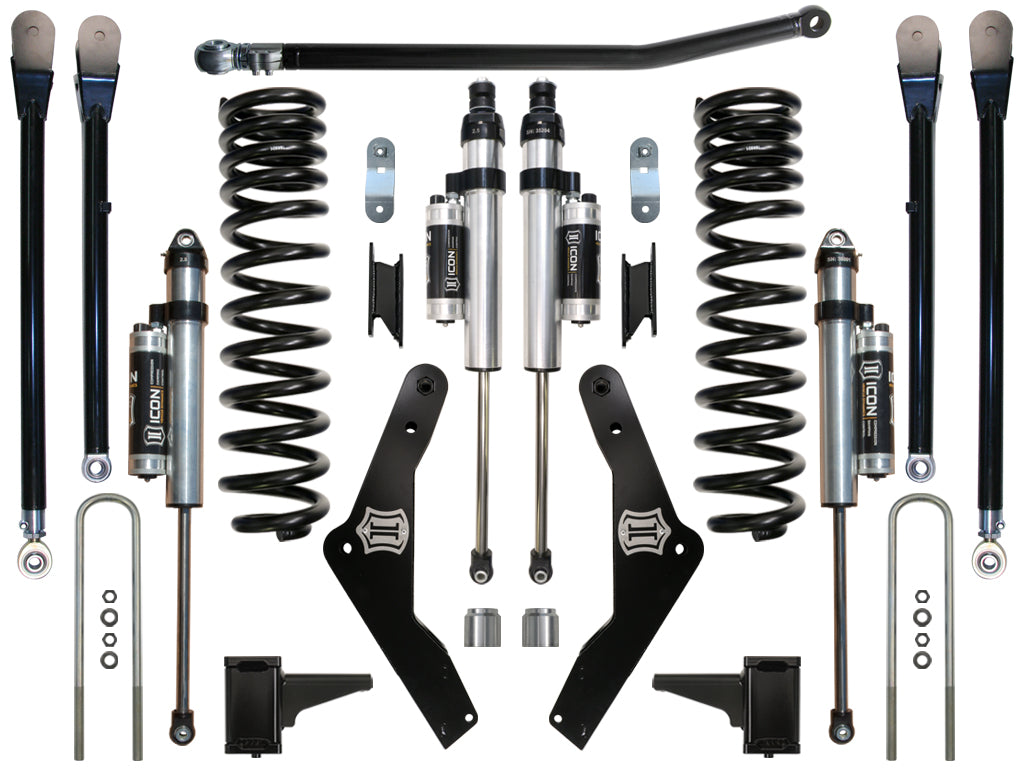

System Components:

  • 195275 (QTY: 1) | 99-UP FSD 5" BLOCK KIT
  • 37701CP (QTY: 1) | 99-UP FSD 3-6" REAR 2.5 VS PB CDCV PAIR
  • 64010 (QTY: 1) | 05-UP FSD FRONT 4.5" DUAL RATE SPRING KIT
  • 64035 (QTY: 1) | 05-16 FSD ADJ TRACK BAR W/FK ROD END
  • 64050 (QTY: 1) | 08-UP FSD FRONT 4.5" BOX KIT
  • 67002 (QTY: 1) | 11-UP FSD REAR 17" U-BOLT KIT
  • 67710CP (QTY: 1) | 05-UP FSD 4WD 4.5" FRONT 2.5 VS PB CDCV PAIR
  • 164501 (QTY: 1) | 05-UP FSD FRONT UPPER LINKS
  • 164502 (QTY: 1) | 05-UP FSD FRONT LOWER LINKS
  • 164503 (QTY: 1) | 11-16 FSD 4 LINK FRAME BRACKET KIT

Installation Instructions & Docs

Compatibility List
YearMakeModelDrivePositionLift
2016FordF-250 Super Duty4WD4.5" Front / 5.0" Rear
2015FordF-250 Super Duty4WD4.5" Front / 5.0" Rear
2014FordF-250 Super Duty4WD4.5" Front / 5.0" Rear
2013FordF-250 Super Duty4WD4.5" Front / 5.0" Rear
2012FordF-250 Super Duty4WD4.5" Front / 5.0" Rear
2011FordF-250 Super Duty4WD4.5" Front / 5.0" Rear
2010FordF-250 Super Duty4WD4.5" Front / 5.0" Rear
2009FordF-250 Super Duty4WD4.5" Front / 5.0" Rear
2008FordF-250 Super Duty4WD4.5" Front / 5.0" Rear
