4.5" Suspension System - Stage 5 Tubular Kit
Estimated Delivery in 3-7 business days
4.5" Suspension System - Stage 5 Tubular Kit
Estimated Delivery in 3-7 business days
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| K214504T | 4.5" Lift | Front and Rear | 4.5" Suspension System - Stage 5 Tubular | 1 |
Overview

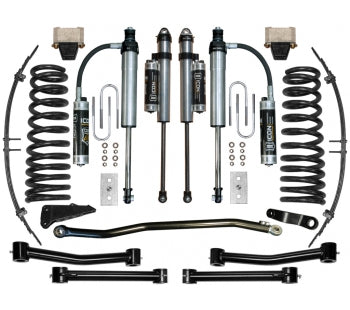

2003-2008 Ram 2500/3500 4.5" Stage 5 Suspension System utilizes the same technology as the 2.5" systems while adding lift height, ground clearance, and user adjustability. Additional engineered front-end components are added to ensure proper steering geometry with improved function throughout the entire travel range whether on or off road. The Stage 5 System is comprised of dual rate coil springs, tubular steel upper & lower link arms, polyurethane bump stops w/ billet extension, sway bar drop brackets, forged pitman arm, track bar drop bracket, 2.5" V.S. Series shocks w/ CDCV, bearing style adjustable track bar, and rear 2.5" lift blocks. ICON 2.5" Series shocks extend the performance of the kit by increasing the duration of consistent damping regardless of situation, and give you the ability to tune the compression damping with the turn of an external knob. These shocks include FK bearings, billet top cap & rod ends, 7/8 shafts for strength, and the industry only forged stem on a 2.5" shock with rolled threads. The adjustable track bar with bearings not only improves rigidity over flexible factory joints, but offers adjustability to center the front axle under the truck. ICON steel upper & lower links increase performance, strength, and range of alignment. These link arms decrease the bind found in the factory link bushings. The multi leaf expansion pack improves compliance with a more progressive rate. This ultimate performance system with link arms offers extraordinary diversity across any terrain, all while keeping a smooth highway feel. Installing this kit allows proper clearance for 35" tall tires with no modifications, and some 37" tires with minor fender well trimming for clearance. With the endless hours ICON has spent testing and tuning our suspension components and shocks together, you can rest assured you have the best suspension solution on the market.
Tech Info:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys | 17" x 8.5" w/ 5.25" BS / 13mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 20" x 9" w/5.75" BS / 19mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
- APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
- APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
- Ships in Multiple Boxes
Features & Benefits
- ICON engineered dual rate coil springs with match tuned 2.5" V.S. Series shocks with CDCV
- Adjustable track bar with PTFE lined FK bearings
- Heavy-duty steel upper and lower link bars
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Correctly positioned steering and track bar components
- Level stance front to rear
- Less body roll than stock
- No drive shaft modifications needed
System Components:
- 211205 (QTY: 1) | 03-12 RAM HD 4WD 2.5" BLOCK KIT
- 214010 (QTY: 1) | 03-12 RAM HD 4WD 4.5" DUAL RATE SPRING KIT
- 214027 (QTY: 1) | 03-12 RAM HD FIXED TUBULAR LINK KIT
- 214030 (QTY: 1) | 03-12 RAM HD ADJ TRACK BAR KIT
- 214040 (QTY: 1) | 03-12 RAM HD 4.5" BOX KIT
- 217701CP (QTY: 1) | 03-12 RAM HD 2-3" REAR 2.5 VS PB CDCV PAIR
- 217810CP (QTY: 1) | 03-12 RAM HD 4.5" FRONT 2.5 VS RR CDCV PAIR
- 37023 (QTY: 1) | 99-10 FSD DUALLY/03-12 RAM HD 15" U-BOLT KIT
Installation Instructions & Docs
| Year | Make | Model | Drive | Position | Lift |
| 2013 | Dodge | Ram 3500 | 4WD | 4.5" Front / 2.5" Rear | |
| 2012 | Dodge | Ram 3500 | 4WD | 4.5" Front / 2.5" Rear | |
| 2011 | Dodge | Ram 3500 | 4WD | 4.5" Front / 2.5" Rear | |
| 2010 | Dodge | Ram 3500 | 4WD | 4.5" Front / 2.5" Rear | |
| 2009 | Dodge | Ram 3500 | 4WD | 4.5" Front / 2.5" Rear | |
| 2008 | Dodge | Ram 3500 | 4WD | 4.5" Front / 2.5" Rear | |
| 2007 | Dodge | Ram 3500 | 4WD | 4.5" Front / 2.5" Rear | |
| 2006 | Dodge | Ram 3500 | 4WD | 4.5" Front / 2.5" Rear | |
| 2005 | Dodge | Ram 3500 | 4WD | 4.5" Front / 2.5" Rear | |
| 2004 | Dodge | Ram 3500 | 4WD | 4.5" Front / 2.5" Rear | |
| 2003 | Dodge | Ram 3500 | 4WD | 4.5" Front / 2.5" Rear | |
| 2013 | Ram | 3500 | 4WD | 4.5" Front / 2.5" Rear | |
| 2012 | Ram | 3500 | 4WD | 4.5" Front / 2.5" Rear | |
| 2011 | Ram | 3500 | 4WD | 4.5" Front / 2.5" Rear | |
| 2010 | Ram | 3500 | 4WD | 4.5" Front / 2.5" Rear | |
| 2009 | Ram | 3500 | 4WD | 4.5" Front / 2.5" Rear | |
| 2008 | Ram | 3500 | 4WD | 4.5" Front / 2.5" Rear | |
| 2007 | Ram | 3500 | 4WD | 4.5" Front / 2.5" Rear | |
| 2006 | Ram | 3500 | 4WD | 4.5" Front / 2.5" Rear | |
| 2005 | Ram | 3500 | 4WD | 4.5" Front / 2.5" Rear | |
| 2004 | Ram | 3500 | 4WD | 4.5" Front / 2.5" Rear | |
| 2003 | Ram | 3500 | 4WD | 4.5" Front / 2.5" Rear |
