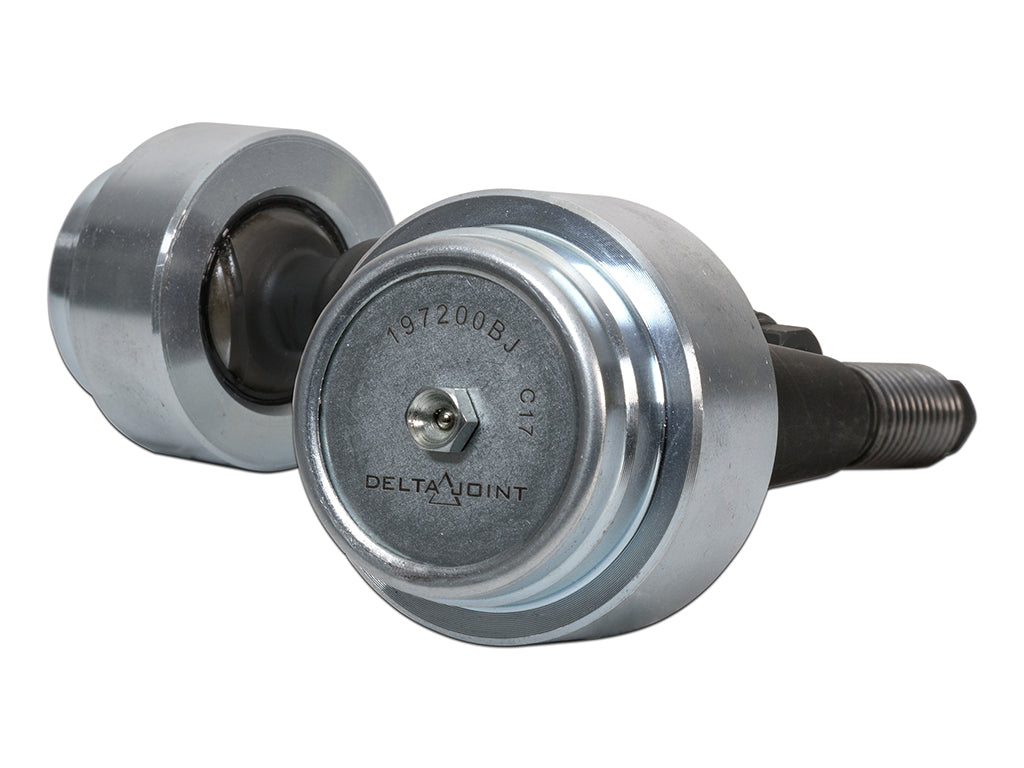

Non-ICON UCA 1" Retrofit Delta Joint Kit
Estimated Delivery in 4-9 business days
Non-ICON UCA 1" Retrofit Delta Joint Kit
Estimated Delivery in 4-9 business days
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 614561 | Factory | Front Upper | Non-ICON UCA 1" Retrofit Delta Joint Kit | 1 |
Tech Info:
- Replaces all WSSX16, AWX16, WC16, WE16, WSSB16, WR16, ABW16 uniballs with a 2.125" outside diameter and 1" height
- Retrofit kits are designed for use only on listed applications using stock length upper control arms.
- Fitment verification is the duty of the installer! Failure to cycle suspension and check for bind issues may lead to component failure and/or injury. Professional installation required.
Features & Benefits
- Retrofit kits allow for installation of Delta Joint into wide range of aftermarket upper control arms using a 1" uniball
- Retrofit kits include a pair of Delta Joints, retaining rings, and a supply of anti-seize
- Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability of a ball joint with the performance characteristics of a traditional uniball
- Sealed design and zinc plated housing protects Delta Joint from the elements, road salts, and other debris
- Metal on metal internals and a greasable design for maximum longevity and noise-free operation
- Capable of high angularity required for lifted applications
- Carburized taper pin provides increased corrosion resistance, decreased internal friction, and less chance of thread galling on assembly
- Pullout strength greater than comparable industry standard uniball
- Application specific taper pins for precise fit across a wide range of vehicles
Installation Instructions & Docs
| Year | Make | Model | Drive | Position | Lift |
| 2021 | Toyota | Land Cruiser | 4WD | Factory | |
| 2020 | Toyota | Land Cruiser | 4WD | Factory | |
| 2019 | Toyota | Land Cruiser | 4WD | Factory | |
| 2018 | Toyota | Land Cruiser | 4WD | Factory | |
| 2017 | Toyota | Land Cruiser | 4WD | Factory | |
| 2016 | Toyota | Land Cruiser | 4WD | Factory | |
| 2015 | Toyota | Land Cruiser | 4WD | Factory | |
| 2014 | Toyota | Land Cruiser | 4WD | Factory | |
| 2013 | Toyota | Land Cruiser | 4WD | Factory | |
| 2012 | Toyota | Land Cruiser | 4WD | Factory | |
| 2011 | Toyota | Land Cruiser | 4WD | Factory | |
| 2010 | Toyota | Land Cruiser | 4WD | Factory | |
| 2009 | Toyota | Land Cruiser | 4WD | Factory | |
| 2008 | Toyota | Land Cruiser | 4WD | Factory |
