Specialty SPC

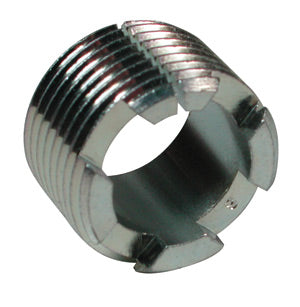

Camber/Caster Adjustment Sleeve Kit

23002
$37.94 Sale
Low Stock

Authorized dealer
Free shipping within the lower 48 United States
Brand new parts with warranty coverage
Free 30-day return and exchange on qualifying orders
Got Questions?
Our experts are here to help!

Product Details

Whether you want to upgrade, add a reservoir, or find something more affordable, contact us with any questions!

Part Numbers & Details

View full product specifications

Close specs
Overview & Specs
Specifications
Part NumberItemQuantity
23002Camber/Caster Adjustment Sleeve1

23002 - 1/4° CASTER/CAMBER BUSHING

---------------------------------------------------------------------------
These sleeves will change camber and/or caster from 1/8 degree to 1-1/2 degree in 1/8 degree increments. Installation requires removal of the upper ball joint stud nut. Break the taper free between the stud and sleeve. Determine the change needed and replace the existing sleeve with the correct one.

# 4169 spanner socket is required for sleeve removal.

Rotate sleeve to fine tune camber/caster adjustment. One sleeve covers one side of vehicle.
Estimated Installation Time - .5 hr/side

Formerly designated the 7979 Series.

Part Number / Total Change

#23002 /. 25 degree (1/4 degree)
#23004 /. 50 degree (1/2 degree)
#23006 /. 75 degree (3/4 degree)
#23008 /1.00 degree (1 degree)
#23010 /1.25 degree (1-1/4 degree)
#23012 /1.50 degree (1-1/2 degree)
Compatibility List
YearMakeModelDrivePosition
1970ChevroletBlazerRWD, 4WD, AWD, FWDFront Upper
1969ChevroletBlazerRWD, 4WD, AWD, FWDFront Upper
1971Chrysler300RWD, 4WD, AWD, FWDRear
1970Chrysler300RWD, 4WD, AWD, FWDRear
1969Chrysler300RWD, 4WD, AWD, FWDRear
1968Chrysler300RWD, 4WD, AWD, FWDRear
1967Chrysler300RWD, 4WD, AWD, FWDRear
1966Chrysler300RWD, 4WD, AWD, FWDRear
1965Chrysler300RWD, 4WD, AWD, FWDRear
1964Chrysler300RWD, 4WD, AWD, FWDRear
1963Chrysler300RWD, 4WD, AWD, FWDRear
1965Dodge880RWD, 4WD, AWD, FWDRear
1962Dodge880RWD, 4WD, AWD, FWDRight Upper
1989DodgeRamchargerRWDRear
1988DodgeRamchargerRWDRear
1987DodgeRamchargerRWDRear
1986DodgeRamchargerRWDRear
1985DodgeRamchargerRWDRear
1984DodgeRamchargerRWDRear
1983DodgeRamchargerRWDRear
1982DodgeRamchargerRWDRear
1981DodgeRamchargerRWDRear
1980DodgeRamchargerRWDRear
1979DodgeRamchargerRWDRear
1978DodgeRamchargerRWDRear
1977DodgeRamchargerRWDRear
1976DodgeRamchargerRWDRear
1975DodgeRamchargerRWDRear
1974DodgeRamchargerRWD, 4WD, AWD, FWDRear
1961DodgeSenecaRWD, 4WD, AWD, FWDRear
2003DodgeStratusFWDUpper
1980DodgeW2004WDFront
1979DodgeW2004WDFront
1978DodgeW2004WDFront
1977DodgeW2004WDFront
1976DodgeW2004WDFront
1975DodgeW2004WDFront
1974DodgeW200 Pickup4WDFront
1973DodgeW200 Pickup4WDFront
1972DodgeW200 Pickup4WDFront
1993DodgeW2504WDFront
1992DodgeW2504WDFront
1991DodgeW2504WDFront
1990DodgeW2504WDFront
1989DodgeW2504WDFront
1988DodgeW2504WDFront
1987DodgeW2504WDFront
1986DodgeW2504WDFront
1985DodgeW2504WDFront
1984DodgeW2504WDFront
1983DodgeW2504WDFront
1982DodgeW2504WDFront
1981DodgeW2504WDFront
1997FordAspireFWDRear
2003FordExplorer4WD, RWD, AWDFront Upper Control Arm
1991GMCJimmy4WDFront
1990GMCJimmy4WDFront
1989GMCJimmy4WDFront
1988GMCJimmy4WDFront
1984GMCJimmyRWDFront
1984GMCJimmyRWDFront
1983GMCJimmyRWDFront
1983GMCJimmyRWDFront
1982GMCJimmyRWDUpper
1970GMCJimmyRWD, 4WD, AWD, FWDFront Upper
2001GMCSierra 35004WD, RWDUpper
2003JeepGrand Cherokee4WD, RWD, AWDUpper
2003JeepLiberty4WD, RWD, AWDFront
1981PlymouthTraildusterRWDRear
1980PlymouthTraildusterRWDRear
1979PlymouthTraildusterRWDRear
1978PlymouthTraildusterRWDRear
1977PlymouthTraildusterRWDRear
1976PlymouthTraildusterRWDRear
1975PlymouthTraildusterRWDRear
1974PlymouthTraildusterRWD, 4WD, AWD, FWDRear
