Specialty SPC

Camber/Caster Adjustment Sleeve Kit

$33.94 Sale
Out of Stock

Authorized dealer
Free shipping within the lower 48 United States
Brand new parts with warranty coverage
Free 30-day return and exchange on qualifying orders
Got Questions?
Our experts are here to help!

Product Details

Whether you want to upgrade, add a reservoir, or find something more affordable, contact us with any questions!

Part Numbers & Details

View full product specifications

Close specs
Overview & Specs
Part NumberLift/LoweredPositionItemQuantity
23111FactoryFront UpperCamber/Caster Adjustment Sleeve1

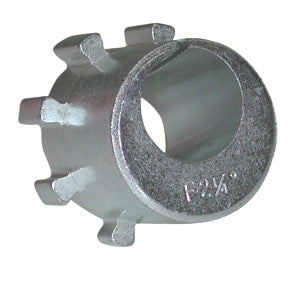

23111 - 2-1/4° FORD CAM/CAS SLEEVE

Change camber, caster or both at the same time with these sleeves. Simply remove the tire, cotter pin and upper ball joint stud nut and break the taper free between the stud and sleeve. Using a sleeve puller, remove the existing sleeve. Install zero degree sleeve 23109 or 23139 or to determine the change needed, then install the correct sleeve. To adjust, the sleeve may be lifted and rotated 1/8 turn.

23100 Set - Contains 1 each: 23101, 23102, 23103, 23104, 23105, 23106, 23107, 23108, 23109

Part No.Total Change
23101 .25 degree (1/4 degree)
23102 .50 degree (1/2 degree)
23103 .75 degree (3/4 degree)
23104 1.00 degree (1 degree)
23105 1.25 degree (1-1/4 degree)
23106 1.50 degree (1-1/2 degree)
23107 1.75 degree (1-3/4 degree)
23108 2.00 degree (2 degree)
23109 0.00 degree (0 degree)
231112.25 degree (2-1/4 degree)
23112 2.50 degree (2-1/2 degree)
23113 2.75 degree (2-3/4 degree)

Adjustment range: Camber/Caster +/-.25 degree to +/-2.75 degree
Installation time: .5 hr/side
Required: 1 per wheel

Recommended Tools: 77880 - Sleeve Puller, 88830 - Sleeve Puller

To save time during alignment, use the #23109 or #23129 zero sleeve to determine initial readings.

Check out our installation video for this part

Compatibility List
1996FordBronco4WDFront Upper
1995FordBronco4WDFront Upper
1994FordBronco4WDFront Upper
1993FordBronco4WDFront Upper
1992FordBronco4WDFront Upper
1991FordBronco4WDFront Upper
1990FordBronco4WDFront Upper
1989FordBronco4WDFront Upper
1988FordBronco4WDFront Upper
1987FordBronco4WDFront Upper
1986FordBronco4WDFront Upper
1985FordBronco4WDFront Upper
1984FordBronco4WDFront Upper
1983FordBronco4WDFront Upper
1982FordBronco4WDFront Upper
1981FordBronco4WDFront Upper
1980FordBronco4WDFront Upper
1996FordF-1504WDFront Upper
1995FordF-1504WDFront Upper
1994FordF-1504WDFront Upper
1993FordF-1504WDFront Upper
1992FordF-1504WDFront Upper
1991FordF-1504WDFront Upper
1990FordF-1504WDFront Upper
1989FordF-1504WDFront Upper
1988FordF-1504WDFront Upper
1987FordF-1504WDFront Upper
1986FordF-1504WDFront Upper
1985FordF-1504WDFront Upper
1984FordF-1504WDFront Upper
1983FordF-1504WDFront Upper
1982FordF-1504WDFront Upper
1981FordF-1504WDFront Upper
1980FordF-1504WDFront Upper
1998FordF-2504WDFront Upper
1997FordF-2504WDFront Upper
1996FordF-2504WDFront Upper
1995FordF-2504WDFront Upper
1994FordF-2504WDFront Upper
1993FordF-2504WDFront Upper
1992FordF-2504WDFront Upper
1991FordF-2504WDFront Upper
1990FordF-2504WDFront Upper
1989FordF-2504WDFront Upper
1988FordF-2504WDFront Upper
1987FordF-2504WDFront Upper
1986FordF-2504WDFront Upper
1985FordF-2504WDFront Upper
1984FordF-2504WDFront Upper
1983FordF-2504WDFront Upper
1982FordF-2504WDFront Upper
1981FordF-2504WDFront Upper
1980FordF-2504WDFront Upper
1997FordF-3504WDFront Upper
1996FordF-3504WDFront Upper
1995FordF-3504WDFront Upper
1994FordF-3504WDFront Upper
1993FordF-3504WDFront Upper
1992FordF-3504WDFront Upper
1991FordF-3504WDFront Upper
1990FordF-3504WDFront Upper
1989FordF-3504WDFront Upper
1988FordF-3504WDFront Upper
1987FordF-3504WDFront Upper
1986FordF-3504WDFront Upper
1985FordF-3504WDFront Upper
1984FordF-3504WDFront Upper
1983FordF-3504WDFront Upper
1982FordF-3504WDFront Upper
1981FordF-3504WDFront Upper
1980FordF-3504WDFront Upper
