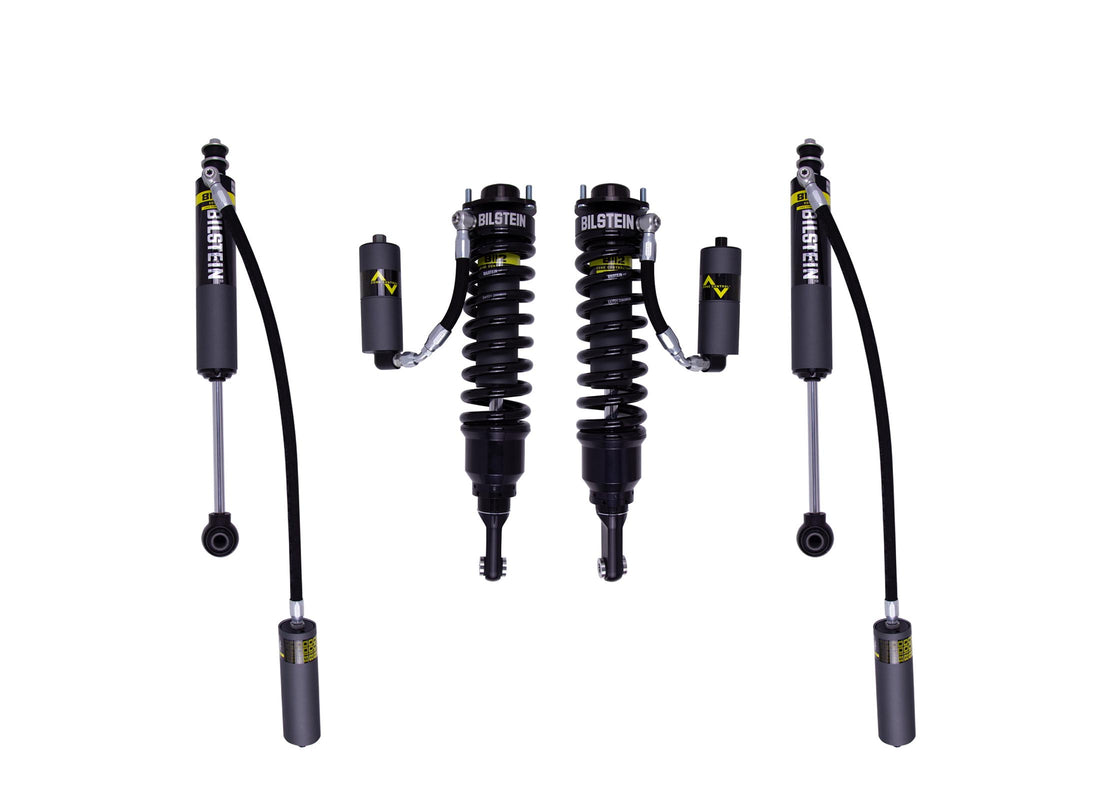

2 Coilovers & 2 Rear Shocks
A full set of front strut & spring assemblies with the matched rear pair of shocks.Bilstein
B8 8112 ZoneControl CR Coilovers & Rear 8100 Bypass Reservoir Shocks Set w/0-3.8" lift
2003-2009 Toyota 4Runner 4WD RWD
$4,884.00
$5,109.20
Coupon Code Available
In Stock
Estimated Delivery in 3-6 Business Days
Bilstein
B8 8112 ZoneControl CR Coilovers & Rear 8100 Bypass Reservoir Shocks Set w/0-3.8" lift
2003-2009 Toyota 4Runner 4WD RWD
$4,884.00
$5,109.20
Coupon Code Available
In Stock
Estimated Delivery in 3-6 Business Days
Got Questions?
Our experts are here to help!
Part Numbers & Details
Bilstein 2 Year Warranty
Manufacturer Warranty protects against defects and premature failure.Lifts your vehicle up to 3.8" in the front
For vehicles with no suspension modifications or up to 3.8" in the front and up to 2" in the rearFits 4WD & RWD vehicles
This product works for 4WD and RWD vehicles.Reservoir Mounts Included
All necessary washers, bushings, and nuts included. Factory shock mounting bolts are reused for installation. An optional billet aluminum reservoir clamp is available for a more clean and compact look.Bilstein Large Off-Road Piston
Bilstein's large off-road piston design enables a finer, controlled ride over rough terrain. This is due to its larger piston surface area which expands the damping capacities of the shock and generates a more consistent, fine-tuned performance under extreme conditions.Bilstein Gas-Pressure Technology
Traditional oil shock absorbers, when put under extreme stress, can lead to oil foaming which causes shock fading and results in damping power reduction. In the 1950s Bilstein found the solution to this problem by developing gas-pressure technology.ZoneControl CR
Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons.Dual Tube External Bypass
Position sensitive damping with independent adjustment for rebound and compression.Specifications
| Part Number | Lift/Lowered | Position | Item | Quantity | Extended Length | Compressed Length | Travel | Top Mount | Reservoir | Adjustable Damping | Finish | Boot Included |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 25-326376 | Shock Absorber | 1 | 24.09" | 14.72" | 9" | STEM | Yes | Double Adjustable Compression and Rebound with Click Adjuster Knobs | EVO Grey | No | ||
| 25-284584 | 0-2" Lift | Rear Left | Shock Absorber | 1 | ||||||||
| 41-284827 | 0-3.8" Lift | Front Left | Strut & Spring | 1 | ||||||||
| 41-284834 | 0-3.8" Lift | Front Right | Strut & Spring | 1 |
Product Details
Transitioning from comfortable cruising on the pavement to conquering offroad terrain happens seamlessly thanks to Bilstein's revolutionary damping technology, and strict attention to detail during extensive product development. The external coilovers spring rate is vehicle specific and preloaded to factory specifications, however, the threaded retainer still allows an additional 2 inches of ride height adjustment. The 60mm remote reservoir provides increased oil capacity and enhances cooling. Designed for each vehicle application, a frame mounted, anodized aluminum reservoir mount is included. Aerospace quality materials and precise manufacturing means your Bilstein B8 8112 ZoneControl shocks will provide years of reliable service, and unmatched performance. Bilstein B8 8100 (Bypass) is a direct fit, position sensitive damper specifically designed for light trucks and SUVs. Bypass shock absorbers offer the most compliant ride in all conditions and provide maximum bottom out control when the road gets rough.
Compatibility List
| Year | Make | Model | Drive | Position | Lift |
| 2009 | Toyota | 4Runner | RWD, 4WD | Front & Rear | 0-3.8" Front / 0-2" Rear |
| 2008 | Toyota | 4Runner | RWD, 4WD | Front & Rear | 0-3.8" Front / 0-2" Rear |
| 2007 | Toyota | 4Runner | RWD, 4WD | Front & Rear | 0-3.8" Front / 0-2" Rear |
| 2006 | Toyota | 4Runner | RWD, 4WD | Front & Rear | 0-3.8" Front / 0-2" Rear |
| 2005 | Toyota | 4Runner | RWD, 4WD | Front & Rear | 0-3.8" Front / 0-2" Rear |
| 2004 | Toyota | 4Runner | RWD, 4WD | Front & Rear | 0-3.8" Front / 0-2" Rear |
| 2003 | Toyota | 4Runner | RWD, 4WD | Front & Rear | 0-3.8" Front / 0-2" Rear |
