3.5" Ball Joint UCA System w/Rear 2.25 Shocks & Intrusion Beam Kit w/3.5" lift
Estimated Delivery in 3-7 business days
3.5" Ball Joint UCA System w/Rear 2.25 Shocks & Intrusion Beam Kit w/3.5" lift
Estimated Delivery in 3-7 business days
| Part Number | Item | Quantity |
|---|---|---|

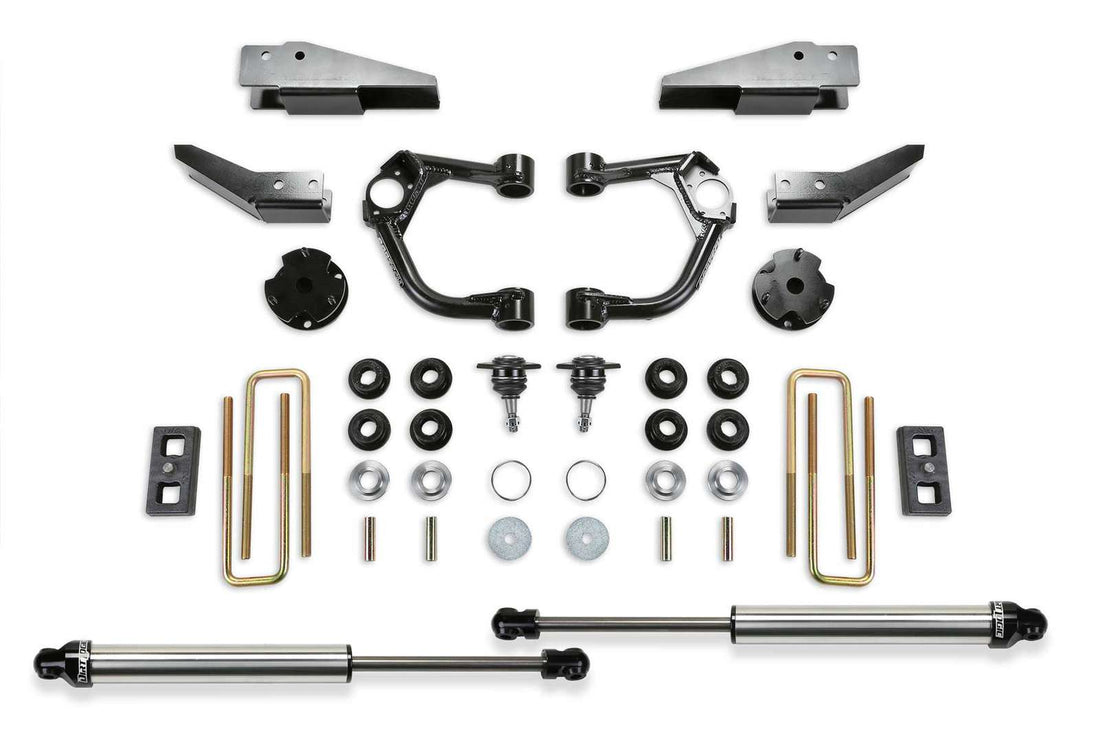

| K2323DL | 3.5" Ball Joint UCA System w/Rear 2.25 Shocks & Intrusion Beam Kit | 1 |
Product Description
This quality 2019 Ford Ranger Upper Control Arm system is perfect for owners looking to increase ride height to run slightly larger tires than factory. The system will provide additional wheel travel with no suspension bind at full droop.
Lift is accomplished with steel spacers that utilize the factory Coilover shocks for a stock like ride.
Fabtech's Upper Control Arms address the geometry of the front suspension with the new ride height for proper align ability. Heavy duty ball joints allow for extended suspension travel to eliminate binding. The system has been designed for proper CV axle angle and plunge thus eliminating the need to reposition the front differential.
Included in this system is Fabtech's Offset Intrusion Beam Kit that allows use of 33" tires. The factory Intrusion Beams are located in the front fenderwells, forward and back of the tire. They limit the size of the tire you can install while being an integral part of the front collision safety impact feature of the vehicle. Rather than modifying or removing the Beams for tire clearance, Fabtech provides replacement Offset Intrusion Beams. They are constructed of 1/4" thick steel and are a welded box design for maximum strength. They allow full steer with 33/1250R tires w/ a 5" back space wheel.
Rear lift comes from 1.5" blocks and u-bolts.
Features
- Value priced system with Fabtech quality
- Increased ground clearance for offroad
- Tubular UCA design with urethane bushings for quiet ride
- Extended range upper ball joints allow for increased travel
- Offset Intrusion Beams for full steer tire clearance
- Easy bolt on installation
Part Numbers
| QTY | PART # | DESCRIPTION |
|---|---|---|
| 1 | FTS22293 | COMPONENT BOX |
| 1 | FTS22296 | Offset Intrusion Beam Kit |
| 2 | FTS811482 | Rear Dirt Logic 2.25 Shock |
| Year | Make | Model | Drive | Position | Lift |
| 2023 | Ford | Ranger | 4WD | 3.5" | |
| 2022 | Ford | Ranger | 4WD | 3.5" | |
| 2021 | Ford | Ranger | 4WD | 3.5" | |
| 2020 | Ford | Ranger | 4WD | 3.5" | |
| 2019 | Ford | Ranger | 4WD | 3.5" |
FABTECH LIMITED LIFETIME WARRANTY
Fabtech Motorsports provides a Limited Lifetime Warranty to the original retail purchaser who owns the vehicle, on which the product was originally installed, for defects in workmanship and materials.
The Limited Lifetime Warranty excludes the following Fabtech items; bushings, bump stops, ball joints, tie rod ends, limiting straps, cross shafts, heim joints and driveshafts. These parts are subject to wear and are not considered defective when worn. They are warranted for 60 days from the date of purchase for defects in workmanship.
Dirt Logic and Performance Coilover take apart shocks are considered a serviceable shock with a one year warranty on leakage only. Service seal kits are available separately for future maintenance. All other shocks are covered under our Limited Lifetime Warranty.
Fabtech does not warrant any product for finish, alterations, modifications and/or installation contrary to Fabtech’s instructions. Alterations to the finish of the parts including but not limited to painting, powder coating, plating and/or welding will void all warranties. Some finish damage may occur to parts during shipping, which is considered normal and is not covered under warranty.
