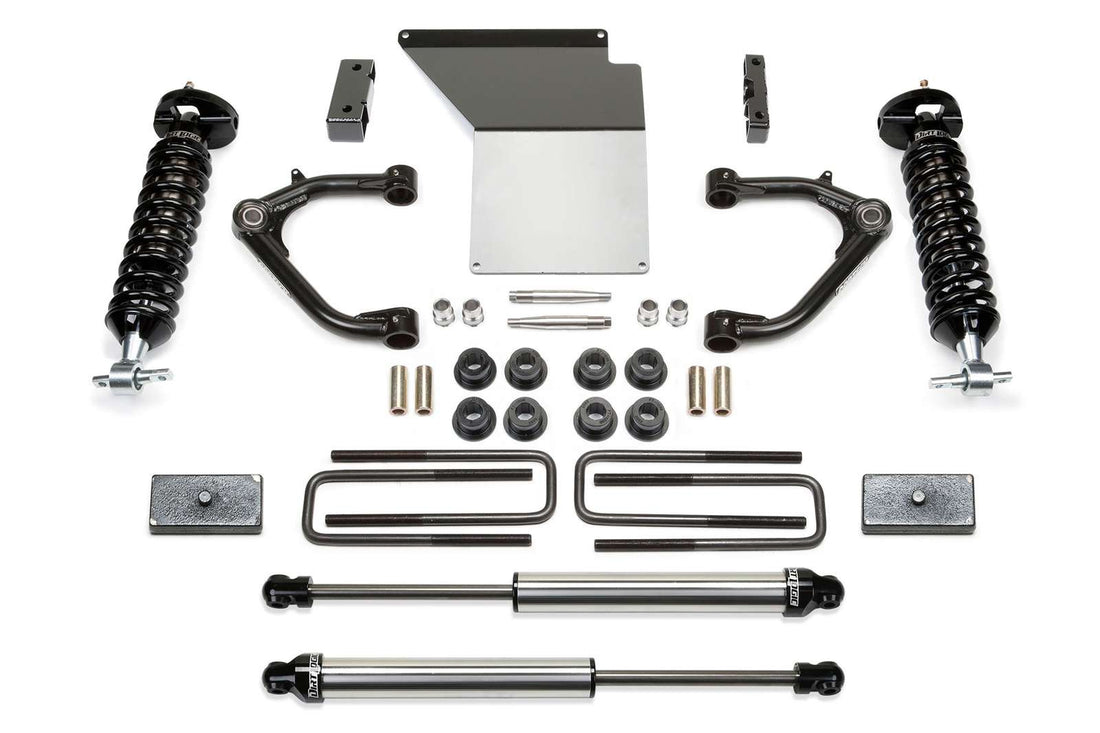

3" Uniball UCA Lift Kit w/Front Dirt Logic 2.5 Coilovers & Rear 2.25 Shocks w/3" lift
Estimated Delivery in 3-7 business days
3" Uniball UCA Lift Kit w/Front Dirt Logic 2.5 Coilovers & Rear 2.25 Shocks w/3" lift
Estimated Delivery in 3-7 business days
| Part Number | Item | Quantity |
|---|---|---|
| K1063DL | 3" Uniball UCA Lift Kit w/Front Dirt Logic 2.5 Coilovers & Rear 2.25 Shocks | 1 |
Product Description
This system offers a mild lift height with easy installation for clearance of 33" tall tires on GM C/K1500s.
Lift is accomplished with Dirt Logic 2.5 Coilovers that provide superior damping for aggressive offroad use and a good highway ride. The stock upper control arms are replaced with high quality tubular Uniball arms that allow unrestricted movement throughout the travel range.
The arms are constructed of top quality material including .120" wall 4130 Chromoly tubing with a 1.50" OD and 1" FK Stainless PTFE Uniballs. These arms are the best on the market for aggressive offroad driving in harsh conditions.
The front differential is relocated to keep CV angles proper with the new lift height while a 1/4" thick steel skid plate provides protection against offroad obstacles.
Rear lift is accomplished with 1 1/2" rear lift block and u-bolts to help level the stance of the vehicles. Dirt Logic 2.25 rear shock absorbers replace the stock units for increased damping for both on and offroad use.
Features
- Best in class system for aggressive offroad use and good highway ride
- Increased ground clearance
- Top quality Uniball Upper Control Arms for aggressive offroad use
- 1" ID FK Uniballs with PTFE for ultimate strength
- Includes Dirt Logic 2.5 Coilovers for superior damping
- Increased fender clearance compared to a Leveling Kit for 33" tall tires
- Suspension can be restored to stock
Part Numbers
| Qty | Part # | Description |
|---|---|---|
| 1 | FTS21204 | Component Box w/ Dirt Logic Shocks |
| Year | Make | Model | Drive | Position | Lift |
| 2014 | Chevrolet | Silverado 1500 | RWD, 4WD | 3.0" | |
| 2013 | Chevrolet | Silverado 1500 | RWD, 4WD | 3.0" | |
| 2012 | Chevrolet | Silverado 1500 | RWD, 4WD | 3.0" | |
| 2011 | Chevrolet | Silverado 1500 | RWD, 4WD | 3.0" | |
| 2010 | Chevrolet | Silverado 1500 | RWD, 4WD | 3.0" | |
| 2009 | Chevrolet | Silverado 1500 | RWD, 4WD | 3.0" | |
| 2008 | Chevrolet | Silverado 1500 | RWD, 4WD | 3.0" | |
| 2007 | Chevrolet | Silverado 1500 | RWD, 4WD | 3.0" |
FABTECH LIMITED LIFETIME WARRANTY
Fabtech Motorsports provides a Limited Lifetime Warranty to the original retail purchaser who owns the vehicle, on which the product was originally installed, for defects in workmanship and materials.
The Limited Lifetime Warranty excludes the following Fabtech items; bushings, bump stops, ball joints, tie rod ends, limiting straps, cross shafts, heim joints and driveshafts. These parts are subject to wear and are not considered defective when worn. They are warranted for 60 days from the date of purchase for defects in workmanship.
Dirt Logic and Performance Coilover take apart shocks are considered a serviceable shock with a one year warranty on leakage only. Service seal kits are available separately for future maintenance. All other shocks are covered under our Limited Lifetime Warranty.
Fabtech does not warrant any product for finish, alterations, modifications and/or installation contrary to Fabtech’s instructions. Alterations to the finish of the parts including but not limited to painting, powder coating, plating and/or welding will void all warranties. Some finish damage may occur to parts during shipping, which is considered normal and is not covered under warranty.
