0-2" Suspension System Kit
Estimated Delivery in 3-7 business days
0-2" Suspension System Kit
Estimated Delivery in 3-7 business days
| Part Number | Item | Quantity |
|---|---|---|
| K26011 | 0-2" Suspension System | 1 |
Overview

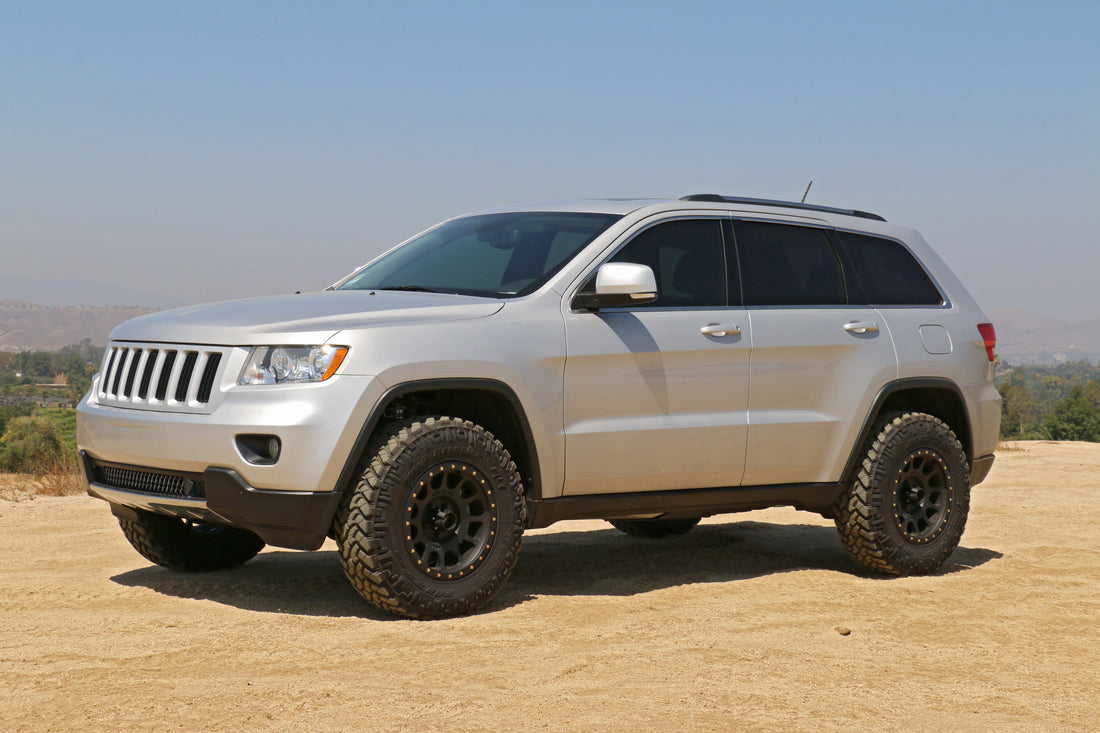

The 2010-2015 Jeep Grand Cherokee (WK2) is a surprisingly capable vehicle that can easily serve double-duty as both a refined daily driver and a trail-ready weekend warrior. ICON engineers developed the 0-2" Suspension System to offer increased wheel travel, decreased body roll, and a more confidence-inspiring ride characteristic. The mild lift that this system provides also allows for the fitment of larger wheel and tire combinations that will increase ground clearance - a big plus for those taking their Grand Cherokee off the beaten path. ICON has developed a vehicle-specific valving for 2.5 Series coilovers and rear shocks featured in this kit, which translates into an excellent ride across almost any terrain. These components are also 100% rebuildable and revalveable, which means they are the last set of shocks that will ever need to be installed on the vehicle. The ICON Vehicle Dynamics Jeep Grand Cherokee (WK2) Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their SUV on the road as well as in the dirt.
Tech Info:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 8.5" Wide Wheel with 4.75" Backspace
- Recommended Aftermarket Tires: 32" x 10.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
- APPLICATION NOTE #69: REAR SHOCKS USE FACTORY UPPER HARDWARE. IF YOU DO NOT HAVE THE LARGER OF THE 2 AVAILABLE STOCK SHOCKS YOU WILL NEED TO PURCHASE THIS FROM THE DEALER.
- APPLICATION NOTE #74: HARD MOUNTED COILOVERS WILL INCREASE ROAD NOISE TRANSFERRED TO THE CABIN
- APPLICATION NOTE #93: INCREASED CABIN NOISE FROM ICON SHOCK INSTALLATION ON UNIBODY VEHICLE.
- APPLICATION NOTE #96: RIDE HEIGHTS FOR STOCK EQUIPPED VEHICLE. VEHICLES WITH BUMPERS/WINCHES/ETC"?¬SHOULD INCREASE TO LARGER SPRING RATE
Features & Benefits
- Increased wheel travel and ride quality over stock
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- 2.5" body front and rear IFP shocks with 7/8 shaft
- Adjustable coilovers from 0-2" of lift height
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body
- FK rod end bearings for extended longevity and minimal deflection
- 100% Bolt-on system - no drilling, or welding necessary for installed

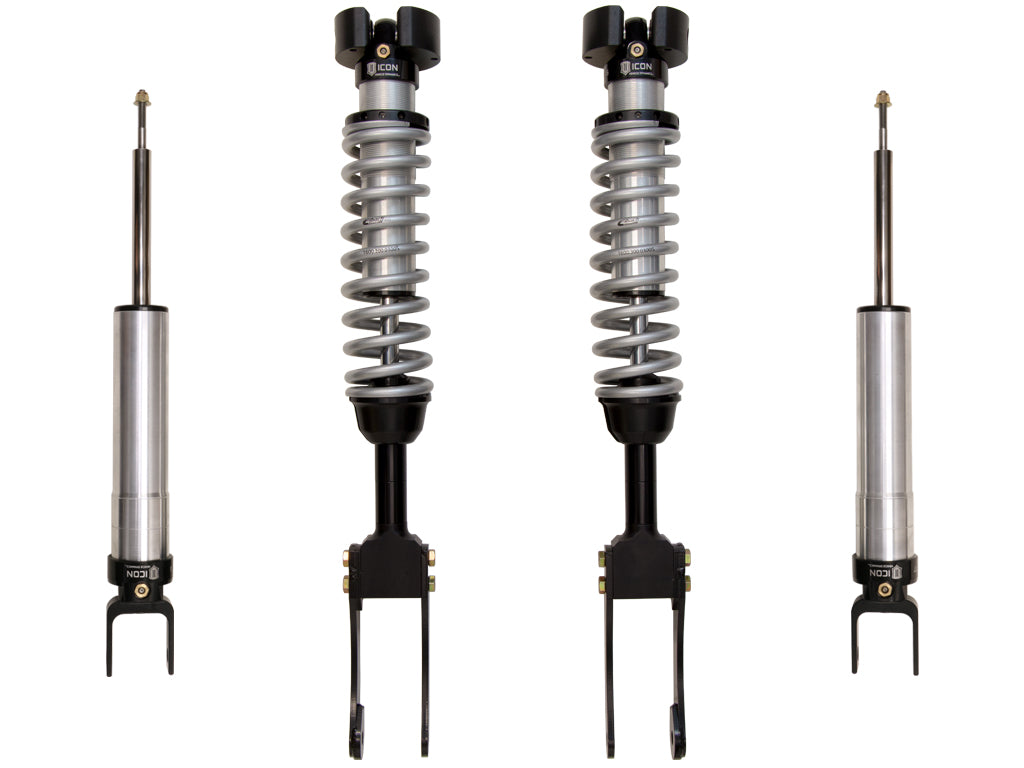

System Components:
- 27781P (QTY: 1) | 10-15 GRAND CHEROKEE REAR 2.5 VS IR PAIR
- 28005 (QTY: 1) | 10-15 GRAND CHEROKEE 2.5 VS NR COILOVER KIT
Installation Instructions & Docs
| Year | Make | Model | Drive | Position | Lift |
| 2015 | Jeep | Grand Cherokee | 4WD AWD RWD | 0-2" | |
| 2014 | Jeep | Grand Cherokee | 4WD AWD RWD | 0-2" | |
| 2013 | Jeep | Grand Cherokee | 4WD AWD RWD | 0-2" | |
| 2012 | Jeep | Grand Cherokee | 4WD AWD RWD | 0-2" | |
| 2011 | Jeep | Grand Cherokee | 4WD AWD RWD | 0-2" | |
| 2010 | Jeep | Grand Cherokee | 4WD AWD RWD | 0-2" |
ICON VEHICLE DYNAMICS LIMITED LIFETIME WARRANTY
If a shock is inspected and it has been determined the shock failed due to neglect, damage caused by improper installation or any other reason besides "normal wear and tear", the owner of said shock is responsible for all service costs. ICON Vehicle Dynamics warrants to the original retail purchaser who owns the vehicle on which the product was originally installed. ICON Vehicle Dynamics does not warrant the product for finish, alterations, modifications and/or installation contrary to ICON Vehicle Dynamics instructions.
ICON Vehicle Dynamics products are not designed, nor are they intended to be installed on vehicles used in race applications, for racing purposes or for similar activities. (A "race" is defined as any contest between two or more vehicles, or a contest of one or more vehicles against the clock, whether or not such contest is for a prize). This warranty does not include coverage for police or taxi vehicles, race vehicles, or vehicles used for government or commercial purposes. Also excluded from this warranty are sales outside of the United States of America and Canada.
ICON Vehicle Dynamics' obligation under this warranty is limited to the repair or replacement, at ICON Vehicle Dynamics' discretion, of the defective product. Any and all costs of removal, installation or re-installation, freight charges and incidental or consequential damages are expressly excluded from this warranty. Items that are subject to wear are not considered defective when worn and are not covered. ICON Vehicle Dynamics components must be installed as a complete kit as shown in our current application guide. Any substitutions or exemptions of required components will immediately void the warranty. This warranty is expressly in lieu of all other warranties expressed or implied. This warranty shall not apply to any product that has been improperly installed, modified or customized subject to accident, negligence, abuse or misuse.
SHOCK ABSORBER WARRANTY
ICON Vehicle Dynamics warrants to the original retail purchaser who owns the vehicle on which the product was originally installed. ICON Vehicle Dynamics does not warrant the product for finish, alterations, modifications and/or installation contrary to ICON Vehicle Dynamics instructions. ICON Vehicle Dynamics products are not designed, nor are they intended to be installed on vehicles used in race applications, for racing purposes or for similar activities. (A "race" is defined as any contest between two or more vehicles, or a contest of one or more vehicles against the clock, whether or not such contest is for a prize).
This warranty does not include coverage for police or taxi vehicles, race vehicles, or vehicles used for government or commercial purposes. Also excluded from this warranty are sales outside of the United States of America and Canada. ICON Vehicle Dynamics' obligation under this warranty is limited to the repair or replacement, at ICON Vehicle Dynamics' discretion, of the defective product. Any and all costs of removal, installation or re-installation, freight charges and incidental or consequential damages are expressly excluded from this warranty. Items that are subject to wear are not considered defective when worn and are not covered.
ICON Vehicle Dynamics components must be installed as a complete kit as shown in our current application guide. Any substitutions or exemptions of required components will immediately void the warranty. This warranty is expressly in lieu of all other warranties expressed or implied. This warranty shall not apply to any product that has been improperly installed, modified or customized subject to accident, negligence, abuse or misuse.
