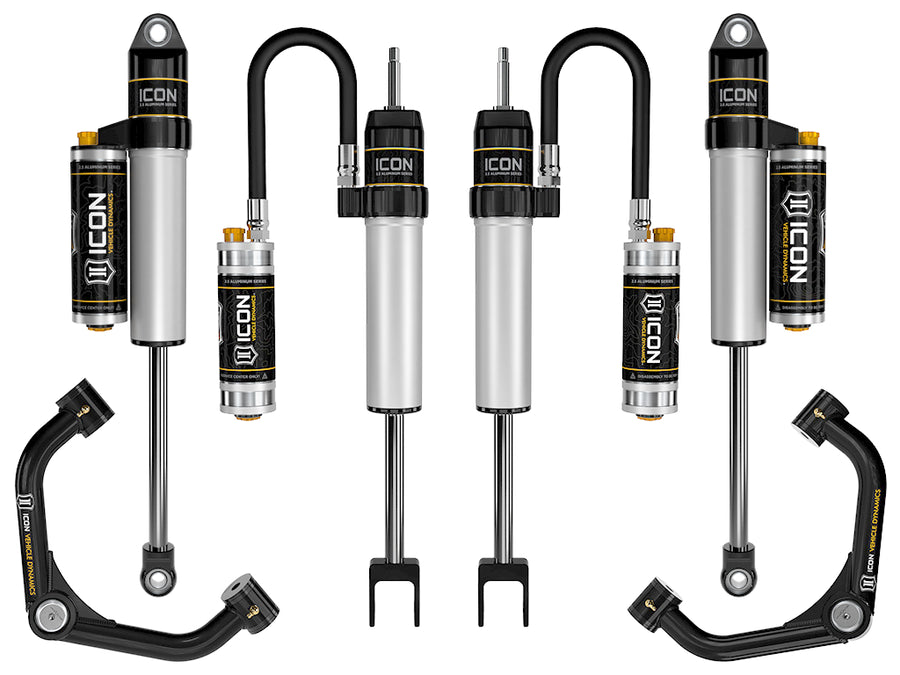

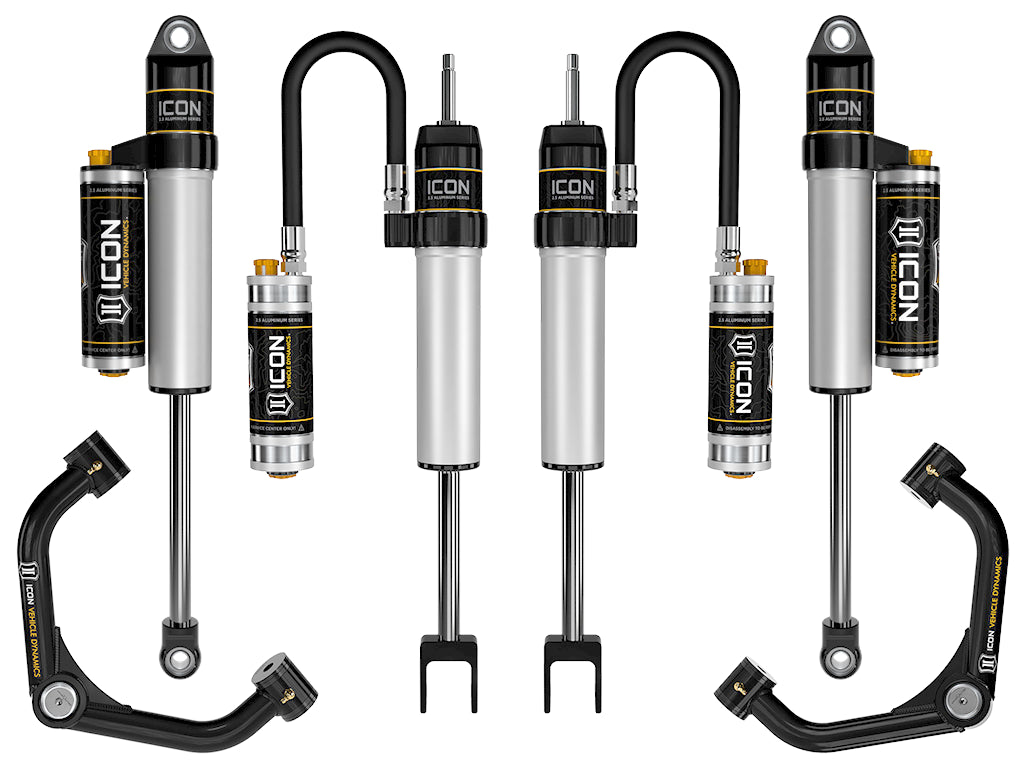

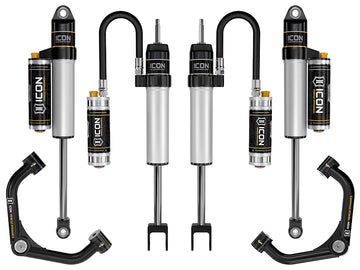

0-2" Suspension System - Stage 3 Tubular Kit

2020-2024 GMC Sierra 3500 HD 4WD RWD
$3,609.91 Sale
Low Stock
Icon

0-2" Suspension System - Stage 3 Tubular Kit

2020-2024 GMC Sierra 3500 HD 4WD RWD
$3,609.91 Sale
Low Stock

Authorized dealer
Free shipping within the lower 48 United States
Brand new parts with warranty coverage
Free 30-day return and exchange on qualifying orders
Got Questions?
Our experts are here to help!

Product Details

Whether you want to upgrade, add a reservoir, or find something more affordable, contact us with any questions!

Part Numbers & Details

View full product specifications

Close specs
Part Numbers & Details
Specifications
Part NumberLift/LoweredPositionItemQuantity
K78353T0-2" LiftFront and Rear0-2" Suspension System - Stage 3 Tubular1

Overview:

Tougher, stronger and more capable - That'he motto that General Motors used when debuting the all-new fleet of heavy-duty trucks in 2020. ICON Vehicle Dynamics stayed true to GM engineers'ought process with the development of our suspension systems for the 2020-UP GM HD 2500/3500 trucks. Using ICON'olistic engineering philosophy, our R&D team went above and beyond to develop several stages of complete suspension systems that provide varying levels of adjustability, capability, and overall vehicle performance. ICON's Stage 3 system is comprised of V.S. 2.5 Aluminum Series remote reservoir front and rear shocks featuring ICON'ompression Damping Control Valve (CDCV) for 10 settings of adjustability for any driving style or condition, and tubular Delta Joint upper control arms. The ICON vehicle specific tuned 2.5" diameter shocks with CDCV are the key to attaining optimum ride quality and getting that desired comfort with the 3/4 & 1 ton working capability. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. Additionally, ICON upper control arms improve alignment specs, add strength, durability, and when paired with extended travel shocks increases wheel travel 2" over the OEM configuration. While driving the construction site or trails to your favorite dirt bike location, ICON wants you to get there in comfort just like your drive to work.

This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

Highlights:

  • 0-2" Adjustable lift height over stock
  • Vehicle specific tuned 2.5 Aluminum Series remote reservoir front and rear shocks with adjustable Compression Damping Control Valve (CDCV)
  • Improved ride quality over stock with no change in towing capacity
  • Wheel travel increase of 2" over stock
  • 100% Bolt-on system - no drilling, cutting, or welding necessary for install
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant anodized aluminum shock bodies

Fitment Notes:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys | 18x9 with 5.5" Backspace / 12mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 20x9 with 5.5" Backspace / 12mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
  • APPLICATION NOTE5: NOT SOLD SEPARATELY, ONLY SOLD IN COMPLETE KIT FORM AS LISTED
  • 26.13" IS MAX MEASUREMENT FROM FENDER TO HUB, EXCEEDING THE MAXIMUM LIFT HEIGHT OF 26.13" CAN LEAD TO COMPONENT FAILURE NOT COVERED BY ICON WARRANTY
  • The additional down travel provided by an ICON Suspension System can cause clearance issues between the sway bar and the stock splash guard as the suspension approaches full extension. ICON Vehicle Dynamics 2020-UP GM HD Splash Guard Kit, part number 77202 recommended.

Parts Contained:

  • 78735T (QTY: 1) | 20-UP GM HD 0-2" CDCV SHOCK SYS W/ TUBE UCA
  • 77701CP (QTY: 1) | 01-UP GM HD 0-1" REAR 2.5 VS PB CDCV / 07-18 GM 1500 4" REAR 2.5 VS PB CDCV PAIR
Compatibility List
YearMakeModelDrivePositionLift
2024GMCSierra 3500 HDRWD, 4WD0-2"
2023GMCSierra 3500 HDRWD, 4WD0-2"
2022GMCSierra 3500 HDRWD, 4WD0-2"
2021GMCSierra 3500 HDRWD, 4WD0-2"
2020GMCSierra 3500 HDRWD, 4WD0-2"
