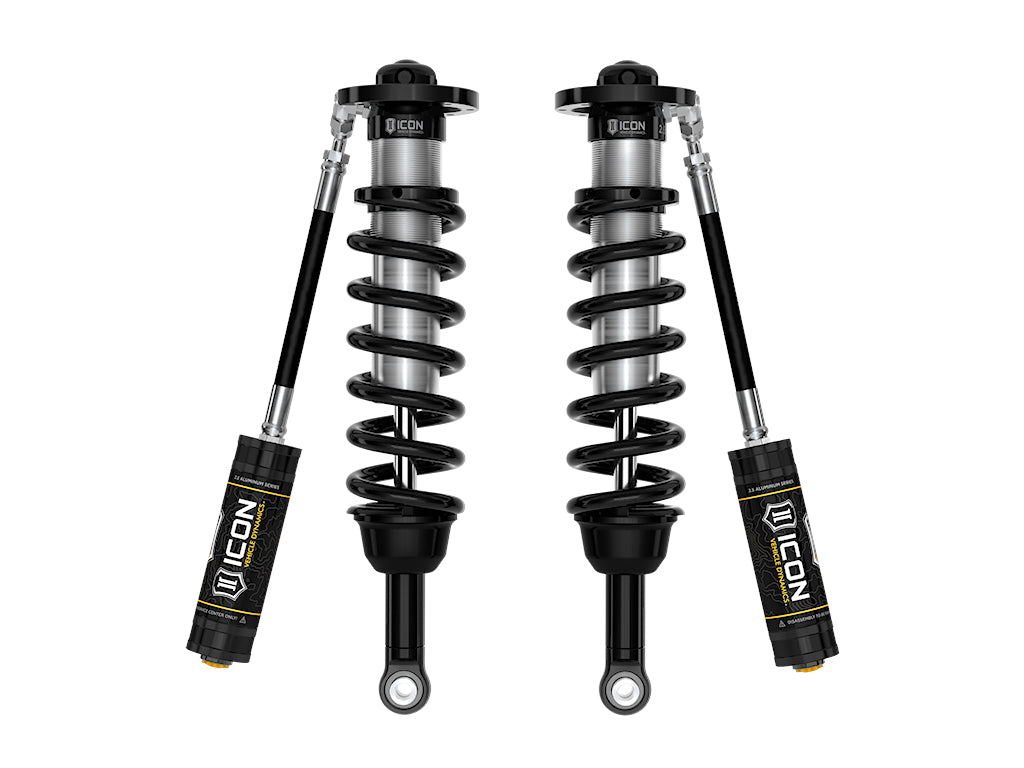

2.5 Remote Reservoir Coilovers Pair
Estimated Delivery in 3-7 business days
2.5 Remote Reservoir Coilovers Pair
Estimated Delivery in 3-7 business days
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 58770 | Factory | Front | Strut & Spring | 1 |
Overview
ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2023 Toyota Tundra. These adjustable coilovers allow up to 1.25-3.5” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. When paired with ICON 2.0 or 2.5 Aluminum Series rear coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra.
Features & Benefits
- Increased wheel travel and improved ride quality over stock
- Vehicle specific tuned for superior shock damping and control
- Adjustable up to 1.25-3.5" of front lift height over stock
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
- FK rod end bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
- 100% Bolt-on - no drilling cutting or welding necessary for installation
Tech Notes
- OEM Wheels & Tires Fitment: Yes ,
- Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset ,
- Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required) ,
- APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE. ,
- APPLICATION NOTE #85: ADVERTISED LIFT HEIGHT RANGES ARE FOR A STOCK EQUIPPED VEHICLE. INCREASING WEIGHT OF VEHICLE DUE TO ACCESSORIES WILL ALTER LIFT RANGE. ,
- APPLICATION NOTE #142: NOT COMPATIBLE WITH TUNDRAS EQUIPPED WITH LOAD-LEVELING REAR HEIGHT CONTROL AIR SUSPENSION. ,
- APPLICATION NOTE #143: NOT COMPATIBLE WITH TUNDRAS EQUIPPED WITH ADAPTIVE VARIABLE SUSPENSION (AVS). ,
- APPLICATION NOTE #144: NOT COMPATIBLE WITH TRD PRO ,
- APPLICATION NOTE #145: WILL NOT WORK WITH HYBRID EQUIPPED VEHICLES. ,
- APPLICATION NOTE #146: TUNDRA SR5 EQUIPPED WITH TRD SPORT PACKAGE LIFT RANGE WILL BE 2.25-4.5" ,
- APPLICATION NOTE #148: ICON DOES NOT RECOMMEND LIFTING ABOVE 2.25" OF LIFT WITHOUT AN ICON UPPER CONTROL ARM, FAILURE TO DO SO CAN RESULT IN IMPROPER WHEEL ALIGNMENT AND CAUSE DAMAGE TO FRONT AXLES ON 4WD MODELS ,
- APPLICATION NOTE #149: FOR 4WD MODELS WITHOUT TRD OFF-ROAD PACKAGE ICON RECOMMENDS USING ICON DIFF DROP (PART# 55156) OR USING TOYOTA TRD AXLES (PART# 434200C020 DRIVER / 434100C020 PASS). FAILURE TO DO SO COULD RESULT IN FRONT AXLE DAMAGE. NOT REQUIRED FOR TRD PRO. ,
- TECH NOTE: Lift heights above 2.25” require sway bar drop bracket kit part number 55154
| Year | Make | Model | Drive | Position | Lift |
| 2024 | Toyota | Tundra | RWD, 4WD | Factory | |
| 2023 | Toyota | Tundra | RWD, 4WD | Factory | |
| 2022 | Toyota | Tundra | RWD, 4WD | Factory |
ICON VEHICLE DYNAMICS LIMITED LIFETIME WARRANTY
If a shock is inspected and it has been determined the shock failed due to neglect, damage caused by improper installation or any other reason besides "normal wear and tear", the owner of said shock is responsible for all service costs. ICON Vehicle Dynamics warrants to the original retail purchaser who owns the vehicle on which the product was originally installed. ICON Vehicle Dynamics does not warrant the product for finish, alterations, modifications and/or installation contrary to ICON Vehicle Dynamics instructions.
ICON Vehicle Dynamics products are not designed, nor are they intended to be installed on vehicles used in race applications, for racing purposes or for similar activities. (A "race" is defined as any contest between two or more vehicles, or a contest of one or more vehicles against the clock, whether or not such contest is for a prize). This warranty does not include coverage for police or taxi vehicles, race vehicles, or vehicles used for government or commercial purposes. Also excluded from this warranty are sales outside of the United States of America and Canada.
ICON Vehicle Dynamics' obligation under this warranty is limited to the repair or replacement, at ICON Vehicle Dynamics' discretion, of the defective product. Any and all costs of removal, installation or re-installation, freight charges and incidental or consequential damages are expressly excluded from this warranty. Items that are subject to wear are not considered defective when worn and are not covered. ICON Vehicle Dynamics components must be installed as a complete kit as shown in our current application guide. Any substitutions or exemptions of required components will immediately void the warranty. This warranty is expressly in lieu of all other warranties expressed or implied. This warranty shall not apply to any product that has been improperly installed, modified or customized subject to accident, negligence, abuse or misuse.
SHOCK ABSORBER WARRANTY
ICON Vehicle Dynamics warrants to the original retail purchaser who owns the vehicle on which the product was originally installed. ICON Vehicle Dynamics does not warrant the product for finish, alterations, modifications and/or installation contrary to ICON Vehicle Dynamics instructions. ICON Vehicle Dynamics products are not designed, nor are they intended to be installed on vehicles used in race applications, for racing purposes or for similar activities. (A "race" is defined as any contest between two or more vehicles, or a contest of one or more vehicles against the clock, whether or not such contest is for a prize).
This warranty does not include coverage for police or taxi vehicles, race vehicles, or vehicles used for government or commercial purposes. Also excluded from this warranty are sales outside of the United States of America and Canada. ICON Vehicle Dynamics' obligation under this warranty is limited to the repair or replacement, at ICON Vehicle Dynamics' discretion, of the defective product. Any and all costs of removal, installation or re-installation, freight charges and incidental or consequential damages are expressly excluded from this warranty. Items that are subject to wear are not considered defective when worn and are not covered.
ICON Vehicle Dynamics components must be installed as a complete kit as shown in our current application guide. Any substitutions or exemptions of required components will immediately void the warranty. This warranty is expressly in lieu of all other warranties expressed or implied. This warranty shall not apply to any product that has been improperly installed, modified or customized subject to accident, negligence, abuse or misuse.
