2.5" Suspension System - Stage 1 Kit
Estimated Delivery in 3-7 business days
2.5" Suspension System - Stage 1 Kit
Estimated Delivery in 3-7 business days
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| K62521 | 2.5" Lift | Front and Rear | 2.5" Suspension System - Stage 1 | 1 |
Overview:
The 2020-UP Ford Super Duty trucks sit at a lower ride height than 2017-2019 models, and although many of the 2017-2019 components will physically fit 2020 models, the resulting ride height is often taller than desired. So, engineers at ICON designed new progressive rate coil springs that achieve the correct advertised lift heights while still retaining the great ride quality, predictability, and performance that our Super Duty systems are known for.

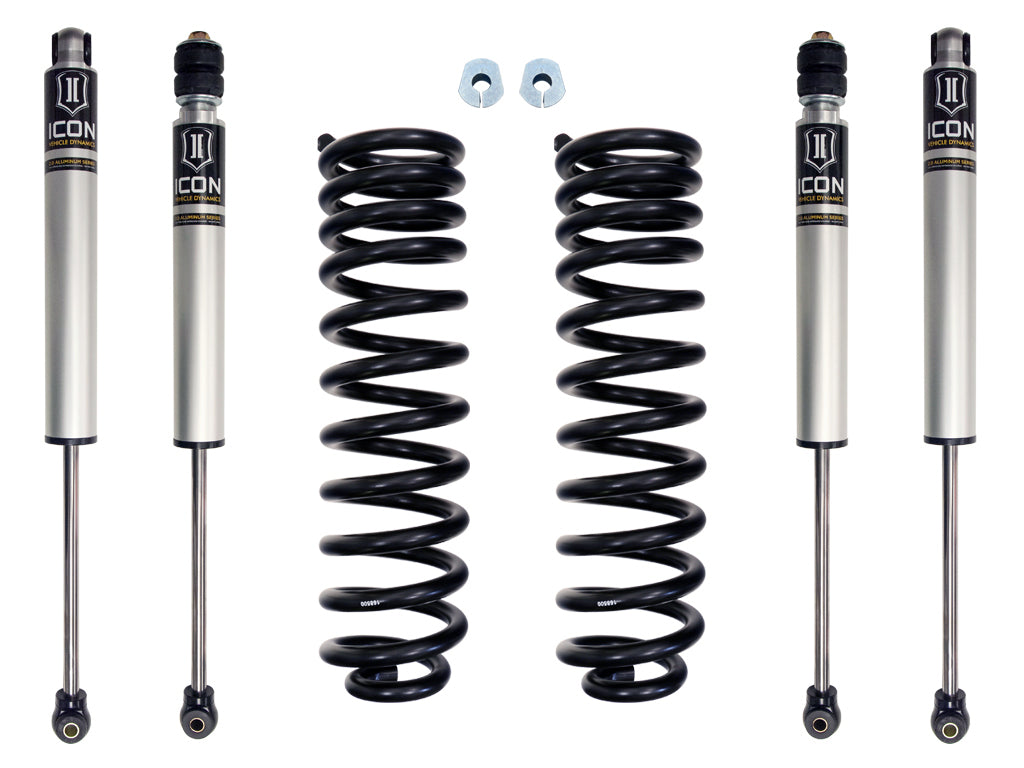

This ICON Vehicle Dynamics 2.5" suspension system is a great way to level your 4WD 2020-UP Ford F250/350 Super Duty while drastically improving ride quality and performance. This entry level system is perfect for on-road and towing use, as well as mild off-road use like job site duty and washboard gravel roads. ICON's Stage 1 System is comprised of dual rate coil springs, alignment cams, and ICON 2.0 Aluminum Series front and rear shocks. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
Highlights:
- Fits 2020-UP F250 / F350 4WD applications
- Approximately 25% increased front wheel travel over stock
- ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
- ICON shocks feature vehicle specific tune for superior performance and ride quality
- Shocks are fully rebuildable and revalvable
- Corrosion resistant anodized shock bodies with 5/8" shafts
- Lifetime guarantee against coil spring breakage or sag
- Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
Fitment Notes:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.25" Backspace / 6mm Offset
- SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
- AN ADJUSTABLE TRACK BAR MAY BE NEEDED TO REALIGN THE AXLE FROM LEFT TO RIGHT, OR TO ADD ADDITIONAL STRENGTH
- LIFT HEIGHTS BASED ON 4WD CREW CAB DIESEL
- RARE CASES REQUIRE A 2.6 DEGREE ALIGNMENT CAM ON ONE SIDE OF VEHICLE FOR PROPER CASTER SPLIT
- Tremor package reduces advertised lift heights by approximately 1.00"
- Brake line kit (Part #61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
- Ships in multiple boxes
Parts Contained:
- 62511 (QTY: 1) | 20-UP FSD FRONT 2.5" DUAL RATE COIL KIT
- 66512 (QTY: 2) | 05-UP FSD 4WD 2.5" FRONT 2.0 VS IR
- 66516 (QTY: 2) | 17-UP FSD REAR 0-2" 2.0 VS IR
| Year | Make | Model | Drive | Position | Lift |
| 2024 | Ford | F-250 Super Duty | 4WD | 2.5" | |
| 2023 | Ford | F-250 Super Duty | 4WD | 2.5" | |
| 2022 | Ford | F-250 Super Duty | 4WD | 2.5" | |
| 2021 | Ford | F-250 Super Duty | 4WD | 2.5" | |
| 2020 | Ford | F-250 Super Duty | 4WD | 2.5" | |
| 2019 | Ford | F-250 Super Duty | 4WD | 2.5" | |
| 2018 | Ford | F-250 Super Duty | 4WD | 2.5" | |
| 2017 | Ford | F-250 Super Duty | 4WD | 2.5" |
