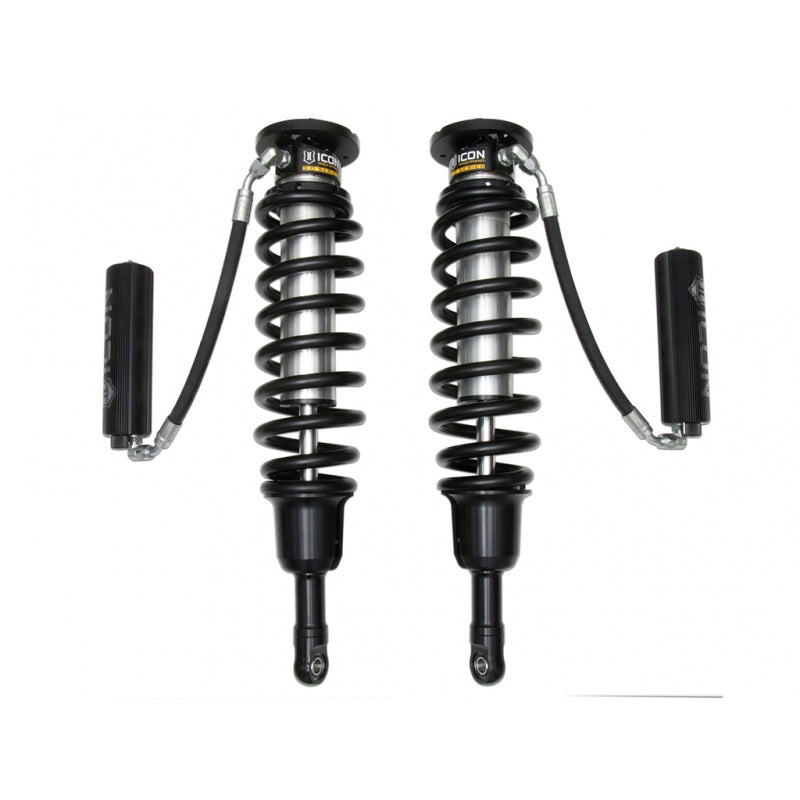

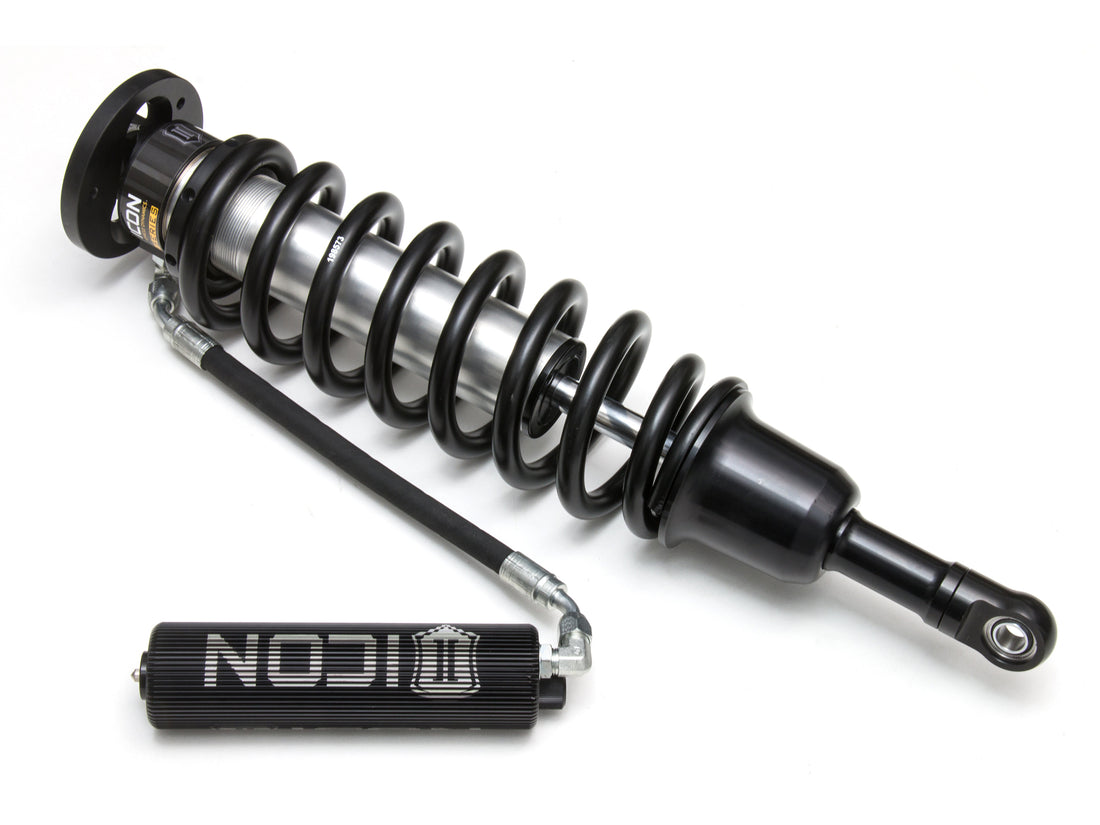

3.0 Remote Reservoir CDCV Shocks Pair w/1-3" lift
3.0 Remote Reservoir CDCV Shocks Pair w/1-3" lift
Found it cheaper? We'll match it.
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 95002 | 1-3" Lift | Front | Shock Absorber | 1 |
Overview
The front end geometry of the Gen 2 Raptor was found to be fairly similar to the previous model truck, however the shock mounting points had been moved higher up on the chassis. Seeing this as an opportunity, the team was able to design a 3.0 Series coilover that has more shaft travel while utilizing a barreled coil spring for more efficient packaging. The vehicle-specific valving featured in these shocks and the all new ICON-engineered spring work together to provide exceptional on-road ride quality with excellent off-road characteristics. ICON'ulti-stage hydraulic "Bump Zone" adds to the performance capability by providing an exponential increase in damping ability during the last 40% of compression travel for superior bottom-out resistance. In the ride zone, these 3.0 Series coilovers see a 50% increase in damping ability with the use of a significantly larger piston than what is found in the factory shocks. New 10" finned aluminum reservoirs provide a generous amount of shock oil while also providing an increase in surface area for enhanced cooling and consistent damping. The addition of ICON's CDC Valve technology provides 10 settings of damping adjustment allowing the end-user to adjust the "feel" of the shocks for different terrains and vehicle cargo configurations. All of these features work together to deliver the perfect blend of on-road comfort and off-road performance.
Tech Info:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 w/ 5" BS / 6mm Offset
- Recommended Aftermarket Tires: 35X12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- APPLICATION NOTE: 2019-UP VEHICLES WITH FACTORY LIVE VALVE SHOCKS WILL NEED AN ICON DAMPER INTERFACE DEVICE (PN: 95199) TO ALLOW THE VEHICLE DRIVE MODES TO OPERATE CORRECTLY WITH THE OE SHOCKS REMOVED.
Features & Benefits
- Adjustable coilovers yield 1-3" of front lift height
- Heavy duty CNC machined 1" shock shafts
- FK Rod End COM12 spherical bearings ensure maximum strength and durability
- CAD plated shock body with hard anodized piston and top cap
- Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
- Bolt-in design makes for an easy install into OEM shock location
- ICON 1K tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
- 50% increase in damping ability over OE shocks for excellent performance in extreme off-road conditions
- Superior low speed control reduces body roll and increases on-road stability
- Easy-to-adjust CDC Valve (Compression Damping Control) has 10 compression damping settings to suit all types of driving styles across varying terrain and vehicle cargo setups
- ICON's multi-stage hydraulic 'p Zone" exponentially increases bottom-out resistance in the last 40% of compression travel
- 10" finned aluminum reservoirs provide generous oil volume and increased surface area for enhanced cooling properties and consistent damping
- Barreled coil spring design maximizes travel and provides more efficient packaging
- High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
Installation Instructions & Docs
| Year | Make | Model | Drive | Position | Lift |
| 2020 | Ford | F-150 | 1-3" | ||
| 2019 | Ford | F-150 | 1-3" | ||
| 2018 | Ford | F-150 | 1-3" | ||
| 2017 | Ford | F-150 | 1-3" | ||
| 2016 | Ford | F-150 | 1-3" | ||
| 2015 | Ford | F-150 | 1-3" | ||
| Year | Make | Model | Drive | Position | Lift |
Icon Vehicle Dynamics handles their warranty claims directly; if you encounter a product defect please reach out to Icon Vehicle Dynamics directly.
For more information: View the Shock Surplus Warranty Policy.
Shipping Info
Free Shipping on most orders to the lower 48 U.S. states. Truck freight items (over 100 lbs) and custom orders require a separate shipping quote.
- Applies to items like axles, leaf springs, and long-travel kits.
- No international shipping on freight items — only to U.S.-based freight forwarders.
- Worldwide shipping available: Canada, Europe, UAE, Australia, and most of Asia.
Contact us for an international shipping quote.
Returns & Exchanges
30-Day Return Policy - Items must be new, unused, uninstalled, and include all original hardware.
- No restocking fees for exchanges or gift card credit.
- 10% restocking fee on refunds, returns cost us real money, so the 10% helps keep the lights on.
- Installed, damaged, or dirty parts cannot be returned.
Return Shipping Responsibility
Shock Surplus Package and Order Protection plan provides prepaid return labels for any returned packages, this fee varies by product.
- Our mistake (misboxed, wrong item, damaged): We cover the cost of return shipping.
- Your mistake (wrong item ordered, fitment error, changed mind): Return shipping is your responsibility.
- Under 50 lbs: Discounted carrier rate (deducted from your refund).
- Over 50 lbs: Discounted carrier rate + $25 oversize fee (deducted).
Refunds
Refunds are issued within 5-7 business days of receiving your return.
- Funds typically post to your account in 1-3 business days depending on your payment method.
- There is a 10% restocking fee on all refunds. We do not get our original shipping, labor, or transaction fees back - so the 10% restocking fee keeps the lights on.
- You will receive an email once your refund is processed.
International Orders
- All international orders are final sale.
- Returns via freight forwarders only accepted if the product has not left the U.S.
- Import taxes and fees are the buyer's responsibility and not included in our shipping charges.
- We are not responsible for goods once exported outside the U.S.
Why Shock Surplus
1,000,000+ Shocks Shipped
The Premier Suspension Specialists
Authorized Dealer
Brand New - Warranty Backed
Free Shipping
Orders Over $175 - Lower 48 States
30-Day Returns
Free Exchange on Qualified Orders
INFORMATION
The front end geometry of the Gen 2 Raptor was found to be fairly similar to the previous model truck, however the shock mounting points had been moved higher up on the chassis. Seeing this as an opportunity, the team was able to design a 3.0 Series coilover that has more shaft travel while utilizing a barreled coil spring for more efficient packaging. The vehicle-specific valving featured in these shocks and the all new ICON-engineered spring work together to provide exceptional on-road ride quality with excellent off-road characteristics. ICON'ulti-stage hydraulic "Bump Zone" adds to the performance capability by providing an exponential increase in damping ability during the last 40% of compression travel for superior bottom-out resistance. In the ride zone, these 3.0 Series coilovers see a 50% increase in damping ability with the use of a significantly larger piston than what is found in the factory shocks. New 10" finned aluminum reservoirs provide a generous amount of shock oil while also providing an increase in surface area for enhanced cooling and consistent damping. The addition of ICON's CDC Valve technology provides 10 settings of damping adjustment allowing the end-user to adjust the "feel" of the shocks for different terrains and vehicle cargo configurations. All of these features work together to deliver the perfect blend of on-road comfort and off-road performance.
Tech Info:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 w/ 5" BS / 6mm Offset
- Recommended Aftermarket Tires: 35X12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- APPLICATION NOTE: 2019-UP VEHICLES WITH FACTORY LIVE VALVE SHOCKS WILL NEED AN ICON DAMPER INTERFACE DEVICE (PN: 95199) TO ALLOW THE VEHICLE DRIVE MODES TO OPERATE CORRECTLY WITH THE OE SHOCKS REMOVED.
Features & Benefits
- Adjustable coilovers yield 1-3" of front lift height
- Heavy duty CNC machined 1" shock shafts
- FK Rod End COM12 spherical bearings ensure maximum strength and durability
- CAD plated shock body with hard anodized piston and top cap
- Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
- Bolt-in design makes for an easy install into OEM shock location
- ICON 1K tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
- 50% increase in damping ability over OE shocks for excellent performance in extreme off-road conditions
- Superior low speed control reduces body roll and increases on-road stability
- Easy-to-adjust CDC Valve (Compression Damping Control) has 10 compression damping settings to suit all types of driving styles across varying terrain and vehicle cargo setups
- ICON's multi-stage hydraulic 'p Zone" exponentially increases bottom-out resistance in the last 40% of compression travel
- 10" finned aluminum reservoirs provide generous oil volume and increased surface area for enhanced cooling properties and consistent damping
- Barreled coil spring design maximizes travel and provides more efficient packaging
- High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
Installation Instructions & Docs
VIDEO GALLERY
CUSTOMER REVIEWS
The Expert's Opinion
"We've been big fans of Icon's total suspension approach since running the CDCV kit on our Tacoma back in 2017. Icon regularly provides the most travel in their shocks and suspension systems when compared to competitors, giving more lift height, or more usable travel."
Questions? We've got answers
ICON shocks are tuned for performance-first ride quality, which means you can expect a ride that feels firmer and more controlled than stock, especially on the street. They reduce body roll, brake dive, and overall vehicle movement, giving your truck a more planted and responsive feel.
Where ICON really stands out is off-road. These shocks are designed to handle higher speeds and rough terrain, so you’ll notice excellent control over bumps, whoops, and uneven surfaces, with less fade during repeated impacts. Instead of feeling soft or floaty, the suspension stays composed and predictable.
Overall, ICON shocks are a great fit if you want a sportier, more aggressive ride with strong off-road capability. They may feel firmer than some comfort-focused options, but they deliver a high level of control and confidence both on and off the pavement.
Some ICON shocks are adjustable, but it depends on the specific model and series. Many of ICON’s standard shocks come with vehicle-specific valving and no external adjusters, designed to deliver strong performance right out of the box without needing tuning.
However, ICON offers several higher-end options with adjustability. For example, shocks equipped with CDC (Compression Damping Control) valves provide multiple levels of compression adjustment via a knob, allowing you to fine-tune the ride for different terrain or driving styles.
At the top end, ICON also offers advanced systems like CDXS or CDEV, which can provide more precise manual adjustments or even electronic, real-time damping changes based on driving conditions.
In short, not all ICON shocks are adjustable, but many upgraded versions offer a wide range of tuning options—from simple knob adjustments to fully electronic control.
Click the 'Select Your Vehicle' button above the 'Add to Cart' button to make sure the shocks fit your exact vehicle. If needed, the site will send you to the right shocks for your ride. If your vehicle has been lifted, use the dropdown menu to pick the correct lift height. For example, if you have a Rough Country 6-inch lift kit, choose Front 4–6" and Rear 3–4" (the rear is usually smaller than the front). Still not sure? Our sales team is happy to help.
ICON shocks are built as rebuildable, high-performance shocks, so their lifespan is a little different than basic “replace when worn out” shocks. For vehicles that are mostly driven on the street, you can typically expect around 50,000–80,000 miles before a rebuild is recommended to keep them performing at their best.
If your truck sees frequent off-road use, heavy loads, or aggressive driving, service intervals can come sooner—sometimes significantly sooner—since heat, dirt, and repeated impacts accelerate wear.
The key thing to know is that ICON shocks are designed to be serviced, not thrown away. With proper maintenance and periodic rebuilds, they can deliver years of consistent performance and continue working well long after that initial service interval.
