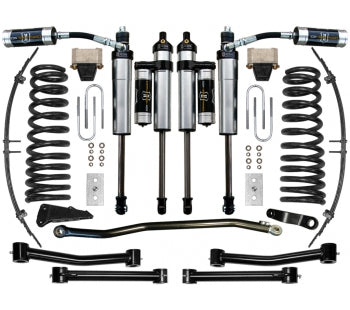

4.5" Suspension System - Stage 4 Tubular Kit

2003-2013 Dodge Ram 3500 4WD
$4,319.38 Sale
Out of Stock

Authorized dealer
Free shipping within the lower 48 United States
Brand new parts with warranty coverage
Free 30-day return and exchange on qualifying orders
Got Questions?
Our experts are here to help!

Product Details

Whether you want to upgrade, add a reservoir, or find something more affordable, contact us with any questions!

Part Numbers & Details

View full product specifications

Close specs
Part Numbers & Details
Specifications
Part NumberLift/LoweredPositionItemQuantity
K214503T4.5" LiftFront and Rear4.5" Suspension System - Stage 4 Tubular1

Overview

2003-2008 Ram 2500/3500 4.5 Inch Stage 4 Suspension System utilizes the same technology as the 2.5 Inch systems while adding lift height and ground clearance. Additional engineered front end components are added to ensure proper steering geometry with improved function throughout the entire travel range whether on or off road. ICON 2.5 Inch Series shocks extend the performance of the kit by increasing the duration of consistent damping regardless of situation. These shocks include FK bearings, billet top cap and rod ends, 7/8 shafts for strength, and the industry only forged stem on a 2.5 inch shock with rolled threads. The adjustable track bar with bearings not only improves rigidity over flexible factory joints, but offers adjustability to center the front axle under the truck. ICON steel upper and lower links increase performance, strength, and range of alignment. These link arms decrease the bind found in the factory link bushings. The multi leaf expansion pack improves compliance with a more progressive rate. This ultimate performance system with link arms offers extraordinary diversity across any terrain, all while keeping a smooth highway feel. Installing this kit allows proper clearance for 35" tall tires with no modifications, and some 37" tires with minor fender well trimming for clearance. With the endless hours ICON has spent testing and tuning our suspension components and shocks together, you can rest assured you have the best suspension solution on the market.

Tech Info:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys | 17" x 8.5" w/ 5.25" BS / 13mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 20" x 9" w/5.75" BS / 19mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
  • APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
  • APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
  • Ships in Multiple Boxes

Features & Benefits

  • ICON engineered dual rate coil springs with match tuned 2.5" V.S. Series reservoir shocks
  • Adjustable track bar with PTFE lined FK bearings
  • Heavy-duty steel upper and lower link bars
  • Increased wheel travel and ride quality over stock with no change in towing capacity
  • Correctly positioned steering and track bar components
  • Level stance front to rear
  • Less body roll than stock
  • No drive shaft modifications needed

System Components:

  • 211205 (QTY: 1) | 03-12 RAM HD 4WD 2.5" BLOCK KIT
  • 214010 (QTY: 1) | 03-12 RAM HD 4WD 4.5" DUAL RATE SPRING KIT
  • 214027 (QTY: 1) | 03-12 RAM HD FIXED TUBULAR LINK KIT
  • 214030 (QTY: 1) | 03-12 RAM HD ADJ TRACK BAR KIT
  • 214040 (QTY: 1) | 03-12 RAM HD 4.5" BOX KIT
  • 217701P (QTY: 1) | 03-12 RAM HD 2-3" REAR 2.5 VS PB PAIR
  • 217810P (QTY: 1) | 03-12 RAM HD 4.5" FRONT 2.5 VS RR PAIR
  • 37023 (QTY: 1) | 99-10 FSD DUALLY/03-12 RAM HD 15" U-BOLT KIT

Installation Instructions & Docs

Compatibility List
YearMakeModelDrivePositionLift
2013DodgeRam 35004WD4.5" Front / 2.5" Rear
2012DodgeRam 35004WD4.5" Front / 2.5" Rear
2011DodgeRam 35004WD4.5" Front / 2.5" Rear
2010DodgeRam 35004WD4.5" Front / 2.5" Rear
2009DodgeRam 35004WD4.5" Front / 2.5" Rear
2008DodgeRam 35004WD4.5" Front / 2.5" Rear
2007DodgeRam 35004WD4.5" Front / 2.5" Rear
2006DodgeRam 35004WD4.5" Front / 2.5" Rear
2005DodgeRam 35004WD4.5" Front / 2.5" Rear
2004DodgeRam 35004WD4.5" Front / 2.5" Rear
2003DodgeRam 35004WD4.5" Front / 2.5" Rear
2013Ram35004WD4.5" Front / 2.5" Rear
2012Ram35004WD4.5" Front / 2.5" Rear
2011Ram35004WD4.5" Front / 2.5" Rear
2010Ram35004WD4.5" Front / 2.5" Rear
2009Ram35004WD4.5" Front / 2.5" Rear
2008Ram35004WD4.5" Front / 2.5" Rear
2007Ram35004WD4.5" Front / 2.5" Rear
2006Ram35004WD4.5" Front / 2.5" Rear
2005Ram35004WD4.5" Front / 2.5" Rear
2004Ram35004WD4.5" Front / 2.5" Rear
2003Ram35004WD4.5" Front / 2.5" Rear
