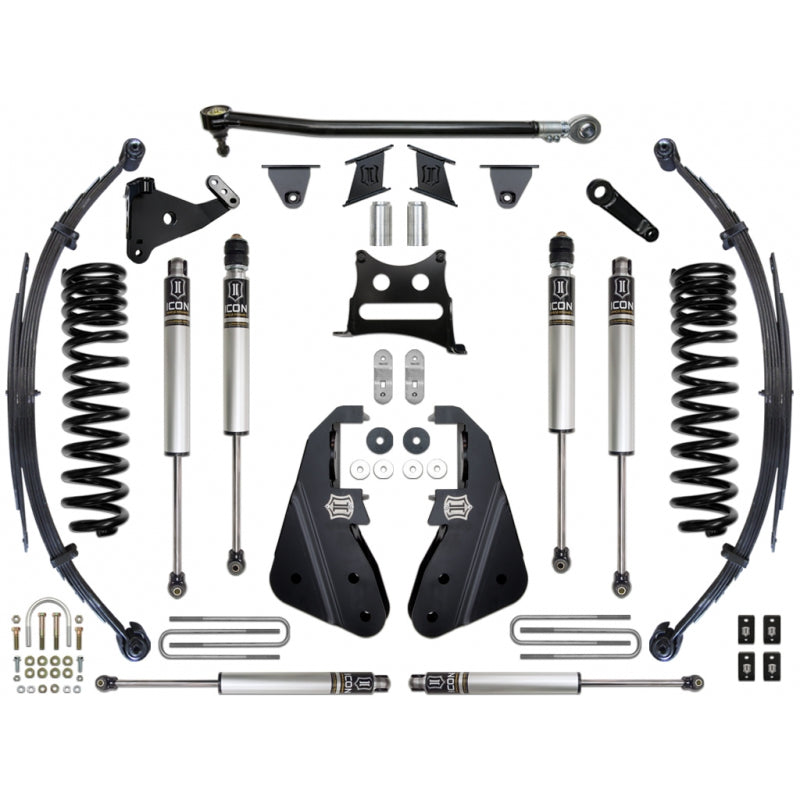

This ICON Vehicle Dynamics 7" suspension system is a great way to lift your 4WD 2017-UP Ford F250/350 Super Duty while drastically improving ride quality and performance. This entry level system is perfect for on-road and towing use, as well as mild off-road use like job site duty and washboard gravel roads. ICON's 7" Stage 1 System is comprised of dual rate coil springs, progressive leaf springs, radius arm drop brackets, adjustable track bar, dual opposing steering stabilizer kit, ICON 2.0 Aluminum Series front and rear shocks, plus all of the necessary hardware for installation. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
- OEM Wheels & Tires Fitment: Yes
- APPLICATION NOTE #31: "˜08 - CURRENT SUPERDUTY MODELS WITH GAS ENGINES MAY NEED EXHAUST MODIFIED TO CLEAR FRONT DRIVESHAFT
- APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
- APPLICATION NOTE #94: ICON PART #65000 DOES NOT FIT 2015-UP DUAL REAR WHEEL
- APPLICATION NOTE #118: OEM STABILIZER DOES NOT WORK WITH REQUIRED DRAG LINK FLIP ON THIS KIT
- Ships in multiple boxes
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 with 5" Backspace / 6mm Offset
- Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- TECH NOTE: 2020 Super Duty models have a lower ride height from the factory than 2017-2019 trucks. This results in an increase of approximately .75" of additional lift height over ICON's advertised numbers.
- APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
- APPLICATION NOTE #8: THIS SYSTEM MAY REQUIRE A CARRIER BEARING DROP BRACKET KIT (33700)
- APPLICATION NOTE #21: NOT APPLICABLE ON VEHICLES EQUIPPED WITH A MANUAL TRANSMISSION
Features & Benefits
- Fits 2017-UP F250 / F350 4WD applications
- Lifetime guarantee against coil spring breakage or sag
- Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
- Approximately 50% increased front wheel travel over stock
- ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
- Progressive leaf springs improve ride quality without reducing towing capacity
- Radius arm drop brackets correct geometry and caster for optimal alignment specs
- ICON shocks feature vehicle specific tune for superior performance and ride quality
- Shocks are fully rebuildable and revalvable
- Corrosion resistant anodized shock body with 5/8" shaft (2.0 Aluminum Series shocks)
- FK Rod End bearings provide extended longevity and minimal deflection
- 67015 (QTY: 1) | 05-UP FSD FRONT 7" DUAL RATE SPRING KIT
- 67035 (QTY: 1) | 17-UP FSD FRONT 7" BOX KIT
- 62530 (QTY: 1) | 05-UP FSD 2.3 DEG ALIGNMENT CAM KIT
- 64038 (QTY: 1) | 17-UP FSD ADJ TRACK BAR KIT
- 64055 (QTY: 1) | 17-UP FSD RADIUS ARM DROP KIT
- 65501 (QTY: 1) | 11-UP FSD U-BOLT PLATE KIT
- 67003 (QTY: 1) | 11-UP FSD REAR 15" U-BOLT KIT
- 67031 (QTY: 1) | 11-UP FSD REAR 7" BRAKE BRACKET KIT
- 66514 (QTY: 2) | 05-UP FSD 4WD 7" FRONT 2.0 VS IR
- 66517 (QTY: 2) | 17-UP FSD REAR 2-5" 2.0 VS IR
- 65000 (QTY: 1) | 05-UP FSD DUAL STABILIZER KIT
- 36511 (QTY: 2) | 99-UP FSD 4WD STABILIZER (DUAL OPPOSING) 2.0 VS IR
- 168506 (QTY: 2) | 17-UP FSD 5" REAR LEAF SPRING PACK
- 65505H (QTY: 1) | 17-UP 5" LEAF SPRING HARDWARE KIT
Installation Instructions & Docs
