Radius Arm System Kit
Estimated Delivery in 3-7 business days
Radius Arm System Kit
Estimated Delivery in 3-7 business days
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 64041 | Factory | Front | Radius Arm System | 1 |
Overview

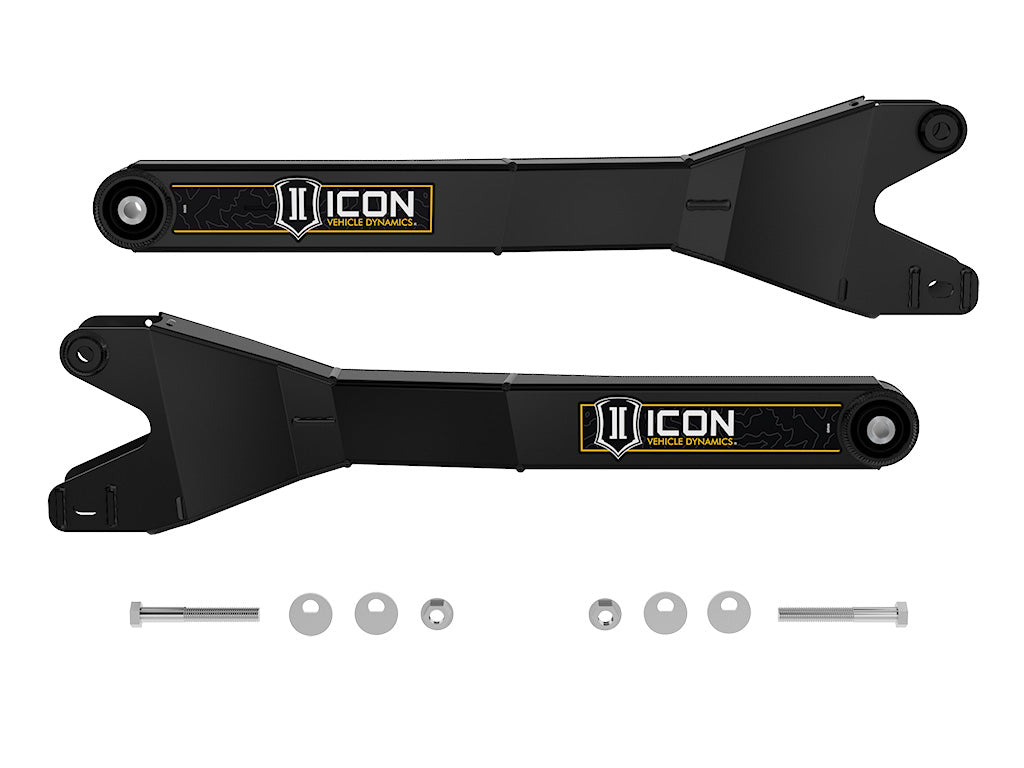

The ICON Vehicle Dynamics Ford F-250 & F-350 Super Duty Radius Arm System is designed with adjustable caster cams for use with 2.5-3” lifts with the radius arm installed in the factory pivot, eliminating the need for caster bushings. When used in conjunction with an ICON radius arm drop bracket system, proper caster can also be maintained for 4.5” and 7" lifts, including coilover conversion systems. They feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.
Features & Benefits
- Fully boxed design
- Built in caster adjustment for optimized return to center
- Replaceable sealed pivot bushing provides maintenance free operation
- CNC machined and laser cut steel components
- Semi-gloss black powder coat finish
- Ability to have a 5.5” backspace wheel with 37” tires without contact with the arm at steering lock
Tech Notes
- OEM Wheels & Tires Fitment: Yes ,
- Recommended Aftermarket Tires: Up to a 37" x 12.50" ,
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5” Backspace / 6mm Offset ,
- Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25” Backspace / 6mm Offset ,
- Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.25” Backspace / 6mm Offset ,
- TECH NOTE: Radius arm drop brackets required for use with 4-7” lift heights. (ICON part # 64040, 64045, or, 64055)
| Year | Make | Model | Drive | Position | Lift |
| 2022 | Ford | F-450 Super Duty | 4WD | Factory | |
| 2021 | Ford | F-450 Super Duty | 4WD | Factory | |
| 2020 | Ford | F-450 Super Duty | 4WD | Factory | |
| 2019 | Ford | F-450 Super Duty | 4WD | Factory | |
| 2018 | Ford | F-450 Super Duty | 4WD | Factory | |
| 2017 | Ford | F-450 Super Duty | 4WD | Factory | |
| 2016 | Ford | F-450 Super Duty | 4WD | Factory | |
| 2015 | Ford | F-450 Super Duty | 4WD | Factory | |
| 2014 | Ford | F-450 Super Duty | 4WD | Factory | |
| 2013 | Ford | F-450 Super Duty | 4WD | Factory | |
| 2012 | Ford | F-450 Super Duty | 4WD | Factory | |
| 2011 | Ford | F-450 Super Duty | 4WD | Factory | |
| 2010 | Ford | F-450 Super Duty | 4WD | Factory | |
| 2009 | Ford | F-450 Super Duty | 4WD | Factory | |
| 2008 | Ford | F-450 Super Duty | 4WD | Factory | |
| 2007 | Ford | F-450 Super Duty | 4WD | Factory | |
| 2006 | Ford | F-450 Super Duty | 4WD | Factory | |
| 2005 | Ford | F-450 Super Duty | 4WD | Factory |
