RS55136

Specifications

Part Number RS55136
Extended Length 17.440"
Compressed Length 11.250"
Travel 6.190"
Top Mount STEM
Bottom Mount EYELET
Boot Included Yes
Gas Charged Yes
Package Contains 1 Shock

Package Contains 1 Shock

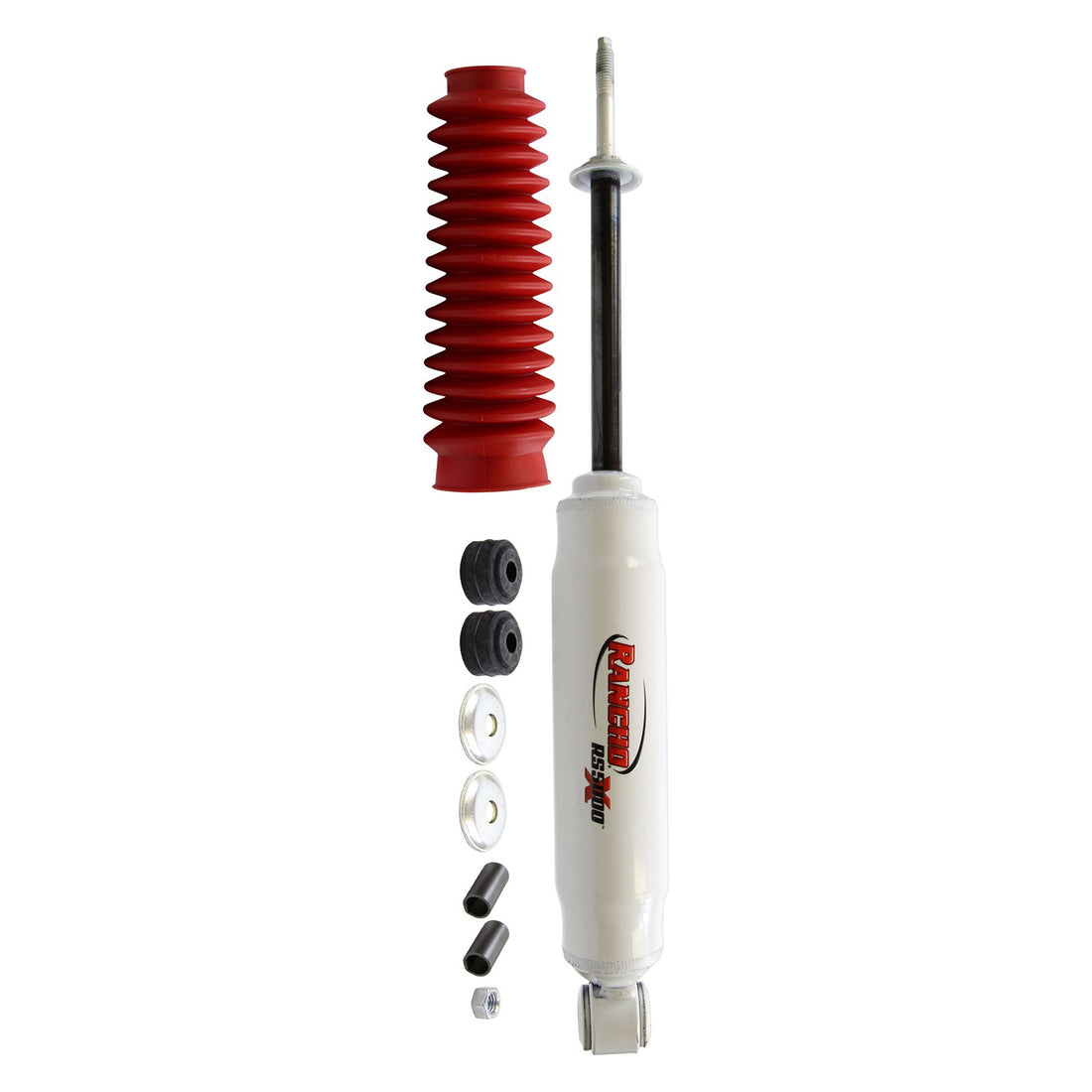

You'll be getting one shock absorber.

Rancho 90-day Free Ride Guarantee

Rancho 90-day Free Ride Guarantee

Covered by Rancho's Limited Lifetime Warranty and 90-day Free Ride Guarantee.

Factory Hardware for Installation

Factory Hardware for Installation

All necessary washers, bushings, and nuts included. Factory shock mounting bolts are reused for installation.

Product Details

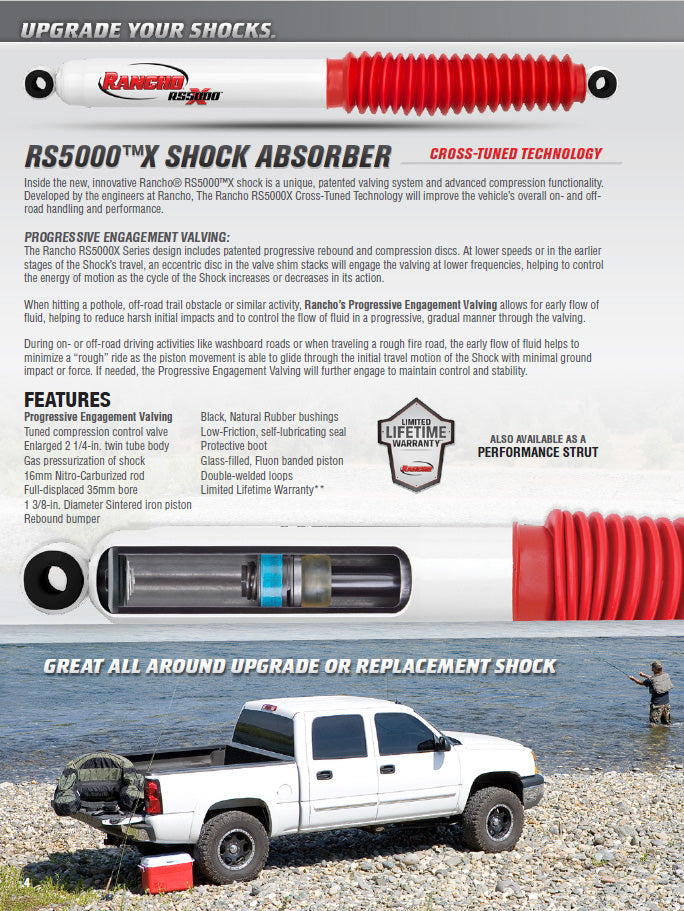

RS5000X Gas Shock, The core of this new and innovative shock from Rancho is the unique and patented rebound valving system and an advanced compression phase of the shock absorber. This proprietary process developed by the ride engineers at Rancho will elevate the overall handling and performance of your vehicle on and off-road. Each RS5000X shock is gas pressurized to 150 PSI.* The twin tube, gas pressurized shock has a variety of advantages including minimizing air-to-oil mixture that can cause foaming and shock fade. Gas pressurization also provides a mild boost of spring rate to the vehicle. The RS5000X series features a 2-1/4-inch diameter shock body. A larger shock body allows for increased fluid capacity to operate cooler and to increase vehicle control and performance at varying speeds and terrains. The RS5000X series combines a larger shock body with all-weather fluid, allowing the shock to withstand internal temperatures between -40 and 248 degrees Fahrenheit. The Rancho RS5000X series design includes patented progressive rebound and compression discs. At lower speeds or in the earlier stages of the shock's travel, an eccentric disc in the valve shim stacks will engage the valving at lower frequencies, helping to control the energy of motion as the cycle of the shock increases or decreases in its action. When hitting a pothole, off-road trail obstacle or similar activity, Rancho's Progressive Engagement Valving allows for early flow of fluid, helping to reduce harsh initial impacts and to control the flow of fluid in a progressive, gradual manner through the valving. During on- or off-road driving activities like washboarding or when travelling a rough fire road, the early flow of fluid helps to minimize a "rough" ride as the piston movement is able to glide through the initial travel motion of the shock with minimal ground impact or force. If needed, the Progressive Engagement Valving will further engage to maintain control and stability.

We have the entire line of Rancho products available, whether you want to upgrade, add a reservoir, or find something more affordable, contact us with any questions!

Year Make Model Drive Position
1990 Daihatsu Rocky 4WD Rear
2004 Dodge Dakota 4WD, RWD Front
2003 Dodge Dakota 4WD, RWD Front
2002 Dodge Dakota 4WD, RWD Front
2001 Dodge Dakota 4WD, RWD Front
2000 Dodge Dakota 4WD, RWD Front
1999 Dodge Dakota 4WD, RWD Front
1998 Dodge Dakota 4WD, RWD Front
1997 Dodge Dakota 4WD, RWD Front
2003 Dodge Durango 4WD, AWD, RWD Front
2002 Dodge Durango 4WD, AWD, RWD Front
2001 Dodge Durango 4WD, AWD, RWD Front
2000 Dodge Durango 4WD, RWD Front
1999 Dodge Durango 4WD, RWD Front
1998 Dodge Durango 4WD, RWD Front
1996 Ford Bronco 4WD Front Inner
1995 Ford Bronco 4WD Front Inner
1994 Ford Bronco 4WD Front Inner
1993 Ford Bronco 4WD Front Inner
1992 Ford Bronco 4WD Front Inner
1991 Ford Bronco 4WD Front Inner
1990 Ford Bronco 4WD Front Inner
1989 Ford Bronco 4WD Front Inner
1988 Ford Bronco 4WD Front Inner
1987 Ford Bronco 4WD Front Inner
1986 Ford Bronco 4WD Front Inner
1985 Ford Bronco 4WD Front Inner
1984 Ford Bronco 4WD Front Inner
1983 Ford Bronco 4WD Front Inner
1982 Ford Bronco 4WD Front Inner
1981 Ford Bronco 4WD Front Inner
1980 Ford Bronco 4WD Front Inner
1991 Ford E-250 Econoline RWD Front
1990 Ford E-250 Econoline RWD Front
1989 Ford E-250 Econoline RWD Front
1988 Ford E-250 Econoline RWD Front
1987 Ford E-250 Econoline RWD Front
1986 Ford E-250 Econoline RWD Front
1985 Ford E-250 Econoline RWD Front
1984 Ford E-250 Econoline RWD Front
1983 Ford E-250 Econoline RWD Front
1982 Ford E-250 Econoline RWD Front
1981 Ford E-250 Econoline RWD Front
1980 Ford E-250 Econoline RWD Front
1979 Ford E-250 Econoline RWD Front
1978 Ford E-250 Econoline RWD Front
1977 Ford E-250 Econoline RWD Front
1976 Ford E-250 Econoline RWD Front
1975 Ford E-250 Econoline RWD Front
1991 Ford E-250 Econoline Club Wagon RWD Front
1990 Ford E-250 Econoline Club Wagon RWD Front
1989 Ford E-250 Econoline Club Wagon RWD Front
1988 Ford E-250 Econoline Club Wagon RWD Front
1987 Ford E-250 Econoline Club Wagon RWD Front
1986 Ford E-250 Econoline Club Wagon RWD Front
1985 Ford E-250 Econoline Club Wagon RWD Front
1984 Ford E-250 Econoline Club Wagon RWD Front
1983 Ford E-250 Econoline Club Wagon RWD Front
1982 Ford E-250 Econoline Club Wagon RWD Front
1981 Ford E-250 Econoline Club Wagon RWD Front
1980 Ford E-250 Econoline Club Wagon RWD Front
1979 Ford E-250 Econoline Club Wagon RWD Front
1978 Ford E-250 Econoline Club Wagon RWD Front
1977 Ford E-250 Econoline Club Wagon RWD Front
1976 Ford E-250 Econoline Club Wagon RWD Front
1975 Ford E-250 Econoline Club Wagon RWD Front
1991 Ford E-350 Econoline RWD Front
1990 Ford E-350 Econoline RWD Front
1989 Ford E-350 Econoline RWD Front
1988 Ford E-350 Econoline RWD Front
1987 Ford E-350 Econoline RWD Front
1986 Ford E-350 Econoline RWD Front
1985 Ford E-350 Econoline RWD Front
1984 Ford E-350 Econoline RWD Front
1983 Ford E-350 Econoline RWD Front
1982 Ford E-350 Econoline RWD Front
1981 Ford E-350 Econoline RWD Front
1980 Ford E-350 Econoline RWD Front
1979 Ford E-350 Econoline RWD Front
1978 Ford E-350 Econoline RWD Front
1977 Ford E-350 Econoline RWD Front
1976 Ford E-350 Econoline RWD Front
1975 Ford E-350 Econoline RWD Front
1991 Ford E-350 Econoline Club Wagon RWD Front
1990 Ford E-350 Econoline Club Wagon RWD Front
1989 Ford E-350 Econoline Club Wagon RWD Front
1988 Ford E-350 Econoline Club Wagon RWD Front
1987 Ford E-350 Econoline Club Wagon RWD Front
1986 Ford E-350 Econoline Club Wagon RWD Front
1985 Ford E-350 Econoline Club Wagon RWD Front
1984 Ford E-350 Econoline Club Wagon RWD Front
1983 Ford E-350 Econoline Club Wagon RWD Front
1982 Ford E-350 Econoline Club Wagon RWD Front
1981 Ford E-350 Econoline Club Wagon RWD Front
1980 Ford E-350 Econoline Club Wagon RWD Front
1979 Ford E-350 Econoline Club Wagon RWD Front
1978 Ford E-350 Econoline Club Wagon RWD Front
1977 Ford E-350 Econoline Club Wagon RWD Front
1993 Ford Explorer 4WD, RWD Front
1992 Ford Explorer 4WD, RWD Front
1991 Ford Explorer 4WD, RWD Front
1976 Ford F-100 4WD, RWD Front
1975 Ford F-100 4WD, RWD Front
1974 Ford F-100 4WD, RWD Front
1973 Ford F-100 4WD, RWD Front
1972 Ford F-100 4WD, RWD Front
1971 Ford F-100 4WD, RWD Front
1970 Ford F-100 4WD, RWD Front
1983 Ford F-100 RWD Front
1982 Ford F-100 RWD Front
1981 Ford F-100 RWD Front
1980 Ford F-100 RWD Front
1979 Ford F-100 RWD Front
1978 Ford F-100 RWD Front
1977 Ford F-100 RWD Front
1996 Ford F-100 Ranger RWD Front
1996 Ford F-150 4WD, RWD Front Inner
1995 Ford F-150 4WD, RWD Front Inner
1994 Ford F-150 4WD, RWD Front Inner
1993 Ford F-150 4WD, RWD Front Inner
1992 Ford F-150 4WD, RWD Front Inner
1991 Ford F-150 4WD, RWD Front Inner
1990 Ford F-150 4WD, RWD Front Inner
1989 Ford F-150 4WD, RWD Front Inner
1988 Ford F-150 4WD, RWD Front Inner
1987 Ford F-150 4WD, RWD Front Inner
1986 Ford F-150 4WD, RWD Front Inner
1985 Ford F-150 4WD, RWD Front Inner
1984 Ford F-150 4WD, RWD Front Inner
1983 Ford F-150 4WD, RWD Front Inner
1982 Ford F-150 4WD, RWD Front Inner
1981 Ford F-150 4WD, RWD Front Inner
1980 Ford F-150 4WD, RWD Front Inner
1979 Ford F-150 4WD, RWD Front Inner
1978 Ford F-150 4WD, RWD Front Inner
1977 Ford F-150 4WD, RWD Front Inner
1976 Ford F-150 4WD, RWD Front Inner
1975 Ford F-150 RWD Front
1996 Ford F-250 4WD, RWD Front
1995
