Falcon Sport 2.25" Tow/Haul Leveling System Kit w/0-2.25" lift
Estimated Delivery in 3-7 business days
Falcon Sport 2.25" Tow/Haul Leveling System Kit w/0-2.25" lift
Estimated Delivery in 3-7 business days

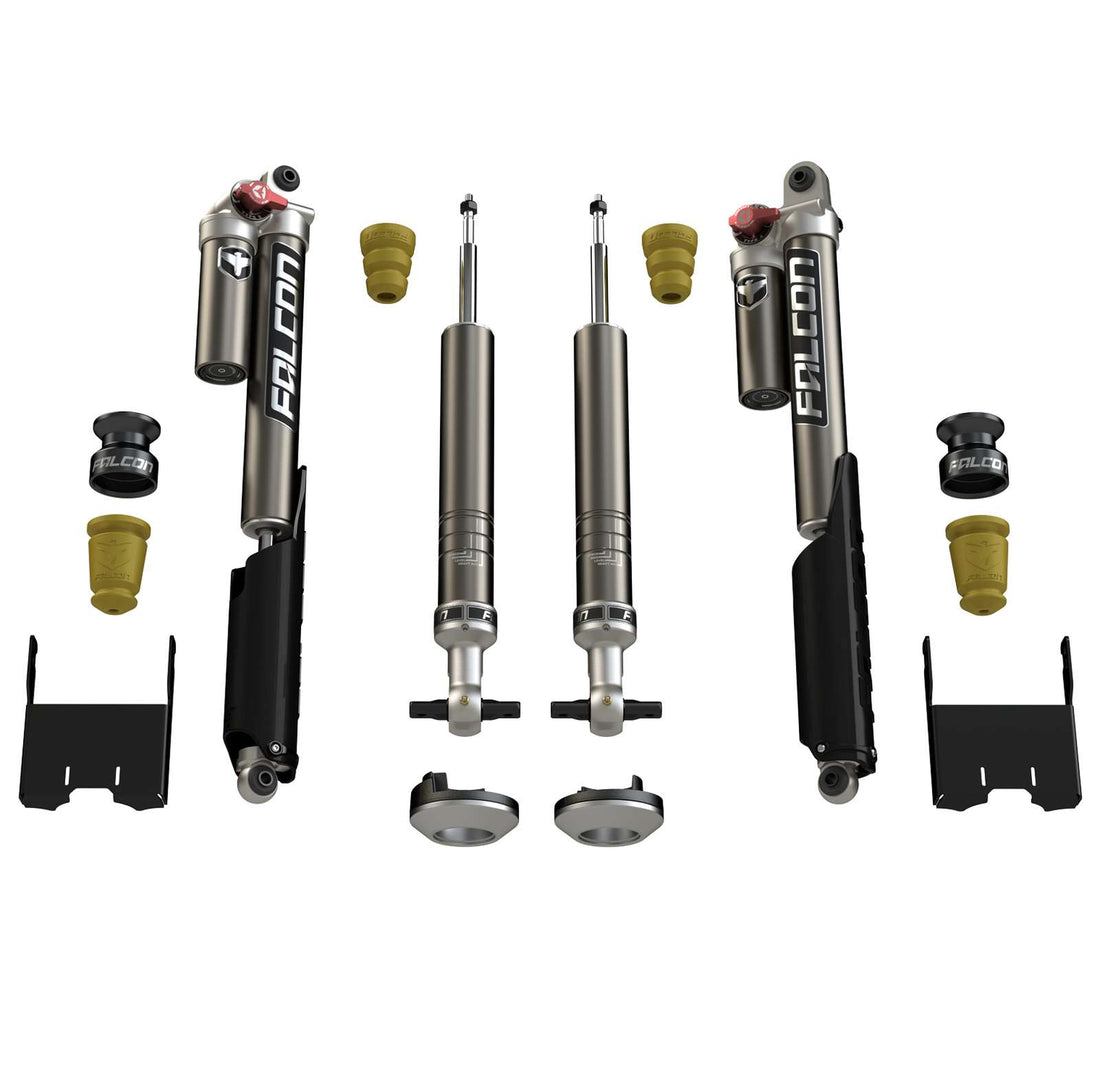

Part Number | Item | Quantity |
---|---|---|
05-04-32-400-002 | Falcon Sport 2.25" Tow/Haul Leveling System | 1 |
Features & Highlights:
- Vehicle-specific shock absorbers
- Race-inspired performance for increased vehicle stability
- Improved dynamic roll control and low-speed damping
- Dramatic improvement in on-road comfort and off-road performance
- Optimized fitment for unobstructed suspension travel and articulation
- 2.3" shock body provides optimal performance
- 6061-T6 aluminum alloy shock body resists Impact to protect internal components
- Smooth honed internal shock body surface for long-term performance
- 3/4" induction hardened chrome plated shaft resists rock damage, corrosion, and shaft buckling
- Large shaft diameter provides wide range of adjustment on adjustable shocks
- Hard anodized 6061-T6 aluminum alloy billet piston
- 1-piece Teflon bronze piston wear band w/ O-ring
- VOD (Volume Optimized Damping) features a digressive linear piston
- VOD reduces shock bottoming at full compression or over uneven terrain
- OGS (Oil/Gas Separator) prevents cavitation
- ZRT (Zone Rate Tuning) assists factory spring in the Extension and Compression Zones during aggressive driving – does NOT affect Drive Zone
- Internal Negative-Rate Coil Spring eliminates top out clunk and shock stress during Extension Zone; softens tire landing on impact
- Vehicle tuned microcellular Progressive Bump Stops reduce harsh bottom outs (when applicable)
- High-quality spherical bushings (when applicable)
- Zerk fittings to lube bushing (when applicable)
- Red Line synthetic oil w/ a high Viscosity Index for consistent performance across all temperatures
- Synthetic formula also contains special anti-wear and lubricity agents
- 1,000-hour salt spray corrosion resistance test on all hardware
- Serviceable and rebuildable (factory serviced)
- Designed, engineered, and assembled in-house from domestic and globally sourced components
- Patented design
- 3-year warranty
More Information:

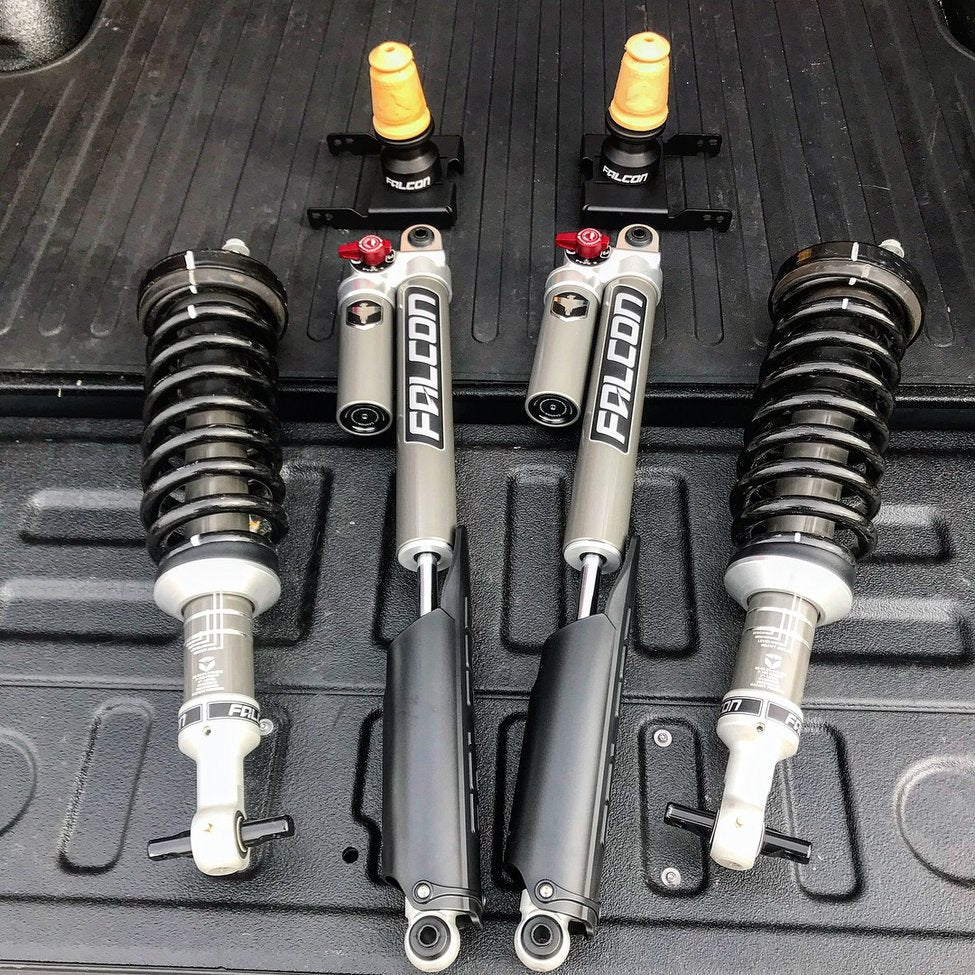

Adjust your suspension tuning for sport or work duties with Falcon Sport Tow/Haul Shocks. These systems pair front monotube shocks with rear adjustable piggyback shocks. The easy-to-use 3-position Fast Adjust Knob'ettings include Sport Moderate Tow/Haul and Heavy Tow/Haul. Falcon Performance Shocks improve performance and comfort regardless of the terrain. The versatility of these systems makes them ideal for daily driving off-road excursions and tow/haul duties. Falcon Shock Leveling Systems provide multiple ride heights to level the front end and/or compensate for the additional weight of a winch or other accessories. High-Value Performance" is the driving force behind our vehicle-specific dampers for Jeeps trucks and SUVs. We don–t re-valve existing shocks (like other companies); we engineer complete shock absorber systems that improve the overall performance of your truck or SUV both on and off road and while towing. Falcon Performance Shocks by TeraFlex. Sport Tow/Haul Shocks:
Sport Tow/Haul Shocks increase stability and control as well as improve ride quality and comfort both on and off-road in a compact and affordable package

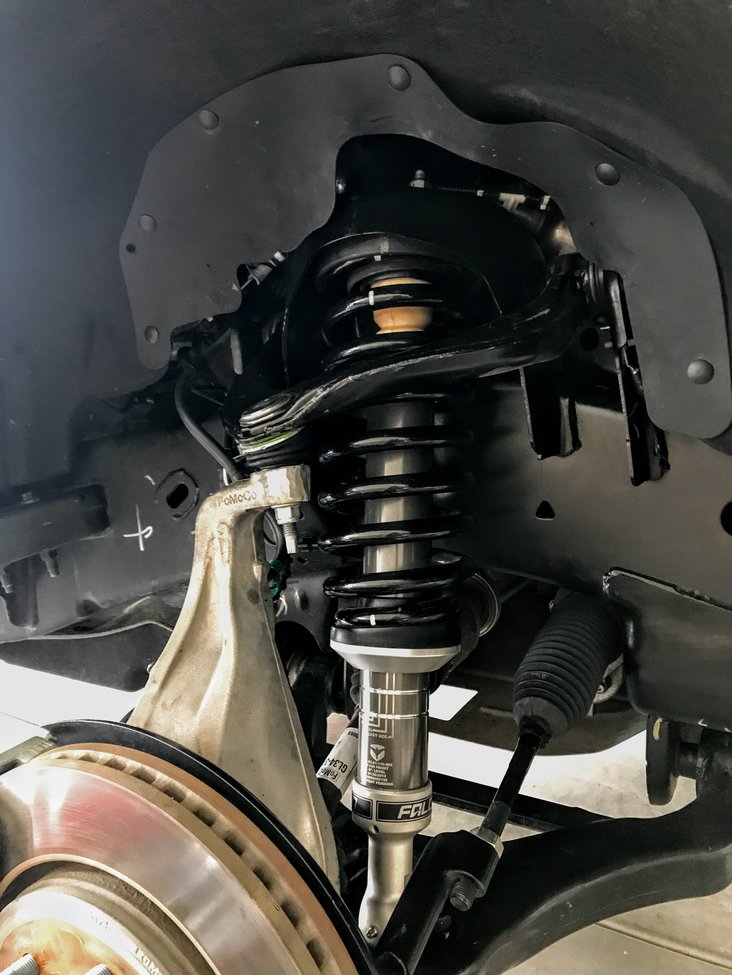

Front monotube shocks w/ optimized tuning for on- and off-road driving
Rear adjustable piggyback shocks w/ 3-position Fast Adjust Knob for large damping adjustments
Rear settings include: Sport Moderate Tow/Haul Heavy Tow/Haul
ideal for daily driving off-road excursions and tow/haul duties as well as the serious enthusiast wanting a consistent controlled feel through all driving conditions Front Leveling Shocks:

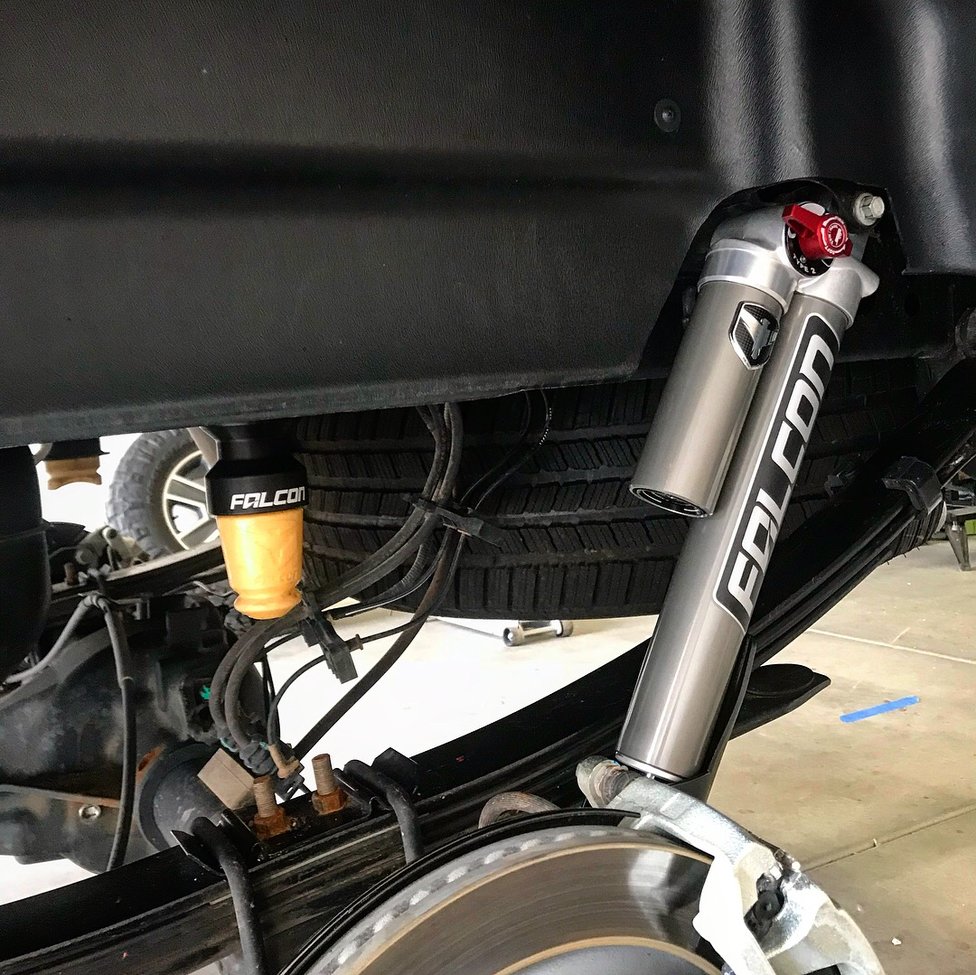

Front leveling shocks w/ multiple snap ring grooves provide a range of height adjustment Rear Piggyback Shocks:
Piggyback design increases oil and gas capacity for reduced heat
Flows 6x more oil than restrictive reservoir hose designs
Eliminates common leakage issues found in banjo and swivel fittings
Fitment Notes from the Manufacturer:
- 2015+ Ford F-150 (13th-gen) – does NOT fit RaptorSpecs:
- Front Level Height: 0-2.25"
- Max Tire Size: 285/70R17
Year | Make | Model | Drive | Position | Lift |
2020 | Ford | F-150 | RWD, 4WD | 0-2.25" | |
2019 | Ford | F-150 | RWD, 4WD | 0-2.25" | |
2018 | Ford | F-150 | RWD, 4WD | 0-2.25" | |
2017 | Ford | F-150 | RWD, 4WD | 0-2.25" | |
2016 | Ford | F-150 | RWD, 4WD | 0-2.25" | |
2015 | Ford | F-150 | RWD, 4WD | 0-2.25" |
