3" Coilover Conversion w/Front Dirt Logic 2.5 Coilovers w/Reservoir Kit w/3" lift
Estimated Delivery in 3-7 business days
3" Coilover Conversion w/Front Dirt Logic 2.5 Coilovers w/Reservoir Kit w/3" lift
Estimated Delivery in 3-7 business days

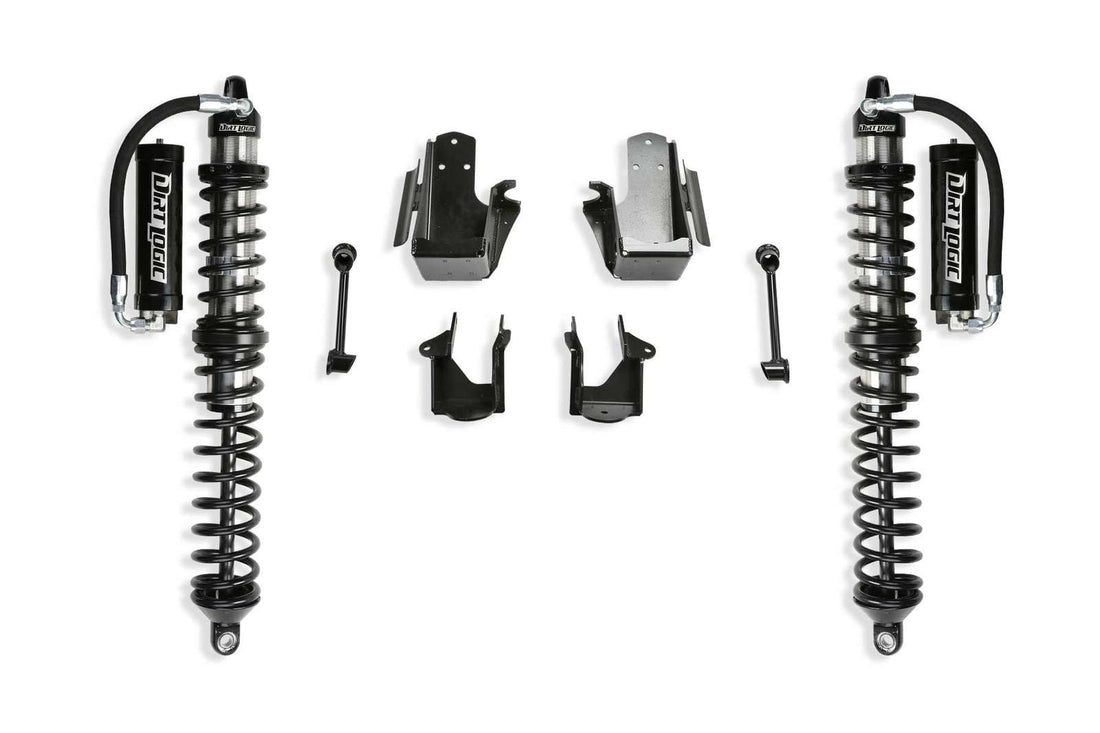

| Part Number | Item | Quantity |
|---|---|---|
| K4151DL | 3" Coilover Conversion w/Front Dirt Logic 2.5 Coilovers w/Reservoir | 1 |
Product Description
NOT APPROVED FOR 2021 APPLICATIONS
Fabtech's 5" Coilover Conversion for Jeep JL provides superior offroad suspension damping with a great highway ride compared to a separate coil spring and shock configuration. The stainless steel Dirt Logic 2.5 Coilover offers a noticeable increase in ride quality and high speed damping that Jeep owners will appreciate.This bolt on system retains the factory Jeep Wrangler coil spring bucket for an easy installation. Heavy duty axle brackets provide clearance for 9" wide wheels with 4.5" back spacing and 13.50" wide tires. This Jeep JL Coilover Conversion will provide 12.50" of wheel travel with valving that is specific to the Jeep for a balanced ride quality.
The Dirt Logic 2.5 Coilover is constructed with a stainless steel body for maximum corrosion resistance and longevity in severe conditions. The billet aluminum reservoir provides heat dissipation to help reduce shock fade for a more consistent ride. All aluminum parts are polished and anodized for a stunning appearance.
This Jeep JL Coilover Conversion has an optional Dirt Logic 2.25 Hydraulic Bump Stop kit for the ultimate in hard core compression damping.
Part Numbers
| Qty | Part # | Description |
|---|---|---|
| 1 | FTS24227 | Coilover Mount Kit |
| 1 | FTS24237 | Front Dirt Logic 2.5 Resi Coilovers |
| Year | Make | Model | Drive | Position | Lift |
| 2024 | Jeep | Wrangler JL | 4WD | 3.0" | |
| 2023 | Jeep | Wrangler JL | 4WD | 3.0" | |
| 2022 | Jeep | Wrangler JL | 4WD | 3.0" | |
| 2021 | Jeep | Wrangler JL | 4WD | 3.0" | |
| 2020 | Jeep | Wrangler JL | 4WD | 3.0" | |
| 2019 | Jeep | Wrangler JL | 4WD | 3.0" | |
| 2018 | Jeep | Wrangler JL | 4WD | 3.0" |
FABTECH LIMITED LIFETIME WARRANTY
Fabtech Motorsports provides a Limited Lifetime Warranty to the original retail purchaser who owns the vehicle, on which the product was originally installed, for defects in workmanship and materials.
The Limited Lifetime Warranty excludes the following Fabtech items; bushings, bump stops, ball joints, tie rod ends, limiting straps, cross shafts, heim joints and driveshafts. These parts are subject to wear and are not considered defective when worn. They are warranted for 60 days from the date of purchase for defects in workmanship.
Dirt Logic and Performance Coilover take apart shocks are considered a serviceable shock with a one year warranty on leakage only. Service seal kits are available separately for future maintenance. All other shocks are covered under our Limited Lifetime Warranty.
Fabtech does not warrant any product for finish, alterations, modifications and/or installation contrary to Fabtech’s instructions. Alterations to the finish of the parts including but not limited to painting, powder coating, plating and/or welding will void all warranties. Some finish damage may occur to parts during shipping, which is considered normal and is not covered under warranty.
