1.75-4" Front Coilover Conversion System - Stage 2 Kit
Estimated Delivery in 3-7 business days
1.75-4" Front Coilover Conversion System - Stage 2 Kit
Estimated Delivery in 3-7 business days
| Part Number | Item | Quantity |
|---|---|---|
| K25022 | 1.75-4" Front Coilover Conversion System - Stage 2 | 1 |
Overview

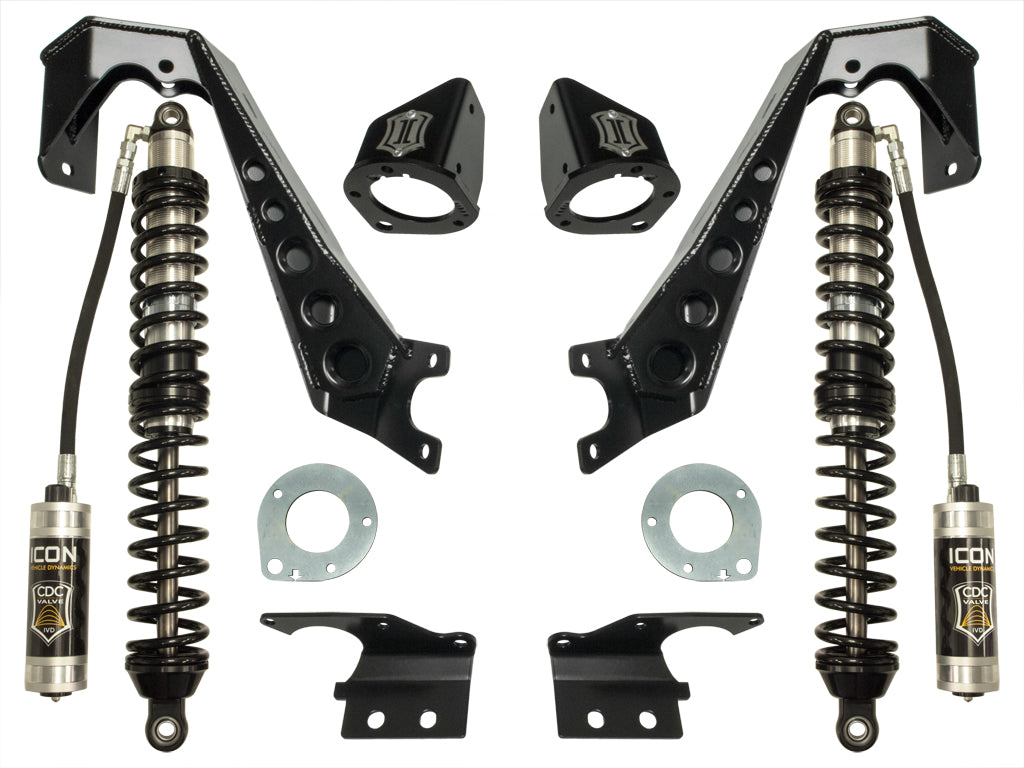

Available as an industry first is the ICON Jeep JK 1.75 - 4" bolt-on Stage 1 coilover conversion system. This system not only offers superior ride quality and performance, but gives you the option to adjust ride height based on how your vehicle is equipped. Included in this system is fabricated front coilover upper & lower mounts, reservoir mounts, 2.0 V.S. Series remote reservoir coilovers with CDCV, and necessary hardware for proper installation. This ICON system was designed from the ground up for improved suspension handling off road, increased wheel travel over stock, and the best ride quality on the market. ICON 2.0 V.S. Series shocks include FK bearings, billet top cap & rod ends, 7/8 shafts, all while increasing the duration of consistent damping over stock regardless of situation. Adjustable ride height, compression damping tuneablility with the turn of an external knob, and secondary spring rate engagement adjustability by the end user makes this kit highly tunable to your personal liking by all skill levels. The ICON JK hydraulic bump stop kit (22019) is also an option that can be installed with the coilover conversion kit adding wheel control for high speed traversing.
Tech Info:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 w/ 4.50" or 4.75" BS / -6mm or 0mm Offset
- Recommended Aftermarket Tires: 33" x 12.50" (Larger 35" tire packages will fit with minor modifications or aftermarket high clearance fenders, test fitment recommended)
- APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
- APPLICATION NOTE #62: FRONT DRIVESHAFT CAN HIT CERTAIN MODEL SKID PLATES AT FULL DROOP AND MAY NEED TO BE TRIMMED FOR FULL ARTICULATION
- APPLICATION NOTE #63: 2012-UP JK MODELS REQUIRE THE USE OF ICON PART #22011 EXHAUST EXTENSION SPACER OR AFTERMARKET DRIVESHAFT PART #22014
- APPLICATION NOTE #65: COILOVER BRACKETS / SHOCKS NOT SOLD SEPERATLY, ONLY SOLD IN COMPLETE KIT FORM AS LISTED.
- Ships In Multiple Boxes
Features & Benefits
- 100% Returnable to stock
- Adjustable ride height from 1.75 - 4" lift
- Adjustable secondary spring rate engagement
- Increased wheel travel over stock
- Vehicle specific tuned shocks w/CDCV to easily adjust compression damping
- Shock geometry improves stability
- Sheet metal front shock mount for maximum clearance & clean look
- Lifetime guarantee that coil springs won't sag
System Components:
- 22003 (QTY: 1) | 07-18 0-4" JK FRONT COILOVER CONVERSION KIT
- 28006C (QTY: 1) | 07-18 JK 1.75-4" FRONT 2.0 VS RR CDCV COILOVER KIT
Installation Instructions & Docs
| Year | Make | Model | Drive | Position | Lift |
| 2018 | Jeep | Wrangler JK | 1.75-4" | ||
| 2017 | Jeep | Wrangler JK | 1.75-4" | ||
| 2016 | Jeep | Wrangler JK | 1.75-4" | ||
| 2015 | Jeep | Wrangler JK | 1.75-4" | ||
| 2014 | Jeep | Wrangler JK | 1.75-4" | ||
| 2013 | Jeep | Wrangler JK | 1.75-4" | ||
| 2012 | Jeep | Wrangler JK | 1.75-4" | ||
| 2011 | Jeep | Wrangler JK | 1.75-4" | ||
| 2010 | Jeep | Wrangler JK | 1.75-4" | ||
| 2009 | Jeep | Wrangler JK | 1.75-4" | ||
| 2008 | Jeep | Wrangler JK | 1.75-4" | ||
| 2007 | Jeep | Wrangler JK | 1.75-4" |
