2.5" Suspension System - Stage 5 Kit
Estimated Delivery in 3-7 business days
2.5" Suspension System - Stage 5 Kit
Estimated Delivery in 3-7 business days
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| K22015 | 2.5" Lift | Front and Rear | 2.5" Suspension System - Stage 5 | 1 |
Overview
Through an accelerated testing process dubbed the "ICON1K" R&D program, ICON has logged over a thousand miles in the dirt pushing the JL to off-road extremes to identify limiting factors in OE components, develop products that remove these limits, and further extrapolate performance out of this vehicle. This 2.5" suspension system has been tweaked, tuned, and revised several times over the course of this ICON1K testing in an effort to provide unparalleled ride quality and vehicle dynamics for everything from rock crawling to high-speed desert running.

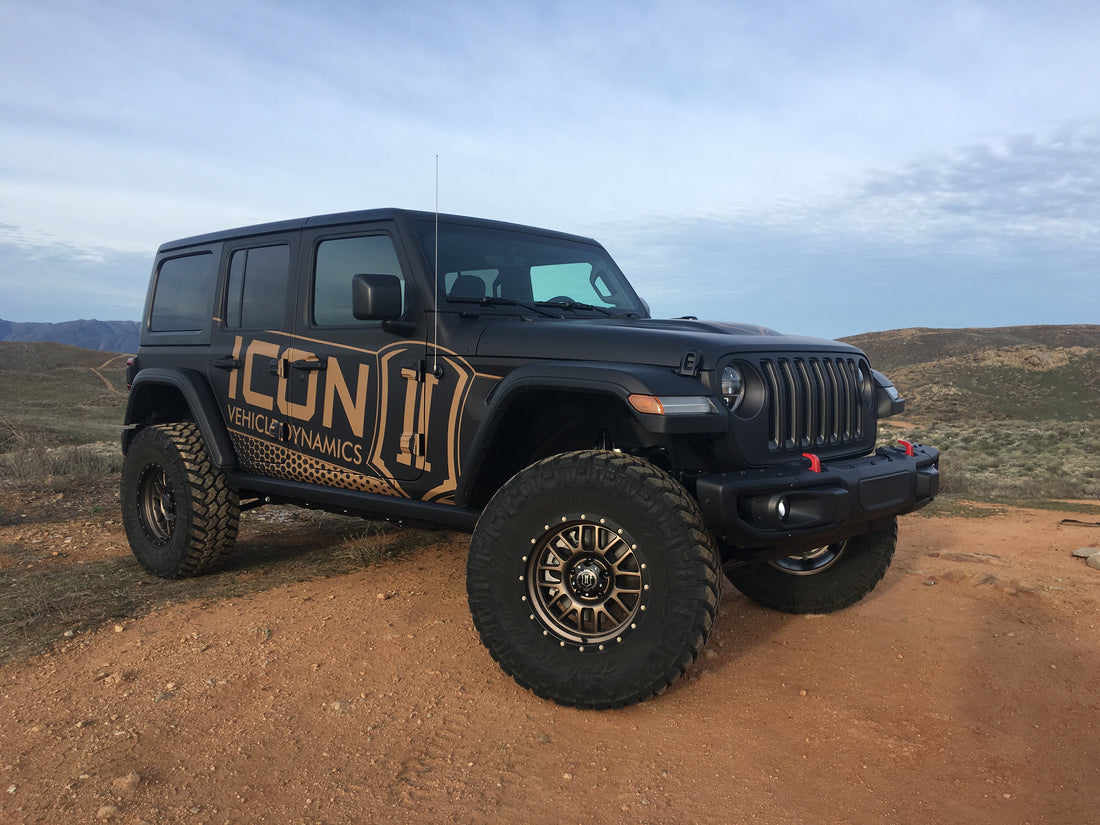

The ICON Vehicle Dynamics Stage 5 2.5" Suspension System for the 2018-UP Jeep Wrangler JL is designed for the driver looking to drastically improve the performance and ride quality of their vehicle. This Stage 5 system includes 2.5" lift dual rate coil springs, upgraded 2.5 Series shocks with vehicle specific valving, tubular steel front lower links, adjustable front and rear track bars, bump stop spacers, sway bar links, and all necessary hardware to complete the installation. With this combination of components, ICON was able to increase wheel travel numbers by over 30% (3" front, 2" rear), redefining the potential of the 2018-UP JL. The front lower links included with this system are constructed from thick wall steel tubing, provide increased castor numbers, and feature dual durometer bushings for noise free operation, maximum articulation, and minimal bind. The Stage 5 system allows for fitment of 35" tires when used with ICON'ecommended wheel specifications. For users looking to install 37" tires, an optional bump stop spacer kit (PN: 22029) is available.
Holistic Engineering - the ICON Difference: When developing suspension components for a new vehicle, ICON takes a different approach than many others. Rather than focusing in on one particular part, ICON engineers look at the vehicle as a whole, identify inherent strengths and weaknesses, and set a target for performance. With a focus on maximizing wheel travel and improving ride quality, ICON will develop components that address (and often times replace) OE limiting factors. This "holistic engineering" philosophy often results in the development of several parts designed to work together as a system to provide a balanced on and off-road performance upgrade. Because ICON is designing and manufacturing all of the components necessary to improve the performance of a vehicle from front to back, end-users can rest easy knowing they are dealing with ONE manufacturer, ONE standard of quality, and ONE awesome warranty to back it all up.
Tech Info:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 w/ 4.75" BS / 0mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit PN: 22029)
- APPLICATION NOTE #30: AN ADJUSTABLE TRACK BAR MAY BE NEEDED TO REALIGN THE AXLE FROM LEFT TO RIGHT, OR TO ADD ADDITIONAL STRENGTH
- APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
- APPLICATION NOTE #66: 2 DOOR MODELS SIT SLIGHTLY HIGHER THAN 4 DOOR MODELS BUT REMAIN LEVEL WHEN INSTALLED
- APPLICATION NOTE #120: RECOMMENDED WHEEL AND TIRE FITMENT BASED ON JL RUBICON TRIM
- Ships In Multiple Boxes
Features & Benefits
- 2.5" lift height
- Fits 35" tires (37" with optional bump stop spacer kit PN: 22029)
- 3" front, 2" rear increase in wheel travel
- Improves on and off-road ride quality over stock
- Dual rate coil springs with lifetime guarantee against sagging/breakage
- 2.5 Series shocks with vehicle specific valving
- Tubular steel link arms with dual durometer bushings for noise free performance, maximum articulation, and minimal bind
- 100% bolt-on system makes for an easy install
- ICON 1K tested under rigorous off-road conditions to validate tune, performance, strength, and durability

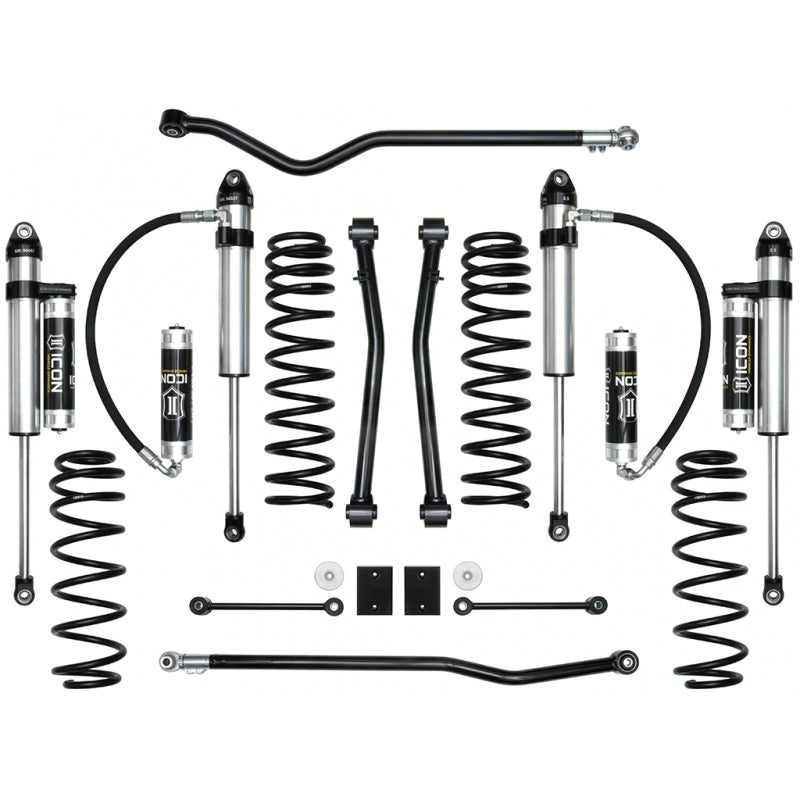

System Components:
- 22026 (QTY: 1) | 18-UP JL 2.5" REAR DUAL RATE SPRING KIT
- 22025 (QTY: 1) | 18-UP JL 2.5" FRONT DUAL RATE SPRING KIT
- 22027 (QTY: 1) | 18-UP JL FRONT ADJ TRACK BAR KIT
- 22021 (QTY: 1) | 18-UP JL FRONT FIXED LOWER LINK KIT
- 22028 (QTY: 1) | 18-UP JL REAR ADJ TRACK BAR KIT
- 27821P (QTY: 1) | 18-UP JL 2.5" FRONT 2.5 VS RR PAIR
- 27726P (QTY: 1) | 18-UP JL 2.5" REAR 2.5 VS PB PAIR
Installation Instructions & Docs
| Year | Make | Model | Drive | Position | Lift |
| 2024 | Jeep | Wrangler JL | RWD, 4WD | 2.5" | |
| 2023 | Jeep | Wrangler JL | RWD, 4WD | 2.5" | |
| 2022 | Jeep | Wrangler JL | RWD, 4WD | 2.5" | |
| 2021 | Jeep | Wrangler JL | RWD, 4WD | 2.5" | |
| 2020 | Jeep | Wrangler JL | RWD, 4WD | 2.5" | |
| 2019 | Jeep | Wrangler JL | RWD, 4WD | 2.5" | |
| 2018 | Jeep | Wrangler JL | RWD, 4WD | 2.5" |
