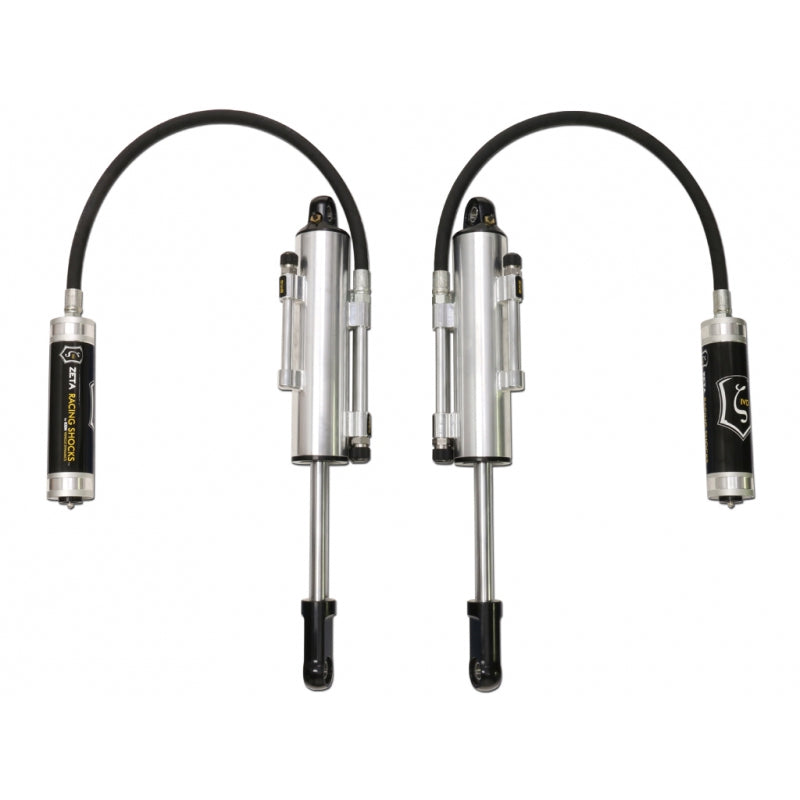

3.0 Front Remote Reservoir Secondary Bypass Shocks Pair w/1-3" lift
Estimated Delivery in 3-7 business days
3.0 Front Remote Reservoir Secondary Bypass Shocks Pair w/1-3" lift
Estimated Delivery in 3-7 business days
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 95005 | 1-3" Lift | Front | Shock Absorber | 1 |
Overview
For high performance Ford Raptor suspension components, ICON Vehicle Dynamics is an industry leader. With our 3.0 coil-overs and bypasses, billet aluminum upper control arms, and bolt-on rear bumpstop system, drivers of ICON-equipped Ford Raptors are able to push their vehicles to a whole new level. It is this level of off-road abuse that prompted ICON to develop a 3.0 Secondary Bypass shock that is engineered to work perfectly with the Camburg Performance Dual Shock Lower Control Arm kit. The addition of this 3.0 Secondary Bypass means rougher terrain and larger off-road obstacles can be overcome with speed and confidence. With the turn of a knob, the compression and rebound damping of these shocks can be tuned to perfectly compliment the rest of ICON'aptor suspension products for an unparalleled level of on and off-road performance.
The ICON Ford SVT Raptor Secondary Front Shocks are a three tube External Bypass shock with remote reservoir. These are far from the norm when compared to a traditional bypass shock you see on Trophy Trucks and other off-road race vehicles. Each bypass valve has a specific port design and individually equipped with a different spring rate to ensure proper performance at each zone of shock travel. These same bypass valves feature damped valve seats for quiet and precise operation. That means no clicking noises as you hit bumps or road chatter driving down the road. The biggest difference in these shocks versus an industry standard bypass shock, are the "Easy-to-Adjust" knobs and the replaceable bypass tubes. The "Easy to Adjust" Hi Resolution Clicker Knobs do not require any tools for adjustment, and can be adjusted in seconds for thedemand of the terrain you will be facing. Another unique feature of this shock is the replaceable bypass tubes that can be swapped out during a standard rebuild if any damage were to occur, where a normal bypass shock body would need to be completely replaced, saving you hundreds of dollars.
Features & Benefits
- Further increases front damping ability of the Raptor in off-road conditions
- East-to-adjust bypass knobs allow for quick changes to shock without the use of tools
- Hydraulically damped bypass valve seats are engineered to attenuate the loud bypass clicking noise transferred to the cab that is common with other brands.
- High resolution bypass valves designed for noticeable fine-tuning of rebound and compression damping
- Digressive rebound on main piston in conjunction with calibrated external rebound valve preload facilitates good low-speed characteristics. This is in contrast to most bypass shocks that are designed primarily for high-speed use only.
- Compact bypass tube design allows ICON to fit 3 bypass tubes where others could only fit 2, allowing for more adjustability of the shock
- Compact tube block design keeps bypass tubes close to the body, providing maximum clearance from tires and other suspension components
- Replaceable bypass tubes can easily slide into position in case of damage
- Multi Stage Cad Plated Finish with Polished and Anodized Top Cap / Rod Ends
Installation Instructions & Docs
| Year | Make | Model | Drive | Position | Lift |
| 2014 | Ford | F-150 | 1-3" | ||
| 2013 | Ford | F-150 | 1-3" | ||
| 2012 | Ford | F-150 | 1-3" | ||
| 2011 | Ford | F-150 | 1-3" | ||
| 2010 | Ford | F-150 | 1-3" |
ICON VEHICLE DYNAMICS LIMITED LIFETIME WARRANTY
If a shock is inspected and it has been determined the shock failed due to neglect, damage caused by improper installation or any other reason besides "normal wear and tear", the owner of said shock is responsible for all service costs. ICON Vehicle Dynamics warrants to the original retail purchaser who owns the vehicle on which the product was originally installed. ICON Vehicle Dynamics does not warrant the product for finish, alterations, modifications and/or installation contrary to ICON Vehicle Dynamics instructions.
ICON Vehicle Dynamics products are not designed, nor are they intended to be installed on vehicles used in race applications, for racing purposes or for similar activities. (A "race" is defined as any contest between two or more vehicles, or a contest of one or more vehicles against the clock, whether or not such contest is for a prize). This warranty does not include coverage for police or taxi vehicles, race vehicles, or vehicles used for government or commercial purposes. Also excluded from this warranty are sales outside of the United States of America and Canada.
ICON Vehicle Dynamics' obligation under this warranty is limited to the repair or replacement, at ICON Vehicle Dynamics' discretion, of the defective product. Any and all costs of removal, installation or re-installation, freight charges and incidental or consequential damages are expressly excluded from this warranty. Items that are subject to wear are not considered defective when worn and are not covered. ICON Vehicle Dynamics components must be installed as a complete kit as shown in our current application guide. Any substitutions or exemptions of required components will immediately void the warranty. This warranty is expressly in lieu of all other warranties expressed or implied. This warranty shall not apply to any product that has been improperly installed, modified or customized subject to accident, negligence, abuse or misuse.
SHOCK ABSORBER WARRANTY
ICON Vehicle Dynamics warrants to the original retail purchaser who owns the vehicle on which the product was originally installed. ICON Vehicle Dynamics does not warrant the product for finish, alterations, modifications and/or installation contrary to ICON Vehicle Dynamics instructions. ICON Vehicle Dynamics products are not designed, nor are they intended to be installed on vehicles used in race applications, for racing purposes or for similar activities. (A "race" is defined as any contest between two or more vehicles, or a contest of one or more vehicles against the clock, whether or not such contest is for a prize).
This warranty does not include coverage for police or taxi vehicles, race vehicles, or vehicles used for government or commercial purposes. Also excluded from this warranty are sales outside of the United States of America and Canada. ICON Vehicle Dynamics' obligation under this warranty is limited to the repair or replacement, at ICON Vehicle Dynamics' discretion, of the defective product. Any and all costs of removal, installation or re-installation, freight charges and incidental or consequential damages are expressly excluded from this warranty. Items that are subject to wear are not considered defective when worn and are not covered.
ICON Vehicle Dynamics components must be installed as a complete kit as shown in our current application guide. Any substitutions or exemptions of required components will immediately void the warranty. This warranty is expressly in lieu of all other warranties expressed or implied. This warranty shall not apply to any product that has been improperly installed, modified or customized subject to accident, negligence, abuse or misuse.
